TRENDnet User’s Guide

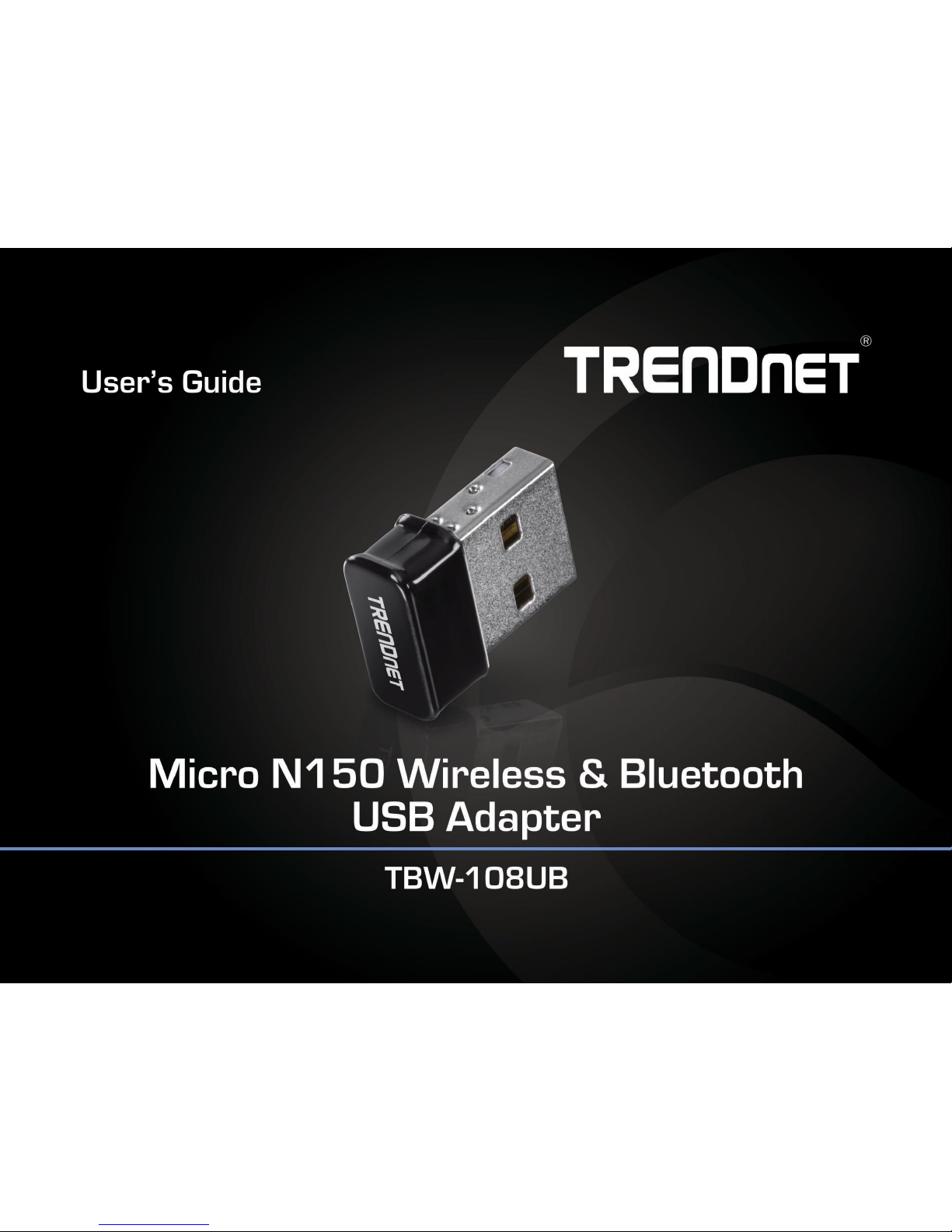

Cover Page

TRENDnet User’s Guide

Table of Contents

Contents

Product Overview............................................................................ 1

Package Contents........................................................................................................1

Features......................................................................................................................1

Installing your Wireless N150 Adapter............................................. 2

Windows® OS Installation ...........................................................................................2

Mac® OS Installation ...................................................................................................6

Connect to your wireless network using WPS .................................. 7

Windows® OS..............................................................................................................7

WPS connection using the built in utility (Virtual Push Button) ...............................7

Mac® OS .....................................................................................................................9

WPS connection using the built in utility (Virtual Push Button) ...............................9

Installing your Wireless Bluetooth Adapter.................................... 10

Windows® OS Installation .........................................................................................10

Using your Bluetooth Devices ........................................................ 13

Bluetooth Security ....................................................................................................13

Pairing your Bluetooth Devices .................................................................................13

Technical Specifications................................................................. 15

Troubleshooting ............................................................................ 16

Appendix ....................................................................................... 17

TRENDnet User’s Guide

TBW-108UB

Product Overview

TBW-108UB

Package Contents

The package includes:

TBW-108UB

Quick Installation Guide

CD-ROM (Drivers and User’s Guide)

If any package contents are missing or damaged, please contact the retail store, online

retailer, or reseller/distributor that the item was purchased.

Features

TRENDnet’s Micro N150 Wireless & Bluetooth USB Adapter, model TBW-108UB, and

simultaneously provides Bluetooth and WiFi connections, allowing you to concurrently

connect to a WiFi network and Bluetooth devices. Conveniently download music,

videos, and pictures from a wireless internet connection, and then transfer those same

files seamlessly to your Bluetooth enabled phone. Enjoy wireless N performance in an

ultra-compact design.

Easy Setup

Quick and easy installation with intuitive guided setup

Ultra-Compact Design

Ultra-compact design that extends less than three eighths of an inch (9mm) from the

edge of a computer.

N150 WiFi

Connect your computer to 150Mbps WiFi N network to browse, download, play, and

stream.

Wireless Encryption

Supports up to WPA2 WiFi encryption

Energy Efficient

Bluetooth Low Energy (BLE) protocol support

Stereo Audio

Experience stereo audio with Advanced Audio Distribution Profile (A2DP) support

Bluetooth Device Compatibility

Backward compatible with legacy Bluetooth® devices.

TRENDnet User’s Guide

TBW-108UB

Installing your Wireless N150 Adapter

This section describes how to install the software driver for the wireless adapter.

Windows® OS Installation

Supported operating systems: Windows® 10, 8.1, 8, 7, Vista, XP

For any updates, please check the TRENDnet website www.trendnet.com.

1. Insert the included CD-ROM into your computer’s CD-ROM drive.

Note: If you do not have the included CD-ROM, you can download the drivers from

http://www.trendnet.com/support/.

2. At the CD Autorun Prompt window, click Run Autorun.exe.

Note: If the Autorun prompt does not appear automatically, open the CD contents and

double-click Autorun.exe.

3. At the CD-ROM main menu, click Install WiFi Driver.

Note: During the installation, you might see these warning message, please select

continue anyway to install the software.

(Windows 10)

TRENDnet User’s Guide

TBW-108UB

4. Select a language preference from the options provided.

5. Follow the InstallShield Wizard Instructions.

6. You will be prompted to accept the end user license agreement. Select I accept

the terms of the license agreement and click Next.

7. Wait for the driver installation to complete. This may take a few minutes.

Note: If you do not receive a security prompt, continue to the next step. If prompted,

click Install this driver software anyway.

TRENDnet User’s Guide

TBW-108UB

8. Click Finish to restart the computer.

Note: After clicking the Finish button, the Bluetooth driver will automatically begin

installation. The computer will restart automatically after the Bluetooth driver

installation is complete.

9. After the computer is rebooted, plug the Wireless N150 / Bluetooth USB

Adapter into an available USB slot on your computer.

Link/Activity LED

LED On

When the LED is on, the network adapter has been

successfully installed.

LED Off

When the LED is off, the network adapter has not been

correctly installed.

10. Click on the wireless icon in the taskbar located in the bottom right corner.

TRENDnet User’s Guide

TBW-108UB

11. Click on the wireless network you would like to connect and click Connect.

12. Enter the WiFi Key (password) and click Next.

13. The status will display “Connected” to indicate a successful connection.

Note: If the connected message does not display, double check your WiFi key (password)

and re-enter it.

TRENDnet User’s Guide

TBW-108UB

Mac® OS Installation

Supported operating systems: Mac® OS 10.12 –10.9

1. Go to http://www.trendnet.com/support/ to download the latest driver and double

click to extract the files or you can access the files on the included CD. The Mac OS

driver can also be found by accessing the CD’s content files.

Note: Mini CD’s can only be read by an optical tray. Using an optical slot can damage

your computer

2. After you have extracted the files, double click the Installer.pkg file and follow the

steps.

3. After you have completed the steps, you will be prompted to Restart your

computer.

4. After your computer has restarted, click on the wireless icon located in the

menu bar at the top of your screen.

TRENDnet User’s Guide

TBW-108UB

5. Select your wireless network.

6. Enter the Wi-Fi key (Password) and click Join.

7. After you have successfully connected to your network the icon at the menu bar will

change to the signal strength you have.

Note: If the connected message does not display, double check your Wi-Fi Key

(Password) and re-enter it.

Connect to your wireless network using WPS

WPS (Wi-Fi Protected Setup) is a feature that makes it easy to connect devices to your

wireless network. If your wireless router/access point supports WPS, you can use this

feature to easily connect wireless devices to your network.

Note: You can typically find out if you if your wireless router/access point supports WPS

just by looking at the physical device. There should be a WPS push button located on the

exterior casing of the device, if not, your device may not support WPS or you may need

to reference your device documentation as to how WPS can be initiated on the device. If

your device does not have an identifiable WPS push button on the exterior location, we

would recommend using the standard connection method on the previous page.

Windows® OS

WPS connection using the built in utility (Virtual Push Button)

1. Click the WiFi icon in the system tray to scan for available wireless networks.

TRENDnet User’s Guide

TBW-108UB

2. Click the network you would like to connect. Leave this window open.

3. On your wireless router/access point, push the WPS button.

Note: Typically, the WPS button hold time is 3-5 sec., then release. For TRENDnet

routers/access points, the WPS hardware push button hold time is 3 seconds. If you are

using another brand device, you may need to refer to your device documentation for

WPS operation.

4. The status will display “Connected” to indicate a successful connection.

Note: If the connected message does not display, double check your WiFi key (password)

and re-enter it.

Note: If the WPS process fails, you will receive not receive a message “Connected”. You

may need to attempt the WPS process again. Please refer to your wireless router/access

point documentation regarding the operation of WPS.
