TRENDnet TEW-726EC Bedienungsanleitung

TRENDnet User’s Guide Cover Page

TRENDnet User’s Guide Table of Contents

Contents

Product Overview ...........................................................................1

Package Contents .......................................................................................................... 1

Features ......................................................................................................................... 1

Product Hardware Features........................................................................................... 2

System Requirements.................................................................................................... 2

Application Diagram ...................................................................................................... 2

Installing your Wireless Adapter......................................................3

Software Installation...................................................................................................... 3

Hardware Installation .................................................................................................... 5

Using the Wireless Utility ................................................................6

Wireless Utility Overview .............................................................................................. 7

Connect to your wireless network............................................................................... 11

Connect to your wireless network using WPS ............................................................. 12

Create or modify wireless network profiles ................................................................ 15

Technical Specifications.................................................................17

Troubleshooting............................................................................18

Appendix ......................................................................................19

TRENDnet User’s Guide TEW-726EC

Product Overview

TEW-726EC

Package Contents

In addition to your wireless adapter, the package includes:

•CD-ROM (Utility & Drivers)

•Multi-Language Quick Installation Guide

•Standard and Low Profile Brackets

If any package contents are missing or damaged, please contact the retail store, online

retailer, or reseller/distributor from which the product was purchased.

Features

TRENDnet’s N600 Wireless Dual Band PCIe Adapter, model TEW-726EC, upgrades a

desktop computer to proven 300 Mbps dual band wireless speed and coverage.

Quickly connect to a common 2.4 GHz or a less congested 5 GHz wireless network to

seamlessly stream HD video and surf the internet. Advanced WPA and WPA2 encryption

protects your wireless network.

Multiple Input Multiple Output (MIMO) antenna technology increases wireless coverage

and signal strength. WMM® Quality of Service (QoS) technology prioritizes gaming,

Internet calls, and video streams.

•Wi-Fi compliant with IEEE 802.11n standard (dual band 802.11n 2.4 GHz or 5

GHz connection)

•Backwards compatible with IEEE 802.11g, IEEE 802.11b, and IEEE 802.11a

networks

•Detachable antennas

•Low profile bracket included

•LED activity indicator

•PCI Express interface

•Multiple Input Multiple Output (MIMO) antenna technology

•Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization

•Supports Infrastructure mode via Access Point and ad-hoc network via peer to

peer communication

•Maximum reliability, throughput, and connectivity with Automatic Data Rate

Switching

•Supports advanced wireless encryption up to WPA2-RADIUS

•Compatible with Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32-bit), and XP

(32/64-bit) operating systems

•Easy user setup & diagnostic utilities

•Coverage of up to 100 meters indoor (330 feet) and 300 meters outdoor (980

feet) *

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual

data throughput and coverage will vary depending on interference, network traffic, building

materials and other conditions.

TRENDnet User’s Guide TEW-726EC

Product Hardware Features

•Detachable antennas – The external 2dBi antennas can be attached/detached to

the reverse SMA connectors located on the PCIe adapter.

•Activity LED Indicator -This LED turns solid when a wireless connection is

established and blinks during wireless data transmission. The LED will blink every 10

sec. when disconnected. If WPS (Wi-Fi Protected Setup) is activated using the

included utility, the LED will blink rapidly.

•Low Profile Bracket – In addition to the standard PCI bracket, a low profile PCI

bracket is included to allow installation of this adapter into computer cases that

only accept the size of low profile PCI cards instead the standard larger PCI size.

System Requirements

•Windows 8 (32/64-bit), Windows 7 (32/64-bit), Vista (32-bit), or XP (32/64-bit)

•Available PCIe (PCI Express x1) slot

•CD-ROM Drive (Driver & Utility Installation with included CD)

Installing the low profile bracket

Using a Philips screwdriver (not included), remove the 2 screws in the PCIe card holding

the bracket in place by turning the screws counter clockwise and remove the standard

size bracket. Once the standard size bracket is removed, attach the low profile bracket.

Using a Philips screwdriver, secure the bracket to the card by driving the 2 screws into

the slots where they were removed before by turning them clockwise until tightened.

Once the bracket is secured, the antennas can be reattached.

Application Diagram

Each desktop computer has the wireless dual band PCIe adapter installed. One desktop

computer wirelessly connected to the dual band router using the common 2.4GHz band

and another computer wirelessly connected to the dual band router using the less-

congested 5GHz band.

Detachable antennas Low Profile Bracket

Activity LED

Standard Bracket

PCI Express x1 Interface

TRENDnet User’s Guide TEW-726EC

Installing your Wireless Adapter

This section describes how to install the software driver and utility for the wireless

adapter.

Software Installation

1. Insert the included CD-ROM into your computer’s CD-ROM drive.

2. At the CD Autorun Prompt window, click Run Autorun.exe.

Note: If the Autorun prompt does not appear automatically, open the CD contents

and double-click Autorun.exe.

3. At the CD-ROM main menu, click Install Drivers & Utility.

4. At the installation window, click Next.

5. You will be prompted to accept the end user license agreement. Select I accept the

terms of the license agreement and click Next.

TRENDnet User’s Guide TEW-726EC

6. At the Install Location window, click Next.

7. Wait for the utility and drivers installation to complete.

8. You may receive a security prompt about the publisher of the driver software. If

prompted, click Install this driver software anyway.

Note: If you do not receive a security prompt, continue to the next step.

9. After the process is completed, click Finish.

TRENDnet User’s Guide TEW-726EC

Hardware Installation

1. Shut down your computer.

Note: Shutdown menu option may vary in appearance depending on your operating

system.

2. Open your computer case and insert the wireless dual band PCIe card into an

available PCI Express slot. Once installed, attached the antennas to PCIe card.

3. Close the computer case, and turn on your computer.

4. Locate and double click the TRENDnet Wireless Utility icon.

TRENDnet User’s Guide TEW-726EC

Using the Wireless Utility

Upon completing the software installation, a desktop shortcut is automatically created.

After installation, the software utility will start and open up automatically. If the utility does not start and open up automatically, double-click the desktop icon to start the utility.

When the utility is started, you will the following icon in your system tray in the bottom right corner of the screen.

You can right-click the system tray icon for additional options.

•Preferred WLANs – This option allows to you easily connect to networks you have already connected to prior which are saved in the Profile Management window (Page 8).

•Available Networks – This option will open up the utility and bring you to the Available Networks window (Page 7).

•Exit – This option will close the utility and terminate the application. The application will no longer be running and accessible from your system tray. You will have to restart the

application manually by double-clicking the Desktop icon.

TRENDnet User’s Guide TEW-726EC

Wireless Utility Overview

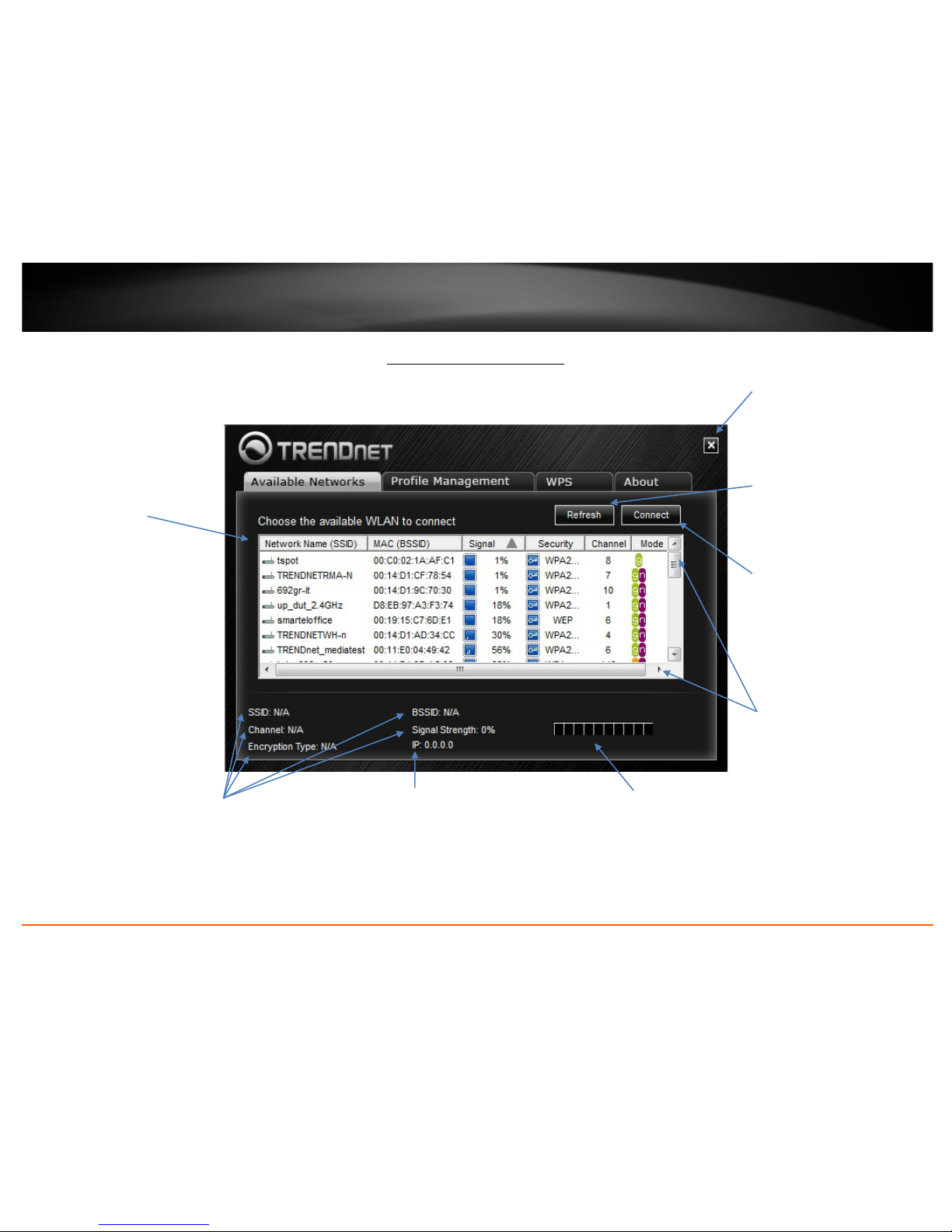

Available Networks Window

This window allows you to discover and connect to available wireless networks.

Refresh

If you do not find your wireless

network in the available networks

list, click Refresh to rescan for

available wireless networks.

Connect

After selecting the wireless network

in the available networks list, you

can click Connect to connect to the

network or simply double-click the

network in the list. If the wireless

network has security enabled, you

b t d t t

To close the utility, click Close. This

does not terminate the wireless

utility application and can still be

accessed through the system tray

or desktop icons.

Available Networks List

This window displays a list of the

available wireless networks found

by your wireless adapter. In

addition to displaying the wireless

network name (SSID, the list will

display additional information about

the network such as MAC address

(BSSID), signal strength percentage,

security type, channel, and mode

(a,b,g,n).

Note: Since this adapter has dual-

band capability, available wireless

network found on both the 2.4GHz

band and 5GHz band will be

displayed in the list.

SSID, Channel, Encryption Type, BSSID,

Signal Strength

This will display the wireless network

name (SSID), channel, and

security/encryption type, MAC address

(BSSID), and Signal Strength of the

wireless network you are currently

connected.

This will display the IP address of your

wireless adapter assigned by the

wireless network you are currently

connected. Typically, the IP address is

automatically assigned to your wireless

adapter by the wireless network upon

successful connection.

Signal Strength/Link Quality

The bars provide a graphical

representation of the general signal

strength and link connectivity to the

wireless network you are currently

connected.

Vertical/Horizontal Scroll

You can click the arrows or click and

drag the slider, to display more

available networks or information.

TRENDnet User’s Guide TEW-726EC

Wireless Utility Overview

Profile Management Window

This window allows you to create and edit preconfigured wireless network profiles. You can create and manage the created profiles for home, work or public areas.

Wireless Network Profile Order

The buttons allow you to set the priority

order in which to connect to your

network profiles, top entry being first.

If you lose connectivity to a currently

connected network, the wireless

adapter will automatically attempt to

connect to network profiles defined in

the list in order starting from the top. If

the network in the first profile is

unavailable after an undefined number

of retries, then the adapter will move on

to the next profile defined.

Wireless Network Profile List

When connecting to available networks,

they are automatically saved to the

profile list.

New

This allows you to

manually add a

new wireless

network profile to

the list.

Properties

This allows you to

modify the settings of

an existing wireless

network profile such as

security settings. You

must first select an

existing profile in the

list to modify.

Remove

This allows you to

remove an existing

wireless network profile

in the list. You must first

select an existing profile

in the list to remove.

Connect

This allows you to

manually connect to an

existing wireless network

profile in the list

regardless of the order

set. You must first select

an existing profile in the

list to connect.

Information

This section displays general

information about the selected wireless

network profile. You must first select an

existing profile in the list to view any

information.

Andere Handbücher für TEW-726EC

Inhaltsverzeichnis

Andere TRENDnet Adapter Handbücher

TRENDnet

TRENDnet TPL-307E Bedienungsanleitung

TRENDnet

TRENDnet TEW-504UB Bedienungsanleitung

TRENDnet

TRENDnet TPL-310AP Bedienungsanleitung

TRENDnet

TRENDnet HotFlash TEW-429UF Bedienungsanleitung

TRENDnet

TRENDnet TEW-806UBH Bedienungsanleitung

TRENDnet

TRENDnet TEW-204UB Bedienungsanleitung

TRENDnet

TRENDnet TBW-103UB Bedienungsanleitung

TRENDnet

TRENDnet TEW-646UBH Bedienungsanleitung

TRENDnet

TRENDnet TEW-649UB - Mini Wireless N Speed USB 2.0... Bedienungsanleitung

TRENDnet

TRENDnet TU2-ETG Bedienungsanleitung

TRENDnet

TRENDnet TEW-687GA Bedienungsanleitung

TRENDnet

TRENDnet TBW 106 Bedienungsanleitung

TRENDnet

TRENDnet TEW-684UB - Bedienungsanleitung

TRENDnet

TRENDnet TEW-644UB Bedienungsanleitung

TRENDnet

TRENDnet TU2-ET100 Bedienungsanleitung

TRENDnet

TRENDnet TEW-424UB Bedienungsanleitung

TRENDnet

TRENDnet TU2-ET100 Bedienungsanleitung

TRENDnet

TRENDnet TEW-649UB - Mini Wireless N Speed USB 2.0... Bedienungsanleitung

TRENDnet

TRENDnet TU3-ETG Bedienungsanleitung

TRENDnet

TRENDnet TU2-ETG Bedienungsanleitung

TRENDnet

TRENDnet TEW-429UB Bedienungsanleitung

TRENDnet

TRENDnet HotFlash TEW-429UF Bedienungsanleitung

TRENDnet

TRENDnet TEG-PCITX2 Bedienungsanleitung

TRENDnet

TRENDnet TEW-648UB - 150Mbps Mini Wireless N USB 2.0... Bedienungsanleitung

Beliebte Adapter Handbücher anderer Marken

PCB Piezotronics

PCB Piezotronics 090B274 Bedienungsanleitung

Auvidea

Auvidea J20 Produkthandbuch

Gossen MetraWatt

Gossen MetraWatt AT3-III E Bedienungsanleitung

Akribis

Akribis ITF-21-BISS-MIT Bedienungsanleitung

Tenda

Tenda W54U Bedienungsanleitung

ROHO

ROHO AGILITY Bedienungsanleitung

PROLiNK

PROLiNK WN2001 Bedienungsanleitung

Hawking

Hawking HUF2 Bedienungsanleitung

Airlink101

Airlink101 AWLC4030 Bedienungsanleitung

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Bedienungsanleitung

Philips

Philips SWA4554S/10 Bedienungsanleitung

JVC

JVC TS-C9D2B Gebrauchsanweisung

NETGEAR

NETGEAR A6100 Bedienungsanleitung

D-Link

D-Link DWA-121 Bedienungsanleitung

Philips

Philips SWA2037 Bedienungsanleitung

Basalte

Basalte 0610-20 Bedienungsanleitung

Yealink

Yealink EHS40 Bedienungsanleitung

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Bedienungsanleitung
