TRENDnet TU-ET100plus Bedienungsanleitung

M73-APO08-430

USB

10/100M

FAST ETHERNET

Quick Installation Guide

REGULATORY STATEMENTS

FCC Certification

Part15, Class B

The United States Federal Communication Commission

(FCC) and the Canadian Department of Communications

have established certain rules governing the use of electronic

equipment.

FCC Part 15 Registration

This device complies with Part 15 of FCC rules. Operation is

subject to the following two conditions:

1. This device may not cause harmful interface, and

2. This device must accept any interface received,

including interface that may cause undesired operation.

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy,

and if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio

or television reception, which can be determined by

turning off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

?Reorient or relocate the receiving antenna.

?Increase the distance between the equipment and

receiver.

?Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

-1-

INTRODUCTIONS

The USB 10/100M Fast Ethernet Adapter

provides out-off-box plug-and-play local area

network connections for USB-enabled PCs,

notebooks and laptops. This adapter uses a A

type USB port to connect withthe USB host, and

an RJ-45 port to connect with a 10/100 Fast

Ethernet LAN link. Installation is easy and no

external power is required! The network sharing

is easier than ever.

Specifications

Network standard

?? IEEE 802.3 for 10BaseT

?? IEEE 802.3u for 100BaseTX

Data Rate

?? 10/100 Mbps1

?? Double data transfer rate in full duplex

mode

Supported operating systems

?? Windows 98/2000/ME/XP

Physical

?? Ports: 1 RJ-45, 1 USB A-Plug

?? LED indicators: Link/Act, 10/100

?? Dimensions: 75.9 x 37.8 x 21.66 (mm)

(LxWxH)

1CAT5 cable is required for 100M data transfer rate

-2-

Parts Names and Functions

?USB Connection Cable: connects the USB

host port to the USB 10/100M Fast Ethernet

Adapter.

?USB Fast Ethernet Adapter

?10/100 LED indicator: glows amber when

100M Network is linked; when it dims, it

means the 10M Network is linked.

?Link/Act LED indicator: glows green when it

is linked; blinks green when the Fast Ethernet

Adapter is transmitting/receiving data.

??Network Port: connects the Fast Ethernet

Adapter to the HUB with the LAN cable.

-3-

INSTALLATION

Precaution

Before the installation, make sure the USB port

exists in your computer and is enabled. To check

this, go to My Computer?Control

Panel?System. Open the Device Manager tab.

If the Universal Serial Bus controller device is

found, it means your USB port is installed and

enabled. If not, either no USB port is installed or

the USB bios is not properly enabled. In this

case, consult your computer dealer for USB

support.

Getting Hooked Up

1. Locate the USB host port of your system.

Align the USB connector toward the USB host

port, push evenly and steadily until it is seated.

-4-

2. Connect the UTP cable to the Fast Ethernet

Adapter.

3. Connect the other end to a Hub.

-5-

SOFTWARE INSTALLATION

Installation for Windows 98

1. Once the device is properly connected to

your computer, Windows 98 will

automatically detect the new hardware

device. Perform the following procedures

for installing the device driver.

2. Insert the device driver disk into your

floppy drive. When the above figure

appears, click Next.

-6-

3. The installation program will proceed

automatically. Follow the on-screen

instruction to finish.

4. When Windows prompts you to restart

your computer, click No to make some

changes to your network settings.

-7-

5. Go to Start?Settings ?Control Panel.

Double-click Network.

6. When the Network dialog box appears,

select USB 10/100M Fast Ethernet and

click Add. Set the appropriate protocols

and client for you needs. When completed,

click OK.

7. Remember to restart your computer to

activate the new device

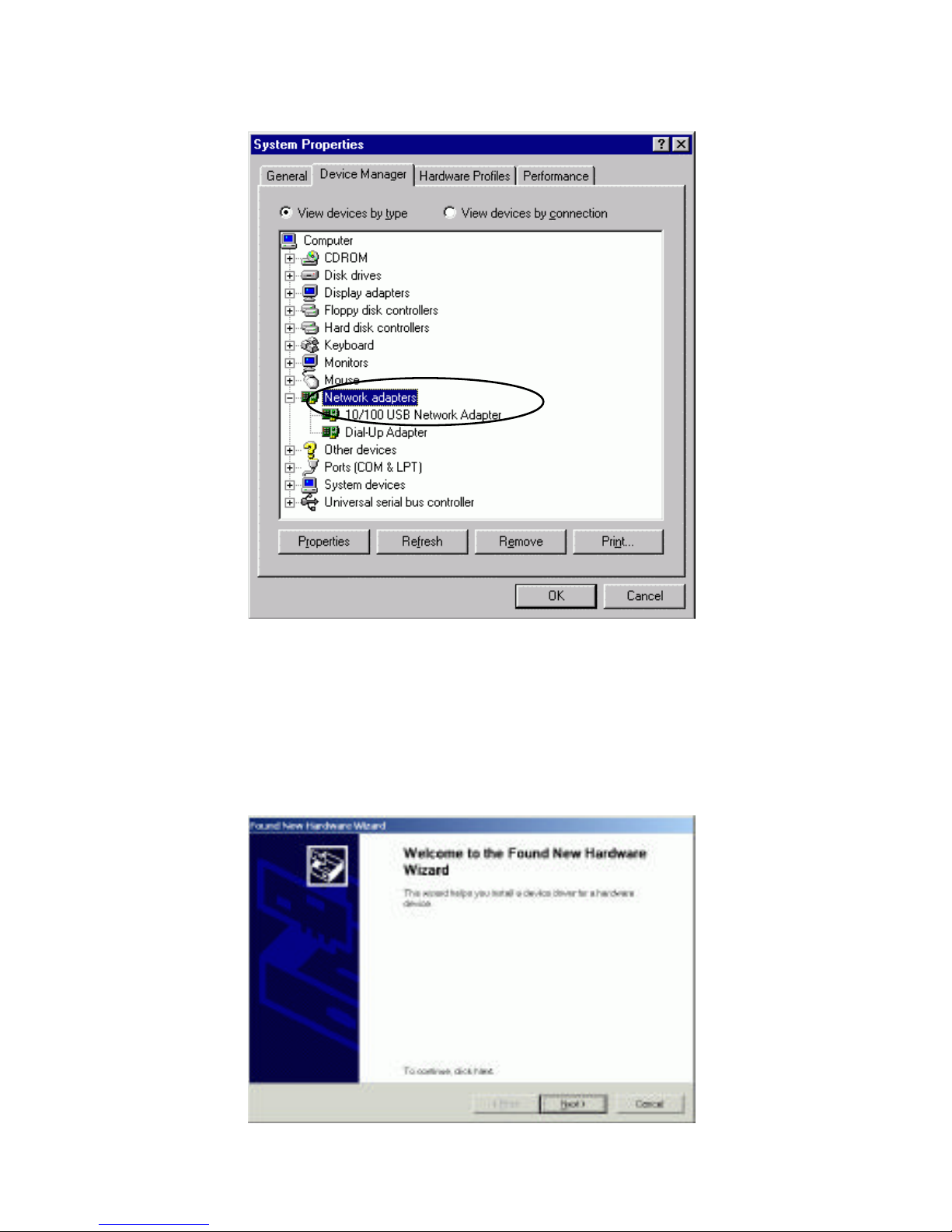

Setup Diagnostics

To verify if the device exists in your computer

and is enabled, go to Start ?Settings ?

Control Panel ?System. Click the Device

Manager tab. If the 10/100 USB Network

-8-

Adapter is found, it means that your device is

properly installed and enabled.

Installation for Windows 2000

1. Once the device is well connected to your

computer, Windows 2000 will automatically

detect the new device. Click Next to

proceed.
