TRENDnet TFC-1000 Bedienungsanleitung
TFC-1000 Series
1000Base-T to 1000Base-SX/LX
Gigabit Ethernet
Media Converter
Quick Installation Guide
2
FCC Class B Certification
This equipment has been tested and found to
comply with the regulations for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not
installed and used in accordance with this user’s
guide, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful
interference, in which case the user will be
required to correct the interference at his own
expense.
CE Mark Warning
This is a Class B product. In a domestic
environment, this product may cause radio
interference, in which case the user may be
required to take adequate measures.

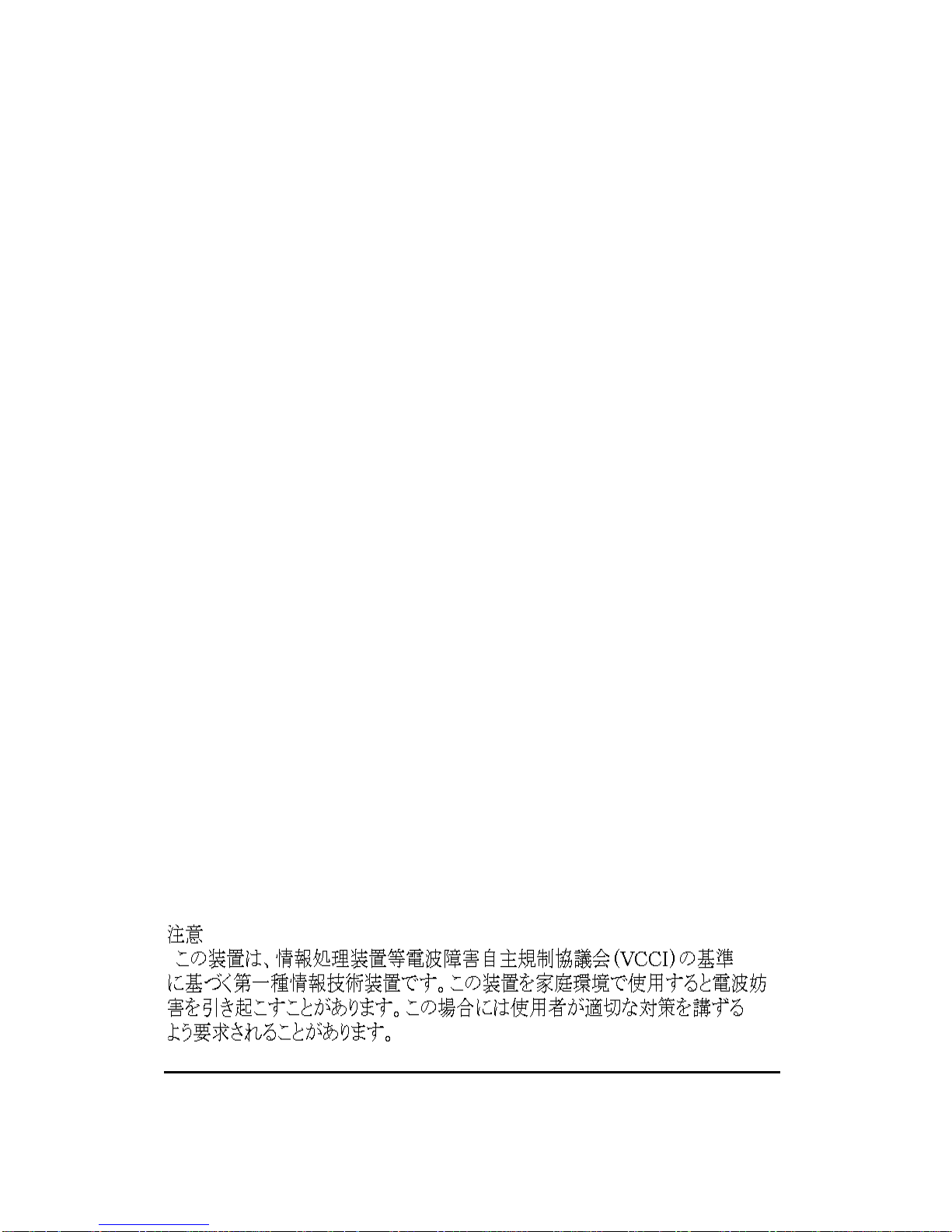

VCCI Class B Compliance (Japan)
3
Introduction
Thank you for choosing the 1000Base Gigabit
Ethernet Media Converter, The Converter
introduced here provides one channel media
conversion between 1000BASE-TX and
1000BASE-FX.
About Media Converter
This Media Converter is a network technology
specified by IEEE 802.3ab and IEEE 802.3z
1000BASE-TX/FX standards.
4
Product Features
?One-channel media conversion between
1000BASE-TX and 1000BASE-FX
?Fiber media allows: multimode fiber
and singlemode fiber using SC connector
?Auto negotiation of duplex mode on TX
port
?? Auto-MDI for TX port
?Full wire-speed forwarding rate
?Front panel status LEDs
?Setup as a stand-alone device or with the
optional 16-slot chassis
?? Hot-swappable when used with the chassis
5
Installation
This chapter gives step-by-step installation
instructions for the Converter.
Selecting a Site for the Equipment
As with any electric device, you should place the
equipment where it will not be subjected to
extreme temperatures, humidity, or
electromagnetic interference. Specifically, the site
you select should meet the following
requirements:
1. The ambient temperature should be
between 32 and 104 degrees Fahrenheit (0
to 40 degrees Celsius).
2. The relative humidity should be less than
90 percent, non-condensing.
3. Surrounding electrical devices should not
exceed the electromagnetic field (RFC)
standards for IEC 801-3, Level 2 (3V/M)
field strength.
4. Make sure that the equipment receives
adequate ventilation. Do not block the
ventilation holes on each side of the switch
or the fan exhaust port on the side or rear
6
of the equipment.
5. The power outlet should be within 1.8
meters of the switch.
Connecting to Power
1. This Converter is a plug-and-play device.
2. Connect the supplied AC to DC power
adaptor with a power voltage of
7.5Vdc/1.5Amp to the DC-Jack on the
converter, and then attach the plug into a
standard AC outlet.
The fiber port supports “full-duplex mode” only.
Please make sure the fiber connection to the media
converter’s fiber port is manuallysetto1000Mbps
Full-Duplex mode.
ATTENTION!
7
Installing in a Chassis
The Converter can be fit into any of the
expansion slots on optional chassis.
?First, install the converter onto a carrier
supplied with the chassis:
Step 1-Unscrew and pull outthe media
converter board.
Step 2-Plug in the media board to any of
the vacant slot on the chassis.
Step 3-Fit the converter onto the carrier
and tightens the screw to secure it.
8
LED Indicator
The LED indicators give you instant feedback on
status of the converter:
LEDs State Indication
On (solid) Power on
Power
(PWR) off Power off
On (solid)
On (blinking) Linked
Activity
LINK/ACT off Not Linked
9
Specifications
Standards: IEEE802.3ab 1000BASE-TX
IEEE802.3z 1000BASE-SX/LX
D
ata Transfer
Rate: 1,488,000pps for 1000Mbps
Duplex Mode: Full-Duplex
LED indicators: PWR, LNK/ACT
Media Interface: RJ-45, SC
EMI
Compatiblity: FCC Class B
CE Certification, Class B
VCCI Class B
Temperture: Storage: -10?C ~ 70?C
Operating: 0?C ~ 40?C
Humidity: 10% ~90% non-condensing
Power
Consumption: 0.6 Watts (maximum)
10
Ordering Information
Please include the following information when
ordering:
1. Fiber type: multi-mode or single-mode
2. Fiber connector type: SC, LC or MT-RJ
3. Segment distance range for the fiber port
TX port
Connector
Type Cabling Segment Distance
RJ-45 Copper Wire Max. 100 m
FX port
Connector
Type Cabling Segment Distance
SC Multi-Mode Fiber Max. 550 m
SC Single-Mode Fiber Max. 10 km
SC Single-Mode Fiber Max. 20 km
P/N:6012-MC1K000
Rev:A1-01
