TRENDnet TFC-1000 Bedienungsanleitung

Fiber Converters

TFC-1000 Series

ŸQuick Installation Guide (1)

ŸTechical Specifications (4)

ŸAn environment that is free from strong electromagnetic field generators

(such as motors), vibration, dust and direct exposure to sunlight

ŸTFC-1600 chassis (optional) or sturdy, level surface that can support the

weight of the Fiber Converter

ŸGigabit Ethernet Switch

ŸMulti-Mode or Single-Mode Fiber cable

ŸCat. 5e or Cat. 6 RJ-45 Ethernet Cable

An environment that is fairly cool and dry

ŸTFC-1600 chassis

ŸMini-GBIC module (e.g. TEG-MGBSX, TEG-MGBS10, TEG-MGBS40,

TEG-MGBS80, TEG-MGBS10D35, TEG-MGBS40D35) for Mini-GBIC slot

(TFC-1000MGB/TFC-1000MGA only)

Standard 19” rack

Minimum Requirements

Optional Equipment

Package Contents

ŸMulti-Language Quick Installation Guide

ŸPower Adapter

Fiber Converter

If any of the above contents are missing, please contact your reseller.

1. Before You Start

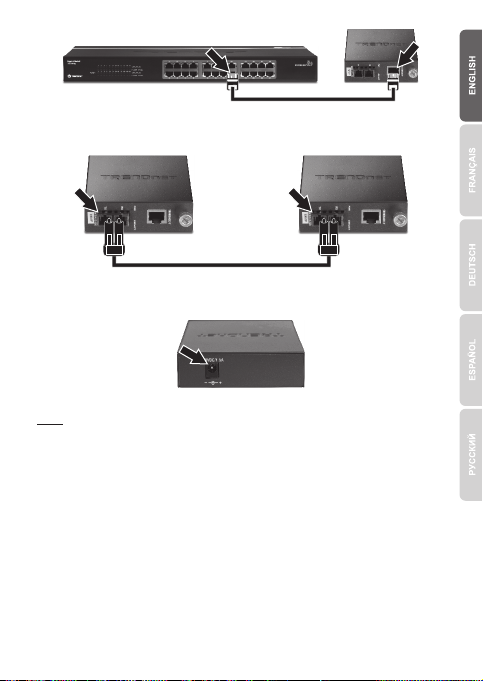

1. Connect an RJ-45 Ethernet cable from the Ethernet port on the fiber

converters to an Ethernet port on your switch (e.g TEG-S24Dg).

2. Hardware Installation

Installing two standalone Fiber Converters

2. Connect the fiber cable to the fiber converters.

3. Connect the power adapter to the back of the fiber converter.

Note:

1. For the TFC-1000MSC / S20/ S50 / S70, the TX and RX cables must be

reversed on the opposite fiber connection.

2. Cabling

a. Multi-Mode Optic Cable: TFC-1000MSC, TFC-1000MGB/TFC-1000MGA

with TEG-MGBSX module

b. Single-Mode Optic Cable: TFC-1000S20, TFC-1000S50, TFC-1000S70,

TFC-1000MGB/TFC-1000MGA with TEG-MGBS10/TEG-MGBS40/

TEG-MGBS80 module

c. Single Strand Optic Cable for TFC-1000S10D3, TFC-1000S10D5,

TFC-1000S40D3, TFC-1000S40D5, TFC-1000MGB /TFC-1000MGA with

TEG-MGBS10D35/TEG-MGBS40D35 module

3. Slide the media converter into an available slot and fasten the thumbscrew.

Your installation is now complete.

Installing Fiber Converter in a Chassis

1. Unscrew the bay cover from the desired bay on the chassis.

2. Unfasten the thumbscrew and remove the fiber converter from the metal

casing.

Note:

1. After changing the DIP Switch settings, power cycle the Fiber Converter

2. LLR stands for Link Loss Return. When LLR is enabled, the fiber port's

transmitter shuts down if its receiver fails to detect a valid receive link. If one

of the optical conductors is bad, the Fiber converter with LLR enabled will

return a no link condition to its link partner. LLR is used to detect link

problems only on the fiber port. If LLR is enabled on one Fiber converter, the

opposite Fiber converter mus have LLR disabled

3. LEDs and DIP switches

Off

Action

Function

TX Auto-Negotiation

Switch

TX Forced Mode

LLR Enable

LLR Disable

Dip Switches

Color

Green Blinking

Sequence Function

PWR

(Power)

LINK/

ACT

Green

Off

Green

Off

Solid

Device powered Off

Solid Device powered On

2000Mbps (Full Duplex) Connection

(per port)

2000Mbps (Full Duplex) Data Transmitting/

Receiving (per port)

The link is disconnected

LED

n/a

LEDs

4. Technical Specifications

TFC-1000MSC

TFC-1000S20

TFC-1000S50

TFC-1000S70

TFC-1000S10D3

TFC-1000S10D5

Model Number Media Connectors

Min.

(Sensitivity)

Min. Max. Max. Budget

Power DistanceWavelength Optical Output

Power (dBm)

Optical Input Power

(dBm)

SMF RJ-45/SC-

(Simplex)

SMF RJ-45/SC-

(Simplex)

SMF RJ-45/SC

(Duplex)

MMF RJ-45/SC

(Duplex)

SMF RJ-45/SC

(Duplex)

SMF RJ-45/SC

(Duplex)

-12.5 -13.5 7.5

-20 -3 11.5

-23 -3 19

-24 -3 24

-21 -3 12

-21 -3 12-9 -3

-9 -3

-4 1

-9.5 -3

-9.5 -4

850nm

1310nm

1550nm

TX-1310nm/

RX-1550nm

TX-1550nm/

RX-1310nm

220m

(62.5/125µm)

cable

20km

50km

70km

10km

TFC-1000S40D3

TFC-1000S40D5

SMF RJ-45/SC-

(Simplex)

SMF RJ-45/SC-

(Simplex)

-23 -2 16

-7 -2

-7 -2 40km

40km

TX-1310nm/

RX-1550nm

TX-1550nm/

RX-1310nm

550m

(50/125 µm)

cable

Power Budget

Model Number:

TFC-1000MSC, TFC-1000S20, TFC-1000S50, TFC-1000S70

TFC-1000MGB, TFC-1000MGA, TFC-1000S10D3,

TFC-1000S10D5 1000S40D3, TFC-1000S40D5

TRENDnet warrants its products against defects in material and workmanship, under

normal use and service, for the following lengths of time from the date of purchase.

Fiber Converters– 3 Years Limited Warranty

AC/DC Power Adapter, Cooling Fan, and Power Supply carry a 1 year warranty.

If a product does not operate as warranted during the applicable warranty period,

TRENDnet shall reserve the right, at its expense, to repair or replace the defective

product or part and deliver an equivalent product or part to the customer. The

repair/replacement unit's warranty continues from the original date of purchase. All

products that are replaced become the property of TRENDnet. Replacement products

may be new or reconditioned. TRENDnet does not issue refunds or credit. Please contact

the point-of-purchase for their return policies.

TRENDnet shall not be responsible for any software, firmware, information, or memory

data of customer contained in, stored on, or integrated with any products returned to

TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to

service the product by any unauthorized service center. This warranty is voided if (i) the

product has been modified or repaired by any unauthorized service center, (ii) the product

was subject to accident, abuse, or improper use (iii) the product was subject to conditions

more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet within the applicable

warranty period and providing a copy of the dated proof of the purchase. Upon proper

submission of required documentation a Return Material Authorization (RMA) number

will be issued. An RMA number is required in order to initiate warranty service support

for all TRENDnet products. Products that are sent to TRENDnet for RMA service must

have the RMA number marked on the outside of return packages and sent to

TRENDnet prepaid, insured and packaged appropriately for safe shipment. Customers

shipping from outside of the USA and Canada are responsible for return shipping fees.

Customers shipping from outside of the USA are responsible for custom charges,

including but not limited to, duty, tax, and other fees.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE

AS WARRANTED ABOVE, THE CUSTOMER'S SOLE REMEDY SHALL BE, AT

TRENDNET'S OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES

AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES,

Limited Warranty

EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW,

STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET NEITHER ASSUMES

NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER

LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR

USE OF TRENDNET'S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND

EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES

NOT EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD PERSON'S

MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED

ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE

OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER

HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET

ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER

BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,

CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND,

OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN

CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,

PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH

DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND

OF THE PURCHASE PRICE PAID, AT TRENDNET'S OPTION. THIS DISCLAIMER OF

LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED

HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of

California. Some TRENDnet products include software code written by third party

developers. These codes are subject to the GNU General Public License ("GPL") or GNU

Lesser General Public License ("LGPL").

Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section and

look for the desired TRENDnet product to access to the GPL Code or LGPL Code.

These codes are distributed WITHOUT WARRANTY and are subject to the copyrights

of the developers. TRENDnet does not provide technical support for these codes.

Please go to http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/lgpl.txt

for specific terms of each license.

TRENDnet

20675 Manhattan Place

Torrance, CA 90501. USA
