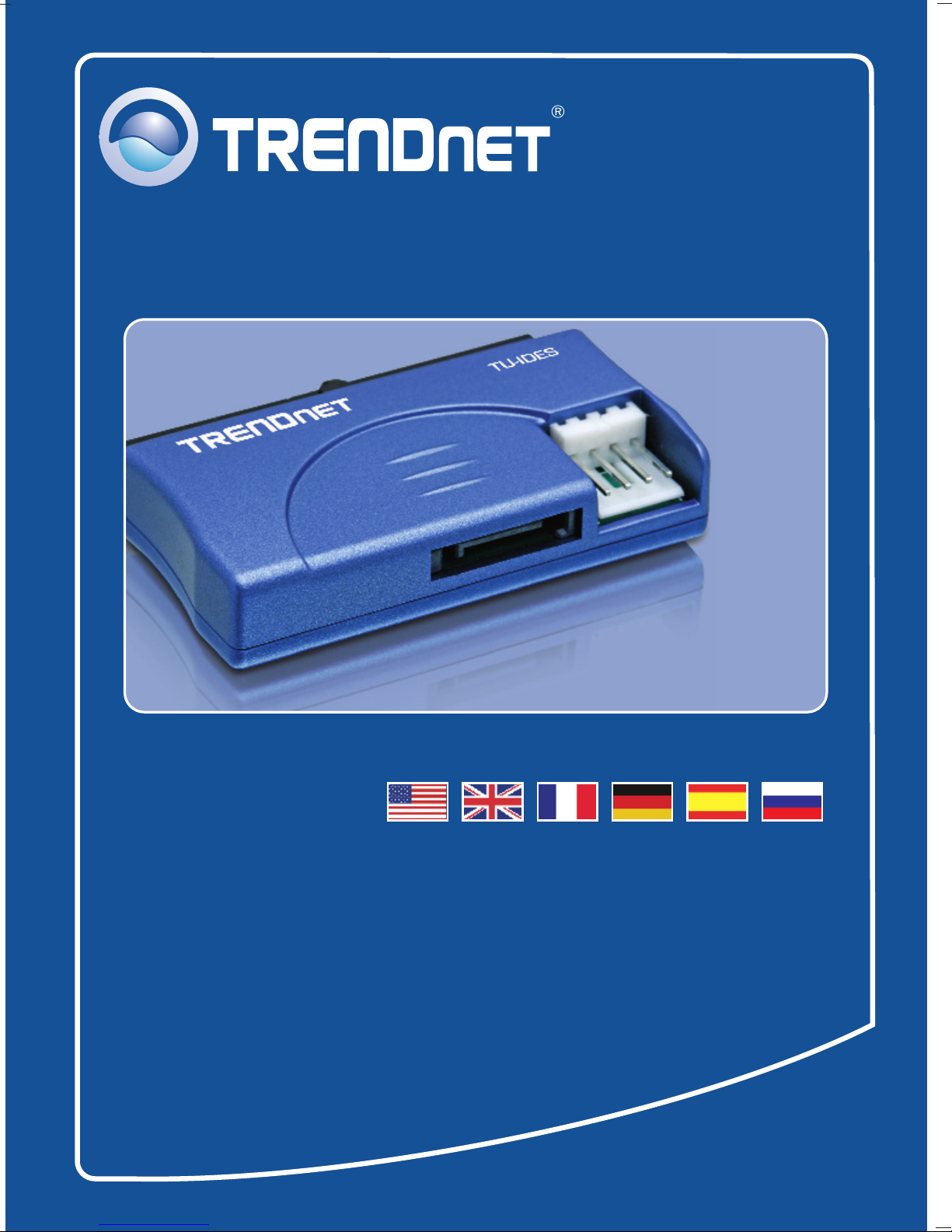

TRENDnet TU-IDES Bedienungsanleitung

Quick Installation Guide

TU-IDES

H/W: v1.0R

Table of Contents

English ......................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. How to Install ....................................................................................

.................................................................................

Table of Contents

Version 03.21.2008

System Requirements

Application

Package Contents

1. Before You Start

English

TU-IDES

SATA cable

Power Y cable

Quick Installation Guide

?Memory: 256MB RAM or above / 512MB RAM or above for Windows Vista

?IDE device (e.g. Hard Drive, CD-ROM drive)

?Computer with SATA motherboard

CPU: 300MHz or above / 800MHz or above for Windows Vista

IDE to Serial

ATA Converter

(TU-IDES)

To Connector of Serial

ATA Port

IDE

Device

Power

Cable

To PC Power

Supply Connector

Motherboard

2. How to Install

English

2. Connect your IDE device to the

TU-IDES.

3. Connect the provided SATA cable

to the SATA receptacle on the

TU-IDES.

4. Connect the female Berg power

connector on the provided power

Y-cable to the TU-IDES.

1. Shutdown your computer. Then

open up your computer.

English

8. Boot up your computer.

Your installation is now complete.

6. Connect the provided SATA cable

to the SATA receptacle on the

motherboard on your computer.

7. Connect an available female Molex

power connector on your computer

to the male Molex power connector

on the provided power Y-cable.

5. Connect the female Molex power

connector on the provided power

Y-cable to your IDE device

(e.g. Hard Drive, CD-ROM drive).

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

Troubleshooting

Q1:

A1:

My computer does not recognize my IDE device. What should I do?

First, verify that the computer meets the minimum requirements as listed in

section 1. Second, verify all the connectors are secured (see section 2). Third,

connect the SATA data cable to a different SATA receptacle on the motherboard.

Fourth, connect the TU-IDES to a different IDE power connector on your computer.

Fifth, connect a different IDE device to the TU-IDES.

If you still encounter problems or have any questions regarding the TU-IDES, please

contact TRENDnet's Technical Support Department.

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

Product Warranty Registration

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com/register

TRENDnet Technical Support

US Canada

24/7 Tech Support

Toll Free Telephone: 1(866) 845-3673

Europe (Germany France Italy Spain Switzerland UK)

English/Espanol - 24/7

Worldwide

Telephone: +(31) (0) 20 504 05 35

Toll Free Telephone: +00800 60 76 76 67

. . . . .

20675 Manhattan Place

Torrance, CA 90501

USA
