TRENDnet TEW-436BRM Bedienungsanleitung

TEW-436BRM

1.01

Quick Installation Guide

English 1

1. Before You Start

2. Hardware Installation 3

3. Configure The Modem 4

4. Setting up Encryption 7

Troubleshooting 8

Wireless Tips 10

Table of Contents

Version 11.02.2009

1. Before You Start

?A computer with a wired or wireless network adapter properly installed.

?Web Browser: Internet Explorer (5.0 or above)

A working ADSL Internet Connection

Package Contents

?CD-ROM (User’s Guide)

?Multi-Language Quick Installation Guide

?1 x RJ-45 Ethernet Cable

?1 x RJ-11 Telephone Cable

?Power Adapter (12V DC, 1A)

TEW-436BRM

System Requirements

During the installation of your Wireless ADSL Modem Router, the Setup Wizard will

automatically detect your ISP connection type. If the router cannot detect your ISP

connection type, you can manually specify the connection type. Please verify your DSL

Internet broadband connection type with your ISP and ensure you have all the

information for one of the following connection types:

A. Dynamic IP connection

ADSL Modem parameters (VPI or VCI), if it cannot be detected automatically.

ISP may require you to use a particular Hostname or Domain name.

B. Static or Fixed IP connection

Internet IP Address:_____. _____._____._____ (e.g. 215.24.24.129)

Subnet Mask: _____. _____._____._____

Gateway IP Address: ____. _____._____._____

Primary DNS:_____. _____._____._____

Secondary:_____. _____._____._____

ADSL Modem Parameters (VPI or VCI), if it cannot be detected

automatically.

C. PPPoE or PPPoA Dynamic IP connection

Password: ________________

ADSL Modem Parameters (VPI or VCI), if it cannot be detected

automatically.

D. IPoA Static or Fixed (IP over ATM) connection

Internet IP Address:_____. _____._____._____ (e.g. 215.24.24.129)

Subnet Mask: _____. _____._____._____

Gateway IP Address: ____. _____._____._____

Primary DNS:_____. _____._____._____

Secondary:_____. _____._____._____.

ADSL Modem Parameters (VPI or VCI), if it cannot be detected

automatically.

Collect Internet Service Provider (ISP) Information

ADSL

Terminator

To PCs

Power

LAN1

LAN2

LAN3

LAN4

ADSL

2. Hardware Installation

3. Connect the AC Power Adapter to the TEW-

436BRM and then to a power outlet.

1. Connect one end of the RJ-45 cable to one of

the TEW-436BRM's LAN ports. Connect the

other end of cable to the computer's Ethernet

port.

2. Connect one end of the RJ-11 cable to the

TEW-436BRM's ADSL port. Connect the other

end of the cable to the phone jack.

4. Verify that the following panel lights are on:

Power, LAN, and WLAN. If the lights are not

on, press the Power ON/OFF on the back of

the TEW-436BRM.

3. Configure the Modem

Note: It is recommended that you configure the Modem from a wired computer.

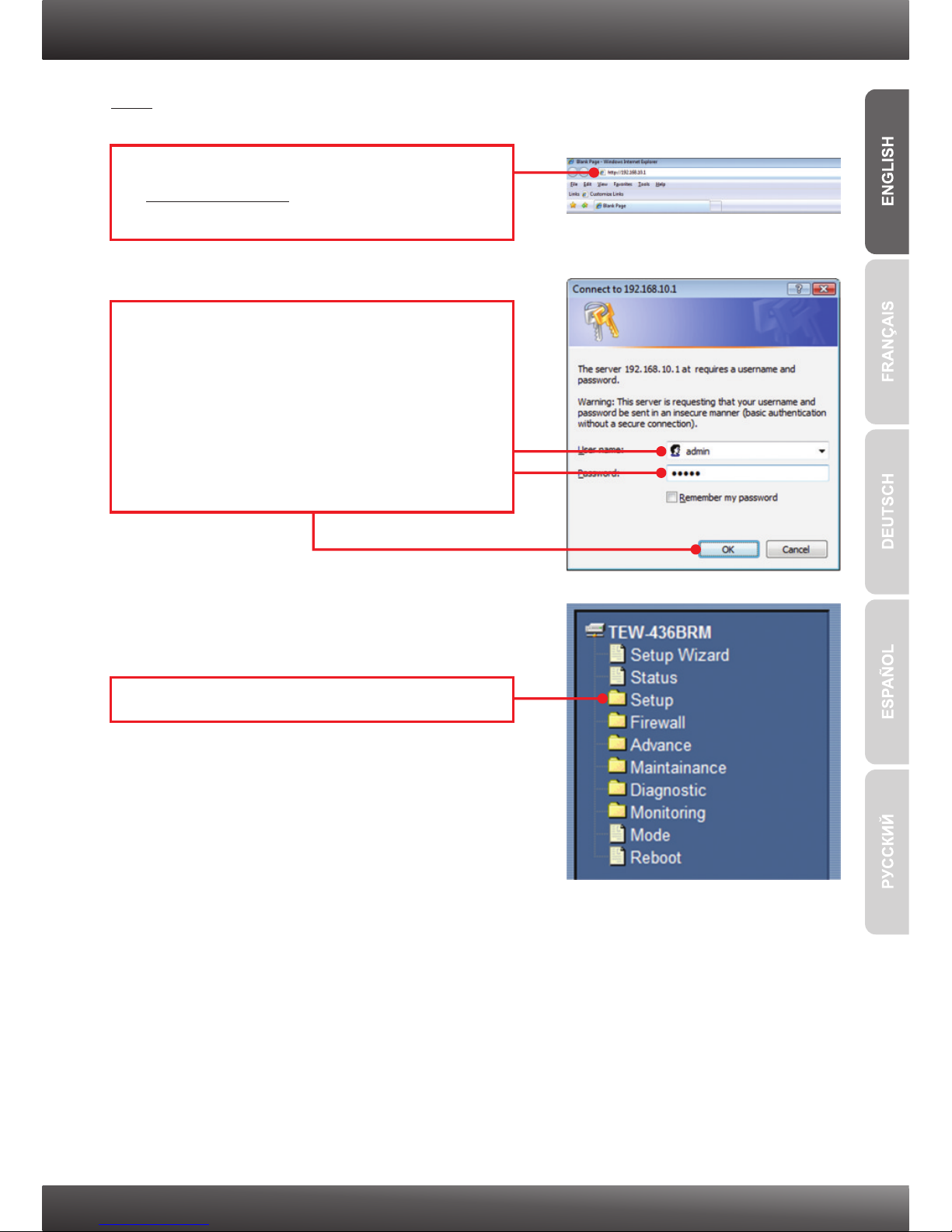

1. Open your web browser, type

http://192.168.10.1 in the Address bar, and

then press Enter.

2. Enter the User Name and

password and then click OK. By default:

User name: admin

Password: admin

Note: User name and Password is case

sensitive.

3. Click Setup Wizard.

Note:

1. The example below is for Auto-detect. If the Setup Wizard could not automatically

detect your Internet connection, select Manual Selection and input the information

using the information provided by your ISP.

2. In the example below, the ADSL connection is PPPoE

6. Configure the settings based on information

provided by your ISP. Then click Next.

5. Select the Channel Mode and then click Next.

4. Select Auto-detect and then click Next.

Note: For other connection methods, follow the on screen instructions after you select

auto-detect.

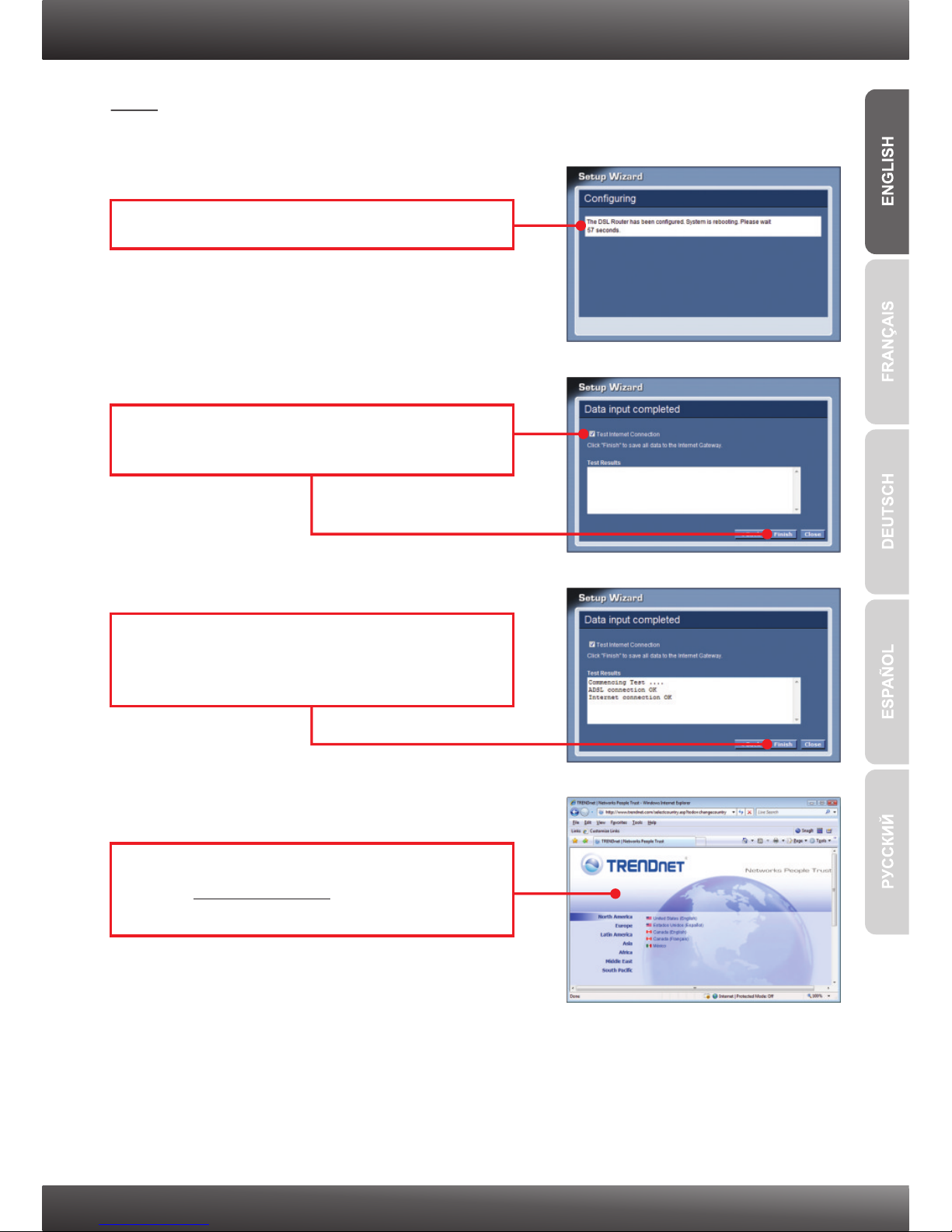

7. Please wait while the TEW-436BRM reboots.

8. Check Test Internet Connection, and then

click Finish.

9. Verify that the test has completed successfully.

Check that the ADSL and Internet LEDs are lit.

Then click Close.

10. Open up your browser and enter in a URL

(e.g. www.trendnet.com) to verify that you

have Internet connection.

4. Setting up Encryption

2. This example below is WPA2-PSK. Select the

following:

Encryption: WPA2(AES) WPAAuthentication

Mode: Personal (Pre-Shared Key) Pre-Shared

Key Format: Passphrase

Pre-Shared Key: Enter an encryption key.

For Example: trendnet

Then click Apply Changes. For WPA-PSK or

WPA2-PSK, the Pre-Shared Key must be

between 8 and 63 ASCII or 64 HEX characters.

Make sure to copy down the encryption key.

Your Configuration is complete

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

For detailed information regarding the TEW-436BRM’s configuration and advanced settings,

please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website

at http://www.trendnet.com.

1. Click Setup -> Wireless -> Security.

I typed http://192.168.10.1 in my Internet Browser's Address Bar, but an error message says

“The page cannot be displayed.” How can I get into the TEW-436BRM's web configuration

page?

heck your hardware settings again by following the instructions in Section 2.

2. Make sure the Power, LAN and WLAN lights are lit.

3. Make sure your TCP/IP settings are set to Obtain an IP address automatically

(see the steps below).

1. C

4. Reset the TEW-436BRM. To reset the TEW-436BRM, take a pin or paperclip and press

the reset button on the back of the Wireless Modem for 15 seconds. Then let go.

Troubleshooting

Windows Vista

Windows XP/2000

1. Go into the Control Panel, click Network and

Internet, click Network and Sharing Center,

click Manage Network Connections and

then right-click the Local Area Connection

icon and then click Properties.

2. Click Internet Protocol Version 4 (TCP/IPv4)

and then click Properties. Then click on

Obtain an IP address automatically.

1. Go into the Control Panel, double-click the

Network Connections icon and then right-

click the Local Area Connection icon and

then click Properties.

2. Click Internet Protocol (TCP/IP) and then

click Properties. Then click on Obtain an IP

address automatically.
