TRENDnet TV-IP322P Bedienungsanleitung

- 1 -

PREFACE

Thank you for purchasing the TV-IP322P SecurView™ Outdoor PoE

Megapixel Day/Night Internet Camera, a standalone system that can be

connected directly to an Ethernet or Fast Ethernet network.

The camera is equipped with a 2-megapixel CMOS sensor, allowing you

to capture high quality image with the resolution of up to 1280 x 1024.

Additionally, the camera features the IR (Infrared) LEDs and ICR function

(IR Cut Filter). The ICR function enables the camera to capture the clear

image under sunlight and increase the amount of light for IR LEDs in the

dark by changing the filter automatically. The camera also provides the

audio and microphone ports, allowing you to transfer sound from/to the

camera.

Compared to the conventional PC Camera, this camera features a built-in

CPU and web-based solutions that can provide a cost-effective solution

to transmit the real-time high-quality video images and sounds

synchronously for monitoring. The camera can be managed remotely, so

that you can use a web browser to access and control it from any

desktop/notebook computer over the Intranet or Internet.

Compliant with IEEE802.3af PoE (Power over Ethernet) standard, the

camera provides you with more flexibility of camera installation

according to your application. The camera can be powered by the

Ethernet, so that you can place the camera anywhere without a power

outlet supported.

The trouble-free installation procedures and web-based interface allow

you to integrate it into your network fast and easy. With comprehensive

applications supported, the Internet camera is your best solution for

remote monitor, high quality, and high performance video images.

- 2 -

This Advanced Installation Guide provides you with the instructions and

illustrations on how to use your camera, which includes:

Chapter 1 Introduction to Your Camera describes the features of the

camera. You will also know the components and functions

of the camera.

Chapter 2 Hardware Installation helps you install the camera

according to your application environment. You can use

this camera at home, at work, at any where you want.

Chapter 3 Accessing the Camera lets you start using your camera

without problem. The camera can be set up easily and work

within your network environment instantly.

Chapter 4 Configuring the Camera guides you through the

configuration of the camera using the Web browser on

your PC.

Chapter 5 Using SecurView™ Pro shows you the detail instructions on

operating SecurView™ Pro software.

Chapter 6 How to Access the Camera Behind a Router provides the

instruction how to setup your DDNS.

Chapter 7 Appendix provides the specification of the camera and

some useful information for using your camera.

NOTE The illustrations and configuration values in this guide are for reference

only. The actual settings depend on your practical application of the

camera.

NOTE All trademarks and logos are the property of the respective trademark

owners.

- 3 -

Contents

PR E F A C E

CH A P T E R 1

IN T R O D U C T IO N TO YO U R CA M E R A

1.1 CHECKING THE PACKAGE CONTENTS .............................................5

1.2 GETTING TO KNOW THE CAMERA.................................................6

1.3 FEATURES AND BENEFITS ............................................................9

1.4 SYSTEM REQUIREMENT ............................................................12

CH A P T E R 2

HA R D W A R E IN S T A L L AT I O N

2.1 ASSEMBLING THE CAMERA MOUNTING BRACKET..........................14

2.2 MOUNTING THE CAMERA .........................................................14

2.3 INSTALLING THE MEMORY CARD ................................................15

2.4 APPLICATIONS OF THE CAMERA..................................................16

CH A P T E R 3

AC C E S S I N G TH E CA M E R A

3.1 USING IP SETUP......................................................................17

3.2 ACCESSING TO THE CAMERA......................................................22

3.3 CONFIGURING THE IP ADDRESS OF THE COMPUTER .......................25

CH A P T E R 4

CO N F I G U RI N G TH E CA M E R A

4.1 USING THE WEB CONFIGURATION..............................................26

4.2 USING SMART WIZARD ............................................................27

4.3 BASIC SETUP ..........................................................................30

4.4 NETWORK SETTINGS ................................................................35

4.5 SETTING UP VIDEO &AUDIO .....................................................41

4.6 EVENT SERVER CONFIGURATION ................................................49

4.7 MOTION DETECT.....................................................................57

- 4 -

4.8 EVENT CONFIGURATION ...........................................................58

4.9 TOOLS...................................................................................64

4.10 RS-485.................................................................................66

4.11 SETTING UP THE SD CARD.........................................................70

4.12 INFORMATION ........................................................................72

CH A P T E R 5

SE C U R VI E W ™PR O SO F T W A RE

5.1 INSTALLATION.........................................................................75

5.2 USING SECURVIEW™PRO ........................................................78

CH A P T E R 6

H o w t o a c c es s t h e c a mer a b eh i n d a R ou ter

App en d i x

A.1 SPECIFICATION......................................................................117

A.2 GPIO TERMINAL APPLICATION ................................................119

A.3 BANDWIDTH REFERENCE GUIDE...............................................120

A.4 GLOSSARY OF TERMS .............................................................121

Li mi t ed W ar r an ty

- 5 -

CHAPTER 1

INTRODUCTION TO YOUR CAMERA

1.1 Checking the Package Contents

Unpack the package and check the items contained in the package

carefully. You should have the following:

1 x TV-IP322P

1 x Multi-Language Quick Installation Guide

1 x CD-ROM (Utility & User’s Guide)

1 x Desiccant **

2 x GPIO Connector

1 x Spiral Cable Wrap

1 x Camera Mounting Bracket Kit*

1 x Power Adapter (12V DC, 1.5A)

NOTE Once any item contained is damaged or missing, contact the authorized

dealer of your locale.

*The provided screws included: (1) screws and washers for assembling the camera

shield; (2) expansion screws for mounting the camera to the wall.

** The camera provides two packs of desiccant: one pack is pre-installed inside the

camera compartment before shipment; the extra pack is provided for replacement

while you open the back cover in the future.

- 6 -

1.2 Getting to Know the Camera

The Camera and the Shield

*There are various positions of screw hole on the shield, allowing you to move the shield

forward/backward according to your needs. For example, it will protect the camera lens

well during rainy day by adjusting the shield forward.

Lens Assembly

with IR LEDs

Shield* is used to protect the

camera during inclement weather.

Camera Stand

Connectors

Power, Audio, Mic,

GPIO, LAN

- 7 -

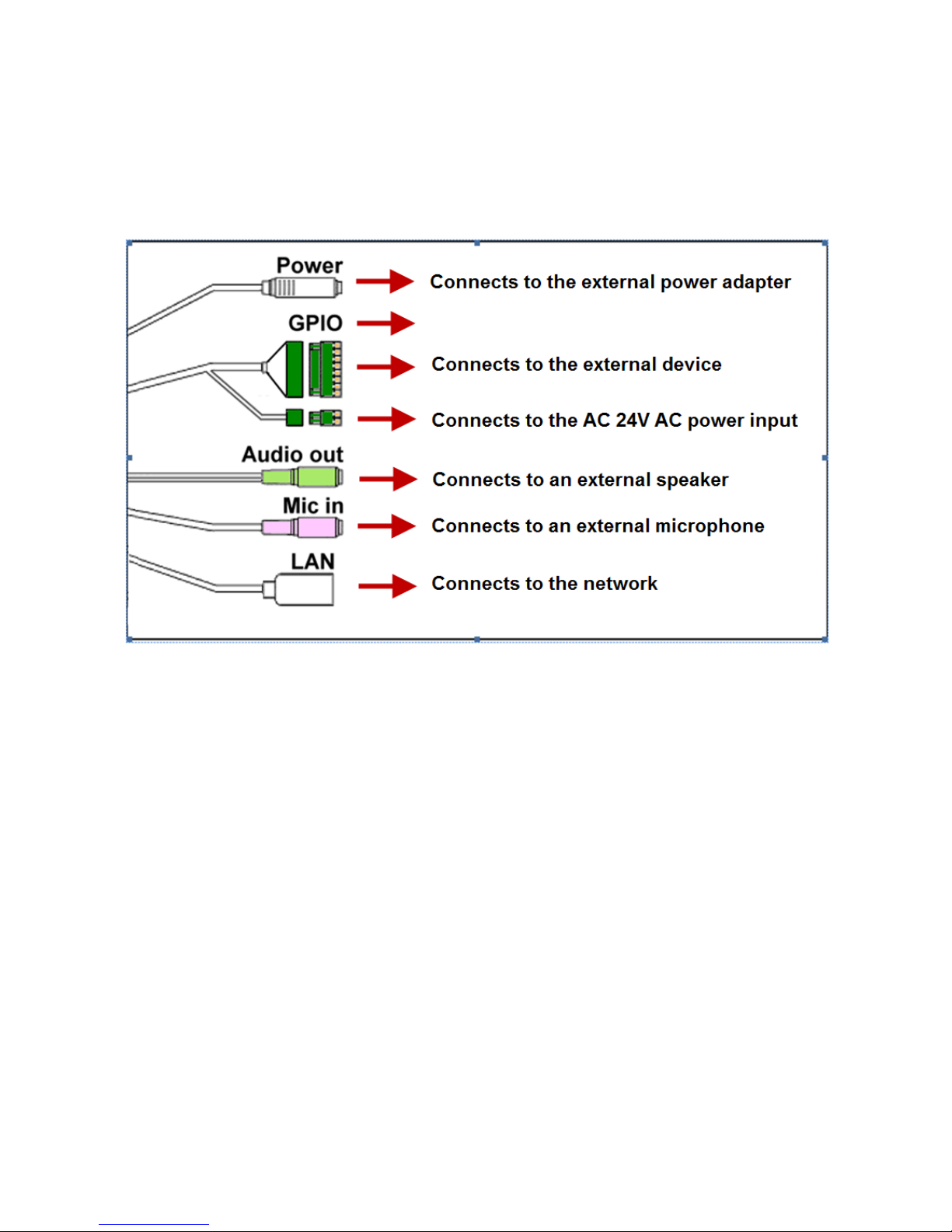

The Connectors

The camera's connectors are collected into a bundle of cable on the back

panel of the camera, allowing you to connect the external devices in a

well-ordered way while you are installing the camera onto the wall (or

ceiling).

Power: Connects the power adapter to supply power to the

camera.

GPIO: Connects the external device that features additional

controlling function, such as motion detection, event triggering,

alarm notification, and a variety of external control functions.

NOTE Before connecting the external device for GPIO function, you

have to attach the provided external GPIO connectors to the

device.

Audio Out: Connects an external audio device (such as the active

speaker) to deliver sound via the camera.

Mic In: Connects an external microphone to receive the on-the-

spot sound where the camera is installed.

- 8 -

LAN: Plugs the provided Ethernet cable to connect to your local

area network (LAN). The LAN port of the camera supports the

NWay protocol so that the camera can detect the network speed

automatically.

- 9 -

1.3 Features and Benefits

H.264/MPEG4/MJPEG Multi-codec Supported

The camera provides you with excellent images by the

H.264/MPEG4/ MJPEG multi-codec selectable technology,

allowing you to adjust image size and quality, and bit rate

according to the networking environment.

High Resolution Surveillance

Equipped with a megapixel CMOS sensor, the high performance

camera is designed for your professional surveillance and security

applications. The image resolution is up to 1280 x 1024. In

addition, the minimum illumination of the sensor is 0 lux,

providing a truly day & night functions that allows you to capture

image even in low-light conditions.

Multiple Profiles Supported

The camera supports multiple profiles simultaneously, so that you

can separately set up different image settings (such as image

quality and frame rate) for the video types of the camera: H.264,

MPEG4, MJPEG, and 3GPP.

Flexible Audio Capability

The camera allows you to connect the external microphone to

receive on-the-spot audio via the Internet, allowing you to

monitor the on-site voice. In addition, you can connect an external

active speaker to the camera to speak through the camera

(supporting mono audio only).

Supports RTSP

The camera supports RTSP (Real Time Streaming Protocol), which

is a technology that allows you to view streaming media via the

network. You can view the real-time video with the Quick Time

player or RealPlayer. To view the real-time streaming image on

your computer, open the Web browser and enter the RTSP link:

rtsp://(IP address of the camera)/mpeg4
