TRENDnet TEG-424WS Bedienungsanleitung

TEG-424WS

H/W: V1

Quick Installation Guide

Table of Contents

English .....................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. Hardware Installation ........................................................................

3. Web Smart Switch Management Utility ..............................................

................................................................................

Table of Contents

Version 09.03.2008

Minimum Requirements

Optional Equipment

Application

?TEG-424WS

?Quick Installation Guide

?Utility and User Guide CD-ROM

?Power Cord

?Rack Mount Kit

?Rubber Cushions

?Web Browser: Internet Explorer (5.0 or above)

?Computer with network adapter installed

?RJ-45 network cable

?EIA Standard 19” Rack

?Mini-GBIC Modules (e.g. TEG-MGBSX, TEG-MGBS10, TEG-MGBS40,

TEG-MGBS80, TEG-MGBS10D3_5, TEG-MGBS40D3_5)

Package Contents

1. Before You Start

English

Servers with Copper Gigabit

PCI Adapters

(TEG-PCITXR)

Module SX multi mode GBIC

(TEG-MGBSX)

Module SX multi mode GBIC

(TEG-MGBSX)

24-Port Gigabit Web Smart Switch

with Mini-GBIC Slots

(TEG-240WS)

Laptops with 10/100Mbps PC Card

(TE100-PCBUSR)

28-Port Gigabit Web Smart Switch

(TEG-424WS)

1000Mbps 100Mbps

2. Hardware Installation

English

2. Connect a CAT-5e / 6 RJ-45

network cable from the computer

to an available Ethernet port of the

TEG-424WS.

Note:

1. After hardware installation is complete, use the Web Smart Switch

Management Utility to configure the TEG-424WS. To access the Web Smart

Switch Management Utility, open your web browser, and enter the default IP

Address http://192.168.0.1 and default password "admin". Make sure your

computer and the TEG-424WS are configured to the same network

segment.

2. The Mini-GBIC slots are shared with Gigabit Ethernet ports 25 and 26.

When the Mini-GBIC slots are in use, Gigabit Ethernet ports 25 and 26 are

disabled.

1. Connect the Power Cord to the

rear of the TEG-424WS and then

to a power outlet.

English

Note: If you would like to easily discover all the Web Management Switches on

the network, assign IP Address, change the password, and upgrade to the

latest firmware, then install the Web Smart Switch Management Utility. Follow

3. Click Start > All Programs >

TRENDnet > Web Smart Switch

Management Utility, and then

click Web Smart Switch

Management Utility.

3. Web Smart Switch Management Utility

For Windows User

1. Insert the Utility CD-ROM into

your computer's CD-ROM Drive

and then click Install Utility.

2. Follow the Installation Wizard

instructions. Click OK.

English

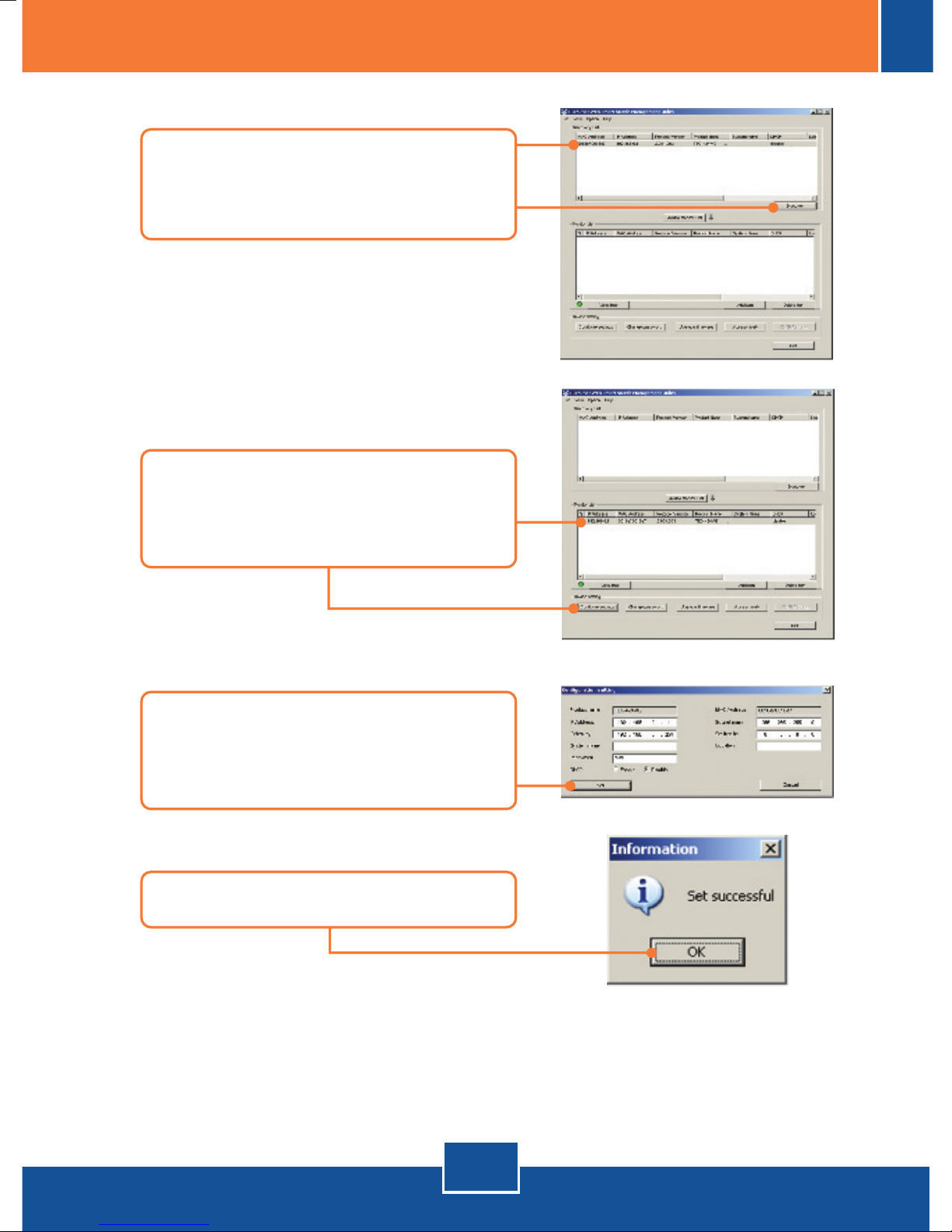

4. Click Discovery, and then double-

click the Switch that appears in

the Discovery List.

5. Click the Switch in the Monitor

List and then click Configure

settings.

6. Configure the IP Address, Subnet

mask, Gateway, and Password.

Click Set.

7. Click OK.

English

9. Enter the Password and then

click Login.

Password is admin.

Note: The default password is case

sensitive.

For more information regarding the Web Smart Switch Management Utility

configuration and advanced settings, please refer to the User's Guide included

on the Utility CD-ROM or TRENDnet's website at www.trendnet.com

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

8. Click Access Web.

Your installation is now complete.

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

Q5:

A5:

After connecting the TEG-424WS to a power outlet, the LEDs do not turn on.

Check the connection of the power cord to the TEG-424WS and the power outlet. Also

check that the power outlet is receiving power.

After installing the Web Smart Switch Management Utility, I clicked Discovery and the

Utility is unable to discover the TEG-424WS. What should I do?

First, make sure that the TEG-424WS is powered on and that all connections are secure.

Second, check that your computer's IP address is on the same network segment as the

TEG-424WS. The default IP address of the TEG-424WS is http://192.168.0.1 and the default

password is admin. Third, disable any software firewall programs such as ZoneAlarm or

Norton Internet Security. If you are using Windows XP, Server 2003 or Vista, disable the

built-in firewall.

When I access the TEG-424WS using a web browser, I get a screen that tells me “only

one user can login”. What should I do?

Another computer is configuring the TEG-424WS. Please wait until the user logs off. If

the other user has already logged off and you still get the same screen, then disconnect the

power cord from the TEG-424WS, wait for 5 seconds, reconnect the power cord to the TEG-

424WS, allow 5 seconds for the switch to power on, and then attempt to access the web

configuration page again.

I forgot the administration password. How do I reset my TEG-424WS?

Press on the reset button using a pen or paperclip for 10 seconds. The default

password is admin. Note: The default password is case sensitive.

When I connect a computer to the Switch's Gigabit Ethernet port, I am not getting

Gigabit speeds. What should I do?

First, check the LEDs on the Switch. When the 1000Mbps LED is off, the computer's

connection speed is 10 or 100Mbps. Second, make sure that you have a Gigabit Ethernet

adapter installed. Third, make sure to use a Cat 5e or Cat 6 Ethernet cable. Some CAT-5

cables are not rated to run in Gigabit.

If you still encounter problems or have any questions regarding the TEG-424WS, please refer to

the User's Guide included on the Utility CD-ROM or contact Trendnet's Technical Support

Department.

Troubleshooting

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de alimentacón

necesario para su funcionamiento. El uso de un adaptador distinto al mencionado puede producir

daños fisicos y/o daños al equipo conectado. El adaptador de alimentación debe operar con voltaje y

frecuencia de la energia electrica domiciliaria existente en el pais o zona de instalación.

Product Warranty Registration

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com/register

20675 Manhattan Place

Torrance, CA 90501

USA
