TRENDnet TEG-S80TXE - Copper Gigabit Switch Bedienungsanleitung

TEG-S50TXE

TEG-S80TXE

Quick Installation Guide

Table of Contents

Version 04.19.2006

English ......................................................................................................

Technical Specifications .........................................................................................

Troubleshooting ......................................................................................................

1. Before You Start

2. Hardware Installation .........................................................................

................................................................................

System Requirements

TEG-S50TXE/TEG-S80TXE

Quick Installation Guide

4 Rubber Feet

AC Power Adapter

Package Contents

1. Before You Start

English

Computers with Network adapters installed

An environment that is fairly cool and dry

Leave at least 10 cm of space at the front and rear of the

Switch for ventilation

Sturdy, level surface that can support the weight of the Switch

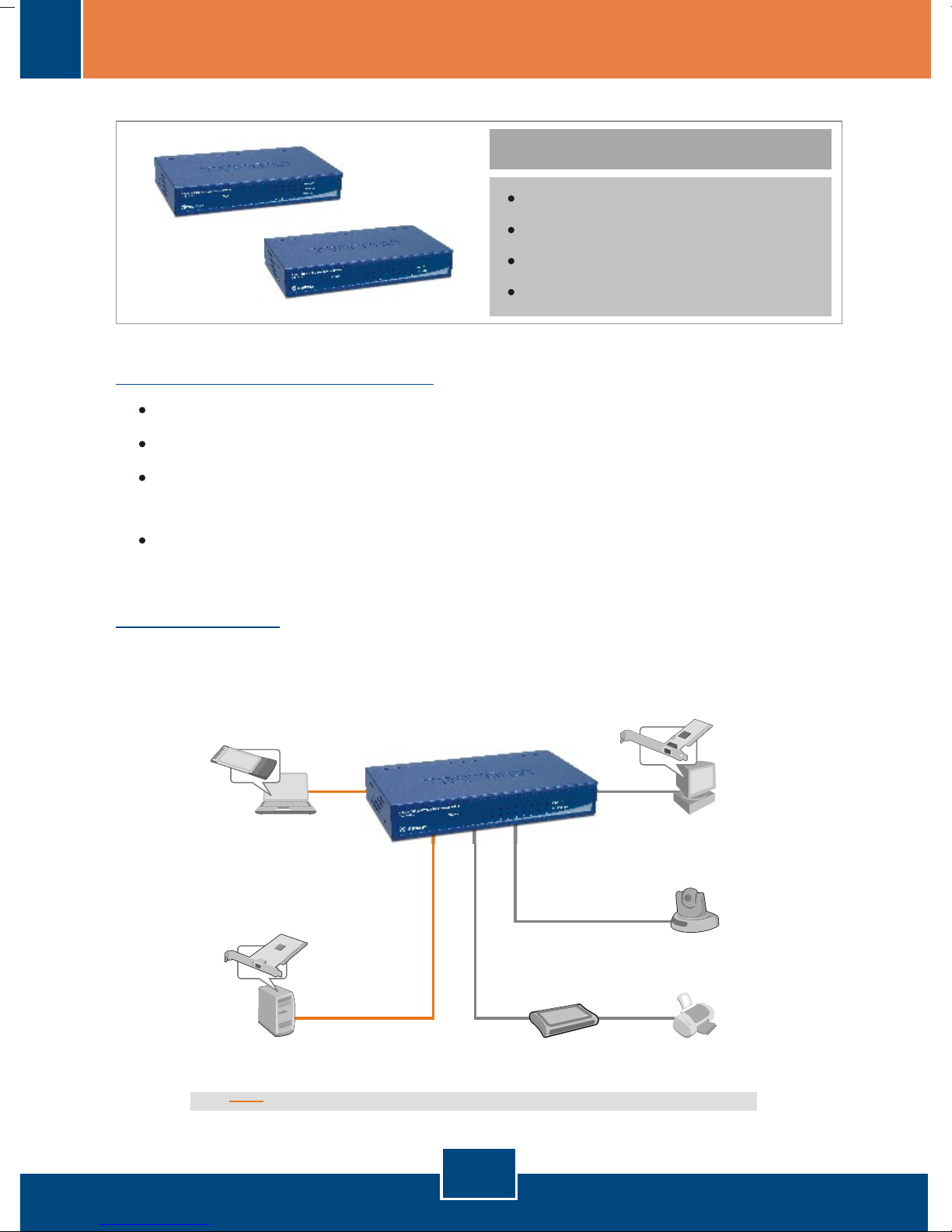

Application

Server with 10/100/1000Mbps

Gigabit PCI Adapter

(TEG-PCITXR)

10/100Mbps Multi-Port

Print Server

(TE100-P21)

1000Mbps

Advanced Pan & Tilt

Internet Camera Server

(TV-IP400)

Workstation with

10/100Mbps PCI Adapter

(TE100-PCIWN)

Notebook with

10/100/1000Mbps

Gigabit PC Card

(TEG-PCBUSR)

Printer

5-Port /8-Port 10/100/1000Mbps

Gigabit Switch

(TEG-S50TXE/TEG-S80TXE)

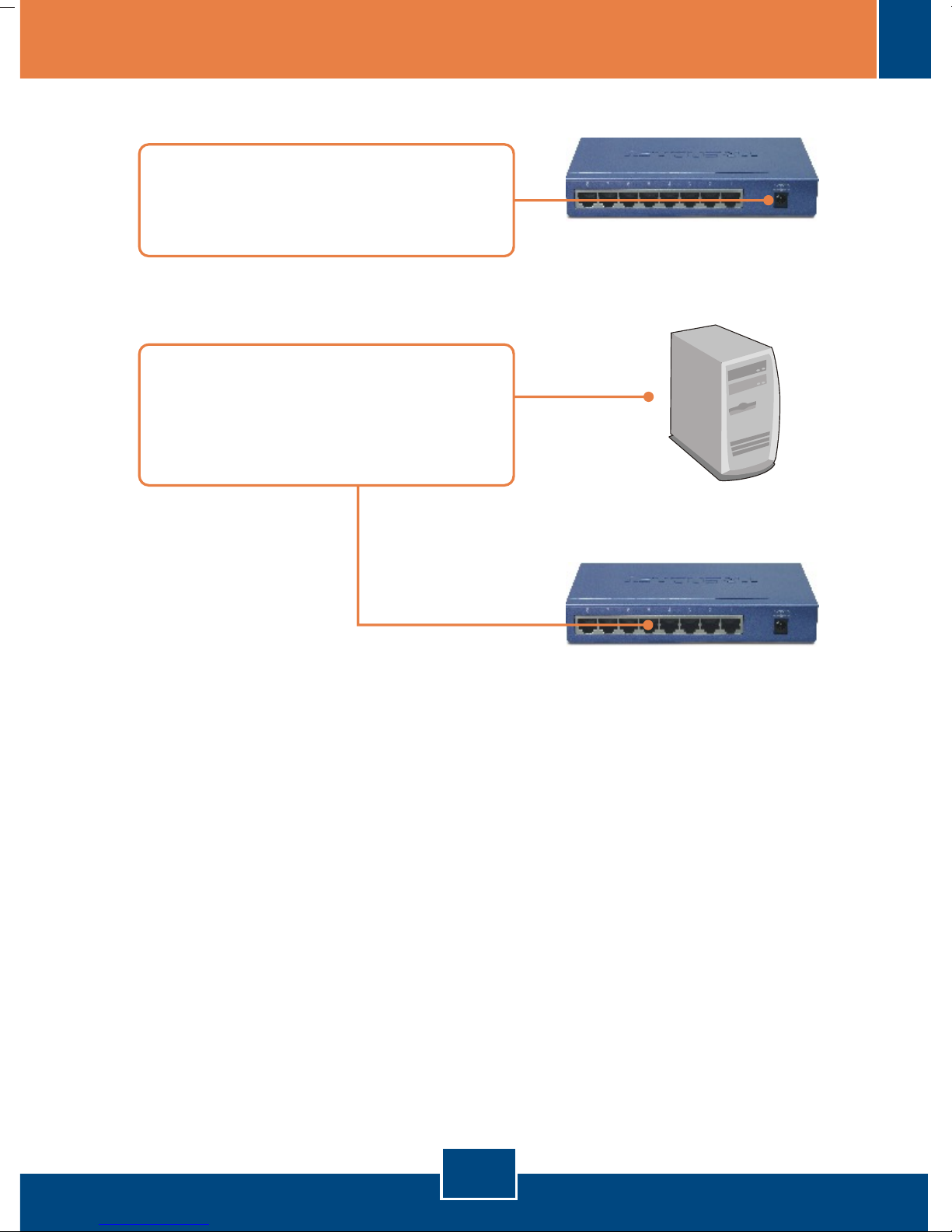

2. Hardware Installation

English

Your installation is now complete.

1. Connect the AC Power Adapter to

the TEG-S50TXE/TEG-S80TXE

and then to a power outlet.

2. Connect a CAT. 5e or CAT. 6 RJ-45

network cable from the computer to

an available Ethernet port on the

TEG-S50TXE/TEG-S80TXE

Technical Specifications

Standards

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-TX

IEEE 802.3ab 1000Base-T

Protocol CSMA/CD

Data Rates

Ethernet: 10Mbps/20Mbps (Half/Full-Duplex)

Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)

Gigabit Ethernet: 2000Mbps (Full-Duplex)

Topology Star

Network Media

Ethernet: 2-pair UTP Cat. 3, 4, 5, 100 meters max

Fast Ethernet: 2-pair UTP Cat. 5, 100 meters max

Gigabit Ethernet: 4-pair UTP Cat. 5, 5e, 6, 100 meters max

Interface

Data RAM Buffer

Power

Consumption

Dimension

Humidity

Filtering Table

Diagnostic LED

Weight

Certifications

Power Adapter

Temperature

5 10/100/1000Mbps Auto-MDIX RJ-45 Ports (TEG-S50TXE)

8 10/100/1000Mbps Auto-MDIX RJ-45 Ports (TEG-S80TXE)

112Kbyte per device(TEG-S50TXE)

144Kbyte per devicee(TEG-S80TXE)

5 watts max. (TEG-S50TXE)

7.5 watts max. (TEG-S80TXE)

171 x 98 x 28mm (6.7 x 3.86 x 1.1 inches)

10%~90% (Non-Condensing)

8K entries per device

Power, Link/ACT, 100Mbps, 1000Mbps

430g (15.2oz.) (TEG-S50TXE)

450g (15.9oz.) (TEG-S80TXE)

FCC, CE

7.5V DC, 1A External Power Adapter

Operating: 0° ~ 40° C (32° ~ 104° F)

Storage: -10° ~ 70° C (14° ~ 158° F)

Hardware

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

After connecting the Switch to a power outlet, the LEDs do not turn on.

Check the connection of the power adapter to the TEG-S50TXE/TEG-S80TXE

and the power outlet. Also check that the power outlet is receiving power.

When I connect a computer to the Switch port, the LINK/ACT LED turns on,

but the 1000Mbps LED remains off.

First, check the Ethernet Cable. Make sure you are using CAT-5e or CAT-6

Ethernet Cables. Some CAT-5 cables are not rated to run Gigabit. Second,

make sure that you have a Gigabit Ethernet Adapter installed on your computer.

After I connect my PCs to the Switch, I am unable to share files.

First, check the LEDs on the Switch. Make sure the LINK/ACT LED is on.

Second, check the network cable. The minimum length of the cable is 1.5 meters

and the maximum length of the cable is 100 meters. Third, disable any software

firewall program. Fourth, verify that you have file and printer sharing enabled.

Please contact Microsoft support for more information.

After I connect my PCs to the Switch, I can only get onto the Internet from one

computer.

The Switch was not designed to share Internet between multiple computers.

You need to get an Internet router.

If you still encounter problems or have any questions regarding the TEG-S50TXE/TEG-

S80TXE please contact TRENDnet's Technical Support Department.

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may cause

undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE

CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS

COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Troubleshooting

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

Limited Warranty

TRENDnet warrants its products against defects in material and

workmanship, under normal use and service, for the following lengths of

time from the date of purchase.

TEG-S50TXE/TEG-S80TXE - 5-Year Warranty

If a product does not operate as warranted above during the applicable

warranty period, TRENDnet shall, at its option and expense, repair the

defective product or part, deliver to customer an equivalent product or

part to replace the defective item, or refund to customer the purchase

price paid for the defective product. All products that are replaced will

become the property of TRENDnet. Replacement products may be new

or reconditioned.

TRENDnet shall not be responsible for any software, firmware,

information, or memory data of customer contained in, stored on, or

integrated with any products returned to TRENDnet pursuant to any

warranty.

There are no user serviceable parts inside the product. Do not remove

or attempt to service the product by any unauthorized service center.

This warranty is voided if (i) the product has been modified or repaired

by any unauthorized service center, (ii) the product was subject to

accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet office within

the applicable warranty period for a Return Material Authorization (RMA)

number, accompanied by a copy of the dated proof of the purchase.

Products returned to TRENDnet must be pre-authorized by TRENDnet

with RMA number marked on the outside of the package, and sent

prepaid, insured and packaged appropriately for safe shipment.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT

OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S SOLE

REMEDY SHALL BE, AT TRENDNET'S OPTION, REPAIR OR

REPLACEMENT. THE FOREGOING WARRANTIES AND REMEDIES

ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES,

EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF

LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER

PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN

CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR

USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS

TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED

DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY

CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT,

IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED

ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE

BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT,

FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW

TRENDNET ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY

LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING

NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT,

SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF

REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT

OF OR IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION

OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY

TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE

PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF LIABILITY FOR

DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED

HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of

the state of California.

AC/DC Power Adapter, Cooling Fan, and Power Supply carry a 1 Year

Warranty

3135 Kashiwa Street

Torrance, CA 90505

USA

TRENDnet Technical Support

Product Warranty Registration

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com

US Canada

24/7 Tech Support

Toll Free Telephone: 1(866) 845-3673

Europe (Germany France Italy Spain Switzerland UK)

English/Espanol - 24/7

Francais/Deutsch - 11am-8pm, Monday - Friday MET

English/Espanol - 24/7

Francais/Deutsch - 11am-8pm, Monday - Friday MET

Worldwide

Telephone: +(31) (0) 20 504 05 35

Toll Free Telephone: +00800 60 76 76 67

. . . . .
