TRENDnet TFU-430 Stücklistenhandbuch

TFU-430

Quick Installation Guide

Table of Contents

Version 04.11.2007

Español .....................................................................................................

Troubleshooting ........................................................................................

1. Antes de iniciar ..................................................................................

2. Instalación del Hardware ....................................................................

Aplicación

Requisitos del sistema

Español

1. Antes de iniciar

Contenidos del paquete

Vista)

?M : 256MB RAM o superior(XP/2000)/ 512MB RAM o superior

(Windows Vista)

?Puertos USB: 1.1 ó 2.0

?Windows Vista/XP/2000/ME/98SE, Mac 8.6 y superior

?Puerto FireWire IEEE 1394 en su PC

CPU: 300MHz o superior (XP/2000)/ 800MHz o superior (Windows

emoria

?TFU-430

?Cable USB 2.0 de tipo A a tipo B

(12V DC, 1A)

?Cable de alimentación

?Cable FireWire IEEE 1394

Adaptador para corriente AC

Guía de instalación rápida

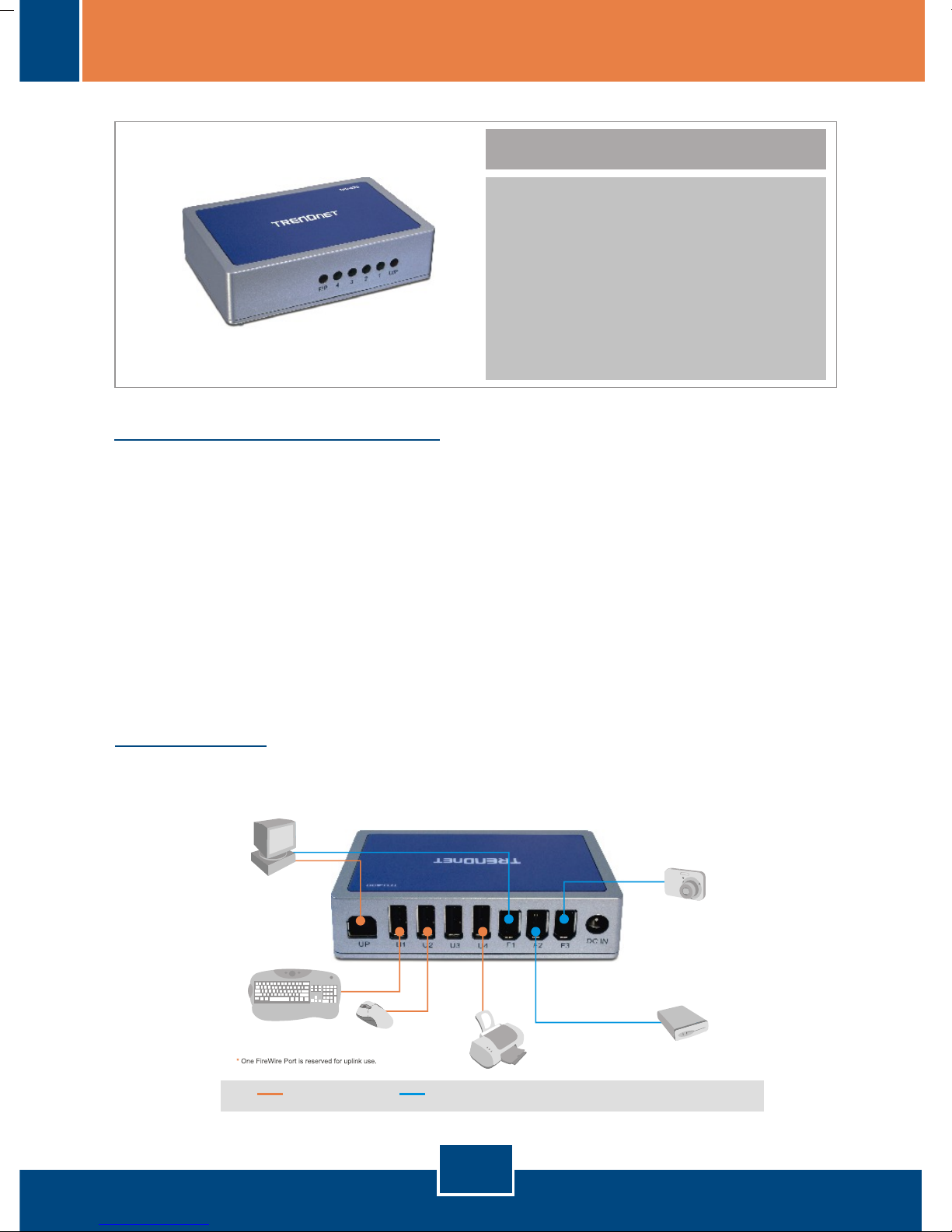

7-Port USB 2.0/FireWire Combo Hub

(TFU-430)

PC/MAC

Systems

USB Keyboard

FireWire

Digital

Camera

FireWire

Hard Drive

USB

Mouse

USB Printer

USB 2.0 (480Mbps) FireWire(400Mbps)

USB 1.1 (12Mbps)

* Backwards compatible

with USB 1.1 at 12Mbps

2. Instalación del Hardware

Dado que el TFU-430 es hot-pluggable, podrá conectarlo y desconectarlo

mientras el computador está encendido. Además, TFU-430 se alimenta de

corriente por bus y por tanto no requiere de un adaptador de energía AC. No

obstante, si usted utiliza periféricos externos USB o FireWire de alta velocidad,

es recomendable emplear adaptador para corriente externa AC incluido en el

paquete.

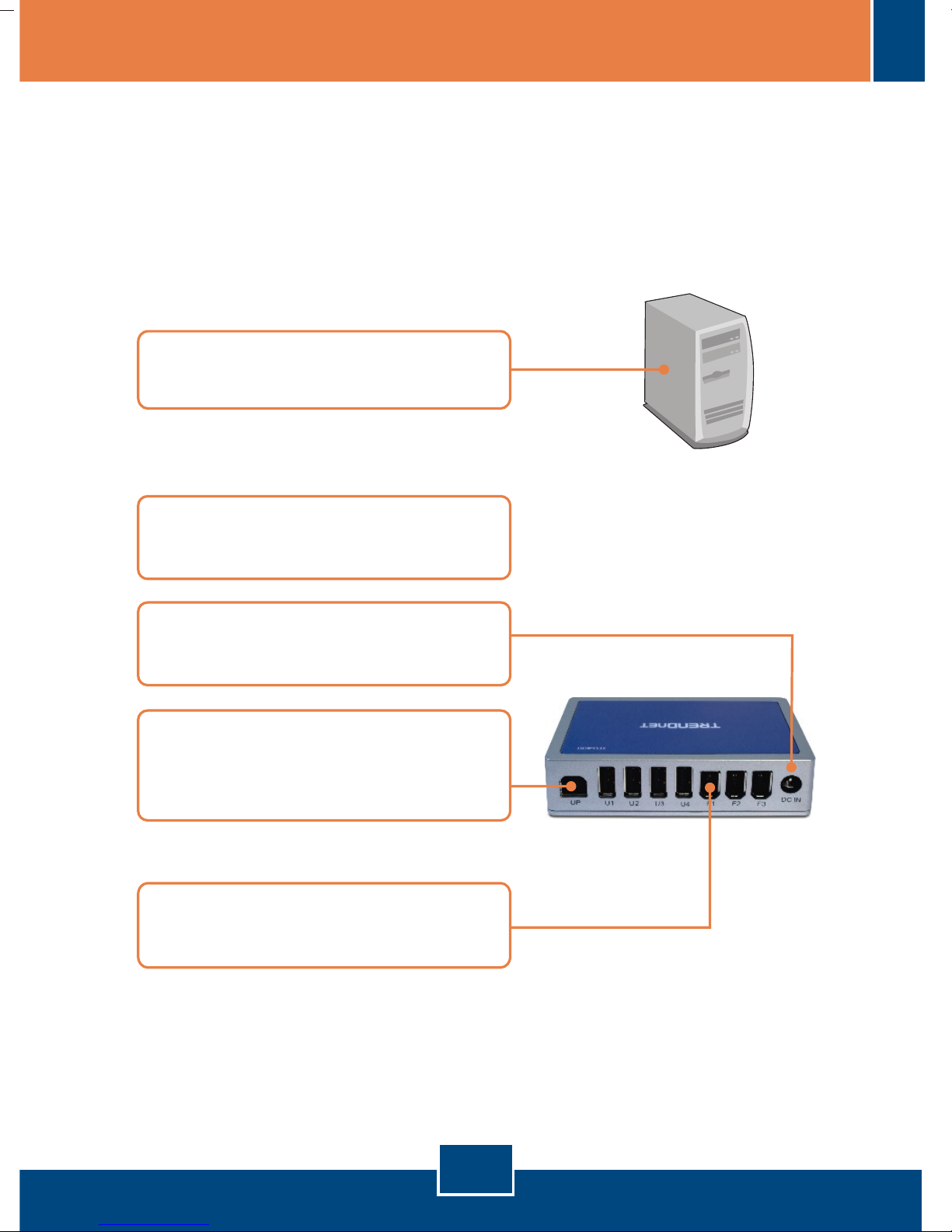

1. Encienda su PC y espere

hasta que se inicie por completo.

4. Conecte el extremo tipo B del

cable USB suministrado al puerto

UP.

5. Conecte el cable FireWire IEEE

1394 anexado al TFU-430.

2. Conecte el cable de alimentación

al adaptador de alimentación AC.

3. Conecte el adaptador de

alimentación AC al Hub USB.

Español

Registre su producto

Para asegurar los más altos niveles de servicio y apoyo al cliente, registre su producto

en línea en: www.TRENDnet.com/register

Gracias por elegir TRENDnet

8. Conecte el USB y los dispositivos

FireWire a los puertos restantes.

Nota:

1. U1, U2, U3 y U4 son puertos USB descendentes. No conecte el cable USB

de su PC a los puertos USB descendentes.

2. Uno de los puertos Firewire IEEE 1394 debe estar conectado a su PC como

puerto ascendente. Cualquier puerto Firewire IEEE 1394 puede actuar

como puerto ascendente.

7. Conecte el otro extremo del cable

Firewire incluido a su PC.

6. Conecte el otro extremo del cable

USB (tipo A) incluido a su PC.

La instalación ha sido completada

Español

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

Q5:

A5:

Where is the Driver CD-Rom for the TFU-430?

Can I connect or disconnect the USB cable while the computer is on?

Yes, you can connect or disconnect the USB cable, or any external USB

device while the computer is on because the USB interface is Plug-and-Play and

hot-pluggable.

The TFU-430 does not require unique drivers; it uses generic USB and

preinstalled FireWire drivers provided by your operating system. You must have

properly installed USB and/or FireWire ports on your computer.

My computer does not detect my FireWire device. What should I do?

First, make sure you have connected the included FireWire cable from F1, F2,

or F3 port on the TFU-430 to the FireWire port on your computer. Please see

section 3 for more information. Second, your computer must have the FireWire

Host Controller installed properly for you computer's FireWire port to work. For

more information regarding FireWire Host Controller installation, please refer to

you computer's User Manual.

My computer does not detect my USB device. What should I do?

First, make sure you have connected the included USB cable from the UP port

on the TFU-430 to the USB port on your computer. Please see section 3 for more

information. Second, check that your computer's BIOS settings have USB

enabled. For more information regarding BIOS settings, please refer to your

computer's User Manual.

Can I daisy chain the TFU-430?

Yes you can. The TFU-430 can connect up to 127 USB and IEEE 1394

FireWire ports by daisy chaining TFU-430 USB hubs.

If you still encounter problems or have any questions regarding the TFU-430, please

contact TRENDnet's Technical Support Department.

Troubleshooting
