TRENDnet TK-210K Bedienungsanleitung

TK-210K

Quick Installation Guide

Table of Contents

English ......................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. How to Install .....................................................................................

3. Operation ..........................................................................................

................................................................................

Table of Contents

Version 09.28.2007

System Requirements

Application

TK-210

2 Sets of KVM Cables

2 Sets of USB Cables

2 Sets of Audio Cables

Stand

VGA or SVGA Compatible Monitor

Microphone and Speaker (optional)

Windows 98SE/ME/2000/XP/2003 Server/Vista, Linux, or Mac OS

Package Contents

1. Before You Start

English

Microphone

2-Port USB and PS/2

KVM Switch with Audio

(TK-210K)

PC 1

Speakers

PC 2 Cables

Cables

LCD Monitor

Keyboard Mouse

Scanner

Printer

1. Turn off both computers and their

peripherals, and disconnect all

power cords.

3. Connect the shared PS/2

keyboard, monitor, and PS/2

mouse into the KVM Switch's

console port .

4. Use the provided KVM and audio

cables to connect your PC to the

KVM Switch.

2. How to Install

English

2. Connect the USB device (optional),

microphone (optional) and speaker

(optional) into the KVM switch.

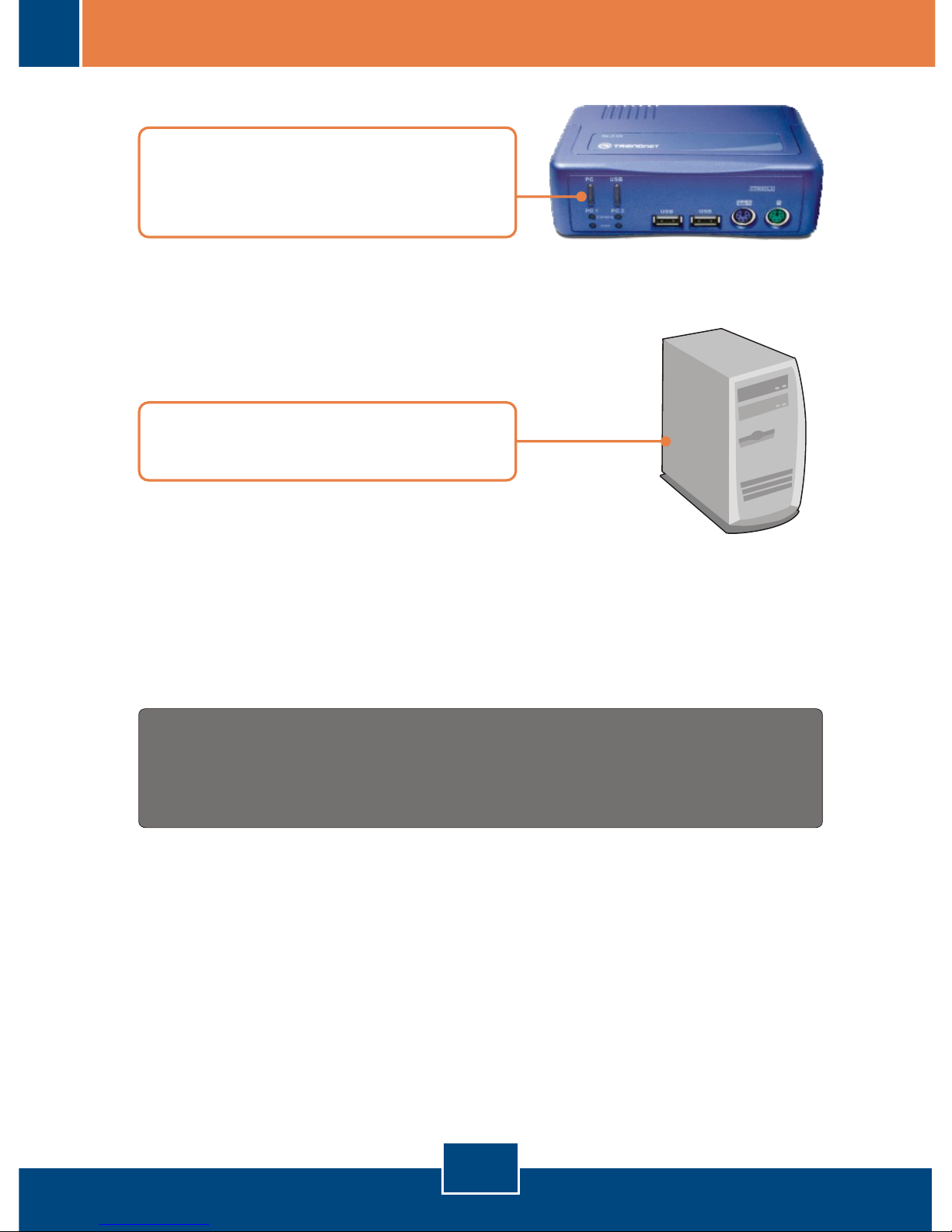

5. Turn ON the first computer and

wait until startup completes. PC 1

6. Press the face panel button on the

KVM Switch to select the second

computer.

Your installation is now complete.

English

PC 2

7. Turn ON the second computer and

wait until startup completes.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

Note: For PC switching, you can use the face-panel buttons of the KVM Switch,

or a hot-key command sequence via keyboard.

A keyboard hot key command consists of three keystrokes:

Hot Key command = ScrLk + ScrLk + Command key(s)

After pressing the ScrLk key, you have 2 seconds to press the ScrLk key again.

If you do not press a key within 2 seconds, the switch will exit hot-key mode.

3. Operation

English

Face-Panel Buttons

Hot-Key Command Sequence

Press the corresponding face-panel

button to select your PC or USB

devices.

Note:

1. Hot key command works on top row numbers keys only.

2. A PS/2 Keyboard is required for proper hot key function. If you use a USB

keyboard, hotkey feature is disabled.

3. When the binding of PC, USB Hub & Audio/Mic port switching is enabled by

the hotkey sequence, any PC, USB Hub and Audio/Mic switching are bound

together.

4. For non-PnP OS (Linux, Windows NT4.0), please use the following

commands to reset the mouse setting.

ScrLk ScrLk

+++

ScrLk ScrLk

+++

ScrLk ScrLk

+++

2-key mouse setting:

3-key wheel mouse setting:

5-key wheel mouse setting:

English

Command Hot-Keys Description

Front-Panel

Buttons

Quick Reference Sheet for TK-210

Select PC

Select Hub Port

Next higher channel

Bind PC & Hub Port

Switching

Beep Sound On/Off

UnBind PC & Hub

Port Switching

Autoscan

Next lower channel

Stop Autoscan

ScrLk ScrLk X

+ +

(x is a top-row number key)

x = 1 ~ 2 for PC channel number

ScrLk ScrLk

+ +

(Arrow up)

ScrLk ScrLk

+ +

(Arrow down)

ScrLk ScrLk

+ + X

ScrLk ScrLk

+ + B

ScrLk ScrLk

+ + S

Press any key on keyboard

Select the active PC channel x

(selects both PC & Hub port,

if “binding” is enabled)

Press the PC button

to toggle the PC

channel

Press the USB button

toggle the USB Hub

port

Select the active USB hub port

(select both PC & Hub port, if

“binding” is enabled)

Select the next higher

connected channel. (select

both PC and USB Hub port,

if “binding” is enabled)

Enable the binding of PC &

Hub port switching. (Once

this feature is enabled, any

PC and/or Hub port switching

is bound together)

Toggle on/off the beep sound

for Hot-Keys and port switching

confirmation

Disable the binding of PC &

Hub port switching.

(Factory default)

Autoscan through each

connected channel to browse

each channel (delay = 10 \

seconds).

Select the next lower

connected channel. (select

both PC and Hub port, if

“binding” is enabled)

Terminate Autoscan.

Press any button.

(Fx is a function key) Fx = F1 ~ F2

ScrLk ScrLk

+ +

ScrLk ScrLk

+ +

- - -

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

Q5:

A5:

Q6:

A6:

Where is the power supply? I did not find one in the box.

The TK-210K does not require a power supply. It draws power from your computer's

USB connection. As long as your KVM switch is connected to the USB or PS/2 port, it will

receive the necessary power to function.

I have the KVM switch connected properly, but my keyboard and mouse don't work.

Please make sure your USB port is working properly by testing it with your other USB

devices. Once you confirm that the USB port is functional, please reboot your computers,

and try to use the KVM switch again.

I have the KVM switch connected properly, but my microphone and speakers don't

work.

Can I connect and disconnect the USB cables while the computers are turned on?

Yes, you can connect or disconnect the USB cables while the computers are turned on

because the USB interface is Plug-and-Play and Hot-Pluggable.

Will the KVM switch remember the keyboard settings between computers?

Yes, the KVM switch will remember the keyboard settings when switching between your

computers. (i.e.: Cap lock, Num key, etc.)

How do I switch from one computer to another with the KVM switch?

PC User: Push Buttons, Hot-Key Commands

Mac User: Push Buttons

Linux User: Universal Hot-Key Commands

First, make sure your sound card is properly installed on your computers. Second, make

sure your speakers and microphone work properly when connected directly to your

computer. Third, make sure your speakers and microphone are connected in correct jack on

the KVM switch. Make sure the audio cables are connected to the correct jack on your

computer.

If you still encounter problems or have any questions regarding the TK-210K, please contact

TRENDnet's Technical Support Department.

Troubleshooting

Limited Warranty

- 2-Year Warranty

TRENDnet warrants its products against defects in material and workmanship, under

normal use and service, for the following lengths of time from the date of purchase.

TK-210

If a product does not operate as warranted above during the applicable warranty period,

TRENDnet shall, at its option and expense, repair the defective product or deliver to

customer an equivalent product to replace the defective item. All products that are

replaced will become the property of TRENDnet. Replacement products may be new or

reconditioned.

TRENDnet shall not be responsible for any software, firmware, information, or memory

data of customer contained in, stored on, or integrated with any products returned to

TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to

service the product through any unauthorized service center. This warranty is voided if

(i) the product has been modified or repaired by any unauthorized service center, (ii) the

product was subject to accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet office within the applicable

warranty period for a Return Material Authorization (RMA) number, accompanied by a

copy of the dated proof of the purchase. Products returned to TRENDnet must be pre-

authorized by TRENDnet with RMA number marked on the outside of the package, and

sent prepaid, insured and packaged appropriately for safe shipment.
