TRENDnet TPE-224WS - Web Smart PoE Switch Bedienungsanleitung

24-Port 10/100Mbps Web Smart PoE Switch

with 4 Gigabit Ports and 2 Mini-GBIC Slots

TPE-224WS

1.12

ŸQuick Installation Guide (1)

ŸTroubleshooting (3)

Minimum Requirements

Package Contents

If any of the above contents are missing, please contact your reseller.

1. Before You Start

ŸWeb Browser: Internet Explorer (6.0 or above)

ŸComputer with network adapter installed

ŸIEEE 802.3af PoE Device

ŸCat. 5, Cat. 5e or Cat 6 RJ-45 network cable

TPE-224WS

Multi-Language Quick Installation Guide

CD-ROM (Utility and User Guide)

Power Cord

Rack Mount Kit

Optional Equipment

ŸStandard 19” Rack

ŸMini-GBIC Modules (e.g. TEG-MGBSX, TEG-MGBS10, TEG-MGBS40,

TEG-MGBS80, TEG-MGBS10D35, TEG-MGBS40D35)

Note: The TPE-224WS only works with Power over Ethernet (PoE) devices that

follow the IEEE 802.3af standard.

2. Hardware Installation

Note:

1. After hardware installation is complete, use the Web Smart Switch

Management Utility to configure the TPE-224WS. To access the Web Smart

Switch Management Utility, open your web browser, and enter the default IP

Addr

configured to the same network segment.

2. The Mini-GBIC slots are shared with Gigabit Ethernet ports 25 and 26. When

the Mini-GBIC slots are in use, Gigabit Ethernet ports 25 and 26 are disabled.

ess http://192.168.0.1 and default password "admin". Make sure your

computer and the TPE-224WS are

2. Connect a network cable from the

computer to an available Ethernet

port of the TPE-224WS.

1. Connect the Power Cord to the

rear of the TPE-224WS and then

to a power outlet.

For more information regarding the

Web Smart Switch Management

Utility configuration and advanced

settings, please refer to the User's

Guide included on the provided

CD-ROM or TRENDnet's website at

www.trendnet.com

3. Connect a RJ-45 network cable

from from a PoE port (1~24) on the

TPE-224WS to the LAN port on the

PoE device (e.g. TV-IP322P)

2. Hardware Installation

3. If you would like to easily discover all the Web Smart Switch Management

Utility on the network, assign IP Address, change the password, and upgrade

new firmware, then install the Web Smart Switch Management Utility. Follow

the steps provided on the user's guide.

Troubleshooting

1. After connecting the TPE-224WS to a power outlet, the LEDs do not turn on.

1. Check the connection of the power cord to the TPE-224WS and the power outlet.

2. Check that the power outlet is receiving power.

2. When I access the TPE-224WS using a web browser, I get a screen that tells

me “only one user can login”. What should I do?

Another computer is configuring the TPE-224WS. Please wait until the user logs

off. If the other user has already logged off and you still get the same screen, then

disconnect the power cord from the TPE-224WS, wait for 5 seconds, reconnect the

power cord to the TPE-224WS, allow 5 seconds for the switch to power on, and

then attempt to access the web configuration page again.

3. I forgot the administration password. How do I reset my TPE-224WS?

Press on the reset button using a pen or paperclip for 10 seconds. The

default password is admin. Note: The default password is case sensitive.

4. When I connect a computer to the Switch's Gigabit Ethernet port, I am not

getting Gigabit speeds. What should I do?

1. Check the LEDs on the Switch. When the 1000Mbps LED remains off and the

100Mbps LED remains on, the computer's connection speed is 100Mbps. When

the 1000Mbps and 100Mbps LEDs remain off, the computer's connection speed

is 10Mbps.

2. Make sure that you have a Gigabit Ethernet adapter installed.

3. Make sure to use a Cat. 5e or Cat. 6 Ethernet cable. Some Cat. 5 cables are

not rated to run in Gigabit.

5. My 802.3af PoE Device does not power on when I plug the device into the

Switch. What should I do?

1. Verify that the PoE device supports IEEE 802.3af Mode A protocol.

2. Power cycle the PoE switch. Unplug power to the Switch, wait 15 seconds, then

plug the power back in.

3. Plug the device into a different port on the PoE switch.

4. Try using another RJ-45 network cable.

If you still encounter problems or have any questions regarding the TPE-224WS,

please refer to the User's Guide included on the provided CD-ROM or contact

Trendnet's Technical Support Department.

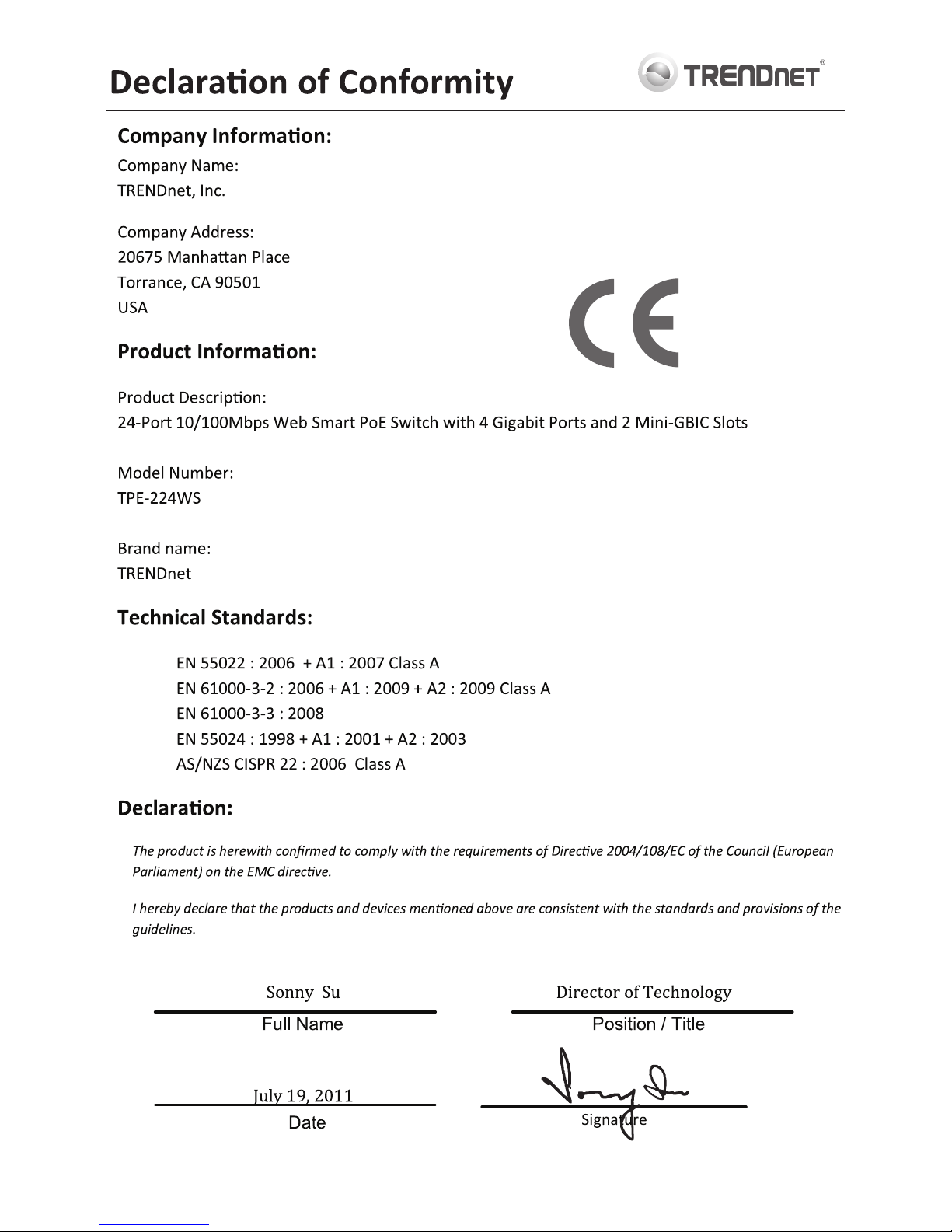

TRENDnet

20675 Manhattan Place

Torrance, CA 90501. USA
