TRENDnet TEW-211BRP Bedienungsanleitung

TEW-211BRP

Wireless AP Router

User’s Manual

Version 1.4 -Jan 2002

CONTENTS

Introduction .............................................................................3

Hardware Installation ..............................................................................5

General WirelessAP Router System Connection .........................6

Wireless AP RouterDefault Settings…………………………………7

Web Management Setttings ……….…………………………….8

Device Information ……..……………………………………………….10

Device Status ….………………………………………………………...10

Device IP Settings ….……………………………………………………12

Cable / ADSL ISP Settings ………………………………………………13

ISP Additional Settings …………………………………………………..14

Wireless Settings …………………………………………………………15

Modem Settings ………………………………………………………….16

Advanced Settings …………………………………………………………17

DHCP Server Settings ……………………………………………………17

Virtual Server Settings ……………………………………………………18

Access Control Settings …………………………………………………..19

Static Settings ……………… …………………………………………….22

Dynamic Settings …….…………………...………………………………23

Modem Settings……………………………………………………………24

Filter Settings ………………………………………………………………24

Administration Settings ……………………………………………………26

System Tools …………………………………………………………………27

Intruder Detection Log …………………………………………………….28

Display Routing Table ………………..……………………………………29

Load Settings ………….…………………………………………………...30

Upgrade Firmware ……...………………………………………………….31

Reset Device ……………………………………………………………….32

Troubleshooting ………………………………………………………………33

Technical Specifications ………………………….…………………………35

Introduction

Thank you for purchasing your TEW-211BRP Wireless AP Router

This manual will assist you with the installation procedure.

The package you have received should contain the following items:

??TEW-211BRP Wireless AP Router

??User’sManual

??PowerAdapter

Note: if anything is missing, please contact your vendor

Safety Notification

Your TEW-211BRP Wireless AP Router should be placed in a safe and secure location.

To ensure proper operation, please keep the unit away from water and other damaging

elements.

?? Please read the installation guide thoroughly before you install the TEW-211BRP

Wireless AP Router

?? The TEW-211BRP Wireless AP Router should only be repaired by authorized and

qualified personnel.

?? Please do not try to open or repair the TEW-211BRP Wireless AP Router yourself.

?? Do not place the TEW-211BRP Wireless AP Router in a damp or humid location,

i.e. a bathroom.

?? The TEW-211BRP Wireless AP Router should be placed in a sheltered and

non-slip location within a temperature range of +5 to +40 Celsius degree.

?? Please do not expose the TEW-211BRP Wireless AP Router to direct sunlight or

other heat sources. The housing and electronic componentsmay be damaged by direct

sunlight or heat sources.

Hardware Installation

Front Panel

The front panel provides LED’s for device status. Refer to the following

table for the meaning of each feature.

PWR Power status of theTEW-211BRP WirelessAP

Router. A steady LED indicates the power is applied

to the unit.

WLAN The WLAN LED will be ON when AP function

enable, at this time Wireless clients are able to

connect to the AP.

WAN Wide Area Network status. WAN LED is

illuminated when there is a good connection to the

10 BaseT mode Ethernet port.

MODEM

Indicates console port Carrier Detect status. When

modem connection is established then LED should

be steady on.

STAT System status indicator. A flickering light indicates

that when data is reading from or writing into flash.

Rear Panel

The rear panel features 4 LAN ports, WAN port, Modem port and Factory

Reset button. Refer to the following table for the meaning of each feature.

Power

(DC 5v) Used to connect to the power outlet. Only use the power

adapter provided with the Wireless AP router. Use of an

unauthorized power adapter may cause damage to your

device and violate your warranty.

Modem Port used to connect an external analog backup

modem/ISDN TA.

WAN The RJ-45 Ethernet port labeled WAN is used to connect

your Wireless AP Router to your xDSL or Cable modem.

Reset Resets the configuration to default settings.

LAN

(1,2,3,4) The RJ-45 Ethernet portsused to connect your PCor

HUB,The Ethernet Cable used can benormal Ethernet

cables or even Crossover Cable.

The TEW-211BRP has internal AutoCrossover detection

circuit to automatic identify them.

General Wireless AP Router System Connection

1. The general function of Wireless AP Router is defined as an “AP + Router”, and the

connection is as follow diagram. In this mode, user may connect the WAN port to

Cable / DSL modem by using cross cable. The WAN LED will indicate connection.

2. Connect the LAN port to a hub or switch by using RJ-45 normal Ethernet cable.

Wireless AP Router Default Settings

By default settings, the Wireless AP Router is regarded as an “AP Router”. The default

settings are shown following.

Note:

In WEB mode setup system, only one user allows to access setup program at one time

i.e. setup system will decline when other users to connect setup system.

User Name admin

Password

AP Router Name Wireless AP SOHO Wireless LAN

AP Router IP Address 192.168.2.1

AP Router Subnet Mask 255.255.255.0

10/100 Ethernet LAN IP 192.168.2.1

10 Mbps Ethernet WAN IP Obtain from ISP via DHCP Can be manually configure

WAN DHCP Client Enabled After 20 sec. Go to blank

RF ESSID Wireless

RF Channel 6

RF Roaming Enabled

Encryption Disabled

DHCP Server Enabled

NAT Routing Enabled

Web Management Settings

TURN ON POWER SUPPLY

Quick power cycle can caused system corruption. When power on, be careful not to shut

down in about 5 seconds, because data is writing to the flash.

START -UP & LOG IN

In order to configure the WirelessAP Router, you must use your web browser and

manually input 192.168.2.1 into the Address box and press Enter. The Main Page will

appear.

In order to configure the Wireless AP Router, you must input the user-name into the

User Name box. Enter the password into the Password box and press the OK button. The

default User Name is “admin”. There is no default password, leave the Password field

blank.

Once you have logged-in as administrator, it is a good idea to change the

administrator password to ensure a secure connection to the Wireless AP Router. The

Advanced Settings section described later in this manual describes how to change the

password.

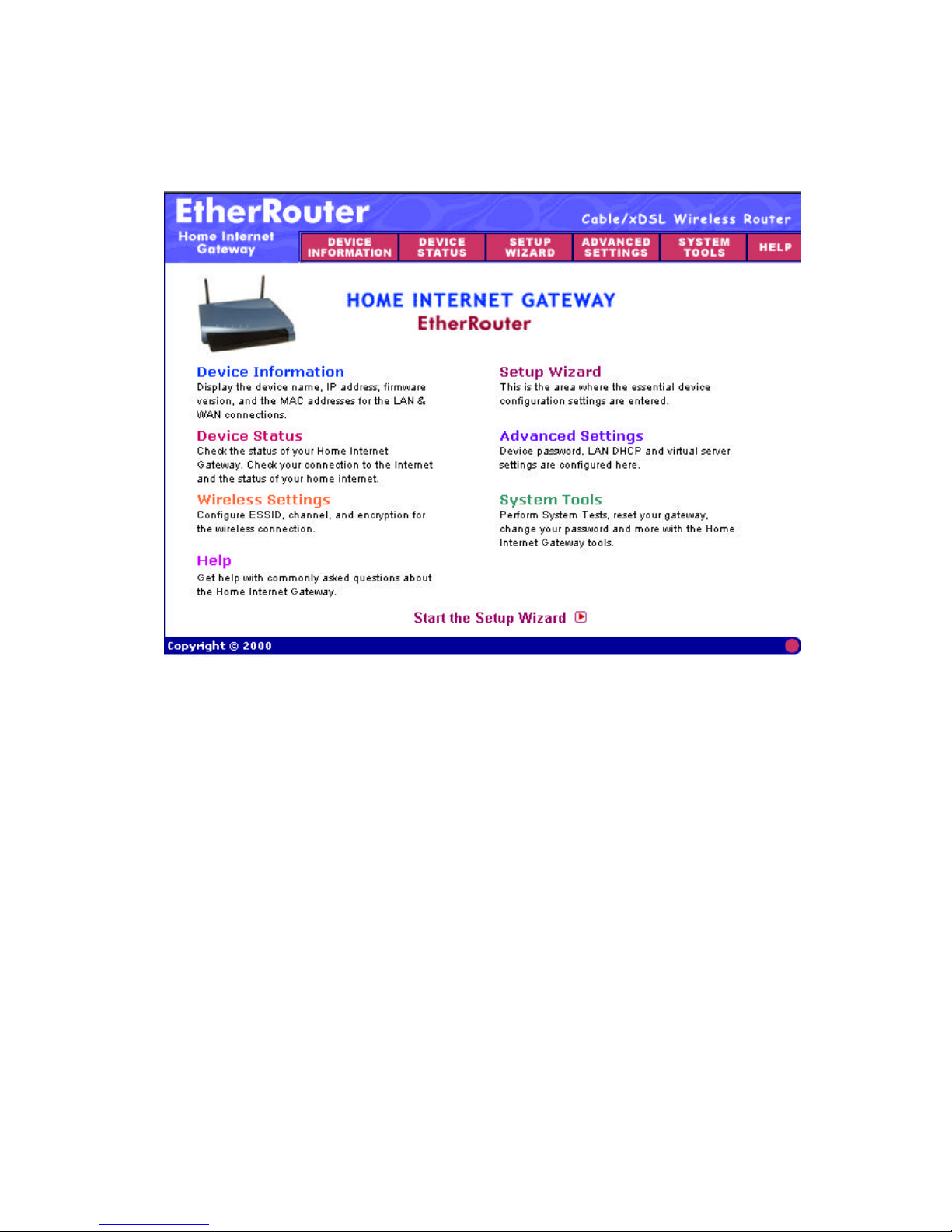

Once you have input the correct password and logged-in, the screen will change to the

Main Page screen.

MAKE CORRECT NETWORK SETTINGS OF YOUR COMPUTER

To change the configuration, use Internet Explorer (IE) or Netscape Communicator to

connect the WEB management 192.168.2.1.

SETUP WIZARD

Click SETUP WIZARD. Here allow user to configure basic network settings with your ISP

provider.

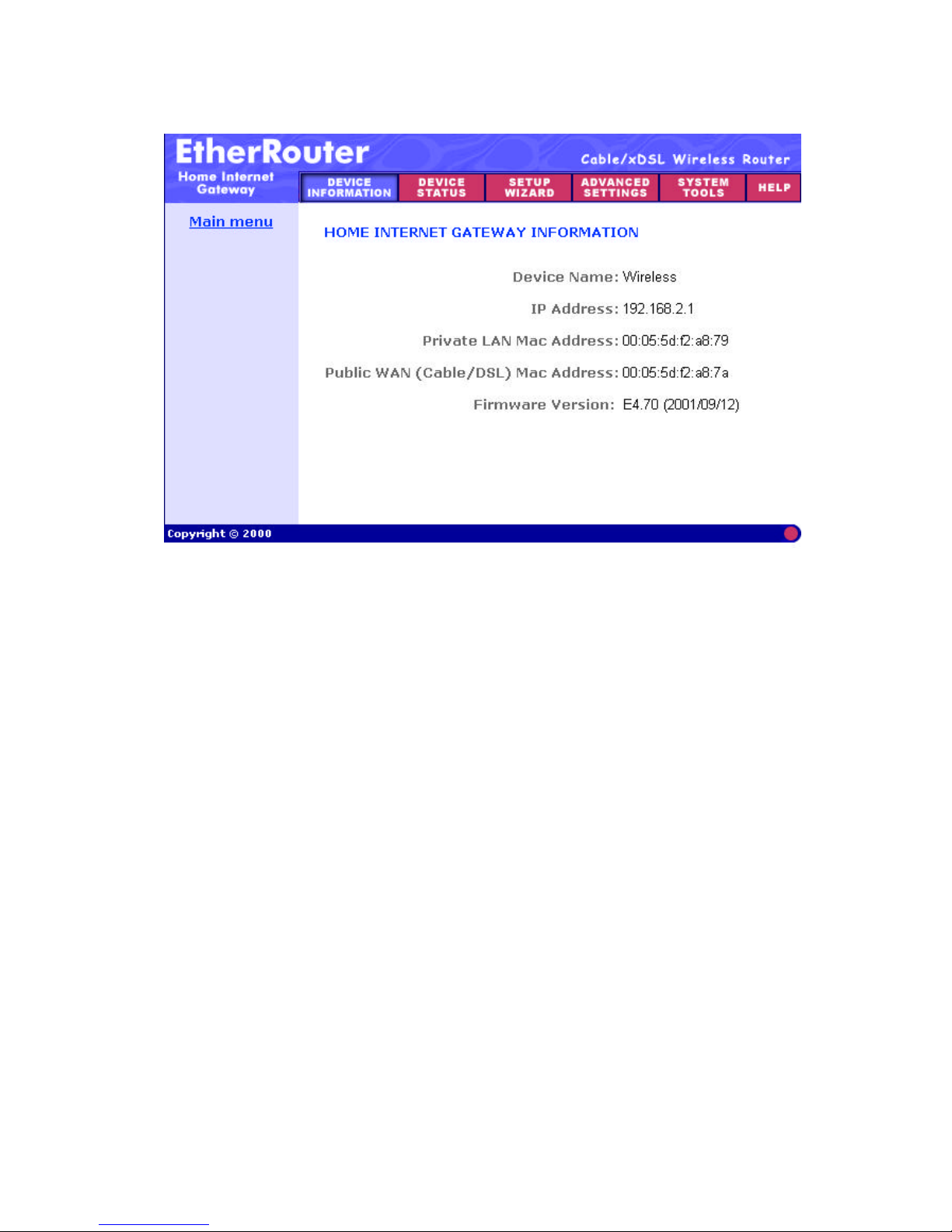

DEVICE INFORMATION

The Device Name is the same as the Computer Name that was set in the Setup

Wizard.

The IP Address is the IP Address assigned to LAN side of your Router.

The Private LAN Mac Address the Mac Address assigned to the LAN side of your

Router.

The Public WAN (Cable/DSL) Mac Address is the Mac Address assigned to the

WAN port of the Router. This Mac Address may be used by some cable modem

connections.

The Firmware Versionis the current firmware version used by the Router.
