TRENDnet TEW-671BR Bedienungsanleitung

Quick Installation Guide

TEW-671BR

1.01

Table of Contents

English ......................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. Hardware Installation .........................................................................

.................................................................................

Configure the Wireless Router ...........................................................

Version 06.17.2009

Installation Requirements

Application

Package Contents

1. Before You Start

English

Acomputer with a wired or wireless network adapter properly installed

Web Browser: Internet Explorer (6.0 or higher)

Broadband Internet

Installed Cable or DSLModem

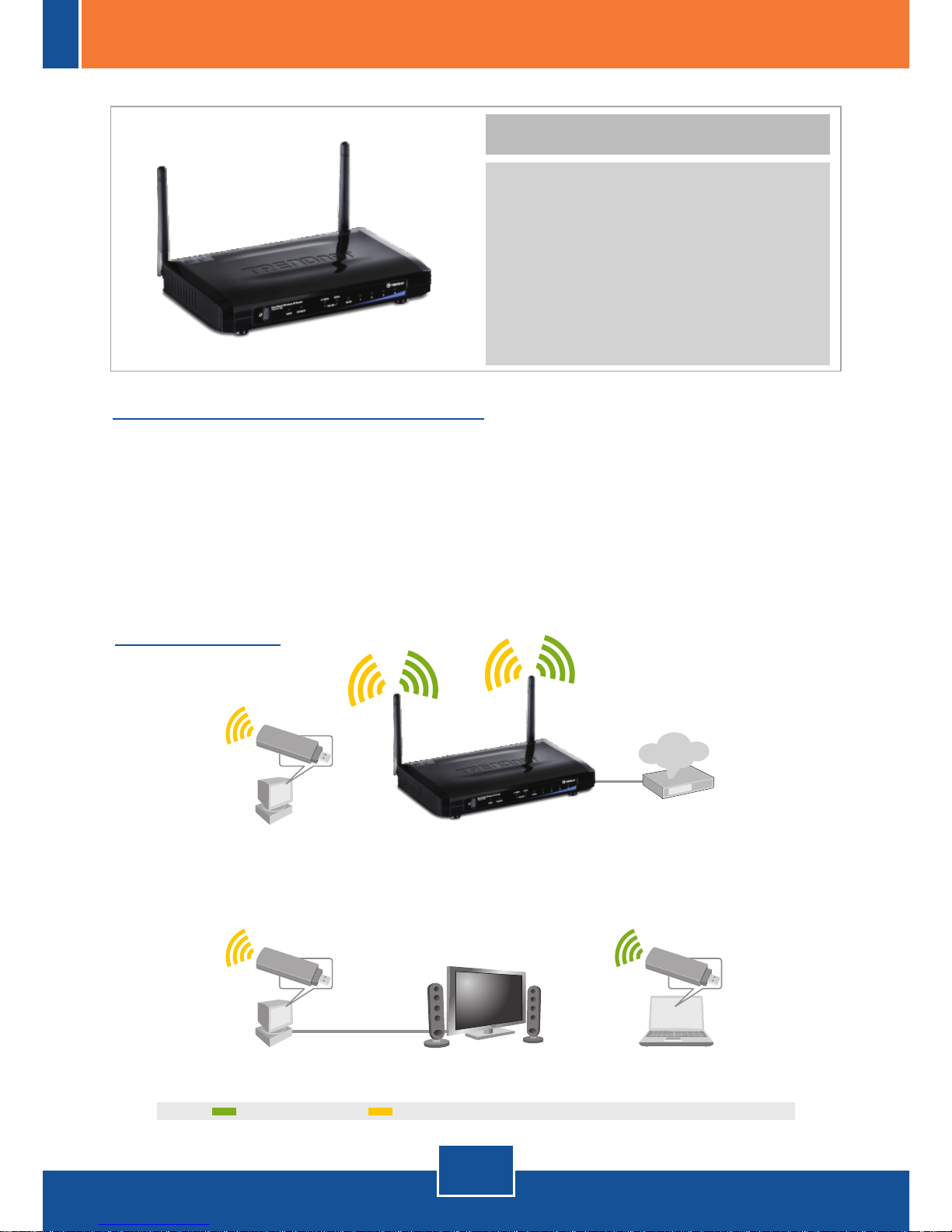

Wireless n (802.11n) 2.4GHz Wireless n (802.11n) 5GHz

300Mbps Dual Band

Wireless N Router

(TEW-671BR)

Laptop with

Wireless N USB Adapter

(TEW-624UB)

Modem

Internet

Workstation with 300Mbps Dual

Band Wireless N USB Adapter

(TEW-664UB)

Media Center

Workstation with 300Mbps Dual

Band Wireless N USB Adapter

(TEW-664UB)

TEW-671BR

Multi-Language Quick Installation

Guide

CD-ROM (User's Guide)

Cat.5 Ethernet cable (1m / 3.2ft)

PowerAdapter (12V, 1A)

English

2. Hardware Installation

Note: Gather all information related to your Internet Connection before you

start. If necessary, contact your Internet Service Provider (ISP).

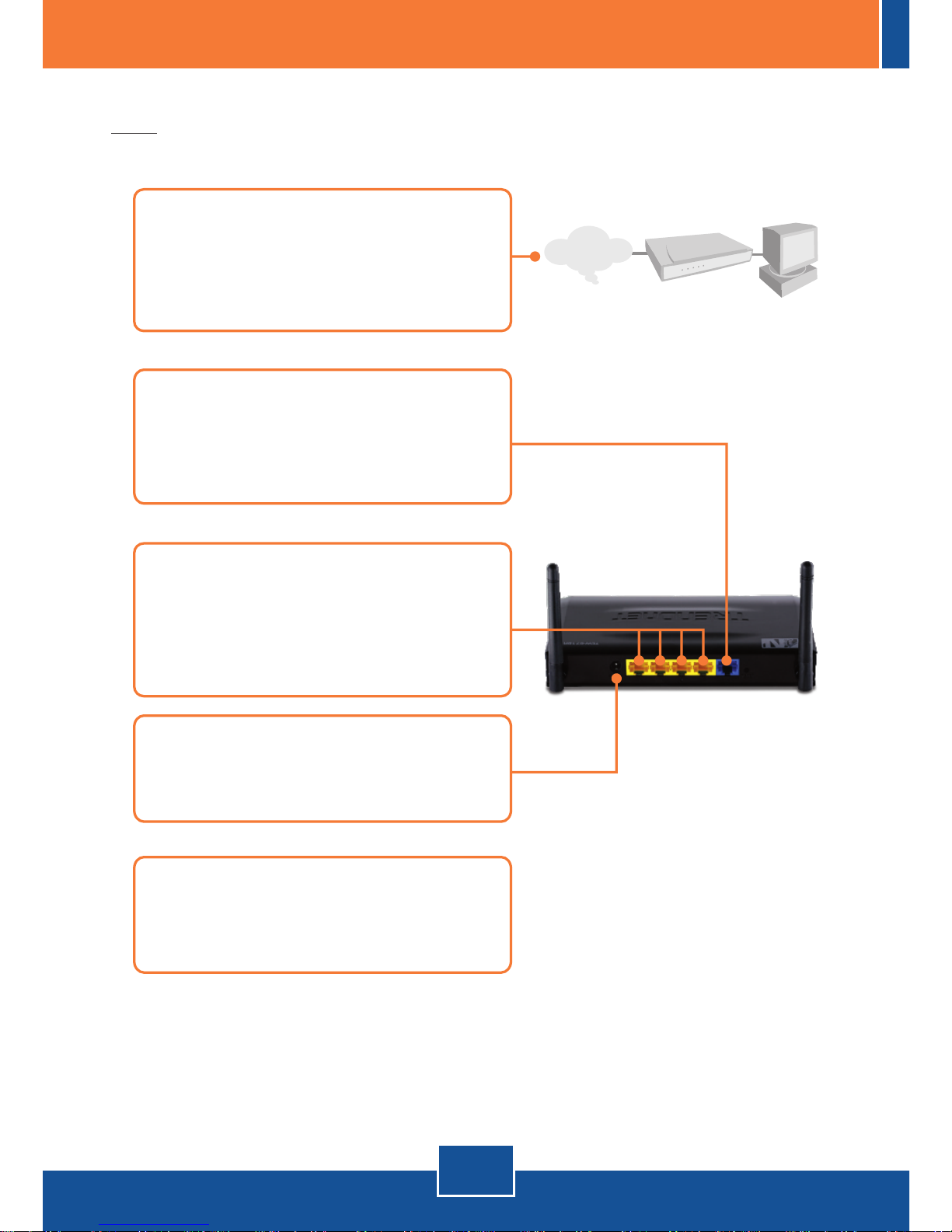

1. Verify that you have an Internet

connection when connecting your

computer directly to the Cable or

DSLmodem.

Cable/DSL Modem

Internet

5. Verify that the following panel lights

are on: POWER, LAN(1,2,3 or 4),

WAN and WLAN (2.4GHz/5GHz) .

2. Connect one end of a RJ-45 cable

to the TEW-671BR’s WAN port.

Connect the other end of the cable

to your modem.

4. Connect theAC PowerAdapter to

the wireless router and then to a

power outlet.

3. Connect one end of a RJ-45 cable

to one of the TEW-671BR’s LAN

ports. Connect the other end of the

cable to your computer.

English

3. Configure the Wireless Router

Note: It is recommended that you configure the Wireless Router from a wired

computer and your PC's IP address is set to receive an IPaddress

automatically (see troubleshooting section).

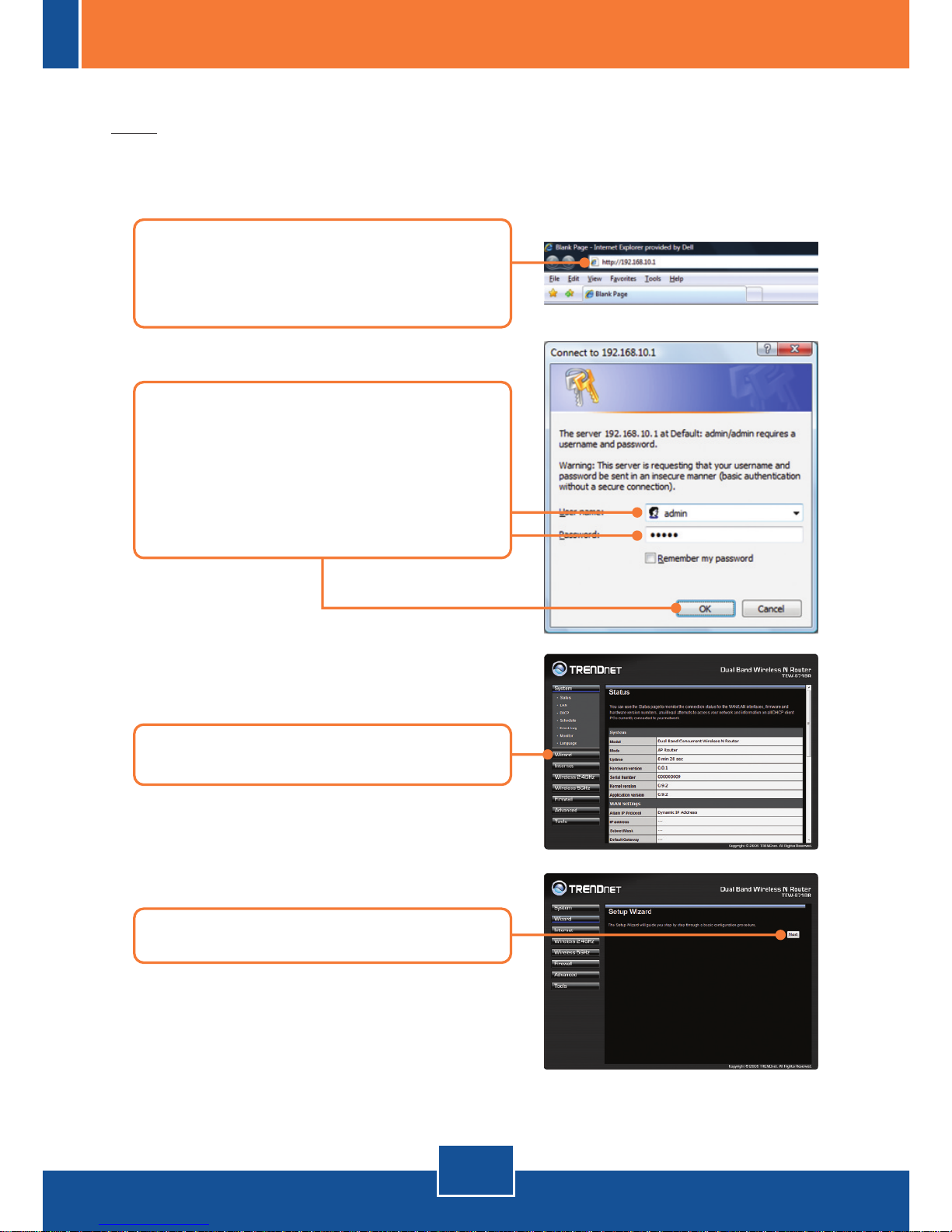

1. Open your web browser, type

http://192.168.10.1 in the

Address bar, and then press Enter.

4. Click Next.

2. Enter the User Name and

Password, and then click OK.

By default:

User Name: admin

Password: admin

3. Click Wizard.

English

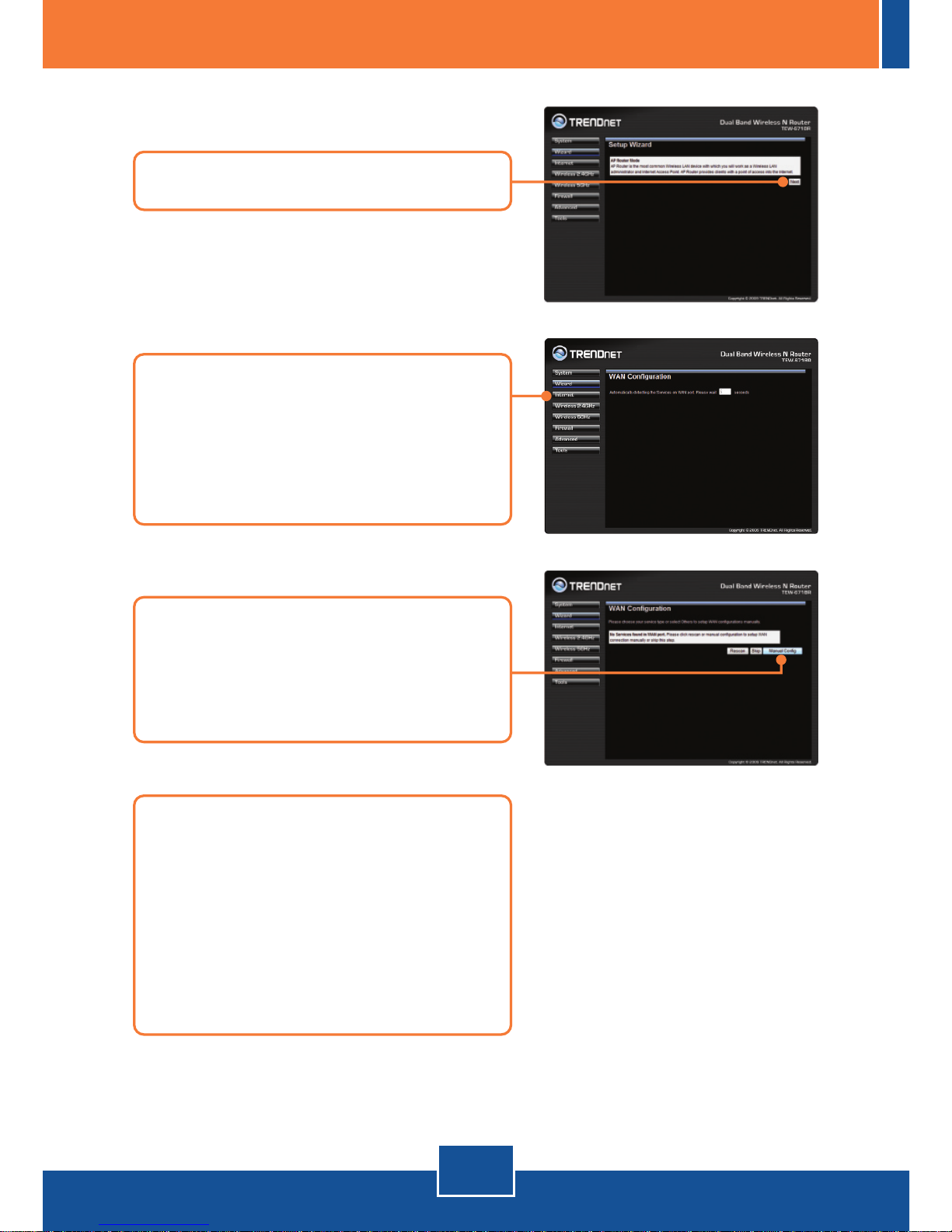

5. Click Next.

6. The TEW-671BR will attempt to

auto detect your Internet

connection. Follow the wizard

instructions and continue on to

step 8.

8. Follow the wizard instructions to

complete the configuration.

Note: Each Internet Connection

type may have different options.

Configure the settings based on

information provided by your ISP.

7. This screen will appear if the

TEW-671BR is unable to auto

detect your Internet connection.

Click Manual Config.

English

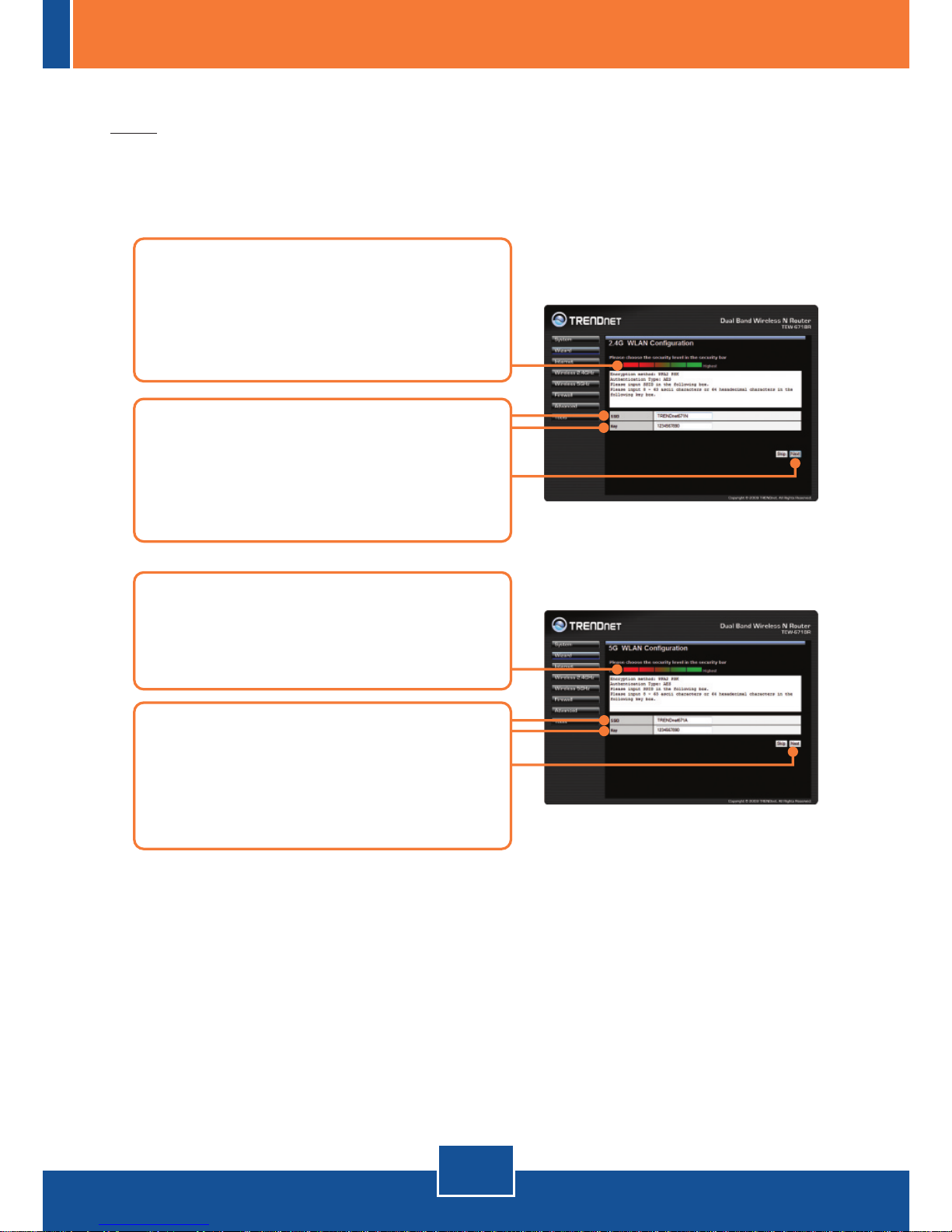

9. Use your mouse to select the

desired security level (lowest for no

encryption, highest for WPA2-

PSK).

11. Use your mouse to select the

desired security level (lowest for

WEP, highest for WPA2-PSK).

12. Enter the desired SSID and Key.

Then click Next. By default, the

SSID for 5G WLAN is

TRENDnet671A.

10. Enter the desired SSID and Key.

Then click Next. By default, the

SSID for 2.4G WLAN is

TRENDnet671N.

Note: The examples below are for WPA2-PSK security. If you select WPA-

PSK or WPA2-PSK, make sure your wireless adapters support WPAor WPA2.

If your wireless adapters do not support WPAor WPA2, then select WEP.

English

Your configuration is now complete.

For detailed information regarding the TEW-671BR’s configuration and

advanced settings, please refer to the Troubleshooting section, User's Guide

CD-ROM, or TRENDnet's website at http://www.trendnet.com.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

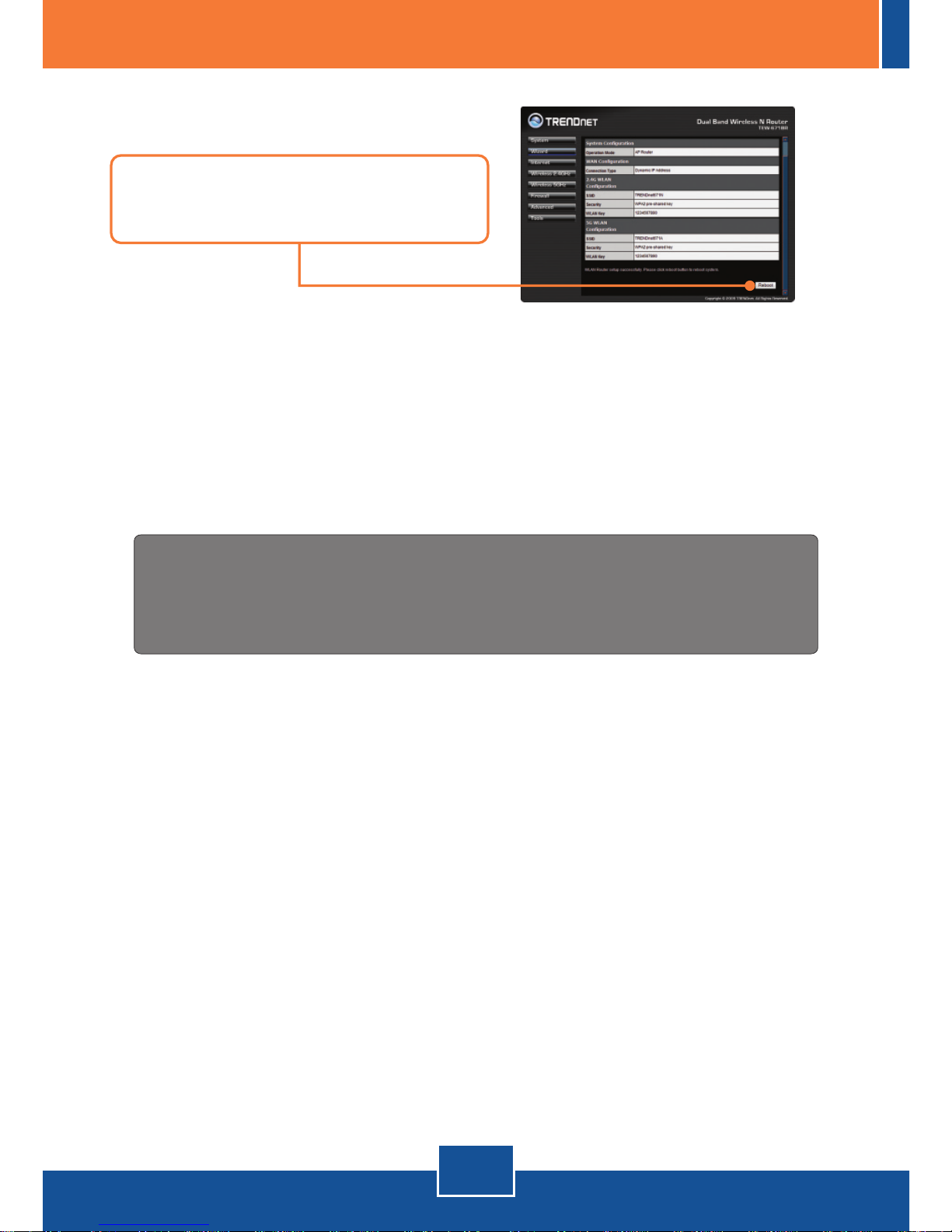

13. Setup is successful. Click

Reboot.

Troubleshooting

2. Click Internet Protocol Version

4(TCP/IPv4) and then click Properties.

Then click on Obtain an IP address

automatically.

Q1:

A1:

I typed http://192.168.10.1 in my Internet Browser'sAddress Bar, but an error

message says “The page cannot be displayed.” How can I get into the TEW-

671BR's web configuration page?

First, check your hardware settings again by following the instructions in

Section 2. Second, make sure the LAN (1,2,3 or 4) and WLAN(2.4GHz/5GHz)

lights are lit. Third, make sure your TCP/IPsettings are set to Obtain an IP

address automatically (see the steps below).

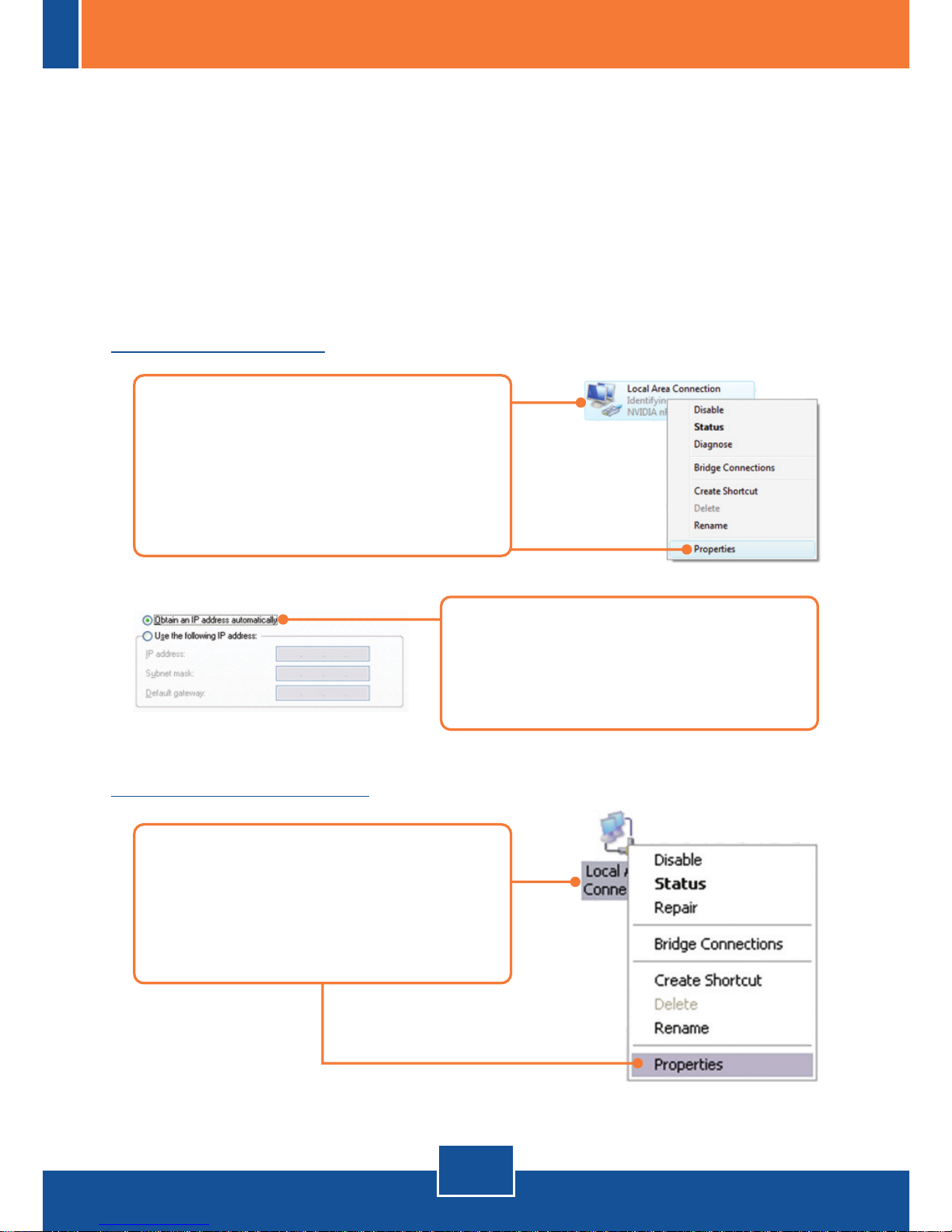

1. Go into the Control Panel, click

Network and Internet, click Network

and Sharing Center, click Manage

Network Connections and then right-

click the Local Area Connection icon

and then click Properties.

Windows Vista

1. Go into the Control Panel, double-click

the Network Connections icon and

then right-click the Local Area

Connection icon and then click

Properties.

Windows XP/2000

Fourth, press on the factory reset button for 15 seconds.

I am not sure what type of InternetAccount Type I have for my Cable/DSL

connection. How do I find out?

Contact your Internet Service Provider's (ISP) support service for the correct

information.

I configured my router with my ISP settings, but I can not get onto the

Internet. What should I do?

First, verify that you can get onto the Internet with a direct connection into your

modem. Second, contact your ISP and verify all the information that you have in

regards to your Internet connection settings is correct. Third, power cycle your

modem and router. Unplug the power to the modem and router. Wait 30

seconds, and then reconnect the power to the modem. Wait for the modem to fully

boot up, and then reconnect the power to the router.

All the settings are correct, but I can not make a wireless connection to the

Router. What should I do?

First, double check that the WLAN (2.4GHz/5GHz) light on the Wireless

Router is lit. Second, power cycle the TEW-671BR. Unplug the power to the

TEW-671BR. Wait 15 seconds, then plug the power back in to the TEW-671BR.

Third, contact the manufacturer of your wireless network adapter and make sure

the wireless network adapter is configured with the proper SSID. The preset SSID

of theAccess Point is TRENDnet671N (2.4GHz) and TRENDnet671A (5GHz).

If you still encounter problems or have any questions regarding the TEW-671BR, please

contact TRENDnet'sTechnical Support Department.

Q2:

A2:

Q3:

A3:

Q4:

A4:

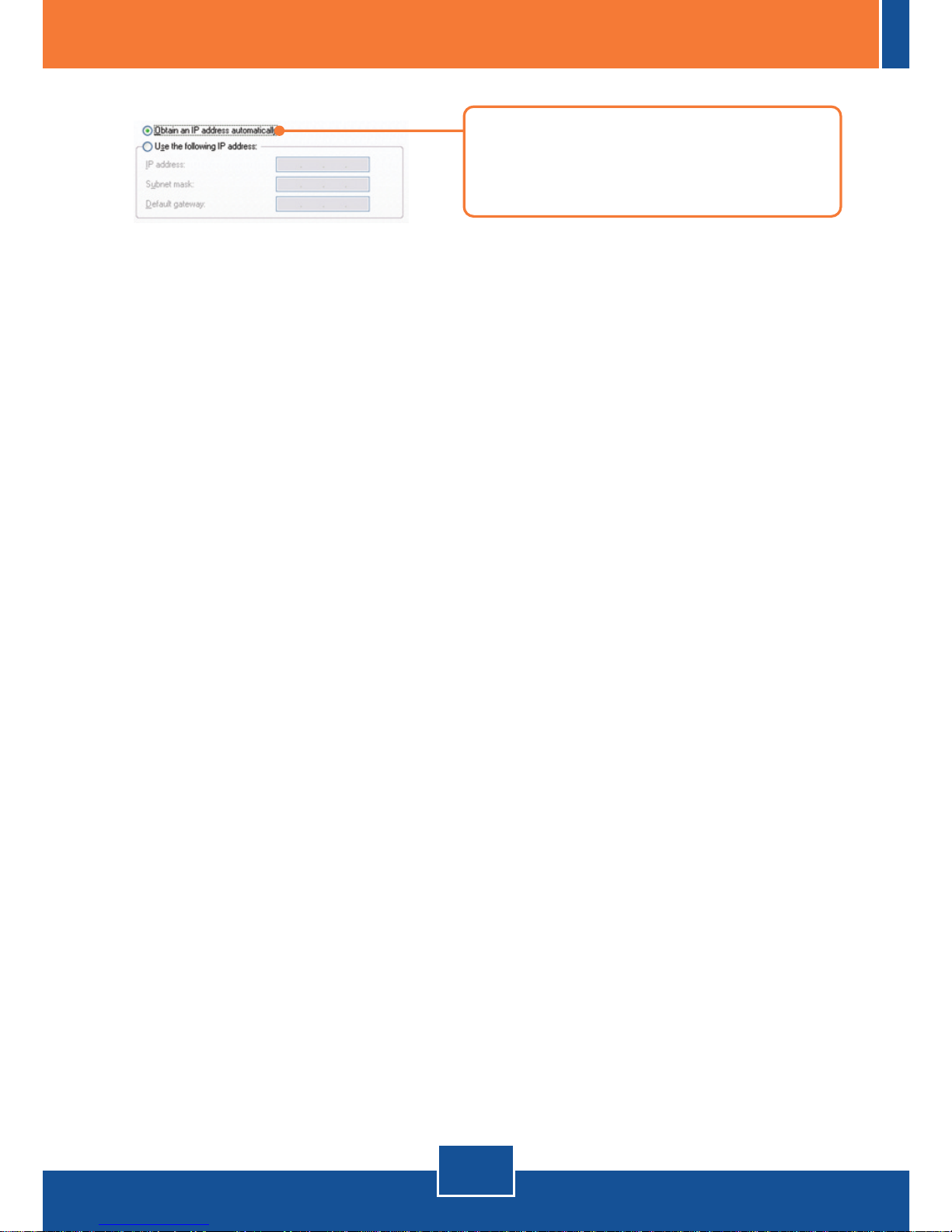

2. Click Internet Protocol (TCP/IP) and

then click Properties. Then click on

Obtain an IP address automatically.
