TRENDnet TEW-816DRM Bedienungsanleitung

ŸAC750 Wireless VDSL2/ADSL 2+ Modem Router

TEW-816DRM

TEW-816DRM (V1) /03.25.2015

ŸQuick Installation Guide (1)

ŸTEW-816DRM

ŸQuick Installation Guide

ŸCD-ROM (User's guide)

ŸPower adapter (12V DC, 1A)

ŸNetwork cable (1.5 m / 5 ft.)

ŸRJ-11 telephone cable (1.8 m / 5.4 ft)

Package Contents

1. Before You Start

Minimum requirements

ŸA computer with a wired or wireless network adapter and web browser Broadband internet

ŸVDSL or ADSL internet from an Internet Service Provider

2. Installation

2. Connect your computer's network port to one of the modem's LAN ports.

3. Connect the power adapter to the modem, and then to a power outlet. Push the power switch

to the ON position.

1. Connect the RJ-11 telephone cable to the TEW-816DRM modem's VDSL/ADSL port, then into

a phone jack.

Internet

4. To confirm that the device is fully functional, verify that the status LED indicators on the front of

the modem are lit: Power (Green), DSL (Green), Wireless (Green) and the LAN port (1, 2, 3,

4) your computer is connected (Green).

1. Open your web browser, type http://192.168.10.1 into the address bar of your web browser,

and press enter.

2. Log in using default Username and Password located on the front sticker or the label on the

back of the modem.

3. Once you are logged in, click Setup, and then click Setup Wizard to start configuring the

modem.

Note: It is recommended that you configure the modem from a wired computer.

3. VDSL Setup

Note: In the example below, we will be configuring a VDSL connection type with PPPoE

connection type. If you are unsure of your connection type, contact your Internet Service

Provider.

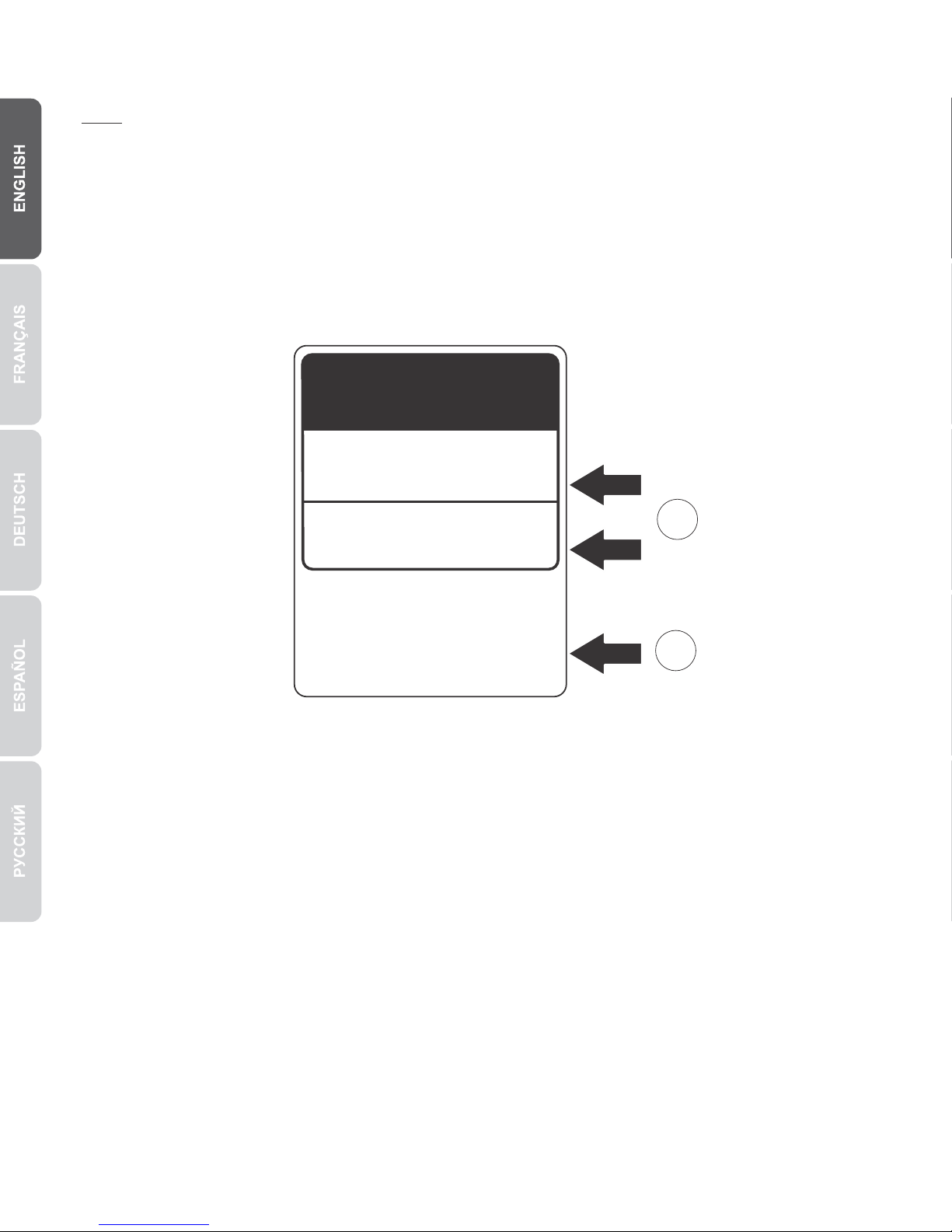

Preset

Wireless Settings

Wi-Fi Name/SSID

Wi-Fi Key

XXXXXXXXXXXXX

Management Login

192.168.10.1

username: admin

password: XXXXXX

Preset

Wireless Settings

(N/B/G)

TRENDnetXXX_2.4GHz_XXXX

4. Select the Internet connection mode you would like to configure, and click Next to continue.

5. Select the Internet connection type to configure, and click Next. PPPoE is selected because

it’s a common type. Confirm your connection type with your ISP.

PPPoE (RFC-2516 PPP over Ethernet)

6. Select your country and the Internet Server Provider (if your ISP is not listed select other).

Then enter your assigned PPPoE Username and Password from your ISP. Click Next to

continue.

7. Review your settings and click Finish to complete installation.

8. Verify that the following status lights are on: DSL (Green) and Internet (Green).

Note:

 We have pre-encrypted the TEW-816DRM with a unique WI-FI Name (SSID) and Wi-Fi

Password. You can find these pre-configured settings on the label on the back of the

modem. You will use this information to connect wireless devices to the modem. To change

the Wi- Fi Key, refer to the product manual. If the modem is reset the Wi-Fi Password key

and the Wi-Fi Name will also reset to factory defaults.

‚ To log back in to the modem's management page, you will need to know the modem's user

name and password. You can find the default user name and password on the label on the

bottom of the modem.

10. Installation of your TEW-816DRM router is now complete!

9. Open a web browser and enter a web address (for example, www.trendnet.com) to verify that

you have Internet connection.

Preset

Wireless Settings

Wi-Fi Name/SSID

Wi-Fi Key

XXXXXXXXXXXXX

Management Login

192.168.10.1

username: admin

password: XXXXXX

Preset

Wireless Settings

(N/B/G)

TRENDnetXXX_2.4GHz_XXXX

1. Open your web browser, type http://192.168.10.1 into the address bar of your web browser,

and press enter.

2. Log in using default Username and Password located on the front sticker or the label on the

back of the modem.

3. Once you are logged in, click Setup, and then click Setup Wizard to start configuring the

modem.

Note: It is recommended that you configure the modem from a wired computer.

4. ADSL Setup

Note: In the example below, we will be configuring an ADSL connection type with PPPoE. If you

are unsure of your connection type, contact your Internet Service Provider.

Preset

Wireless Settings

Wi-Fi Name/SSID

Wi-Fi Key

XXXXXXXXXXXXX

Management Login

192.168.10.1

username: admin

password: XXXXXX

Preset

Wireless Settings

(N/B/G)

TRENDnetXXX_2.4GHz_XXXX

4. Select the Internet connection mode you would like to configure, and click Next to continue.

PPPoE (RFC-2516 PPP over Ethernet)

6. Select A uto-detect to have it automatically detect your VPI/VCI settings, or select

Manual selection to manually enter your settings. Click Next to continue. Please wait while the

modem scans for the proper VPI and VCI settings. If the modem is having trouble detecting the

proper VPI and VCI settings, please click Manual Selection and contact your Internet Service

Provider (ISP) for the proper VPI and VCI settings.

5. Select the Internet connection type to configure, and click Next. PPPoE is selected because

it’s a common type. Confirm your connection type with your ISP.

8. Review your settings and click Finish to complete installation.

9. Verify that the following status lights are on: DSL (Green) and Internet (Green).

11. Installation of your TEW-816DRM is now complete!

10. Open a web browser and enter a web address (for example, www.trendnet.com) to verify that

you have Internet connection.

7. Select your country and the Internet Server Provider (if your ISP is not listed select other).

Then enter your assigned PPPoE Username and Password from your ISP. Click Next to

continue.

For detailed information regarding the modem's configuration and advanced settings, please refer

to the User's Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com please visit

www.trendnet.com for product updates and online support.

Note:

 We have pre-encrypted the TEW-816DRM with a unique Wi-Fi Name (SSID) and Wi-Fi

Password. You can find these pre-configured settings on the label on the back of the

modem. You will use this information to connect wireless devices to the modem. To change

the Wi- Fi Key, refer to the product manual. If the modem is reset the Wi-Fi Password key

and the Wi-Fi Name will also reset to factory defaults.

‚ To log back in to the modem's management page, you will need to know the modem's user

name and password. You can find the default user name and password on the label on the

bottom of the modem.

Preset

Wireless Settings

Wi-Fi Name/SSID

Wi-Fi Key

XXXXXXXXXXXXX

Management Login

192.168.10.1

username: admin

password: XXXXXX

Preset

Wireless Settings

(N/B/G)

TRENDnetXXX_2.4GHz_XXXX

Toll Free English Technical Support

US/Canada: 855-373-4741

Hours: Monday-Friday

7:00 AM- 6:00 PM, Pacific Standard Time.

After hours: 866-845-3673
