AC1750 Dual Band Wireless Router
TEW-812DRU (v1.0R)

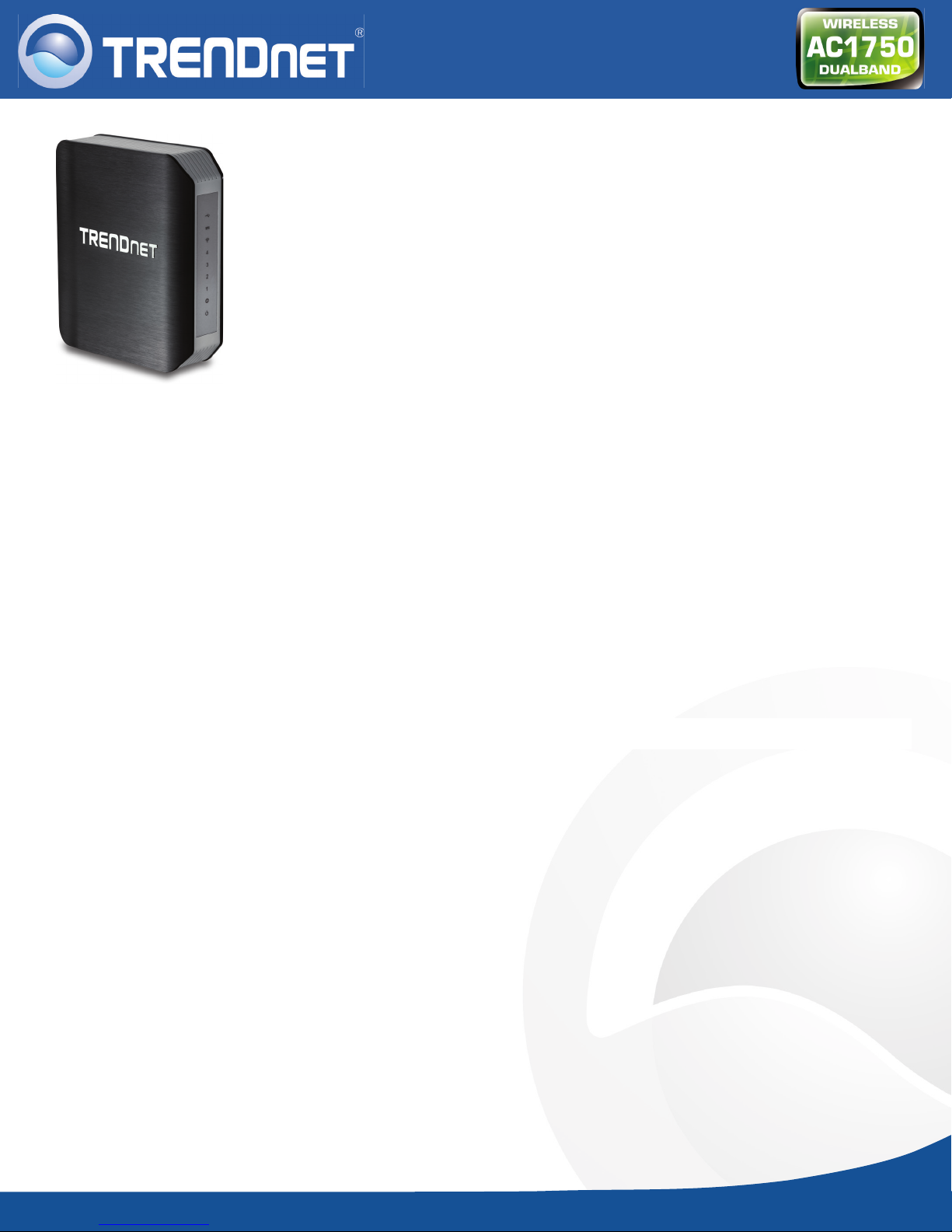

TRENDnet’s AC1750 Dual Band Wireless Router, model
TEW-812DRU, produces the ultimate wireless experience with gigabit
wireless speeds. Manage two wireless networks—the 1300 Mbps
Wireless AC band for the fastest wireless available and the 450 Mbps
Wireless N band to connect common wireless devices. The
TEW-812DRU can easily handle the demands of multiple HD streams
in a busy connected home.
Plug in a USB fl ash or NAS drive to share HD videos and music across
the network. Gigabit ports on the back of the router maintain high
speed wired connections. Create a secure isolated guest network for
guest internet access. Beamforming technology directs the strongest
signal to each connected device. Multiple-MIMO technology enables
communica-tion with multiple devices simultaneously. Wi-Fi Protected
Setup (WPS) connects other WPS supported wireless adapters at
the touch of a button. Manage access to websites and fi le types with
advanced access controls.
PRODUCT OVERVIEW
• 1750 Mbps total wireless: 1300 Mbps AC + 450 Mbps N bands
• Share music and videos with the USB share port
• Create an isolated guest network
• One touch network connection with the WPS button
• All Gigabit wired ports
Gigabit Wireless: Next generation Gigabit Wireless AC
Simultaneous Dual Band: Gigabit Wireless AC band + Wireless N band for every day devices
One Touch Connection: Connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button
Guest Network Access: Create an isolated network for guest internet access
USB Share Port: Plug in a USB fl ash or NAS drive to share HD videos and music
Parental Controls: Control access to specifi c websites or types of content
Gigabit Wired: Gigabit Ethernet port maintains high performance network connections
TEW-812DRU
rev: 12.05.2012
AC1750 Dual Band Wireless Router
TEW-812DRU (v1.0R)
FEATURES
• 4 x 10/100/1000 Mbps Auto-MDIX LAN ports
• 1 x 10/100/1000 Mbps WAN port (Internet)
• 1 x USB 2.0 port for USB share (storage and printing***)
• 1 x Wi-Fi Protected Setup (WPS) button
• On / off power switch (EU version)
• Simultaneously transmit both 2.4 GHz and 5 GHz wireless networks
• Compliant with the latest draft 802.11ac wireless technology*
• Backwards compatible with IEEE 802.11n/b/g/a wireless standards
• High-speed data rates of up to 1.3 Gbps with 802.11ac* and 450 Mbps with 802.11n on both 2.4 GHz and 5 GHz band**
• IPv6 (Internet Protocol v6) support
• FTP and Samba USB storage support
• Share USB peripheral devices over the network including; fl ash drives, external hard drives and printers***
• Printer Control Center utility supports Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), Windows XP (32/64-bit), and
Mac OS X 10.6/10.7/10.8 operating systems
• Compatible with most popular cable / DSL Internet Service Providers using Dynamic / Static IP, PPPoE, L2TP, and PPTP
connection
• Firewall protection with Network Address Translation (NAT)
• Wireless Distribution System (WDS) support for wireless network bridging
• Advance wireless security of up to WPA2-RADIUS
• Wi-Fi Multimedia (WMM) and confi gurable WAN Quality of Service (QoS) support
• Guest network support (3x per wireless band) with Internet access restriction
• Internet Access Control with MAC, URL, Service Type, and IP Range fi ltering
• Internet Access Control Rule Scheduling: schedule access to websites, online video games, Internet cameras and more for
specifi c times throughout the week
• One touch wireless connection using the WPS button
• Easy setup via Web browser using the latest versions of Internet Explorer, FireFox, Safari, and Chrome
• Virtual server and Application Level Gateway (ALG) services for special Internet applications
• Universal Plug and Play (UPnP) for auto discovery and support for device confi guration of Internet applications
• 3-year limited warranty
* For maximum performance of up to 1.3 Gbps use with a 1.3 Gbps 802.11ac wireless adapter
** Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifi cations. Actual data throughput and
coverage will vary depending on interference, network traffi c, building materials and other conditions
*** Printer Control Center utility installation required for each computer in order to access the printer
TEW-812DRU
rev: 12.05.2012
AC1750 Dual Band Wireless Router
TEW-812DRU (v1.0R)
SPECIFICATIONS
HARDWARE
Standards • Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T)
• Wireless: IEEE 802.11ac (draft), IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, 802.11a
Internet Protocol • IPv4 and IPv6
LAN • 4 x 10/100/1000 Mbps Auto-MDIX
WAN • 1 x 10/100/1000 Mbps Auto-MDIX
USB • 1 x USB 2.0 Type-A (Storage / Printing)
WPS Button • Wi-Fi Protected Setup (WPS) connects with other WPS compliant devices
Reset Button • Reset unit back to factory default (press and hold for 10 seconds)
Network Protocols / Features • IGMP v1/2/3 proxy and snooping , Static and dynamic routing, UPnP, DHCP, server, Dynamic DNS
(No-IP.com and DynDNS.com), NTP, IPsec / PPTP / L2TP VPN pass through, IPv6
Quality of Service • WMM and WAN (Confi gurable Upload / Download)
Control Center Utility OS
Support
• Windows: 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
• Mac OS X: 10.4 / 10.5 / 10.6 / 10.7
Internet Connection Type • IPv6, Dynamic IP, Static (fi xed) IP, PPPoE, PPTP, L2TP
Firewall • NAT, SPI, DMZ host, virtual servers, MAC / IP fi lters and URL fi lter
Management / Monitoring • Local / remote confi guration, upgrade fi rmware, backup / restore confi guration via web browser, internal system log, ping test tool
Supported Web Browser • Internet Explorer 6.0 or above, Firefox 2.0 or above, Chrome, Opera, Safari
LED Indicator • Power, LAN 1-4, WAN, 2.4 GHz Wireless, 5 GHz Wireless, WPS
Power Adapter • Input: 100 ~ 240 V, 50~60 Hz, 0.8 A
• Output: 12 V DC, 2 A external power adapter
Power Consumption • 18 watts (max.)
Dimension (L x W x H) • 48 x 155 x 180 mm (1.9 x 6.1 x 7.1 in)
Weight • 395 g (14 oz)
Temperature • Operation: 0°~ 40°C (32°F~ 104°F)
• Storage: -20°~ 60°C (-4°F~140°F)
Humidity • Max 90% (non-condensing)
Certifi cations • CE, FCC
TEW-812DRU
rev: 12.05.2012
AC1750 Dual Band Wireless Router
TEW-812DRU (v1.0R)
CONTACT INFORMATION
20675 Manhattan Place,Torrance, CA 90501 USA
Tel: 1-310-961-5500
Fax: 1-310-961-5511
Web: www.trendnet.com
Email: [email protected]
1-888-326-6061
PACKAGE CONTENTS
TEW-812DRU
Multi-Language Quick Installation Guide
CD-ROM (Utility and User’s Guide)
1 x Network cable (1.5 m / 5 ft)
Power adapter (12 V, 2A)
RELATED PRODUCTS
TEW-805UB AC1200 Dual Band Wireless USB Adapter
TEW-684UB N900 Dual Band Wireless USB Adapter
TEW-692GR N900 Dual Band Wireless Router

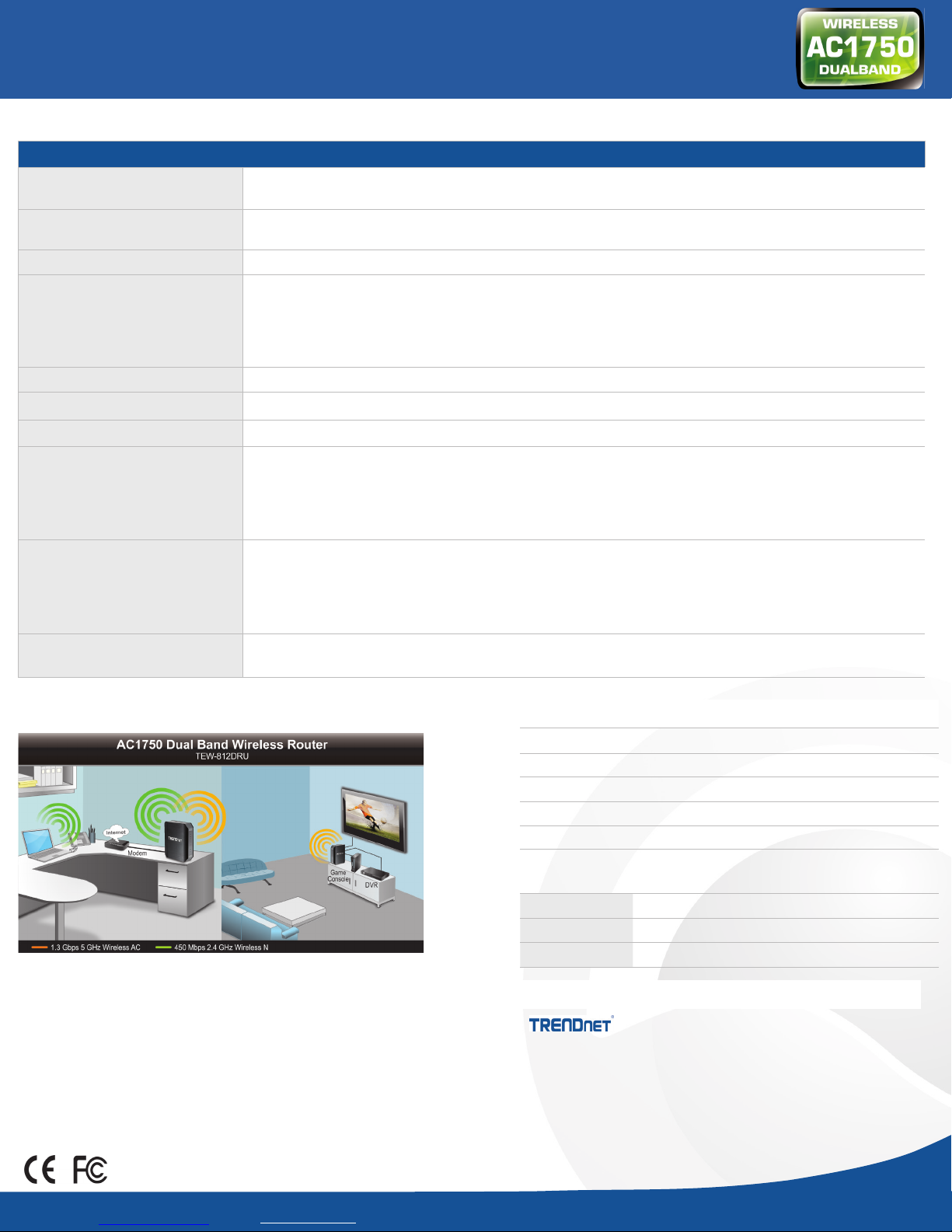

NETWORKING SOLUTIONS
SPECIFICATIONS
WIRELESS
Frequency • 2.4 GHz: 2.412~2.462 (FCC) and 2.412~2.472 (ETSI)
• 5 GHz: 5.15 ~ 5.250 / 5.725~5.850 GHz (FCC) 5.15 ~ 5.250 (ETSI)
Antenna • 2.4 GHz: 3 x 2 dBi PIFA internal
• 5 GHz: 3 x 2 dBi PIFA internal
Modulation • CCK, DQPSK, DBPSK, OFDM, BPSK, QPSK, 16/64/256-QAM
Data Rate • 802.11a: up to 54 Mbps
• 802.11b: up to 11 Mbps
• 802.11g: up to 54 Mbps
• 802.11n: up to 450 Mbps (for both 2.4 & 5 GHz)
• 802.11ac: up to 1.3 Gbps
Security • 64/128-bit WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
Guest network • Up to 3 per wireless band
Access Control • MAC Address Filter (Up to 24 entries)
Output Power • 802.11a: 12 dBm (typical)
• 802.11b: 16 dBm (typical)
• 802.11g: 15 dBm (typical)
• 802.11n: 12 dBm (typical) (for 2.4 & 5 GHz)
• 802.11ac: 15 dBm (typical)
Receiving Sensitivity • 802.11a: -68 dBm (typical) @ 54 Mbps
• 802.11b: -84 dBm (typical) @ 11 Mpbs
• 802.11g: -72 dBm (typical) @ 54 Mbps
• 802.11n: -68 dBm (typical) @ 450 Mbps (for 2.4 & 5 GHz)
• 802.11ac: -55 dBm (typical) @ 1.3 Gbps
Channels • 2.4 GHz: 1~11 (FCC), 1~13 (ETSI)
• 5 GHz: 36, 40, 44, 48, 149, 153, 157, 161 and 165 (FCC), 36, 40, 44, 48 (ETSI)
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet products and is subject to change at any time, without
notice. For the most recent product information please visit http://www.trendnet.com Copyright ©TRENDnet.All Rights Reserved.
