TRINITY BASICS® 3-Tier NSF 60" x 24" x 58" Wire Shelving w/Wheels
Model # TBTZ-0970 / TBFPBK-0970
OWNER’S MANUAL
Important / Important / Importante
FOR 3D ASSEMBLY INSTRUCTIONS
POUR DES DIRECTIVES D’ASSEMBLAGE 3D
PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D
Intelligent Instructions
Directives intelligentes
Instrucciones Inteligentes
DOWNLOAD THE FREEAPP | TÉLÉCHARGERL’APPLICATION GRATUITE| DESCARGUE LA APLICACIÓN GRATUITA
Your TRINITY BASICS® 3-Tier NSF 60" x 24" x 58" Wire Shelving w/Wheels should include the following
parts. Please inspect box contents to ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY
Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online
via our “Contact Us” section at www.trinityii.com.

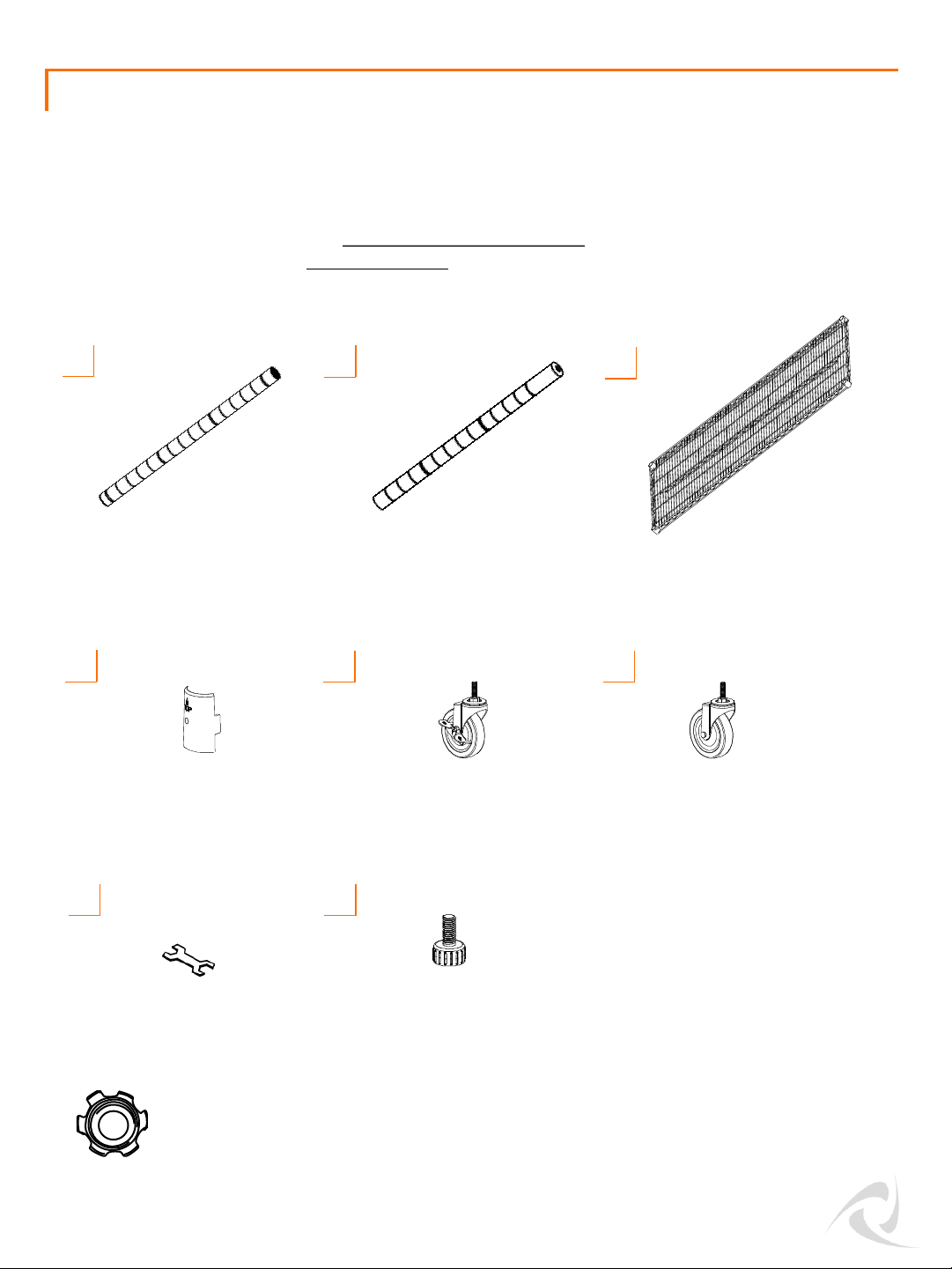

PARTS LIST
© 2023 TRINITY - 800.985.5506 1
TOP POLE (4)
End Cap (4) and
Pole Connector (4)
pre-installed
A
BOTTOM POLE (4)
Insert (4)
pre-installed
B
SHELF (3)
C
D
SLIP SLEEVE
(24) + (2) extra
FEET LEVELER (4)
For stationary option
E F
G H
NON-LOCKING
CASTER (2)
LOCKING
CASTER (2)
WRENCH (1)
Note: The black circular plastic spacers in between Shelves are used only for packaging
purposes. They are NOT needed. Please discard.
STEP 2
ASSEMBLY INSTRUCTIONS
STEP 1
For easiest assembly, do not attach TOP POLE (A) and BOTTOM POLE (B)
until instructed. Once connected, these will be posts for the rack.
Note that each POLE (A & B) has slight horizontal line indentations at 1"
intervals. Each SLIP SLEEVE (D) has raised horizontal lines inside designed
to lock them in place on POLE (A & B).

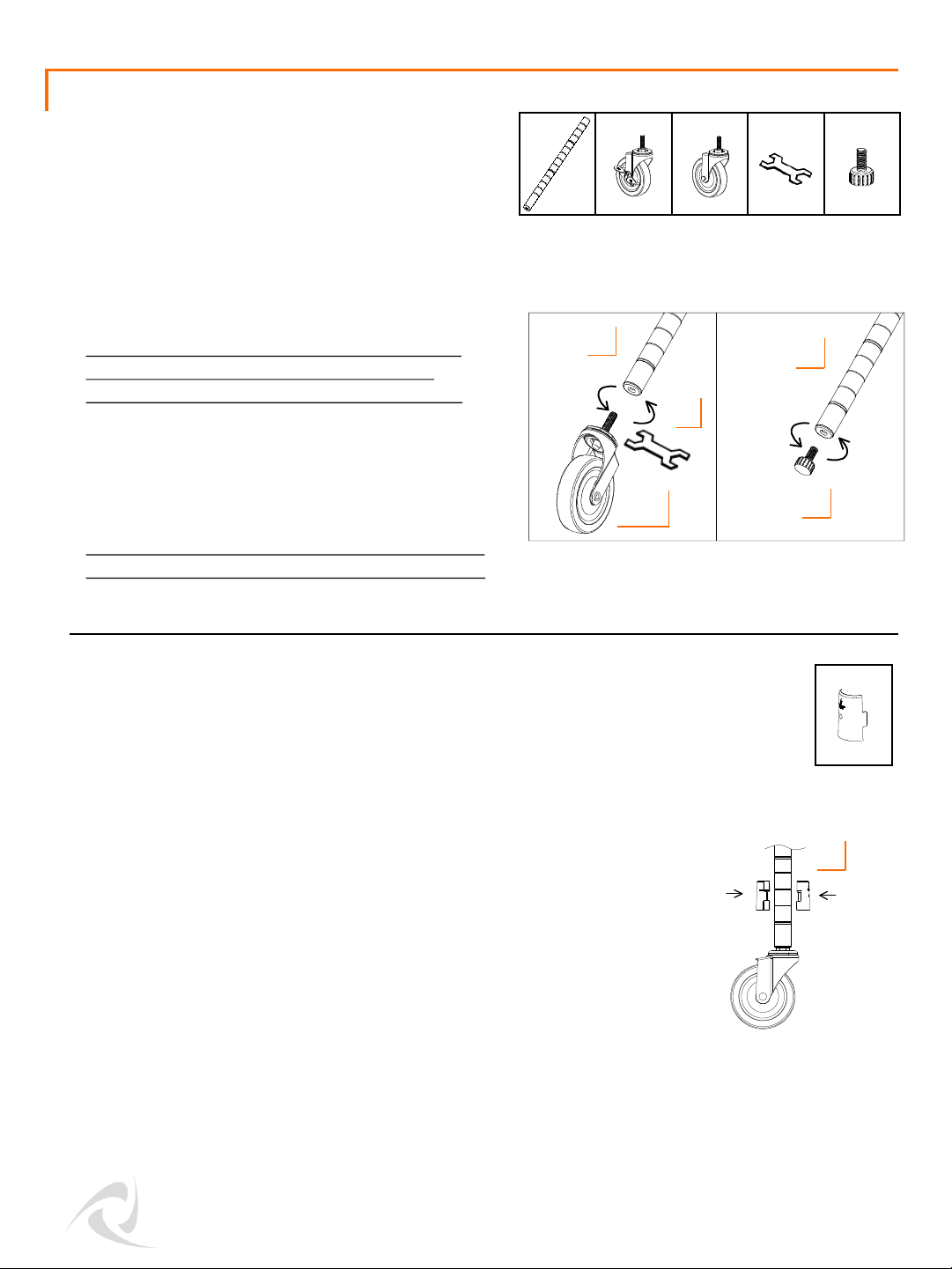

On BOTTOM POLE (B), place one pair of SLIP SLEEVES (D) at desired
height no higher than 3rd indentation from bottom. Make sure arrow
faces up and word "TOP" is right side up.
Slide pair of SLIP SLEEVES (D) until you hear a click to confirm the pair is
locked onto BOTTOM POLE (B). Do this for each BOTTOM POLE (B) and
make sure height is identical for each BOTTOM POLE (B). Do NOT place
more than one pair on each pole at a time.
D
Mobile Option
Screw each CASTER (E & F) into bottom of each
BOTTOM POLE (B). Turn clockwise to screw in place.
Make sure Locking Casters are on the same side.
Warning: Use provided WRENCH (G) to tighten
CASTER (E & F) completely. Failure to do as
instructed could result in caster stem breaking.
Stationary Option
Screw each FEET LEVELER (H) into bottom of each
BOTTOM POLE (B). Turn clockwise to screw in place.
Warning: For safety, at least half of FEET LEVELER
(H) stem must be screwed into BOTTOM POLE (B).
D (8)
Note: There will be a very small gap in-between two locked SLIP SLEEVES (D)—this is normal.
F (2) H (4)E (2)B (4) G (1)
H
BB
E / F
G
© 2023 TRINITY - 800.985.5506
2
STEP 4
C
STEP 3
ASSEMBLY INSTRUCTIONS

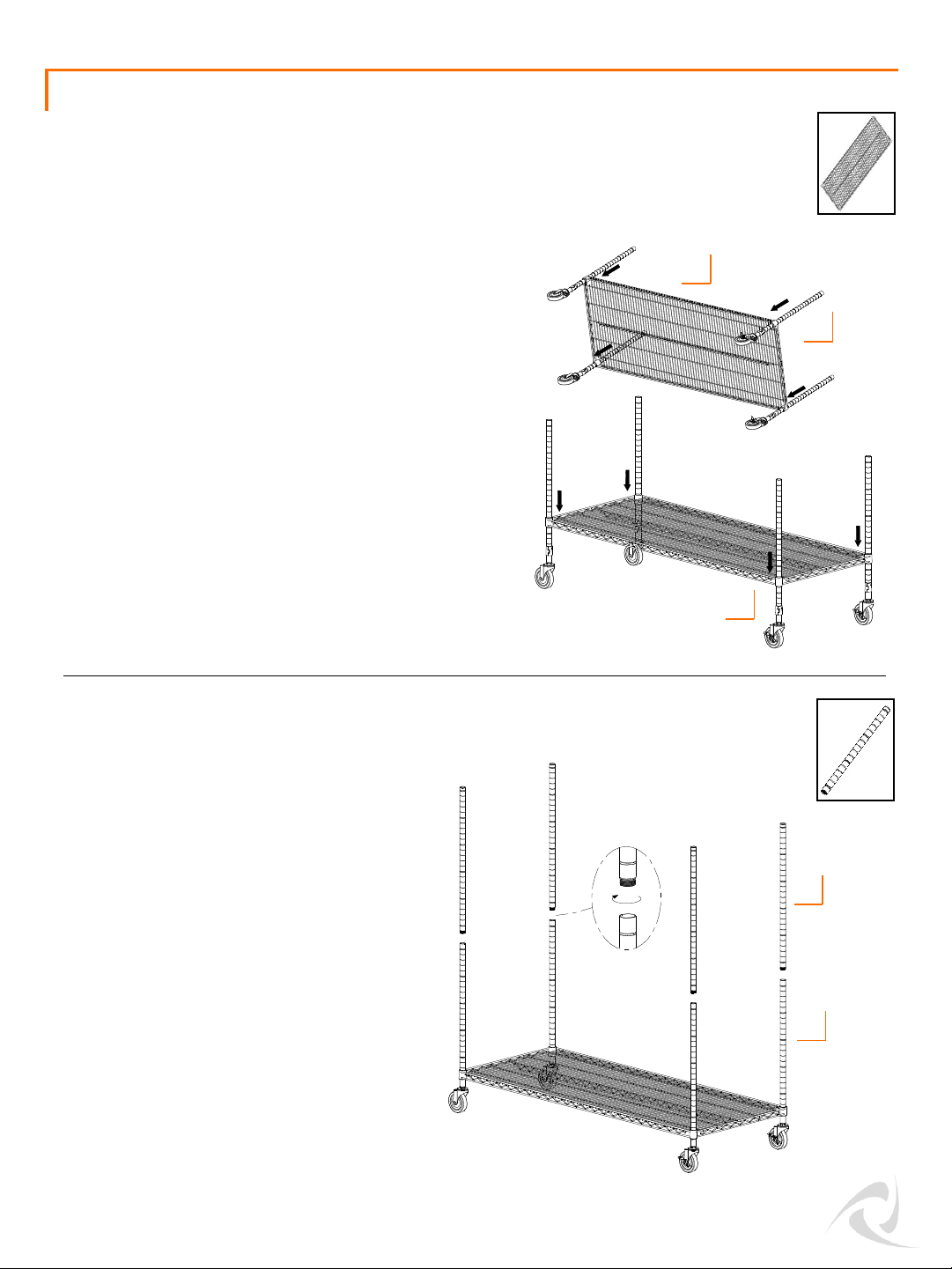

Place SHELF (C) on its side and slide each BOTTOM
POLE (B) through each corner cylinder on SHELF (C).
Make sure SHELF (C) corner cylinders are positioned
over SLIP SLEEVES (D).
Stand the unit upright.
Note:
•Level side of SHELF (C) is TOP side (TRINITY BASICS
logo on corner cylinders should be right-side up.)
•Use a rubber mallet, if needed, to secure SHELF
(C).
•For convenience, place BOTTOM POLES (B) with
Locking Casters on long side of shelf if rack will be
pushed against a wall, OR, if rack is frequently
rolled around like a cart, place BOTTOM POLES (B)
with Locking Casters on the side being pushed or
pulled.
C (1)
B
D
© 2023 TRINITY - 800.985.5506 3
A (4)
A
Screw pole connector of TOP POLE (A)
into BOTTOM POLE (B).
Repeat for each remaining TOP POLE (A).
Note: Top of TOP POLE (A) is indicated by
black END CAP.
B
STEP 5
ASSEMBLY INSTRUCTIONS
D

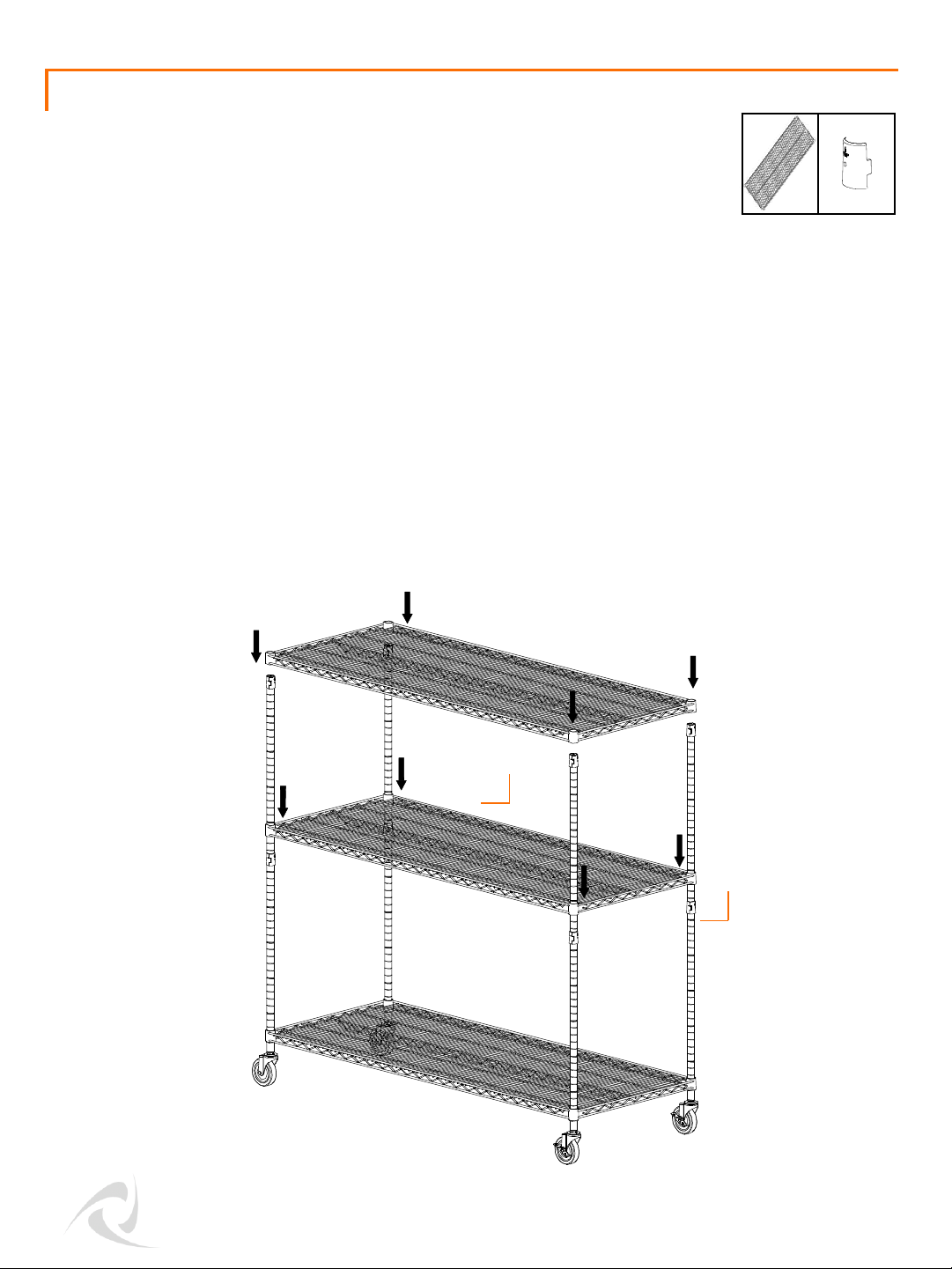

On POLE (A+B), place 1 pair of SLIP SLEEVES (D) at desired height. Make sure
arrow faces up and word “TOP” is right side up. Do this for each POLE (A+B)
and make sure height is identical for each POLE (A+B).
Lower SHELF (C) over each POLE (A+B) so corner cylinders of SHELF (C) are
positioned over SLIP SLEEVES (D).
Repeat to install other SHELF (C) as desired.
Note:
•Shelves are adjustable in 1" increments and can be placed as needed to
best fit storage needs.
•Use a rubber mallet, if needed, to secure SHELVES (C).
•For stationary option, after assembly, adjust FEET LEVELERS (H) as needed
to ensure shelving rack is level.
C (2) D (16)
© 2023 TRINITY - 800.985.5506
4
C

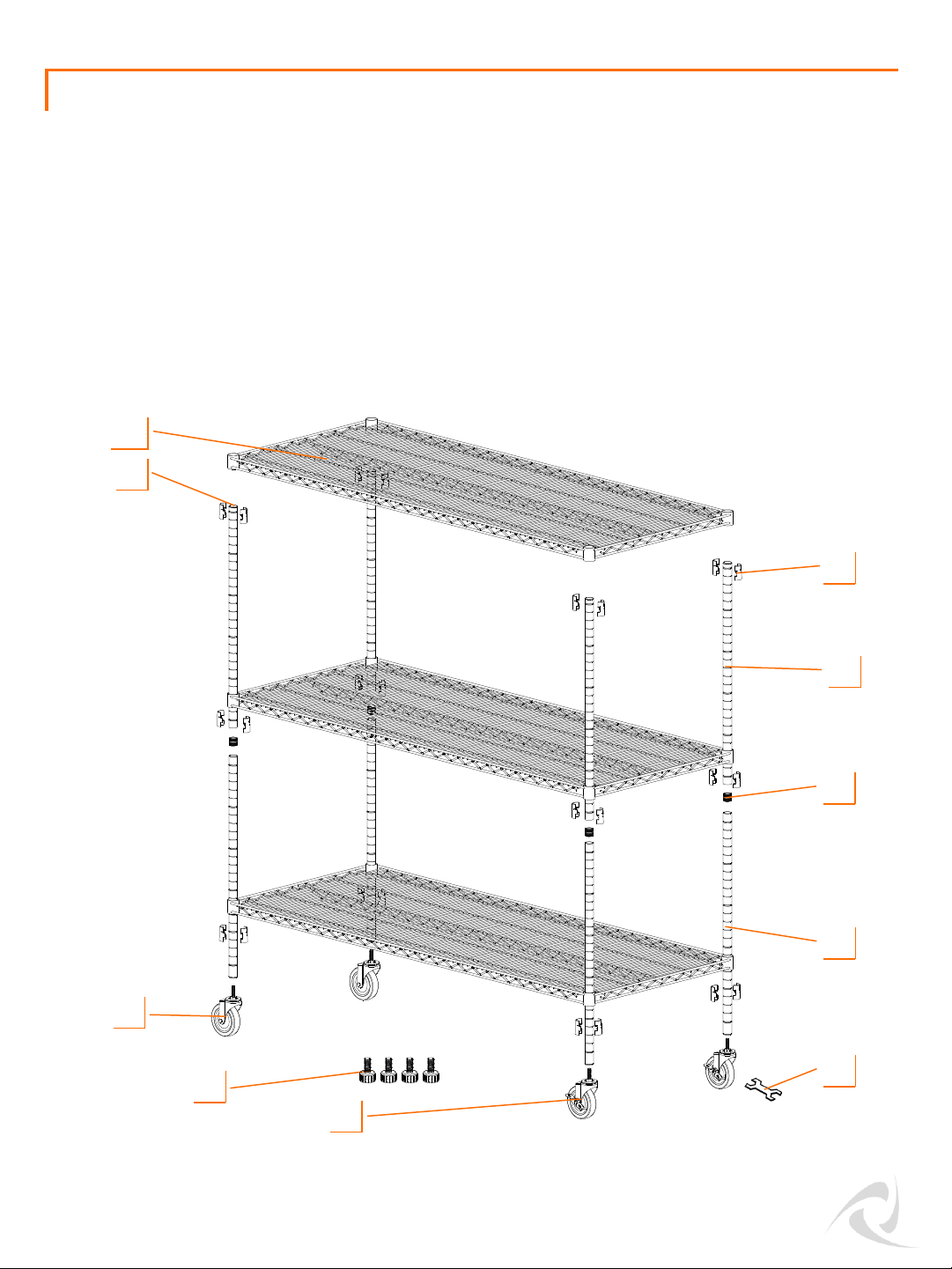

SERVICE PARTS LIST –TBTZ-0970 (Chrome)
3
2
1
TRINITY Customer Service provides the following replacement parts:
4
5
6
7
8
9
10
© 2023 TRINITY - 800.985.5506 5
# Part Number Description # Part Number Description
1) XBK-01-011-2543 Slip Sleeve 6) ZSV-99-008-4010 Locking Caster
2) ZSV-04-006-2650 Top Pole 7) XBK-98-003-2538 Feet Leveler
3) ZSV-01-013-2523 Pole Connector 8) ZSV-99-007-4010 Non-locking Caster
4) ZSV-04-042-2650 Bottom Pole 9) XBK-23-004-2517 End Cap
5) XXX-97-002-0001 Wrench 10) ZSV-03-029-6024 Shelf

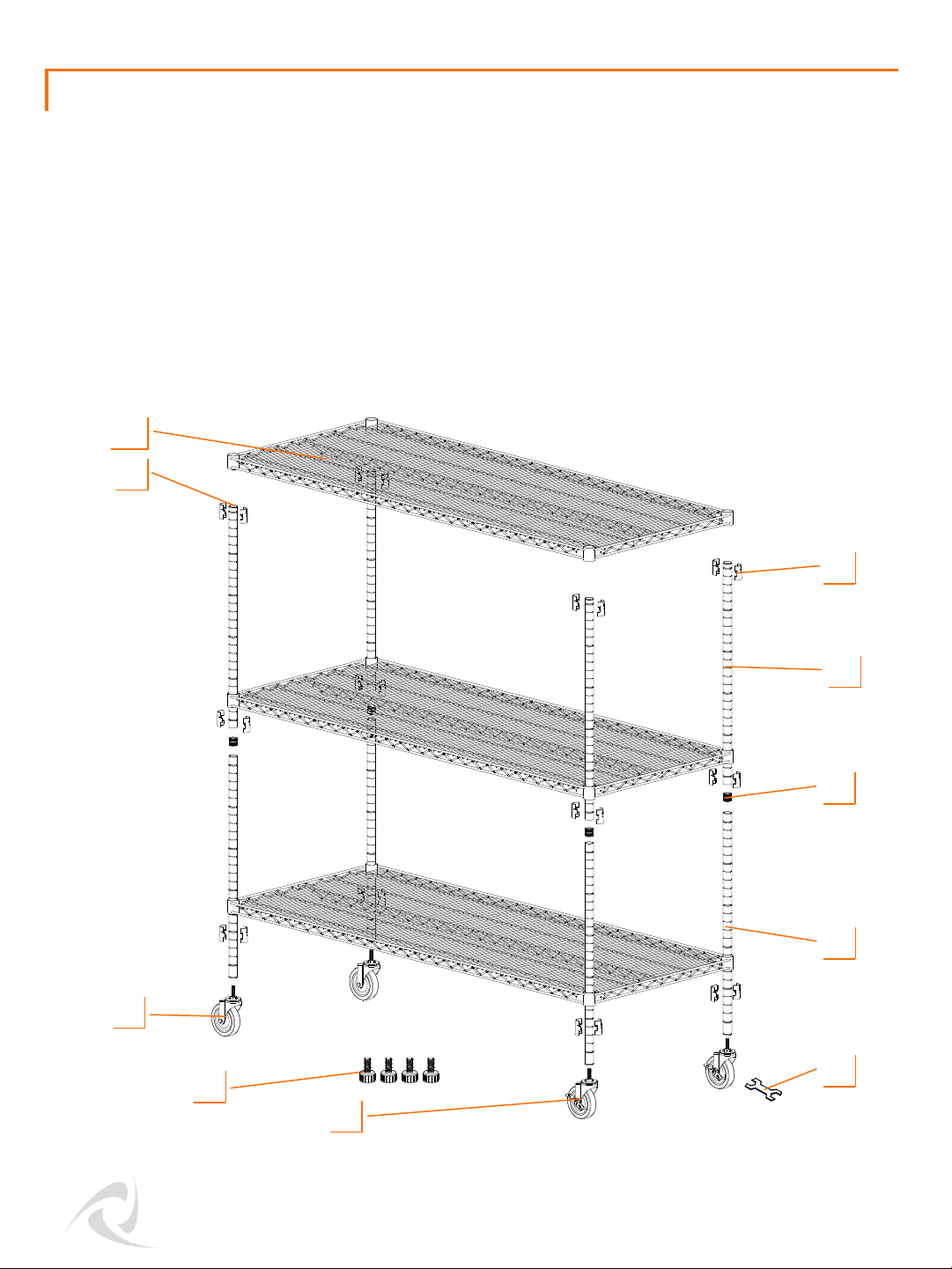

SERVICE PARTS LIST –TBFPBK-0970 (Black)
TRINITY Customer Service provides the following replacement parts:
© 2023 TRINITY - 800.985.5506
6
# Part Number Description # Part Number Description
1) XBK-01-012-2543 Slip Sleeve 6) ZSV-99-008-4010 Locking Caster
2) PBK-04-006-2650 Top Pole 7) XBK-98-003-2538 Feet Leveler
3) ZSV-01-013-2523 Pole Connector 8) ZSV-99-007-4010 Non-locking Caster
4) PBK-04-042-2650 Bottom Pole 9) XBK-23-004-2517 End Cap
5) XXX-97-002-0001 Wrench 10) PBK-03-029-6024 Shelf
3
2
1
4
6
7
8
9
10
5
© 2023 TRINITY - 800.985.5506 7
WARNINGS
CARE AND MAINTENANCE
1. Read and understand all instructions. Failure to follow all instructions may result in injury
and / or damage.
2. Tighten all casters completely by using the wrench. Failure to do as instructed could
result in the caster stem breaking, thereby causing the product to collapse.
3. The warnings, cautions, and instructions discussed in this manual cannot cover all
possible conditions or situations that may occur. The user must always be aware of the
environment and ensure to use the product in a safe and responsible manner.
4. Do NOT modify the product in any way. Unauthorized modification may impair the
function and / or safety of the product, and may affect the life of the product. Any
modifications will void product warranty.
5. Check for damaged parts. Before using this product, carefully check that all parts are in
good condition, and that the product will operate properly and perform its intended
function. Check for damaged parts and any other conditions that may affect the operation
of this product. Replace damaged or worn parts, and never use this product with a
damaged part.
6. Do NOT roll the product on an uneven surface. Only move the product on a smooth
surface. Rolling over rough or uneven surface may cause casters to break or items on the
product to fall, resulting in injury and / or damage.
7. Do NOT overload the product. Below capacity is based on evenly distributed weight.
8. Load the product evenly and place the heaviest items on the lower shelves.
9. Always lock the locking casters when not moving the product.
10. Do NOT allow children to climb or play around the product. Tipping may occur causing
injury.
•Avoid harsh, abrasive cleaners, and other corrosive chemicals.
•The product is designed for indoor use.
Weight capacity per Shelf on Feet Levelers 450 lb
Weight capacity per Shelf on Casters 200 lb
Total weight capacity of Shelving Rack 1350 lb (on Feet Levelers)
600 lb (on Casters)
Thank you for purchasing a TRINITY BASICS® 3-Tier NSF 60" x 24" x 58" Wire Shelving w/Wheels. In
order to register your product and receive streamlined customer service, please fill out the following
Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration
Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com.
Include a copy of your original receipt with your submission.
First Name: Last Name:
Address:
City: State: Zip Code:
Email Address: Phone:
Product Model #: Purchase Date: / /
Location of Purchase:
Please rate the importance of each feature (1=least important; 10=most important)
Quality Price Size/Capacity Appearance Other
How did you hear about our product?
Magazine Ad Catalog Salesperson Word of Mouth
Internet Store Display Other
Marital Status: Single Married
Household Income: Below $50,000 $50,000-$150,000 $150,000+
Education: High School College Graduate School
Primary Residence: Own Rent
Comments/Suggestions:
PRODUCT REGISTRATION
