OWNER’S MANUAL
Important / Important / Importante
DOWNLOAD THE FREE APP | TÉLÉCHARGER L’APPLICATION GRATUITE| DESCARGUE LAAPLICACIÓN GRATUITA
Directives intelligentes
Instrucciones Inteligentes
FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES
PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D
TRINITY 66” STAINLESS STEEL ROLLING WORKBENCH
Model # TLS-4813
Your TRINITY 66in Stainless Steel Rolling Workbench should include the following parts. Please inspect
box contents to ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY
Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online
via “Contact Us” section at www.trinityii.com.
You will need 10mm wrench (for handles) and 14mm wrench (for casters) for assembly. Not included.
A
SIDE HANDLE (2)
BC
CASTER BOLT (16)
M10
D
LINER (10)
EGH
HANDLE BOLT (12)
M6 LOCKING
CASTER (2)
F
NON-LOCKING
CASTER (2) KEY (4)
© 2021 TRINITY - 800.985.5506
1
WORKBENCH (1)
I
SHELF (1)
J
SHELF SUPPORT (4)
PARTS LIST
ASSEMBLY INSTRUCTIONS
Position SIDE HANDLE (B) over pre-installed nuts
on the side of WORKBENCH (A). Insert HANDLE
BOLTS (C) through holes on SIDE HANDLE (B).
Use a 10mm socket wrench to fully tighten
HANDLE BOLTS (C) to WORKBENCH (A).
Repeat to install the other SIDE HANDLE (B).
AB
C
© 2021 TRINITY - 800.985.5506 2
STEP 1
STEP 2
10mm
A (1) B (2) C (12)
Location of parts:
1) KEYS (H) are hooked to the key leash
that is mounted in the TOP MIDDLE
drawer.
NOTE: Drawer lock and cabinet lock
use different keys, please match
code on lock to the code on the key
2) HANDLES (B) / FASTENERS (C/F) /
CASTERS (D/E) / LINERS (G) / SHELF
SUPPORTS (J) are all in accessory boxes
inside the lowest drawer.
3) SHELF (I) is at the bottom inside the
cabinet.
13
2
ASSEMBLY INSTRUCTIONS
© 2021 TRINITY - 800.985.5506
3
STEP 3
D (2) E (2) F (16)
Lay WORKBENCH (A) on its backside. Two people
are needed. Do NOT attempt this alone.
Position LOCKING CASTERS (D) on the side of
WORKBENCH (A) of your choice and align holes to
pre-installed nuts on the underside of
WORKBENCH (A). Use a 14mm socket wrench to
fully tighten CASTER BOLT (F) to WORKBENCH (A).
Repeat to install NON-LOCKING CASTERS (E).
Notes:
* Make sure to install both of LOCKING CASTERS
(D) on the same side.
** For ease of use, place LOCKING CASTERS (D) on
the side you will regularly push or pull.
*** If you plan to push the workbench against a
wall, place LOCKING CASTERS (D) on the front long
side for ease of access.
14mm
A
Carefully lift Workbench upright. Two people are
needed. Do NOT attempt this alone.
SHELF (I) is shipped at the bottom inside the cabinet.
Tilt SHELF (I) diagonally and remove it from the
cabinet.
Attach SHELF SUPPORT (J) by hooking it over the
position tab at the desired height. Make sure all
four SHELF SUPPORTS (J) are at the same level. Tilt
SHELF (I) diagonally to move it inside the cabinet.
Place SHELF (I) on top of all four SHELF SUPPORTS (J).
You can adjust the shelf height position by re-
attaching shelf supports and re-locating the shelf.
I (1)
STEP 4
ED
F
I
Position Tab
J (4)
J
ASSEMBLY INSTRUCTIONS
STEP 5
Place LINERS (G) in each drawer and on each
shelf. G (10)
G
© 2021 TRINITY - 800.985.5506 4
USAGE INSTRUCTIONS
DRAWER REMOVAL
DRAWER REPLACEMENT
Pull the drawer out so that it is almost fully extended. On the RIGHT-hand side, pull the black release
lever UP. On the LEFT-hand side, push the black release lever DOWN. While holding the levers as
instructed, pull the drawer forward until released from the slides attached to the Workbench
(“Workbench Slides”).
Note: The slides attached to the drawer (“Drawer Slides”) are an integral part of the drawer and must
be removed along with the drawer itself.
To replace the drawer, pull the slides out completely. Insert the brackets on each side of the Drawer
Slides into the corresponding slots on the Workbench Slides, making sure they are properly positioned.
Once the brackets are inserted into the slots, completely close the drawer to set all slides in their
proper positions.
© 2021 TRINITY - 800.985.5506
5

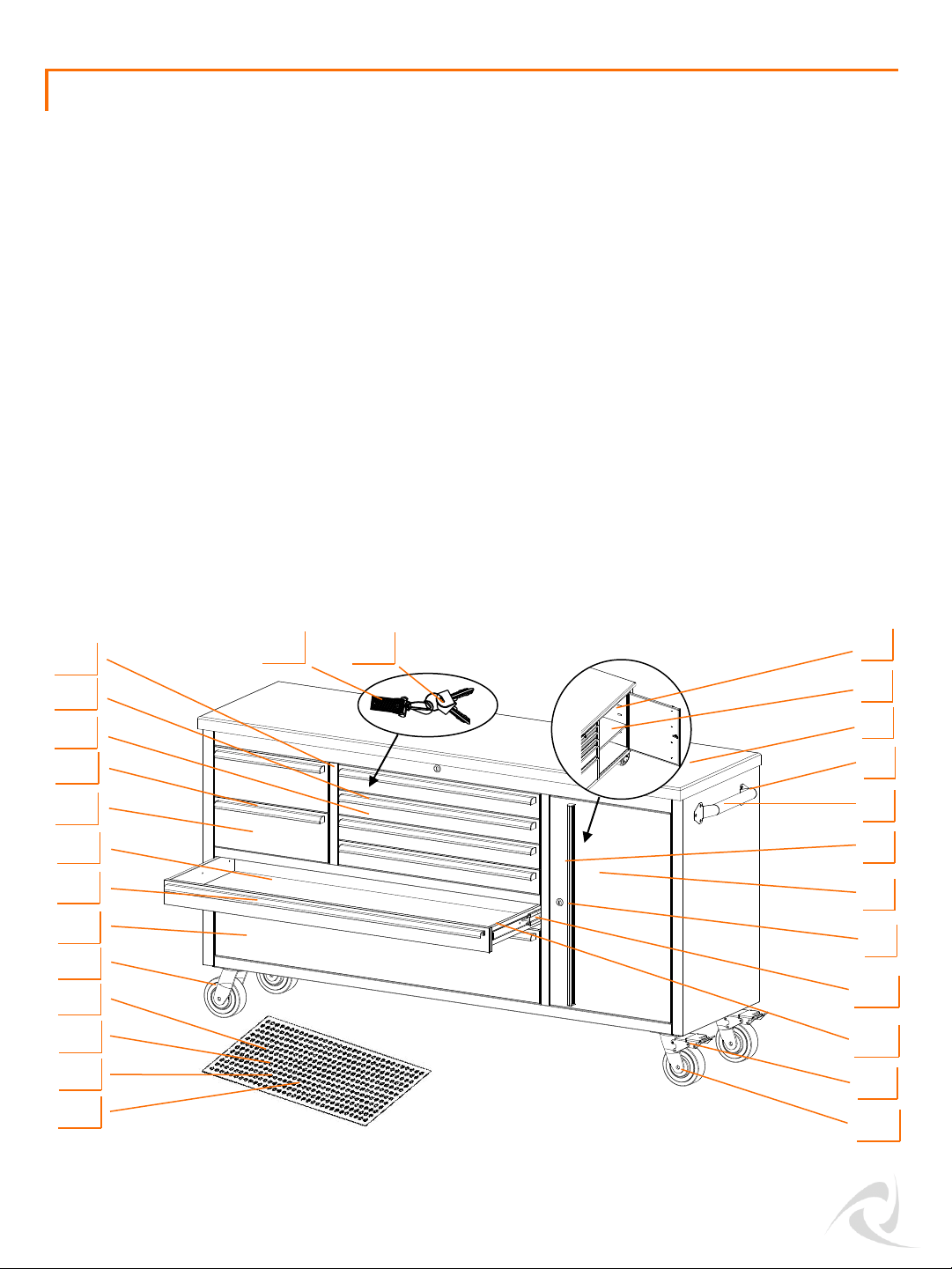

SERVICE PARTS LIST –TLS-4813
Part Number Description Part Number Description
1) XSV-02-017-0001 Shelf Support 14) XBK-22-001-2616 26” Drawer Liner
2) PBK-03-001-1617 Shelf 15) XBK-22-001-4316 43” Drawer Liner
3) LNA-06-001-6619 Wood Top 16) XBK-22-001-1617 Shelf Liner
4) ZSV-01-001-0612 Handle Bolt 17) ZSV-99-002-5020 Non-locking Caster
5) XSV-05-001-0900 Side Handle 18) XBS-07-008-4409 44” Large Drawer
6) AMA-05-019-2450 Door Handle 19) AMA-05-019-4300 43” Drawer Handle
7) XBS-08-010-1726 Door 20) XBS-07-008-4403 44” Small Drawer
8) CSV-11-001-0XXX Lock 21)XBS-07-008-1506 15” Drawer
9) ZSV-12-002-1575 Slide (workbench side) 22) AMA-05-019-1400 14” Drawer Handle
10) ZSV-12-001-1575 Slide (drawer side) 23) XBS-07-008-2703 27” Drawer
11) ZSV-01-001-1020 Caster Bolt 24) AMA-05-019-2600 26” Drawer Handle
12) ZSV-99-001-5020 Locking Caster 25) XBK-23-007-
2512
End Cap
13) XBK-22-001-1416 14” Drawer Liner
26)
XBK-02-047-0001 Key leash
27) XBK-10-001-0XXX Key
TRINITY Customer Service provides the following replacement parts:
6
7
3
10
4
13
16
19
20
17
12
21
18
22
NOTE: Replacement keys may be ordered using the code shown on the face of the lock.
The Drawer and Door Lock may have different key codes.
11
24
© 2021 TRINITY - 800.985.5506 6
5
14
15
23
8
9
25 2
1
26 27
WARNINGS
1. Read and understand all instructions. Failure to follow all instructions may result in injury
and/or damage.
2. The warnings, cautions, and instructions discussed in this manual cannot cover all
possible conditions or situations that may occur. The user must always be aware of their
environment and ensure that they use the product in a safe and responsible manner.
3. Do NOT modify the product in any way. Unauthorized modification may impair the
function and/or safety of the product, and may affect the life of the product. Any
modifications will void warranty.
4. Check for damaged parts. Before using this product, carefully check that all parts are in
good condition, and that the product will operate properly and perform its intended
function. Check for damaged parts and any other conditions that may affect the operation
of this product. Replace damaged or worn parts, and never use this product with a
damaged part.
5. Do NOT overload the product.
6. Lock the casters when leaving workbench in stationary position.
7. Lock the drawers and door before moving the workbench.
8. Do NOT open more than one drawer at a time. Tipping can occur.
9. Do NOT step or lean on open drawers. Tipping can occur.
10. Do NOT let children play near the workbench.
11. Load the workbench starting with the bottom drawers to prevent workbench from
tipping
12. Make sure all drawers are closed tightly before locking or unlocking.
Weight capacity per shelf 75 lb
Weight capacity per drawer w/ 1 pair of slides 100 lb
Weight capacity per drawer w/ 2 pairs of slides 200 lb
Total weight capacity of workbench 2200 lb
© 2021 TRINITY - 800.985.5506
7
© 2021 TRINITY - 800.985.5506 8
CARE AND MAINTENANCE
•Avoid harsh, abrasive cleaners, and other corrosive chemicals.
•Do not use scouring pad for cleaning.
•Keep dry and avoid damp environments.
•Use a quality stainless steel cleaner and follow instructions that come with the cleaner.
Wipe ALONG the grain (NOT against).
•Wood top can be cleaned with damp cloth and wiped dry immediately with dry cloth. If
needed, solvent-based wood furniture cleaner can be used.
•Clean up any spills immediately to prevent stains from forming on the wood top.
© 2021 TRINITY - 800.985.5506
9
Thank you for purchasing a TRINITY 66in Stainless Steel Rolling Workbench. In order to register your
product and receive streamlined customer service, please fill out the following Product Registration
Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at
www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com. Include a copy of
your original receipt with your submission.
First Name: Last Name:
Address:
City: State: Zip Code:
Email Address: Phone:
Product Model #: TLS-4813 Purchase Date: / /
Location of Purchase:
Please rate the importance of each feature (1=least important; 10=most important)
Quality Price Size/Capacity Appearance Other
How did you hear about our product?
Magazine Ad Catalog Salesperson Word of Mouth
Internet Store Display Other
Marital Status: Single Married
Household Income: Below $50,000 $50,000-$150,000 $150,000+
Education: High School College Graduate School
Primary Residence: Own Rent
Comments/Suggestions:
PRODUCT REGISTRATION
