Tripp Lite SUT40KMBP Bedienungsanleitung

Maintenance Bypass Panel

Models: SUT40KMBP, SUT60KMBP

Installation and Operation Manual

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Contents

1. Introduction 2

2. Important Information About this Manual 2

2.1 Manual Symbols 2

3. Safety Precautions 2

4. Inspection Upon Receipt of Goods 3

4.1 General 3

4.2 Visible Damage 3

4.3 Concealed Damage 3

4.4 Return of Damaged Goods 3

5. System Overview 3

6. System Speciﬁcations 3

6.1 Electrical 3

6.2 Environmental 3

6.3 General Speciﬁcations 3

7. Installation 4

7.1 Preparation 4

7.1.1 Equipment Inspection 4

7.1.2 Necessary Equipment and Tools 4

7.1.3 Installation Safety Precautions 4

7.1.4 Storage 4

7.2 Installation Steps 4

7.2.1 Equipment Location 4

7.2.2 Equipment Mounting 4

7.2.3 Equipment Connections 4

7.2.4 Pre-Energizing Inspection 5

7.2.5 Energizing 5

8. System Operation 6

9. Maintenance 7

9.1 Short Circuits and Overloads 7

10.Reference Materials 8

11.Warranty 10

Español 11

Français 21

SAVE THESE INSTRUCTIONS!

This manual contains important information that is needed during the installation and maintenance of the system.

3. Safety Precautions

1. Introduction

2. Important Information About this Manual

2.1 Manual Symbols

Warning:

Indicates information provided to protect the user against personal injury, safety hazards and/or possible equipment damage.

Electrical Hazard:

Indicates that an electrical hazard exists that will result in personal injury or death if instructions are not followed.

Important:

Indicates information provided as an installation or operating instruction or tip, as well as general important installation and system

information.

Tripp Lite would like to thank you for choosing our product for your equipment needs. We know there are a lot of choices and we appreciate

the opportunity to supply each of our customers with the highest-quality power products manufactured in the United States today. All of our

solutions are factory-tested to the highest standards.

Sales support for future equipment needs or upgrades is provided by our regional sales staff and qualiﬁed representatives. All technical

questions and service issues should be directed to our main ofﬁce by visiting www.tripplite.com/support.

Tripp Lite

www.tripplite.com

Technical Support

www.tripplite.com/support

Before installing or maintaining this equipment, it is extremely important to read this manual and be sure that all equipment drawings

and schematics are reviewed and clearly understood. If there are any questions concerning this manual or any of the installation or

maintenance procedures and/or requirements, please contact a Tripp Lite representative before proceeding.

Information in this manual is not intended for use as a training manual for nonqualiﬁed personnel.

When installing this equipment, always follow all applicable federal, state and local regulations to ensure safe and proper equipment

installation.

Only qualiﬁed persons should attempt to install or service this equipment. A qualiﬁed person is one who has skills and knowledge

related to the construction and operation of electrical equipment and installations and has received safety training on the hazards

involved.

Equipment installation and maintenance should always be performed with heavily insulated tools. It is also recommended to wear

rubber gloves and boots and to use insulating mats to stand on when working on this equipment.

Always wear eye protection when installing or maintaining power equipment.

To avoid personal injury, including electrical shock, severe burns and possible death, all jewelry, including bracelets, rings and

watches, must be removed prior to installing or servicing this equipment.

For the safety of others, never leave an open cabinet or panel unattended.

Any modiﬁcations to the equipment without authorization by Tripp Lite could result in equipment damage, personal injury or death.

Never work on power equipment while it is energized. De-energize equipment and lock off all power to the equipment before working

inside.

Inspection and maintenance should only be performed on equipment that has been de-energized and electrically isolated so that no

accidental contact can be made with energized parts.

4. Inspection Upon Receipt of Goods

5. System Overview

4.1 General

Special precautions and care have been taken to ensure the system arrives safe and undamaged. However, upon receipt, you should inspect

the entire shipment, including the crate and any boxes, for evidence of damage that may have occurred during transit.

4.2 Visible Damage

It is the responsibility of the person receiving the shipment to inventory and fully inspect all materials against the bill of lading or waybill

IMMEDIATELY while the carrier representative is still present. Ensure that all items are accounted for, including number of skids and quantity

of boxes. Also note any visible external damage that may have occurred during transit. Make all applicable notations on the delivery receipt

before signing and ﬁle a damage report with the carrier.

4.3 Concealed Damage

Within 3 to 30 days of receipt (depending on courier), unpack the system and check for any concealed damage. Check the materials

received against the detailed packing list to verify the quantity and the condition as complete and satisfactory.

Note any damage to the internal packaging. Then request an inspection by the carrier and ﬁle a concealed damage claim. If there is a

material shortage, visit www.tripplite.com/support to ﬁle a claim.

Please contact your shipping company for all shipping damage. Tripp Lite is not responsible for any shipping damage.

4.4 Return of Damaged Goods

Should equipment be damaged and require return to Tripp Lite for repair, a representative will provide instructions along with an RMA number

to expedite the return.

An RMA number must be obtained before returning equipment to Tripp Lite.

The Tripp Lite SUT40KMBP and SUT60KMBP Maintenance Bypass Panel (MBP) is used in conjunction with an Uninterruptable Power Supply

(UPS) to maintain total continuity of power to connected load circuits when bypass of the UPS equipment is required for performance of

regular service and maintenance.

The SUT40KMBP and SUT60KMBP Series MBPs are available with current capacities ranging from 150 to 225 amperes with multiple input

voltage options available.

The MBP contains three 4-pole switches.

Always refer to the Ratings Label on the equipment for conﬁguration speciﬁc ratings. Equipment speciﬁcations and ratings in this

document represent typical equipment and may vary from the equipment provided.

6.1 Electrical

Model SUT40KMBP SUT60KMBP

Voltage 208Y/120V AC, 3-Phase, 4-Wire, plus ground 208Y/120V AC, 3-Phase, 4-Wire, plus ground

Frequency 60 Hz 60 Hz

Current 150A 225A

6.2 Environmental

Model SUT40KMBP SUT60KMBP

Operating Temperature 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C)

Relative Humidity 5% to 95% non-condensing 5% to 95% non-condensing

Altitude 0 to 7400 ft. (0 to 2255 m) above sea level 0 to 7400 ft. (0 to 2255 m) above sea level

6.3 General

Model SUT40KMBP SUT60KMBP

Cabinet Size, H x W x D 28.13 x 31.5 x 6.98 in. (715 x 800 x 177 mm) 31.5 x 38.5 x 5.89 in. (800 x 978 x 150 mm)

Weight 65 lb. (29.5 kg) 85 lb. (38.5 kg)

6. System Speciﬁcations

7. Installation

7.1 Preparation

7.1.1 Equipment Inspection

Remove the equipment from the packaging material and inspect for any shipping damage that may have been overlooked upon receipt of

goods. Verify that the system includes all necessary hardware for installation.

7.1.2 Necessary Equipment and Tools

• Properly insulated tools

• Properly sized and rated mounting hardware

7.1.3 Installation Safety Precautions

Before proceeding with system installation, be sure to review and understand all of the SAFETY PRECAUTIONS in this manual!

AC VOLTAGE WARNING

The input/output voltage in this equipment can be up to 240 VAC. Be sure to fully read and understand this manual and verify that all

AC connections are correct and properly torqued. Use extreme caution when installing and maintaining the system!

7.1.4 Storage

If the equipment cannot be immediately installed, it should be stored in a clean and dry indoor location with adequate air circulation and

uniform temperature to prevent condensation. If the equipment must be stored for any length of time, it should be covered to protect it from

dust, debris and moisture.

7.2 Installation Steps

Before installing or maintaining this system, it is extremely important to read this manual and be sure that all system drawings and

schematics are reviewed and clearly understood. If there are any questions concerning this manual or any of the installation or

maintenance procedures and/or requirements, please contact a Tripp Lite representative before proceeding.

7.2.1 Equipment Location

This equipment is intended to be installed in a restricted access location.

The permanent location of the equipment must be on a smooth and solid wall surface. Do not locate the equipment against a non-ﬁreproof

ceiling. Allow a space of 3 feet between the ceiling and the equipment unless an adequate ﬁreproof shield is provided. Also verify that the

selected location will provide working clearances in compliance with article 110.26 of the National Electrical Code (NEC). Environmental

conditions of the selected location should also be reviewed. Refer to section 6.2 Environmental for environmental speciﬁcations.

7.2.2 Equipment Mounting

The equipment should be reliably secured to the mounting surface. Do not depend on wooden plugs driven into holes in masonry, concrete,

plaster or similar materials in accordance with Article 110.13 of the National Electrical Code (NEC). Secure the equipment utilizing the four

0.34-inch diameter mounting holes located in the back of the equipment. A set of equipment drawings for the speciﬁc conﬁguration of

the equipment is included inside the equipment. Reference the equipment drawings or mounting hole size and locations. (See drawings in

Reference Materials section.)

7.2.3 Equipment Connections

Never work on power equipment while it is energized. De-energize equipment and lock off all power to the equipment before working

inside.

The top and bottom panel of the equipment is the recommended designated area for landing conduit to the equipment. All conduits must

be located to avoid interference with structural members and live bus. A set of drawings for the speciﬁc conﬁguration of the equipment is

included inside the equipment. Reference the equipment drawings to locate the designated cable entry areas of the equipment.

All conductors are to be sized for 167°F (75°C) ampacity. When cable is used with temperature ratings above 167°F/75°C, it shall be

sized based on the ampacity of cable rated 167°F (75°C).

The equipment must be grounded with the appropriately sized conductor in compliance with Article 250 of the National Electrical

Code (NEC). The ground conductor should be terminated to the main ground bus bar inside the equipment.

Remove the equipment covers as needed to access the input and output connection points. Where cables enter or exit the equipment or

pass through any metal which has magnetic properties, they shall be arranged so all phase and neutral conductors are grouped together

and pass through the same opening in compliance with Article 300.20 of the National Electrical Code (NEC). When pulling cable into the

equipment, take care not to damage any of the internal components and control wiring. Position the cables inside of the equipment so they

are not subject to physical damage and are not forced permanently against the edges of any metal parts. If any cables are in contact with

sharp edges, place suitable protective material between the cable and the metal edge to protect the cable insulation.

7. Installation

Using the appropriate tools, strip a length of insulation from the end of the cable sufﬁcient to ﬁt into the full length of the mechanical lug

for the designated connection point. If using aluminum conductors, apply an appropriate antioxidant compound to the bare aluminum.

Insert the bare conductor into the lug so the bare conductor ﬁlls the full length of the mechanical lug body. Tighten the set screw on the

mechanical lug and torque to the values indicated on the Torque Values Label located on the equipment.

Reference the Equipment Schematic Drawing for information on the required connections between the Maintenance Bypass Panel, the UPS

and the critical load.

7.2.4 Pre-Energizing Inspection

Inspection and maintenance should only be performed on equipment that has been de-energized and electrically isolated so that no

accidental contact can be made with energized parts.

Before energizing the equipment, it must be thoroughly inspected.

1. Remove any foreign materials from inside of the equipment including tools, scraps of wire or other debris.

2. Visually inspect the equipment for any damage that may have occurred during the installation process. Be sure to inspect all insulators,

busbars and other conductors. Do not energize if any damage is found!

3. Verify cable phase orientation at all connection points.

4. Verify all ﬁeld cable connections are properly torqued.

5. Manually operate all switches to verify proper operation.

6. Verify equipment ground connections are properly terminated.

7. Review the bypass operating sequence prior to actuating the switches.

8. Verify all covers are installed.

7.2.5 Energizing

Hazardous voltages in electrical equipment can cause severe injury or death!

Only qualiﬁed persons should attempt to install or service this equipment. A qualiﬁed person is one who has skills and knowledge

related to the construction and operation of electrical equipment and installations and has received safety training on the hazards

involved.

Ensure maximum continuous loads do not exceed 80% of the overcurrent protective device (switches and fuses) ratings employed in

other than motor circuits, except for those circuits employing circuit breakers marked as suitable for continuous operation at 100% of

their ratings.

Extreme hazards can exist when energizing electrical equipment. Take all precautions necessary to protect people and property when

energizing this equipment. Before energizing the equipment, open/turn off all switches. Refer to the UPS manual for proper startup

procedures.

8. System Operation

Do not operate the “SW2” switch unless the UPS is in BYPASS mode! Failure to follow the operating instructions for this equipment

could result in equipment damage, ﬁre, severe injury or death!

NOFFONO

OFF

OFF OFFON

NOFFO

OFF

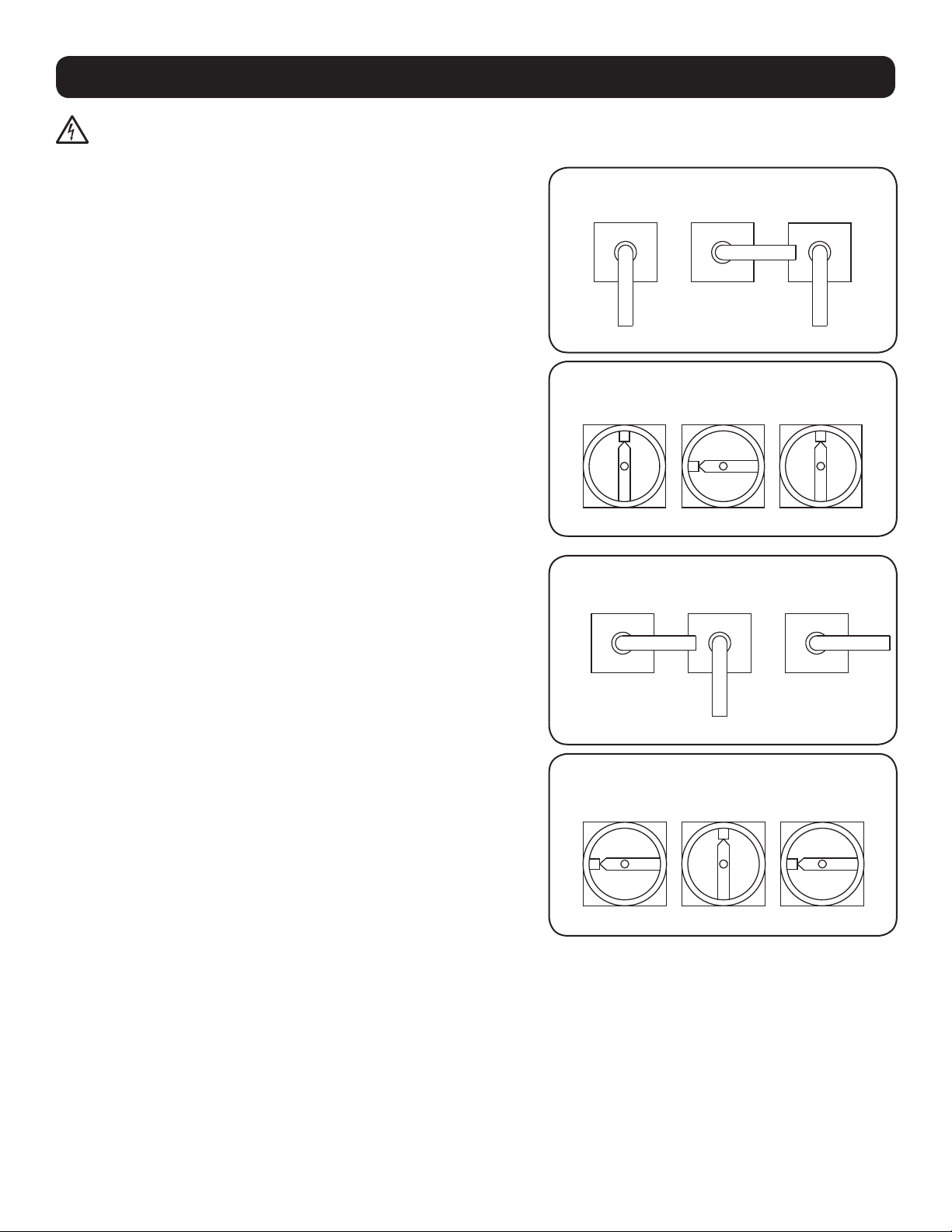

Normal Operation

The “SW1” Switch is closed/on. The “SW2” Switch is Open/Off. The “SW3”

Switch is closed/on.

Transfer to Maintenance Bypass

1. Transfer the UPS to the Bypass mode before proceeding.

2. Close/turn on the “SW2” switch.

3. Open/turn off the “SW3” switch.

4. The UPS is now ready for routine maintenance.

5. If further maintenance requires a total shutdown of the UPS and isolation

from the input, the “SW1” switch must be opened/turned off and the

battery supply to the UPS must be disconnected. Refer to your UPS

manual for proper shutdown procedures.

Return to Normal Operation

1. If the “SW1” switch was opened/turned off for maintenance, then follow the UPS manual for proper startup procedures. To restore input

power to the UPS, close/turn on the “SW1” switch. Make sure the UPS is in Bypass mode before proceeding.

2. Close/Turn-On the “SW3” switch.

3. Open/Turn-Off “SW2” switch.

4. Transfer the UPS from Bypass mode to Normal mode.

Note: To use Bypass position contacts, refer to your UPS system’s owner’s manual for connection instructions.

SW1

SW2

SUT40KMBP

SUT60KMBP

SW2

SUT40KMBP

SUT60KMBP

POSITION 1 - NORMAL OPERATION

POSITION 2 - IN EXTERNAL BYPASS

SW3

9. Maintenance

Before installing or maintaining this equipment, it is extremely important to read this manual and be sure that all equipment drawings

and schematics are reviewed and clearly understood. If there are any questions concerning this manual or any of the installation or

maintenance procedures and/or requirements, please contact a Tripp Lite representative before proceeding.

Inspection and maintenance should only be performed on equipment that has been de-energized and electrically isolated so that no

accidental contact can be made with energized parts.

9.1 Short Circuits and Overloads

Do not attempt to re-energize a switch after a short circuit or overload until the cause of the event has been identiﬁed and corrected.

Failure to correct the cause of the event may result in equipment damage, ﬁre, severe injury or death.

Switches will normally prevent electrical damage except at the point where the short circuit occurred. High mechanical stress developed

by short circuit currents may cause damage to conductors, insulation or other components. After a fault, thorough inspection of the entire

system must be made to verify that there is no damage.

Switches which performed the short circuit interruption must be inspected for possible damage. Do not disassemble the switch or open the

switch trip unit.

Replace all damaged insulation materials, conductors and switches. It is recommended that the equipment be hipot tested prior to being

placed back in service.

10. Reference Materials

Notes:

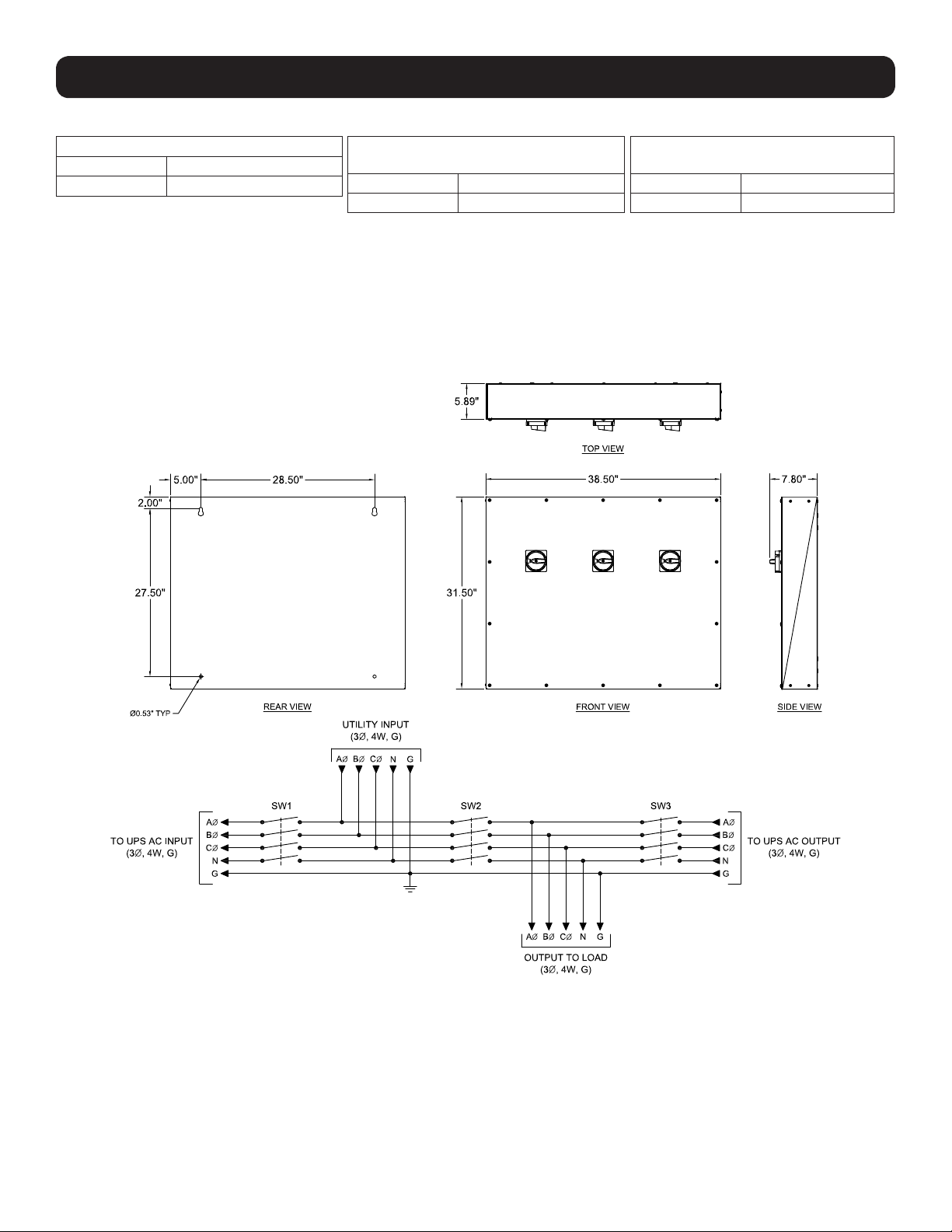

APPROXIMATE WEIGHT: 65 LB.

1. ASSEMBLY IS UL/CUL LISTED PER UL 1778.

2. NEMA 1 WALL MOUNT ENCLOSURE.

3. THE BOX AND TRIM ARE CONSTRUCTED OF GALVANIZED 16GA STEEL.

4. THE SWITCHES HAVE REMOVABLE HANDLES TO ALLOW THE TRIM COVER TO BE REMOVED FOR INTERNAL PANEL ACCESS.

5. THE PANEL IS TO BE MOUNTED THROUGH THE Ø0.53” HOLES IN THE BACK OF THE ENCLOSURE.

Notes:

1. “SW1” UPS INPUT SWITCH.

2. “SW2” MAINTENANCE BYPASS SWITCH.

3. “SW3” MAINTENANCE ISOLATION SWITCH.

4. GROUND LUG ACCEPTS (4) #14 - #2 AWG WIRES.

5. MECHANICAL LUGS USED FOR THE UTILITY INPUT AND THE OUTPUT TO LOAD HAVE THE SAME WIRE RANGE AS THE SWITCHES.

6. THIS DRAWING IS TO BE USED FOR ELECTRICAL PURPOSES ONLY AND DOES NOT REPRESENT THE ACTUAL MECHANICAL LAYOUT OF THE EQUIPMENT.

Torque Values for Slotted Head Terminals

Wire Size Torque Value

14-10 AWG 35 in•lb (3.9 N•m)

8 AWG 40 in•lb (4.5 N•m)

4-6 AWG 45 in•lb (5.1 N•m)

3-1/0 AWG 50 in•lb (5.6 N•m)

Torque Values for Socket Head Terminals

Hex Size Torque Value

3/16 in. 120 in•lb (13.6 N•m)

5/16 in. 275 in•lb (31.1 N•m)

3/8 in. 375 in•lb (42.4 N•m)

1/2 in. 500 in•lb (56.5 N•m)

Torque Values for Busbar Connections

Bolt Size Torque Value

#8 20 in•lb (2.2 N•m)

#10 30 in•lb (3.4 N•m)

1/4 in. 68 in•lb (7.7 N•m)

5/16 in. 10 ft•lb (13.6 N•m)

3/8 in. 20 ft•lb (27.1 N•m)

1/2 in. 50 ft•lb (67.8 N•m)

SUT40KMBP

10. Reference Materials

Notes:

APPROXIMATE WEIGHT: 85 LB.

1. ASSEMBLY IS UL/CUL LISTED PER UL 1778.

2. NEMA 1 WALL MOUNT ENCLOSURE.

3. THE BOX AND TRIM ARE CONSTRUCTED OF GALVANIZED 16GA STEEL.

4. THE SWITCHES HAVE REMOVABLE HANDLES TO ALLOW THE TRIM COVER TO BE REMOVED FOR INTERNAL PANEL ACCESS.

5. THE PANEL IS TO BE MOUNTED THROUGH THE Ø0.53” HOLES IN THE BACK OF THE ENCLOSURE.

Notes:

1. “SW1” UPS INPUT SWITCH.

2. “SW2” MAINTENANCE BYPASS SWITCH.

3. “SW3” MAINTENANCE ISOLATION SWITCH.

4. “SW2” AND “SW3” SWITCHES CONNECTED: 150A ASSEMBLIES USING (1) #2 AWG WIRE PER PHASE. 225A ASSEMBLIES USE (1) 1/0 WIRE PER

PHASE.

5. “SW1” AND “SW3” SWITCH LUGS ACCEPT (1) #6 - 300 MCM WIRE PER PHASE FOR 150A ASSEMBLIES AND (1) 2 - 600 MCM WIRE PER PHASE FOR

225A ASSEMBLIES.

6. GROUND LUG ACCEPTS (4) #14 - #2 AWG WIRES.

7. MECHANICAL LUGS USED FOR THE UTILITY INPUT AND THE OUTPUT TO LOAD HAVE THE SAME WIRE RANGE AS THE SWITCHES.

8. THIS DRAWING IS TO BE USED FOR ELECTRICAL PURPOSES ONLY AND DOES NOT REPRESENT THE ACTUAL MECHANICAL LAYOUT OF THE EQUIPMENT.

Torque Values for Switch Connections

Wire Size Torque Value

1/0-350 AWG 140 in•lb (16 N•m)

Torque Values for Input and

Output Lug Connections

Wire Size Torque Value

6-350 AWG 275 in•lb (31 N•m)

Torque Values for

Ground Lug Connections

Wire Size Torque Value

6-350 AWG 375 in•lb (42.36 N•m)

SUT60KMBP

11. Warranty

LIMITED WARRANTY AND EXCLUSIONS

Tripp Lite strives to produce quality products at reasonable prices. If you are not satisﬁed with our product because of a defect, we will repair or replace the defective part or parts

free of charge for a period of one year from the date of purchase. In the event you claim that the product contains a defect, simply notify Tripp Lite of the defect, and we will arrange

for repair or replacement. The sole and exclusive remedy against Tripp Lite relating in any way to a product defect shall be the repair or replacement of defective parts as provided

for under this LIMITED WARRANTY. No other remedy, including, but not limited to, incidental or consequential damages for lost proﬁts, lost sales, injury to person or property, or any

other incidental or consequential loss, is available. This LIMITED WARRANTY shall not be deemed to have failed of its essential purpose so long as Tripp Lite is willing and able to

repair or replace defective parts in the manner prescribed in this LIMITED WARRANTY.

Certain integrated products, which are not manufactured by Tripp Lite, will be warranted by the applicable manufacturer. These warranties shall be between the

manufacturer and the user. Terms and conditions may vary. These integrated products include, but may not be limited to, the following products: Batteries, Inverters

and UPS Systems.
