Triumph Adler DC 6130P Bedienungsanleitung

QUICKGuide DC 6130/P/6135/6230/6235

Operation panel

1 Displays the System Menu/Counter

screen, where you can check the

system settings and counters.

2 Displays the Status screen, where you

can check the status, print a status

report, and pause or cancel the job in

process.

3 Displays the Copy screen, where

you can make settings required for

copying.

4 Displays the Document Box screen,

where you can operate the document

box and USB memory.

5 Displays the Send screen, where you

can send an e-mail, to a folder (SMB/

FTP) or fax.*

6 Displays the fax screen, where you can

send a fax.*

7 Displays the Addressbook screen,

where you can add, edit and delete

destinations.

8 Calls the previous destination. Also

used to enter a pause when entering a

fax number.

9 'LVSOD\VWKH&RQ¿UP'HVWLQDWLRQ

screen, where you can edit and delete

destinations.

10 Displays the Add Destination screen,

where you can add destinations.

11 Switches between on-hook and off-

hook when manually sending a fax.*

12 Used to register, call and delete

destinations to the one-touch key

numbers (1 to 22).

13 Shifts to switch the one-touch key

numbers (1 to 11 and 12 to 22). Lamp

is lit while shifted (12 to 22).

14 Message Display. Check what is shown

here while operating the machine.

15 Selects the menu displayed at the

lower left in the Message Display.

16 Selects the menu displayed at the

lower right in the Message Display.

17 Blinks while print data is being

received or data is transmitted.

18 Blinks while the machine is accessing

the memory.

19 Lights or blinks when an error occurs.

20 Used to select a menu item, move

the cursor when entering characters,

change a value, etc.

21 6HOHFWVWKHFKRVHQLWHPRU¿QDOLVHVWKH

entered value.

22 Displays the function menu for copy,

print, transmission and document box.

23 Returns the Message Display to the

previous screen.

24 Clears entered numbers and

characters.

25 Resets settings and displays the basic

screen.

26 Starts copying and scanning operations

and processing for setting operations.

27 Cancels the printing job in progress.

28 Used to register or recall programs.

29 Ends operation (logs out) on the

Administration screen.

30 Numeric keys. Enter numbers and

symbols.

*Only DC 6230/DC 6235

12 3

5 6 12 13 17 18 19 23 30 26 27 28 294

7891011 14 1516 2021 22 2425

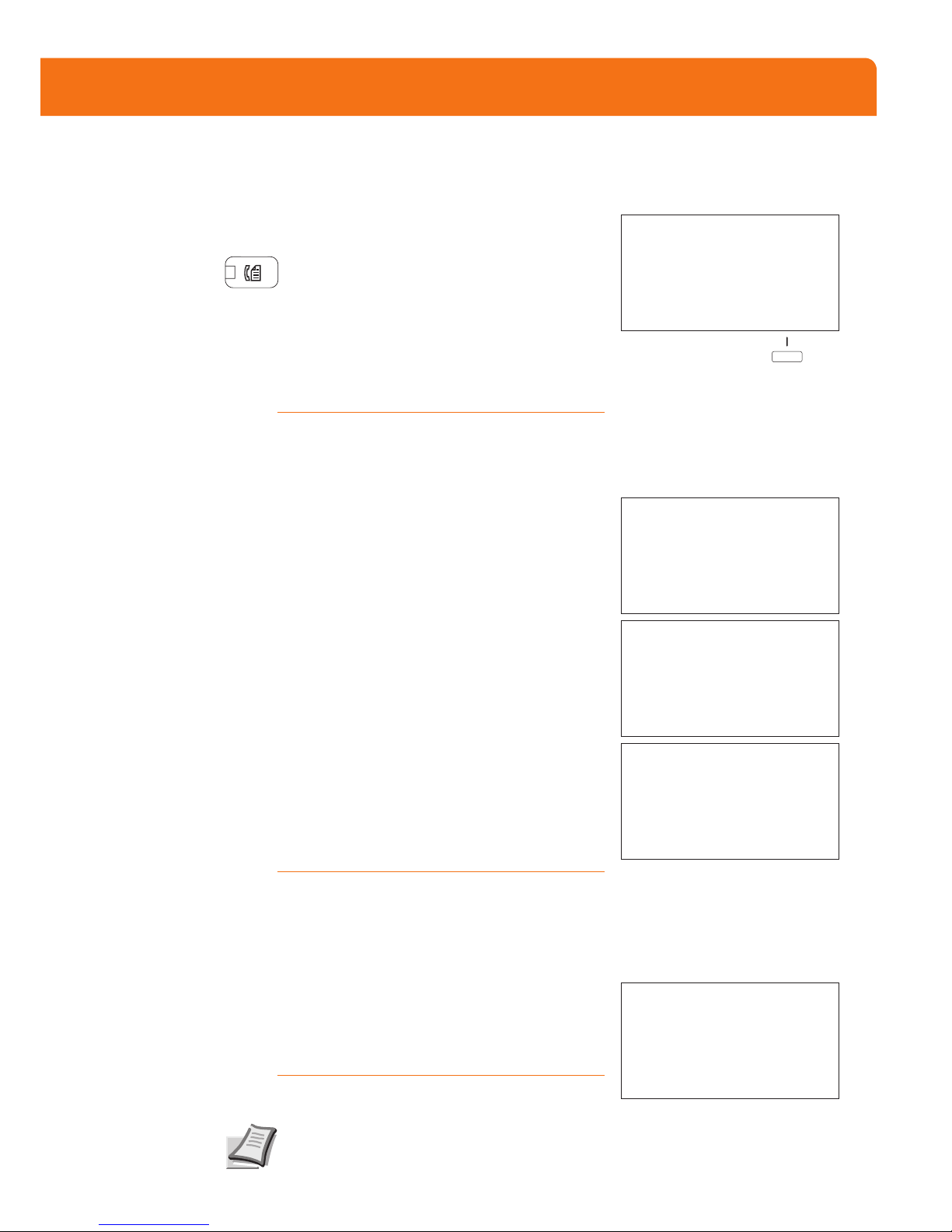

Copy operation

For more details refer to the Operation

Guide on the co-packed DVD.

Ready to copy.

Copies: 1

Letter

100%

[ Zoom ] [ Paper ]

Ready to copy.

Copies: 1

Letter

100%

[ Zoom ] [ Paper ]

Function Menu:

Original Image

Density

[ Exit ]

Orig Orientation

Function Menu:

Combine

Original Size

[ Exit ]

Zoom

Function Menu:

*********************

Collate

Duplex

[ Exit ]

Paper Selection

Registered.

Program 2

➊Press COPY.

➋Press [PAPER] using the select keys below

the message display.

➌Press ARROW UP/DOWN to select cassette or

multi purpose tray.

➍&RQ¿UPZLWKOK.

➊Press ZOOM using the select keys below

the message display.

➋Press ARROW UP/DOWN until ZOOM ENTRY

appears.

➌Use ARROW UP/DOWN to choose the desired

PDJQL¿FDWLRQ

➍&RQ¿UPZLWKOK.

➎Press START to start copying.

Change the following settings if needed:

DUPLEX, COLLATE, COMBINE, ORIGINAL SIZE/-

ORIENTATION and DENSITY.

➊Press FUNCTION MENU.

➋Use ARROW UP/DOWN to choose the desired

function.

➌&RQ¿UPZLWKOK.

➍&KDQJHWKHGHVLUHGVHWWLQJV&RQ¿UPDOO

settings with OK.

➎Press START to start copying.

➊Change the current settings as desired.

➋Press one program key for 3 seconds.

➌The destination registered to the program

keys is recalled and automatically entered on

the screen.

Paper source

selection

Zoom

Convenient copy

functions

Registering settings

to program key

QUICKGuide DC 6130/P/6135/6230/6235

Send operation

Send Job Log:

0004

Broadcast

0003

0756545865

0002

Morgan@home

[ Detail ]

If the documents are still fed, press STOP.

➊Press STATUS/JOB CANCEL.

➋Use ARROW UP/DOWN to select SEND JOB

STATUS.

➌&RQ¿UPZLWKOK.

➍Use ARROW UP/DOWN to select the job to be

cancelled.

➎Press CANCEL using the select keys below

the message display.

➏&RQ¿UPZLWKYES using the select keys

below the message display. Communication

LVFDQFHOOHG$FRQ¿UPDWLRQVOLSPLJKWEH

printed.

➊Press STATUS/JOB CANCEL.

➋To check received documents use ARROW

UP/DOWN and select PRINT JOB STATUS.

To check send documents use ARROW UP/

DOWN and select SEND JOB STATUS.

➌&RQ¿UPZLWKOK.

➍Use ARROW UP/DOWN to select the desired

job.

➎The result is displayed. Press [DETAIL] to

view all related items.

Place the originals on the platen or in the

document processor.

➊Press SEND.

➋Use ARROW UP/DOWN to select [E-MAIL].

➌&RQ¿UPZLWKOK.

➍Enter the destination e-mail address. Use

ABC TEXT to select the type of characters. Use

LEFT/RIGHT ARROW to move the cursor.

➎&RQ¿UPZLWKOK.

➏If there are additional destinations, press

ADD DESTINATION.

➐Press CONFIRM DESTINATIONWRFRQ¿UPWKH

registered destinations.

➑Press START. Transmission starts.

Check

transmission

result

Sending E-mail

Cancelling fax job

Send to:

*********************

Folder(SMB)

Folder(FTP)

E-mail

Address Entry:

ABC

[ Text ]

Ready to send.

Dest.: 1

:sally@###########

1-sided 300x300dpi

[ Duplex ] [ScanRes.]

Send Job Status:

0010

0123456789

0011

Broadcast

*********************

[ Cancel ] [ Menu ]

0017

9876543210

For more details refer to the Operation

Guide on the co-packed DVD.

Select Key No.:

*********************

No. 12

[ Exit ]

No. 1

➊Press SYSTEM MENU/COUNTER.

➋Use ARROW UP/DOWN to choose EDIT

DESTINATION.

➌Press OK.

➍Use ARROW UP/DOWN to choose

ADDRESSBOOK.

➎&RQ¿UPZLWKOK.

If the addressbook contains no entries, press

the menu key using the select keys below the

message display.

➏Use ARROW UP/DOWN to choose ADD

ADDRESS.

➐Choose CONTACTDQGFRQ¿UPZLWKOK.

Next, enter destination name, fax number

and e-mail address.

➑Press EDIT to see more details. Use LEFT/

RIGHT ARROW to select the items.

➒&RQ¿UPHDFKHQWU\ZLWKOK.

➊In the basic screen for fax, press the ONE-

TOUCH key that you want to register and hold

it (2 seconds).

➋Use ARROW UP/DOWN to choose a key.

➌&RQ¿UPZLWKOK.

➍Use ARROW UP/DOWN to choose an entry

from the addressbook.

➎&RQ¿UPZLWKOK.

Place the originals on the platen or in the

document processor.

➊Press FAX.

➋Press FAX RES. using the select keys below

the message display. Select the resolution

VXLWDEOHIRUVHQGLQJRULJLQDOVDQGFRQ¿UPZLWK

OK.

➌Enter the fax number of the receiving

system using the numeric keys.

You can also select the fax destination from

the addressbook by pressing ADDRESSBOOK.

➍Press START. The documents are fed and

the transmission begins.

Sending Fax

Registering a new

destination

Registering a new

One-touch key

Ready to send.

2010/05/25 12:30

Text+Photo 200x100dpi

[Orig.Img] [FAX Res.]

Edit Destination:

*********************

Print List

[ Exit ]

Addressbook

Menu:

*********************

Delete

Add Address

Detail Edit

Detail:

Contact Name 1/7

Sally

[ Edit ]
