Fire damper

Type FKRS-EU

Installation and operating manual

Read the instructions prior to performing any task!

according to Declaration of Performance

DoP / FKRS-EU / DE / 002

GB/en

M375EE7, 2, GB/en

Translation of the original

TROX GmbH

Heinrich-Trox-Platz

47504 Neukirchen-Vluyn

Germany

Phone: +49 (0) 2845 2020

Fax: +49 (0) 2845 202-265

E-mail: [email protected]

Internet: http://www.trox.de

11/2014

Fire damper Type FKRS-EU2

General information

About this manual

This operating and installation manual enables oper-

ating or service personnel to correctly install the TROX

product described below and to use it safely and effi-

ciently.

This operating and installation manual is intended for

use by fitting and installation companies, in-house tech-

nicians, technical staff, properly trained persons, and

qualified electricians or air conditioning technicians.

It is essential that these individuals read and fully under-

stand this manual before starting any work. The basic

prerequisite for safe working is to comply with the safety

notes and all instructions in this manual.

The local regulations for health and safety at work and

general safety regulations also apply.

This manual must be given to the facilities manager

when handing over the system. The facilities manager

must include the manual with the system documenta-

tion. The manual must be kept in a place that is acces-

sible at all times.

Illustrations in this manual are mainly for information

and may differ from the actual design.

This document, including all illustrations, is protected by

product.

Any use without our consent may be an infringement of

damage.

This applies in particular to:

Publishing content

Copying content

Translating content

Microcopying content

Saving content to electronic systems and editing it

TROX Technical Service

To ensure that a fault is processed as quickly as pos-

sible, please keep the following information ready:

Delivery date of the TROX components and sys-

tems

TROX order number

Product name

Brief description of the fault

Contact in case of a fault

Online www.troxtechnik.com

Phone +49 2845 202-400

Limitation of liability

The information in this manual has been compiled with

reference to the applicable standards and guidelines,

the state of the art, and our expertise and experience of

many years.

The manufacturer does not accept any liability for dam-

ages resulting from:

Non-compliance with this manual

Incorrect use

Operation or handling by untrained individuals

Unauthorised modifications

Technical changes

Use of non-approved replacement parts

The actual scope of delivery may differ from the infor-

mation in this manual for bespoke constructions, addi-

tional order options or as a result of recent technical

changes.

The obligations agreed in the order, the general terms

and conditions, the manufacturer's terms of delivery,

and the legal regulations in effect at the time the con-

tract is signed shall apply.

We reserve the right to make technical changes.

Defects liability

For details regarding defects liability please refer to

Section VI, Warranty Claims, of the Delivery and Pay-

ment Terms of TROX GmbH.

The Delivery and Payment Terms of TROX GmbH are

available at www.troxtechnik.com.

General information

Fire damper Type FKRS-EU 3

Safety notes

Symbols are used in this manual to alert readers to

areas of potential hazard. Signal words express the

degree of the hazard.

DANGER!

Imminently hazardous situation which, if not

avoided, will result in death or serious injury.

WARNING!

Potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION!

Potentially hazardous situation which, if not avoided,

may result in minor or moderate injury.

NOTICE!

Potentially hazardous situation which, if not avoided,

may result in property damage.

ENVIRONMENT!

Environmental pollution hazard.

Tips and recommendations

Useful tips and recommendations as well as infor-

mation for efficient and fault-free operation.

Safety notes as part of instructions

Safety notes may refer to individual instructions. In this

case, safety notes will be included in the instructions

and hence facilitate following the instructions. The

above listed signal words will be used.

Example:

1. Untighten the screw.

CAUTION!

Danger of finger entrapment when closing

the lid.

Be careful when closing the lid.

3. Tighten the screw.

Specific safety notes

The following symbols are used in safety notes to alert

you to specific hazards:

Warning signs Type of danger

Warning – danger zone.

General information

Fire damper Type FKRS-EU4

1 Safety................................................................... 6

1.1 General safety notes................................ 6

1.2 Correct use.............................................. 6

1.3 Qualified staff........................................... 6

2 Technical data..................................................... 7

2.1 General data............................................ 7

2.2 FKRS-EU with fusible link........................ 8

2.3 FKRS-EU with spring return actuator...... 9

3 Transport and storage...................................... 11

4 Parts and function............................................. 12

4.1 FKRS-EU with fusible link...................... 12

4.2 FKRS-EU with spring return actuator.... 12

5 Installation......................................................... 13

5.1 Installation situations............................. 13

5.2 Safety notes on installation.................... 14

5.3 General installation information............. 14

5.3.1 After installation..................................... 14

5.4 Solid walls.............................................. 16

5.4.1 Mortar-based installation....................... 16

5.4.2 Dry mortarless installation with circular

installation block ER.............................. 17

5.4.3 Dry mortarless installation with fire

batt......................................................... 18

5.4.4 Dry mortarless installation with wall face

frame WA............................................... 20

5.5 Solid ceiling slabs.................................. 21

5.5.1 Mortar-based installation....................... 21

5.5.2 Dry mortarless installation with circular

installation block ER.............................. 23

5.5.3 Dry mortarless installation with fire

batt......................................................... 24

5.5.4 Mortar-based installation into concrete

bases..................................................... 25

5.6 Lightweight partition walls...................... 27

5.6.1 Mortar-based installation....................... 29

5.6.2 Dry mortarless installation with square

dry mortarless installation kit TQ........... 32

5.6.3 Dry mortarless installation with fire

batt......................................................... 34

5.6.4 Dry mortarless installation with installa-

tion kit GL............................................... 36

5.7 Fire walls................................................ 37

5.7.1 Mortar-based installation....................... 40

5.7.2 Dry mortarless installation with square

dry mortarless installation kit TQ........... 41

5.8 Shaft walls............................................. 42

5.8.1 Mortar-based installation....................... 44

5.8.2 Dry mortarless installation with square

installation block EQ.............................. 45

5.9 Suspended installation of the fire

damper................................................... 46

5.9.1 General.................................................. 46

5.9.2 Fixing to the ceiling slab........................ 46

5.9.3 Fire dampers with fire batt..................... 46

6 Connecting the ductwork................................. 49

6.1 Ducts...................................................... 49

6.2 Removing the transport/installation pro-

tection.................................................... 49

6.3 Limiting duct expansion......................... 49

6.3.1 Flexible connectors................................ 49

6.4 Cover grille............................................. 50

6.5 Inspection access.................................. 50

7 Making electrical connections......................... 51

7.1 Connecting the limit switches (fire

dampers with fusible link)...................... 51

7.2 Connecting the spring return actuator... 51

7.3 Equipotential bonding............................ 51

8 Functional test................................................... 52

8.1 Fire damper with fusible link.................. 52

8.2 Fire damper with spring return

actuator.................................................. 53

9 Commissioning................................................. 56

10 Maintenance...................................................... 57

10.1 General.................................................. 57

10.2 Lubricating points................................... 57

10.3 Replacing the fusible link....................... 58

10.4 Inspection, maintenance and repair

measures............................................... 59

11 Decommissioning, removal and disposal...... 61

12 Index................................................................... 62

Table of contents

Fire damper Type FKRS-EU 5

1 Safety

1.1 General safety notes

Sharp edges, sharp corners and thin sheet metal

parts

CAUTION!

Danger of injury at sharp edges, sharp corners

and thin sheet metal parts!

Sharp edges, sharp corners and thin sheet metal

parts may cause cuts or grazes.

– Be careful when carrying out any work.

– Wear protective gloves, safety shoes and a hard

hat.

Electrical voltage

DANGER!

Danger of electric shock! Do not touch any live com-

ponents! Electrical equipment carries a dangerous

electrical voltage.

– Only skilled qualified electricians are allowed to

work on the electrical system.

– Switch off the power supply before working on

any electrical equipment.

1.2 Correct use

The fire damper is used as an automatic shut-off

device to prevent fire and smoke from spreading

through ducting.

The fire damper is suitable for supply air and extract

air systems.

Operation of the fire damper is allowed only in com-

pliance with installation regulations and the technical

data in this operating and installation manual.

Modifications of the fire damper and the use of

replacement parts that have not been approved by

TROX are not permitted.

Incorrect use

WARNING!

Danger due to incorrect use!

Incorrect use of the fire damper can lead to dan-

gerous situations.

Never use the fire damper

– in areas with potentially explosive atmospheres

– as a smoke extract damper

– outdoors without sufficient protection against the

effects of weather

– in atmospheres where chemical reactions,

whether planned or unplanned, may cause

damage to the fire damper or lead to corrosion

1.3 Qualified staff

WARNING!

Danger of injury due to insufficiently qualified

individuals!

Incorrect use may cause considerable injury or

damage to property.

– Only skilled qualified personnel must carry out

work.

The following degrees of qualification are required for

the work described in the operating manual:

Skilled qualified electrician

Skilled qualified electricians are trained individuals who

have specialist knowledge and experience and who

know the relevant standards and guidelines to be able

to work on electrical systems and to recognise and

avoid potential dangers.

Specialist personnel

Specialist personnel are trained individuals who have

specialist knowledge and experience and who know the

relevant guidelines to be able to carry out the assigned

duties and to recognise and avoid potential dangers.

Safety

Qualified staff

Fire damper Type FKRS-EU6

2 Technical data

2.1 General data

Nominal sizes 100 – 315 mm

Volume flow rate range up to 770 l/s

up to 2770 m³/h

Differential pressure range up to 1500 Pa

Operating temperature 1At least 0 – 50 °C

Release temperature 72 °C or 95 °C (for warm air ventilation systems)

Upstream velocity 2≤ 8 m/s with fusible link

≤ 10 m/s with spring return actuator

Closed blade air leakage EN 1751, Class 3

Casing air leakage EN 1751, Class C

EC conformity Construction Products Regulation (EU) no. 305/2011

EN 15650 – Ventilation for buildings – Fire dampers

EN 13501-3 – Classification – Part 3: Fire resisting ducts

and fire dampers

EN 1366-2 – Fire resistance tests for service installa-

tions – Part 2: Fire dampers

EN 1751 Ventilation for buildings – Air terminal devices

Declaration of Performance DoP / FKRS-EU / DE / 002

1) Temperatures may differ for units with attachments

2) Data applies to uniform upstream and downstream conditions for the fire damper

Rating plate

A###########

Jahr/year-## DoP / XXX-XX / DE / 0##

Brandschutzklappe/fire damper

XXX-XX

EI TT (ve-ho, i

o) S - (300 Pa)

TROX GmbH

Heinrich-Trox-Platz

47504 Neukirchen-Vluyn

GERMANY

www.trox-docs.com

EN 15650: 2010 0749 / 1322

①

⑦ ⑨⑧ ⑩⑥⑤

③ ④②

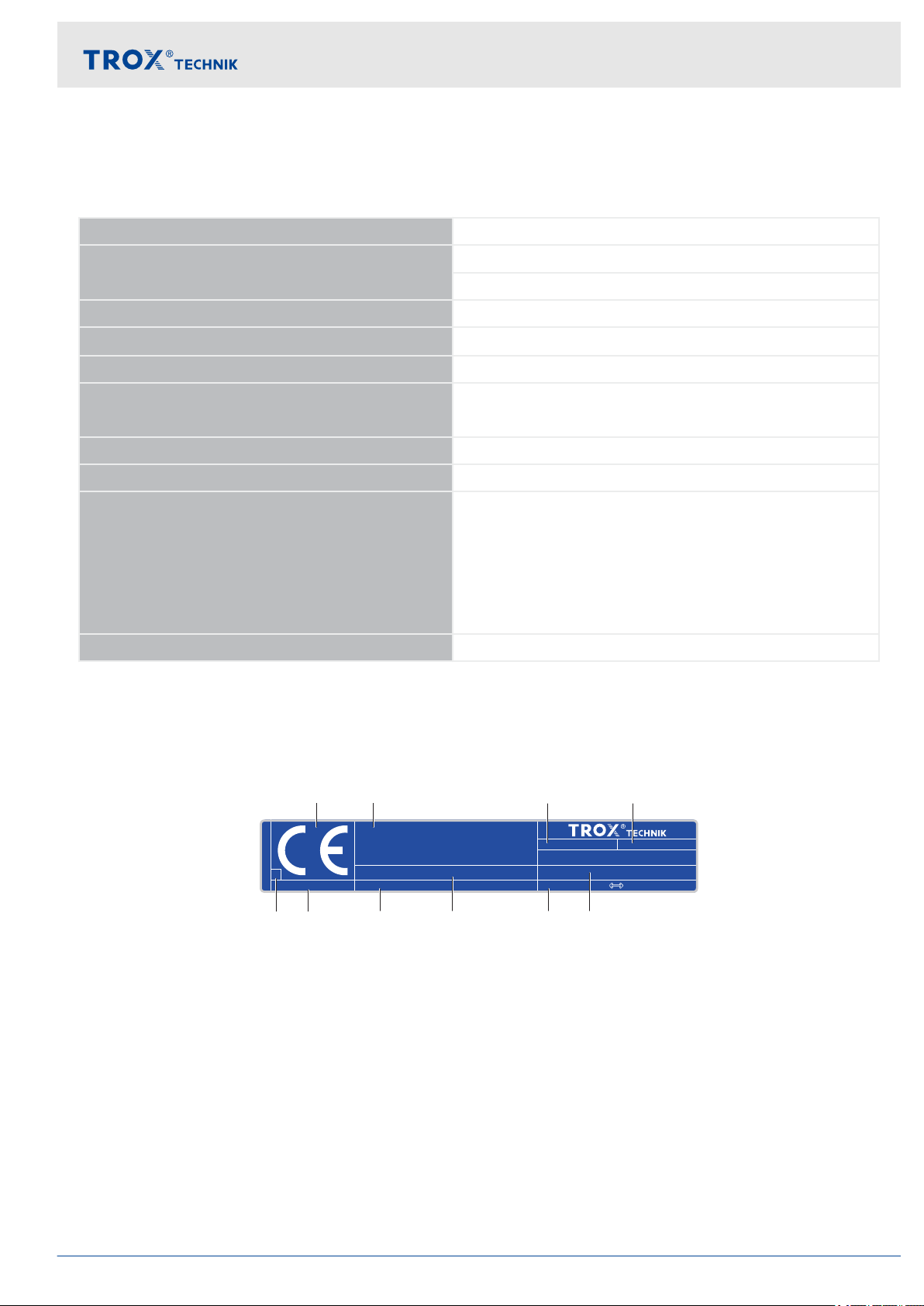

Fig. 1: Rating plate (example)

①CE mark

②Manufacturer's address

③Number of the European standard and year of its

publication

④Notified body

⑤The last two digits of the year in which the CE

marking was affixed

⑥Year of manufacture

⑦No. of the declaration of performance

⑧Website from which the DoP can be downloaded

⑨Regulated characteristics; the fire resistance class

depends on the application and may

vary

Chapter 5.1 ‘Installation situations’

on page 13

⑩Type

Technical data

General data

Fire damper Type FKRS-EU 7

2.2 FKRS-EU with fusible link

Dimensions and weight

L = 400

Ø DN

50 ~ 75

~ 180

220

270

①

Fig. 2: FKRS-EU with fusible link

①Keep clear to provide access for operation

Weight [kg]

Nominal size [mm] 100 125 150 160 180 200 224 250 280 315

ØDN [mm] 99 124 149 159 179 199 223 249 279 314

FKRS-EU with fusible link 1.3 1.6 1.8 2.0 2.3 2.5 2.7 3.3 3.8 4.4

... with circular installation block (ER) 5.7 8.6 7.6 7.3 11.0 9.8 13.5 12.1 16.0 15.0

... with square installation block (EQ) 7.3 11.2 10.2 9.9 13.3 13.6 18.8 17.3 22.9 20.0

... with square installation block (TQ) 5.4 6.1 7.0 7.9 8.8 9.7 10.6 12.0 13.7 15.8

... with wall face frame (WA) 4.4 5.2 6.1 6.6 7.4 8.2 9.0 10.2 11.7 13.6

Technical data

FKRS-EU with fusible link

Fire damper Type FKRS-EU8

Limit switches

Connecting cable length / cross section 1 m / 3 × 0.34 mm²

Protection level IP 66

Type of contact 1 changeover contact, gold-plated

Maximum switching current 0.5 A

Maximum switching voltage 30 V DC, 250 V AC

Contact resistance approx. 30 mΩ

2.3 FKRS-EU with spring return actuator

Dimensions and weight

L = 400

Ø DN

50 ~ 115

~ 190

220

270

①

Fig. 3: FKRS-EU with spring return actuator

①Keep clear to provide access for operation

Weight [kg]

Nominal size [mm] 100 125 150 160 180 200 224 250 280 315

ØDN [mm] 99 124 149 159 179 199 223 249 279 314

FKRS-EU with spring return actuator 3.1 3.4 3.6 3.7 4.0 4.2 4.5 5.0 5.5 6.2

... with circular installation block (ER) 7.5 10.4 9.4 9.1 12.8 11.6 15.3 13.9 17.8 16.8

... with square installation block (EQ) 9.1 13.0 12.0 11.7 15.1 15.4 20.6 19.1 24.7 21.8

Technical data

FKRS-EU with spring return actuator

Fire damper Type FKRS-EU 9

Weight [kg]

Nominal size [mm] 100 125 150 160 180 200 224 250 280 315

... with square installation block (TQ) 7.2 7.9 8.8 9.7 10.6 11.5 12.4 13.8 15.5 17.6

... with wall face frame (WA) 6.2 7.0 7.9 8.4 9.2 10.0 10.8 12.0 13.5 15.4

Spring return actuator BLF...

Construction 230-T TR 24-T-ST TR

Supply voltage 230 V AC ±14 % 50/60 Hz 24 V AC ±20 % 50/60 Hz

or 24 V DC –10 % / +20 %

Power rating Spring compression 6 W 5 W

Hold position 3 W 2.5 W

Rating 7 VA

Running time Motor / spring return 40 – 75 s / 20 s

Limit switches Type of contact 2 changeover contacts

Switching voltage 5 – 120 V DC / 5 – 250 V AC

Switching current 1 mA – 3 A

Contact resistance < 100 mΩ

IEC protection class II III

Protection level IP 54

Storage temperature -40 to 50 °C

Ambient temperature -30 to 50 °C ¹

Ambient humidity ≤ 95 % RH, non-condensing

Connecting cable Actuator 1 m / 2 × 0.75 mm²

Limit switches 1 m / 6 × 0.75 mm²

¹ Up to 75 °C the safe position will definitely be reached.

Technical data

FKRS-EU with spring return actuator

Fire damper Type FKRS-EU10
