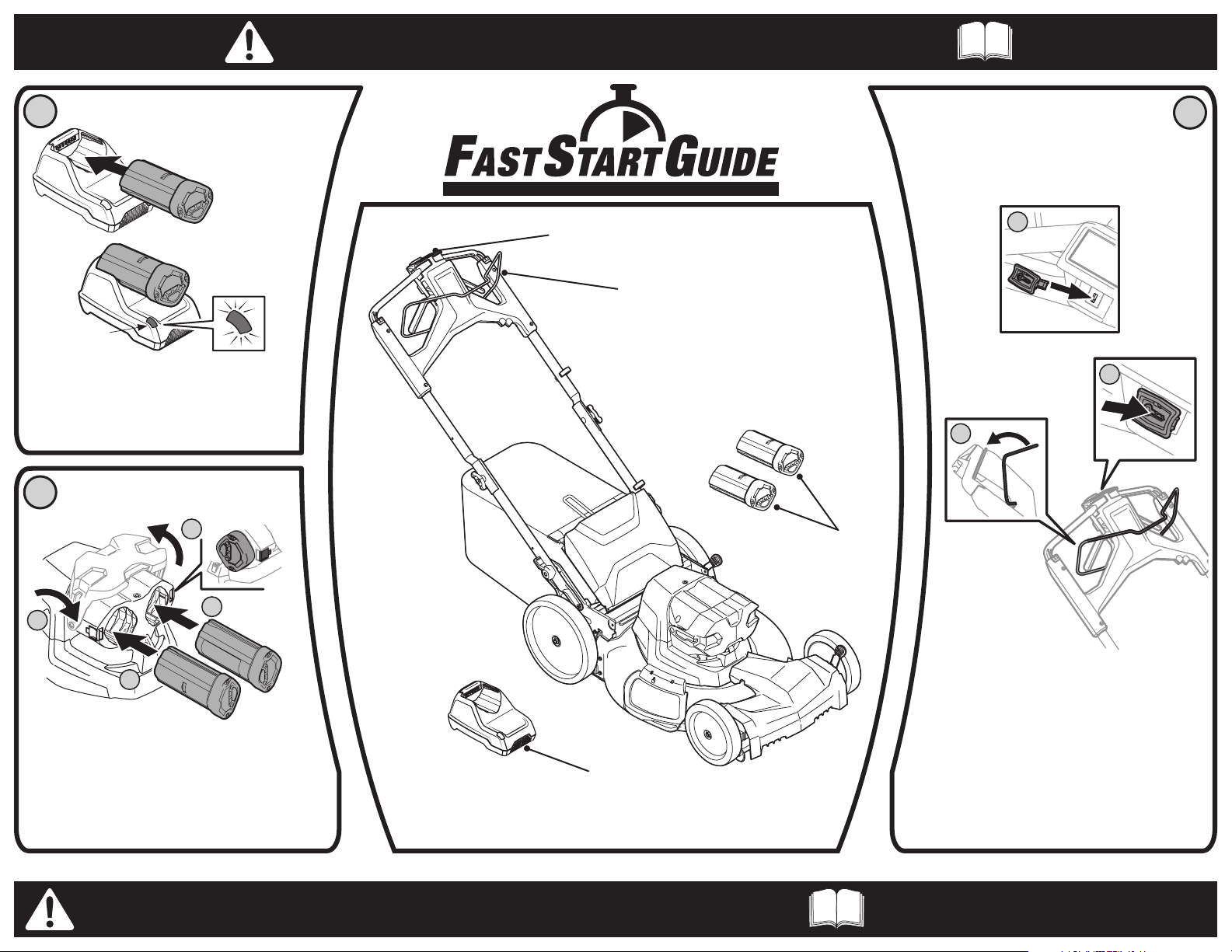

Troy-Bilt 18CGB2C7766 Leitfaden

Wing Knobs

778-13525

Note: Refer to your Operator’s Manual

for instructions on attaching the grass collector.

A. Pull out the handle adjustment levers to

release the handle adjustment pins from the

handle bracket.

A. Place the handle into one of the three handle height

positions, high (a), medium (b) or low (c), located on

the handle brackets

B. Turn the handle adjustment levers until they are

parallel with the handle to release the pins and lock

them into one of the handle height holes in the

handle brackets.

Handle Bracket

Blade Control

Handle

Adjustment

Lever

B. Rotate the levers up

perpendicular to the handle.

C. Carefully lift the handle up.

Setting-Up Handle

(c)

(b)

(a)

A. Turning counterclockwise, loosen wing

knob securing the left side upper and lower

handles together. Remove packaging with

wing knob and bolt securing the right side

upper and lower handles together.

B. Gently lift and

pivot the upper

handle forward.

C. Remove the wing knob and bolt from

packaging removed in STEP A. Insert bolt

through the right side upper and lower

handles. Turning clockwise, tighten the

wing knobs to secure the upper and lower

handles together.

READ AND UNDERSTAND ALL INSTRUCTION, WARNING, AND DANGER LABELS.

PARA INSTRUCCIONES EN ESPAÑOL, REFIÉRASE AL MANUAL DEL OPERADOR.

IMPORTANT: READ OPERATOR'S, BATTERY AND CHARGER MANUALS THOROUGHLY

AND FOLLOW THE IMPORTANT SAFE OPERATION PRACTICES BEFORE OPERATING . Need Help? Call 1-888-TO-HELP-U

A. Lift up the battery housing lid.

A. Insert the push start safety key into the

starter housing located in the center of

handle panel until it snaps in place.

Charging Batteries Starting Motor

Installing Battery

A. Plug the battery charger

into an appropriate

power outlet.

B. With the battery indicator light facing away from the

battery latch, slide the battery into the active battery

port. Push the battery firmly until the battery locks into

place. There should be an audible “click” and the battery

latch should be in the upright position.

C. Install the other battery in a similar manner.

D. Close battery housing lid.

B. Insert battery into the battery charger. The LED

should illuminate and blink to indicate charging.

C. When battery is fully charged (solid LED light),

remove it from the battery charger and repeat

charging process with the other battery.

B. Standing behind the mower, pull the blade

control back against the upper handle.

C. Push the push start safety key to start the

motor.

Blade Control

Battery

Charger

Starter Push Key

LED
