Troy-Bilt 1919 Einrichtungshandbuch

Illustrated Parts List

Printed in USA Manual No. 192258A Revision 0 (09/17/2004)

Portable Generator

Model 01919

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A.

Troy-Bilt® is a registered trademark of Troy-Bilt, LLC and is used under license to Briggs & Stratton Power Products.

Troy-Bilt® es una marca registrada de Troy-Bilt, LLC y se usa abajo licencia a Briggs & Stratton Power Products.

Section Exploded Views and Parts Lists

EXPLODED VIEW - MAIN UNIT

Section 1: Exploded Views and Parts Lists

Item Part # Description

1 P194766GS CRADLE

2 194150GS KIT,Vibration, Mount, 45°

4 190220GS HOUSING, Engine Adapter

5 NSP ASSY,Alternator (see page 5)

6 194151GS KIT, Hrdwr Mounting Adapter

8 96796GS WASHER, M8 Flat

10 * SBHCS, 3/8-16 x 1.0 Lg.

11 187365FGS HHCS, 5/16-24 x 7.44

14 194729GS KIT, Muffler Bracket w/ Hardware

15 695398 GASKET, Exhaust

17 189008GS MUFFLER

18 * SCREW, 5/16 - 18 x 3/4"

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground, Green

21 194153GS KIT,Vibration Mount

23 193646GS KIT, Grounding Hardware

24 192794GS SHIELD, Heat

26 74908GS SCREW, M5-0.8 x 10,Taptite

31 191436GS DECAL, Hot Muffler

34 186347GS COVER, Bearing Carrier

35 194397GS KIT, Fuel Hose, Formed w/ Clamps

37 192376GS SCREW, 12-24 x 1/2 Thrd forming

38 56893GS CRIMPTITE, 10 - 24 x 1/2

40 194398GS KIT, Fuel Tank Hardware

41 192980GS KIT,Valve, Fuel Tank

44 193668GS ASSY,Tank, Fuel (Includes Items 41, 50, 51 & 52)

45 B4363GS CAP, Fuel Gauge

48 14353621GS WIRE, Ground

50 188333GS DECAL, Gas Fill

51 194799GS DECAL, Danger

52 189235GS DECAL, Start Instructions

55 191435GS DECAL, Shut-Off, Fuel

58 190355GS ASSY, Control Panel (see page 4)

59 * NUT, Palnut, 3/16"

900 NSP ENGINE

Parts Not Illustrated

MS5242 MANUAL, Engine

192258GS MANUAL, Owners

BB3061GS BOTTLE, Oil

188971GS CORD, Extension, 120/240V, 30A

193667GS KIT, Decals

* - Items shown without part numbers are common fasteners found at your local hardware store.

PARTS LIST - MAIN UNIT

Item Part # Description

1 195112GS KIT, Control Panel Lid

2 188889GS CONTROL PANEL, Compact

6 68759GS OUTLET, 120V, 20Amp, Duplex

7 * NUT, Palnut, Pushnut, 5/32

8 84198GS CAP, Circuit Breaker

9 75207GS BREAKER, Circuit

10 43437GS OUTLET, 120/240V Locking, 30A

11 * NUT, Palnut, Pushnut, 3/16

12 * SCREW, Phillips, Head 3.5 x 18

13 93857GS BAR, Retaining

14 188890GS COVER, Back, Control Panel

15 82308GS SCREW, Self Tapping, STC 3 x 18

16 22694GS HOUSING, Receptacle

17 * SCREW, Phillips, 3.5 x 14

* - Items shown without part numbers are common

fasteners found at your local hardware store.

Section 1: Exploded Views and Parts Lists

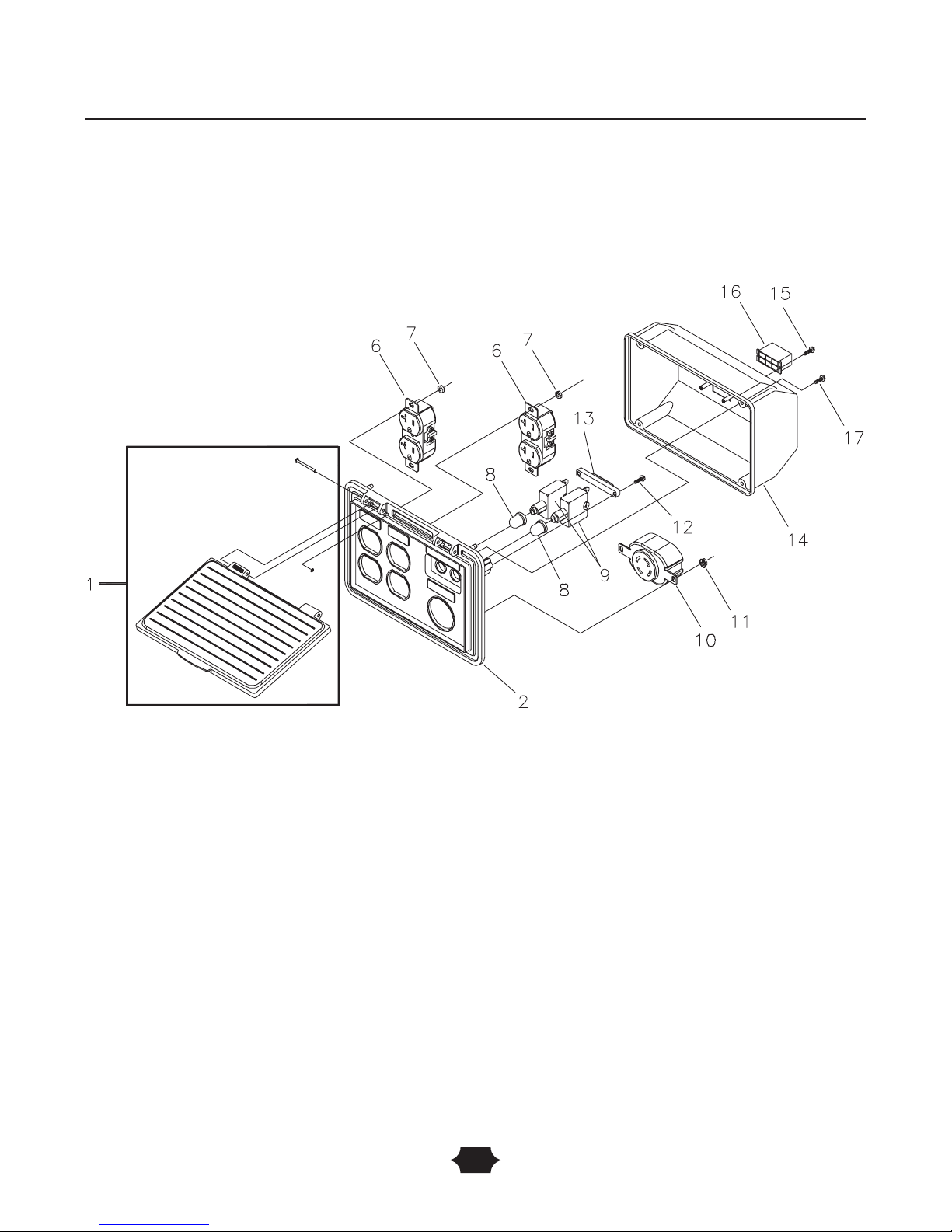

CONTROL PANEL EXPLODED VIEW & PARTS LIST

Section 1: Exploded Views and Parts Lists

ALTERNATOR EXPLODED VIEW AND PARTS LIST

Item Part # Description

1 186059GS ADAPTER, Mounting,Alternator

2 190032GS ROTOR

3 190079AGS STATOR

4 186060GS RBC, with O-Ring (p/n 189197GS)

5 86308HGS SCREW

6 91825GS ASSY, Holder, Rectifier/Brush

7 66849GS SCREW

8 22694GS RECEPTACLE, 6 pin

9 81917GS PIN, Roll

10 193428AGS ASSY,Wire, Ground

13 190356GS HARNESS,Wire, Power

Section 1: Exploded Views and Parts Lists

WHEEL KIT EXPLODED VIEW AND PARTS LIST

Item Part # Description

1 189715GS ASSY, Handle

2 B1764GS LEG, Mounting

3 52858GS NUT, Lock

4 39287GS SCREW

5 191267HGS AXLE

6 B4966GS WHEEL

7 191265GS E-RING

8 22247GS WASHER

9 42907GS SCREW
