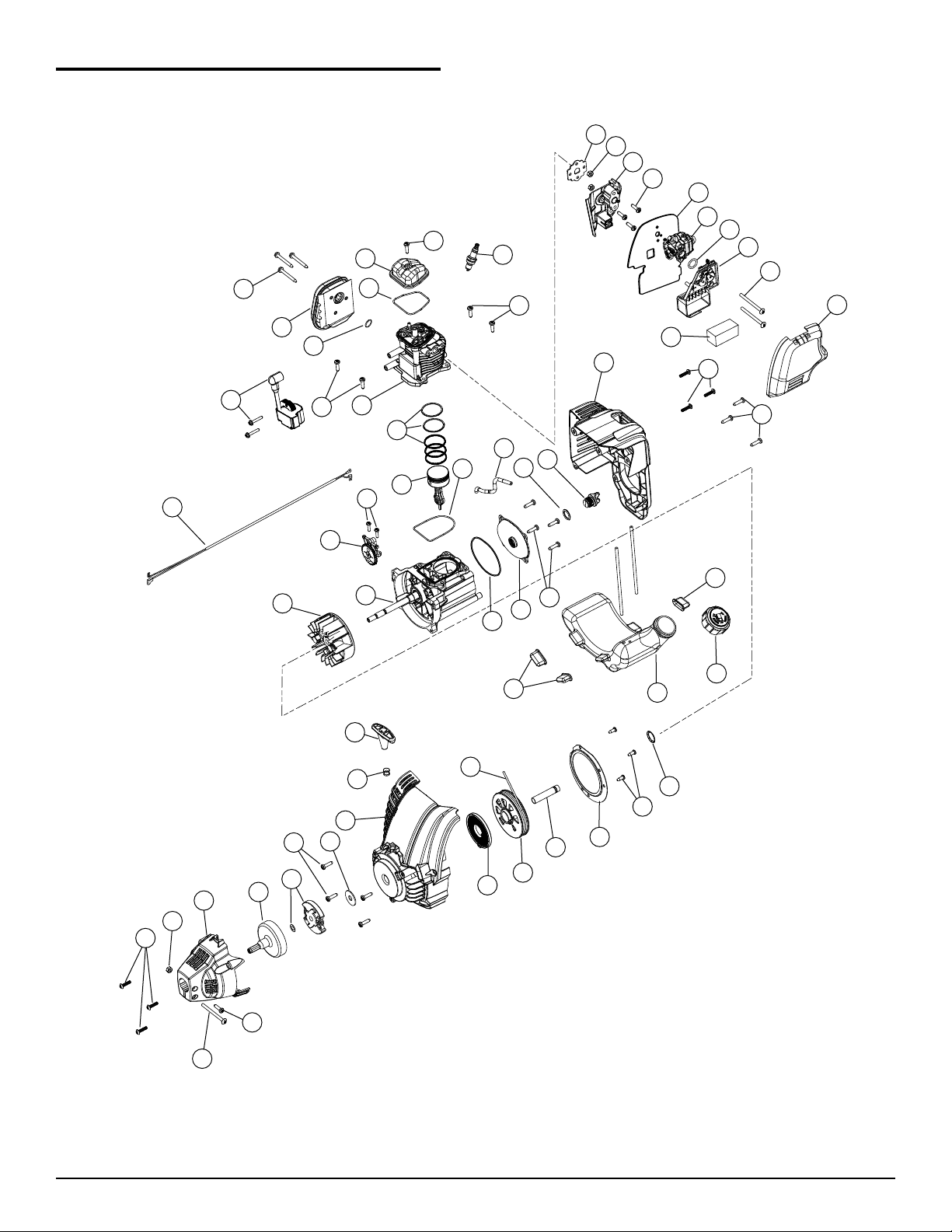

REPLACEMENT PARTS - MODEL TB514es

4-CYCLE GAS TRIMMER

PPN 41BDT51G966

PARTS LIST PART NO. 769-05113 P00 Issued 6/09

REPLACEMENT PARTS - MODEL TB514es

4-CYCLE GAS TRIMMER

PPN 41BDT51G966

Issued 6/09

Item Part No. Description

1 753-06134 Engine Cover Assembly (includes 2 & 3)

2 753-04595 Cover Screw

3 791-181003 Screw

4 753-05209 Rocker Cover

5 753-05210 Rocker Cover O-Ring

6 753-05228 Cylinder Assembly (includes 3, 5 & 9)

7 753-05229 Piston Ring Assembly

8 753-05230 Piston Assembly (includes 7)

9 753-05232 Cylinder O-Ring

10 791-182379 Breather Hose

11 753-05408 Oil Plug (includes 12)

12 791-182290 Oil Plug O-Ring

13 753-06111 Crankcase Cover

14 753-05238 Crankcase Cover O-ring

15 753-06110 Crankcase Assembly (includes 9, 10 & 14)

16 753-05240 Flywheel Assembly

17 753-05241 Cam Bracket Assembly (includes 18)

18 753-05242 Cam Bracket Screw

19 753-05264 Lead Wires

20 753-05243 Module Assembly

21 753-05244 Muffler Gasket

22 753-05245 Muffler Assembly (includes 21 & 23)

23 753-05246 Muffler Screw

24 753-05255 Spark Plug

25 753-05247 Insulator Gasket

26 753-05248 Nut

27 753-05249 Insulator

28 753-05366 Carburetor Gasket

29 753-05251 Carburetor w/Primer

Item Part No. Description

30 791-181751 O-Ring

31 753-05252 Air Cleaner Cover Assembly (includes 32)

32 753-05254 Air Filter

33 753-05253 Screw

34 753-05256 Fuel Tank Assembly w/Fuel Lines (includes 35)

35 753-1229 Fuel Cap

36 753-05259 Fuel Tank Pads

37 753-05260 Push Nut

38 753-1202 Pressure Plate Screw

39 753-05074 Pressure Plate (includes 38)

40 753-05078 Spacer

41 753-05435 Starter Assembly (includes 42)

42 791-613103 Rope

43 753-04286 Recoil Spring

44 791-181079 Handle

45 791-611061 Rope Guide

46 753-05262 Starter Housing Assembly (includes 3 & 37-45)

47 791-182396 Washer

48 753-1238 Clutch & Clutch Washer

49 791-153592 Clutch Drum

50 753-05263 Clutch Cover (includes 2)

51 791-182519 Anti-Rotation Screw

52 753-04003 Clamp Screw

53 791-180217 Nut

* 753-05297 Spark Arrestor Assembly

* 753-06114 Shortblock Assembly

(includes 3-12, 14, 15, 17 & 24)

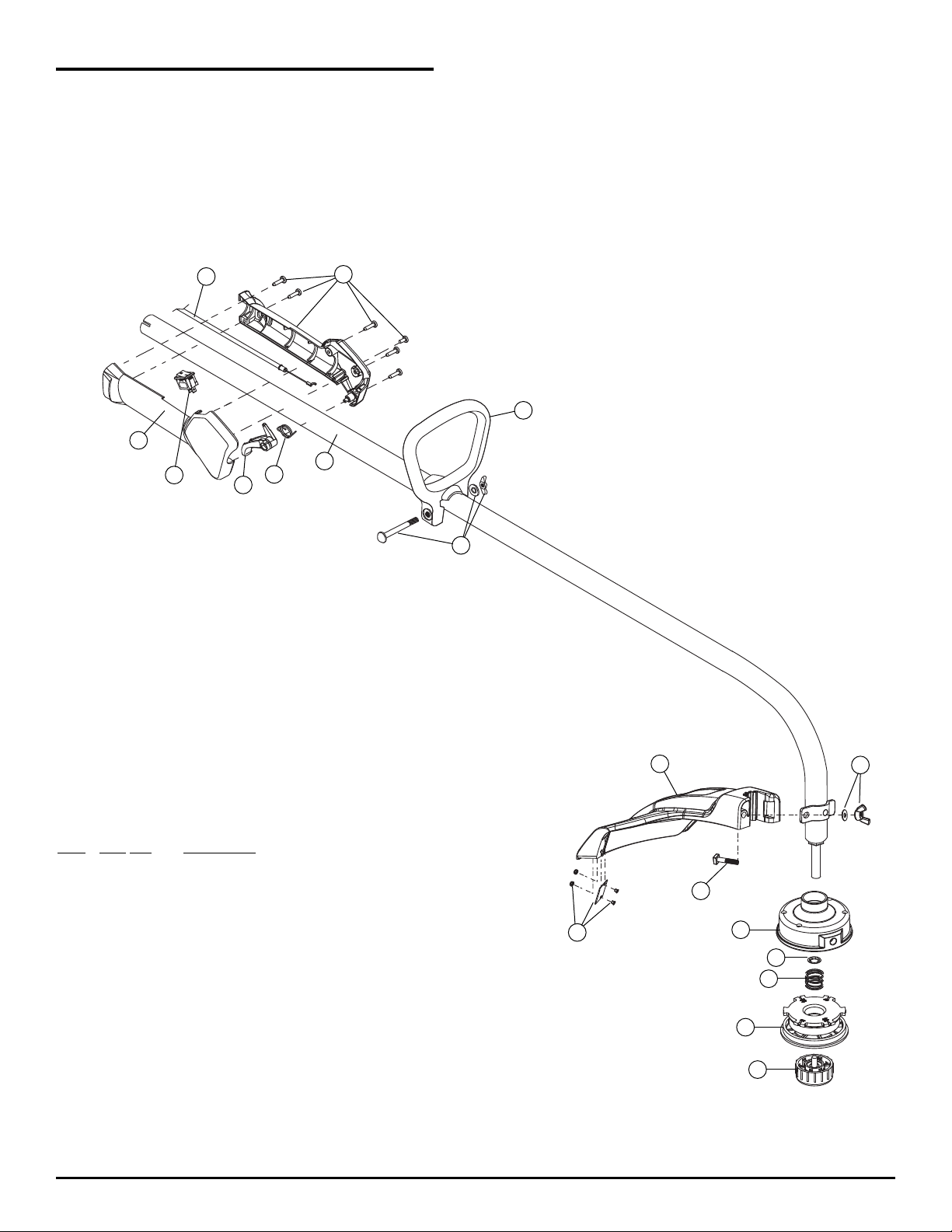

Item Part No. Description

1 753-04234 Throttle Housing Assembly (includes 2-4)

2 791-182405 Switch

3 753-04119 Throttle Trigger

4 791-182690 Throttle Trigger Spring

5 753-05748 Drive Shaft Housing Assembly

6 753-05461 D-Handle (includes 7)

7 791-181587 Handle Hardware

8 753-04282 Guard Mounting Hardware

9 753-04283 Guard (includes 10)

10 791-682061 Blade Assembly

11 753-04284 Outer Spool Assembly (includes 12)

12 791-610660 Retainer

13 791-610317B Spring

14 753-1155 Inner Reel

15 791-153066B Bump Head Knob Assembly

16 753-05266 Throttle Cable

* 753-1156 Reel and Line Assembly

* Items Not Shown

REPLACEMENT PARTS - MODEL TB514es

4-CYCLE GAS TRIMMER

PPN 41BDT51G966

Issued 6/09
