Troy-Bilt TB525es Handbuch

50 49

40 39

16 15

REPLACEMENT PARTS - MODEL TB525es

4-CYCLE GAS TRIMMER

PPN 41CDT52C966

Parts List Part No. 769-05116 P00 Issued 6/09

Issued 6/09

REPLACEMENT PARTS - MODEL TB525es

4-CYCLE GAS TRIMMER

PPN 41CDT52C966

Item Part No. Description

1 753-06134 Engine Cover Assembly (includes 2 & 3)

2 753-04595 Cover Screw

3 791-181003 Screw

4 753-05209 Rocker Cover

5 753-05210 Rocker Cover O-Ring

6 753-05228 Cylinder Assembly (includes 3, 5 & 9)

7 753-05229 Piston Ring Assembly

8 753-05230 Piston Assembly (includes 7)

9 753-05232 Cylinder O-Ring

10 791-182379 Breather Hose

11 753-05408 Oil Plug (includes 12)

12 791-182290 Oil Plug O-Ring

13 753-06111 Crankcase Cover

14 753-05238 Crankcase Cover O-ring

15 753-06110 Crankcase Assembly (includes 9, 10 & 14)

16 753-05240 Flywheel Assembly

17 753-05241 Cam Bracket Assembly (includes 18)

18 753-05242 Cam Bracket Screw

19 753-05264 Lead Wires

20 753-05243 Module Assembly

21 753-05244 Muffler Gasket

22 753-05245 Muffler Assembly (includes 21 & 23)

23 753-05246 Muffler Screw

24 753-05255 Spark Plug

25 753-05247 Insulator Gasket

26 753-05248 Nut

27 753-05249 Insulator

28 753-05366 Carburetor Gasket

29 753-05251 Carburetor w/Primer

Item Part No. Description

30 791-181751 O-Ring

31 753-05252 Air Cleaner Cover Assembly (includes 32)

32 753-05254 Air Filter

33 753-05253 Screw

34 753-05256 Fuel Tank Assembly w/Fuel Lines (includes 35)

35 753-1229 Fuel Cap

36 753-05259 Fuel Tank Pads

37 753-05260 Push Nut

38 753-1202 Pressure Plate Screw

39 753-05074 Pressure Plate (includes 38)

40 753-05078 Spacer

41 753-05435 Starter Assembly (includes 42)

42 791-613103 Rope

43 753-04286 Recoil Spring

44 791-181079 Handle

45 791-611061 Rope Guide

46 753-05262 Starter Housing Assembly (includes 3 & 37-45)

47 791-182396 Washer

48 753-1238 Clutch & Clutch Washer

49 791-153592 Clutch Drum

50 753-05263 Clutch Cover (includes 2)

51 791-182519 Anti-Rotation Screw

52 753-04003 Clamp Screw

53 791-180217 Nut

* 753-05297 Spark Arrestor Assembly

* 753-06114 Shortblock Assembly

(includes 3-12, 14, 15, 17 & 24)

11 12

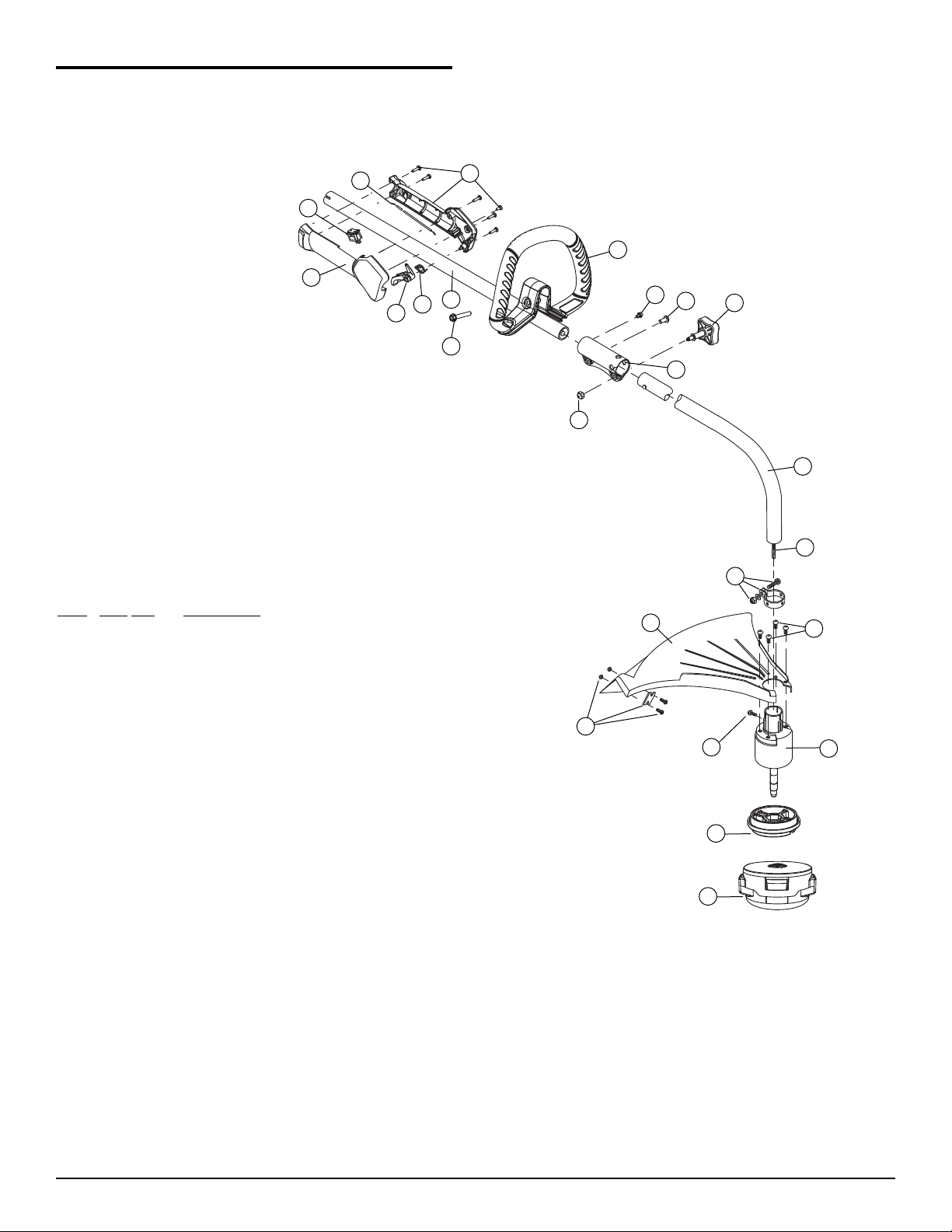

Item Part No. Description

1 753-04234 Throttle Housing Assembly (includes 2-4)

2 791-182690 Throttle Trigger Spring

3 753-04119 Throttle Trigger

4 791-182405 Switch

5 753-05266 Throttle Cable Assembly

6 753-04236 Upper Drive Shaft Housing Assembly

7 753-06039 D-Handle Assembly (includes 8)

8 753-06040 Bolt

9 753-1190 Split boom Coupler (includes 10-13)

10 791-182057 Screw

11 791-181617 Bolt

12 791-181951 Adjustment Knob (includes 13)

13 753-04386 Knob Retaining Nut

14 791-182387 Lower Drive Shaft Housing Assembly (includes 16)

15 791-153597 Lower Clamp Assembly (includes 19)

16 791-181852 Lower Flexible Drive Shaft

17 791-180531 Shield Mounting Screw

18 753-05050 Bushing Housing Assembly

19 791-145569 Anti-Rotation Screw

20 791-181659 Shield Assembly (includes 21)

21 753-06048 Blade Assembly

22 753-05278 Adapter

23 753-06130 Spool Assembly

Issued 6/09

REPLACEMENT PARTS - MODEL TB525es

4-CYCLE GAS TRIMMER

PPN 41CDT52C966
