913 POWERC@M ZOOM

L I F E I S M O R E ! T R U S T U S T R U S T . C O M

User’s manual

Version 1.0

913 POWERC@M ZOOM

Thank you for your purchase. Register your product via our Internet site at

www.trust.com/register, so that you will be eligible for optimal guarantee and service support.

You will also be automatically informed of the development of your and other Trust products. UK

L I F E I S M O R E ! T R U S T U S T R U S T . C O M

913 POWERC@M ZOOM

L I F E I S M O R E ! T R U S T U S T R U S T . C O M

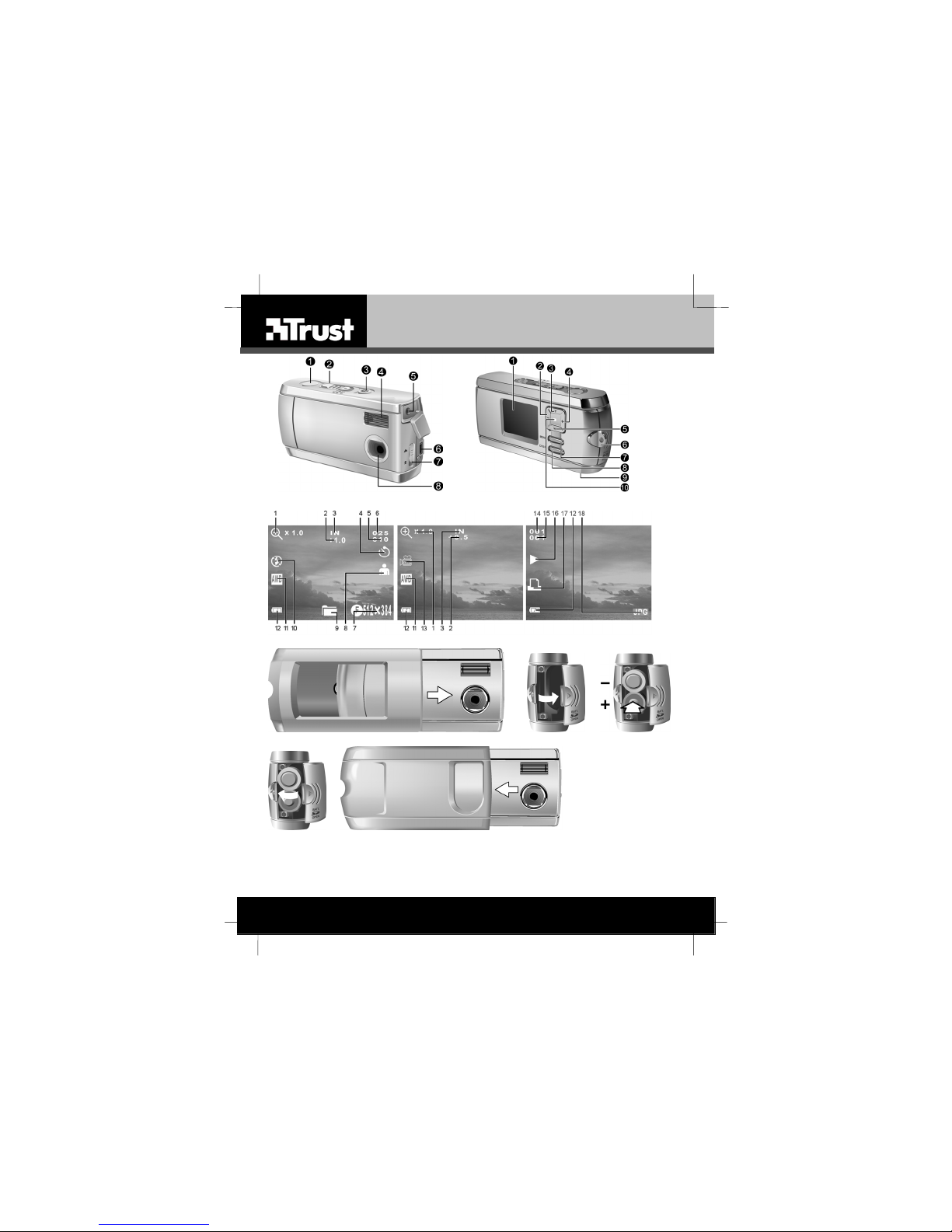

Fig. 1 Fig. 2

Fig. 3

Fig. 4a Fig.4b Fig.4c

Fig. 4d Fig. 4e

L I F E I S M O R E ! T R U S T U S T R U S T . C O M

913 POWERC@M ZOOM

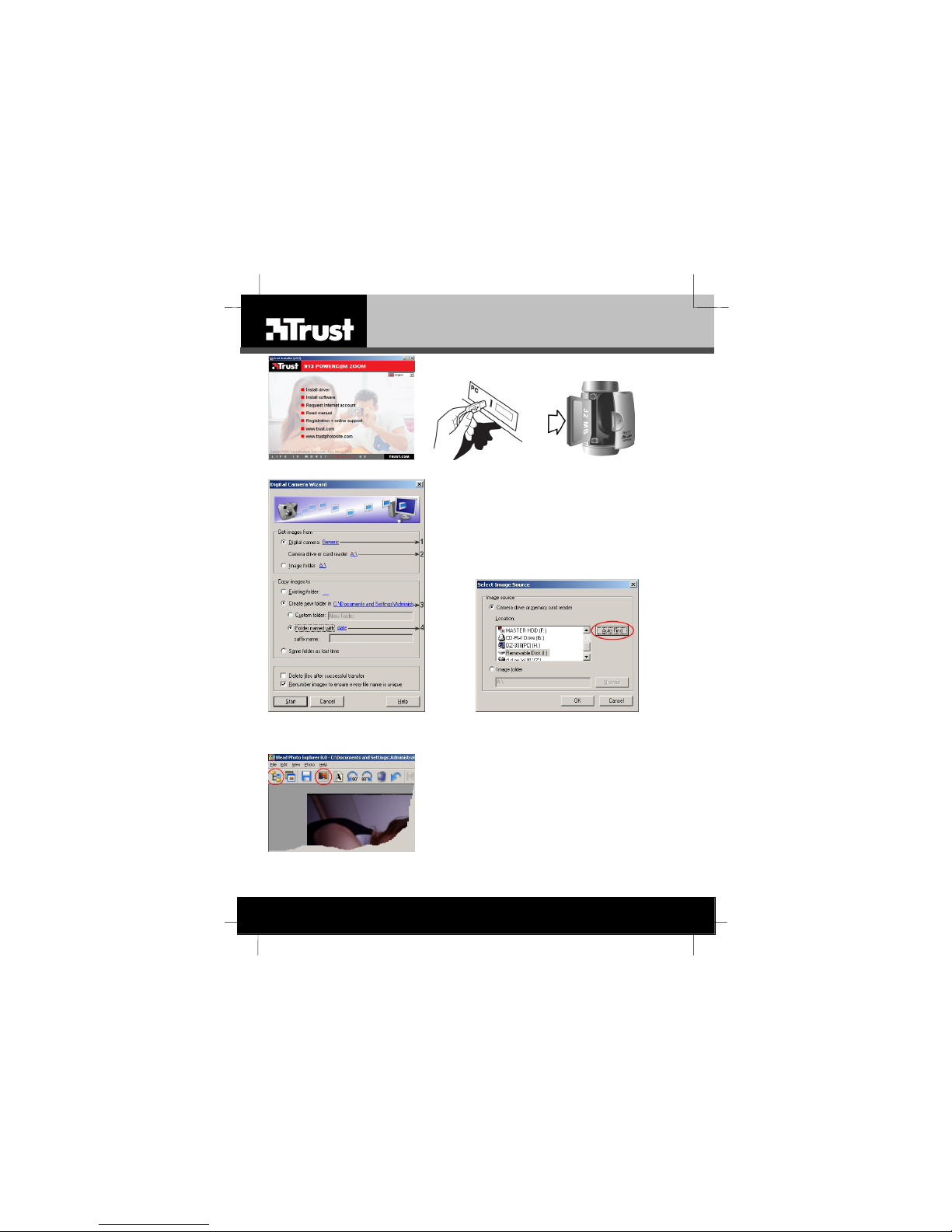

Fig. 5 Fig. 6 Fig. 7

Fig. 8 Fig. 9

Fig. 10

TRUST 913 POWERC@M ZOOM

! Use the Quick Installation Guide when using the camera for the first time. This

guide contains the basic instructions you will need to know in order to be able

to use this camera.

Consult the “Quick Reference Guide” for how to use the menu and its

functions. UK

1 Introduction

This manual is for users of the ‘Trust 913 PowerC@m Zoom‘. The camera has a 3.1

Megapixel CMOS sensor and maximum resolution of 6.6 Megapixels. A maximum of

60 images can be saved in the 8MB internal memory of 8MB.

1.1 General comments regarding photography

Test photograph

Before you start photographing a unique event, it is a good idea to first take a

number of test photographs. This will help to ensure that the camera works as

required.

No compensation for unsuccessful photographs

No compensation may be claimed for unsuccessful photographs as a result of a

faulty camera, faulty software, etc.

Transferring photographs and video clips

No guarantees are given that photographs and video clips produced with this camera

can be displayed on other devices or that photographs and video clips produced with

other devices can be displayed using this camera.

Sunlight

Do not aim the camera directly at the sun for a long period of time.

Flash

Observe caution when operating the flash. Never use the flash close to the eyes of

people or animals. This can cause temporary damage to the eyes. Keep the flash at

least 2 metres away from any eyes.

Shaking/knocks

Do not shake the camera or knock it against anything. This may cause a fault,

unsuccessful photographs, memory incompatibility or the loss of photographs from

the memory.

LCD display

There may sometimes be small black or clear dots visible on the LCD screen. This is

normal and does not affect the photographs. There is no reason to exchange the

camera if there are 10 dots or less.

Exposing the LCD screen to direct sunlight for a long period of time may cause faults.

Lens

Keep the glass of the lens clean. Use a cotton bud to clean the lens. If necessary,

use special cleaning fluid for camera lenses. Do not use a different type of cleaning

product.

TRUST 913 POWERC@M ZOOM

2 Safety

Carefully read the following instructions before use.

- The TRUST 9130 POWERC@M ZOOM does not require any special

maintenance. Use a moist soft cloth to clean the outside of the camera.

- Do not use aggressive substances, such as petrol or white spirit, to clean the

camera. These may harm the material it is made from.

- Never immerse the camera in a fluid. This may be dangerous and will damage

the product. Do not use the camera in thedirect vicinity of water.

- Do not repair this camera yourself.

2.1 Batteries

- The Duracell Ultra batteries supplied with the device are not rechargeable. Do

not try to recharge them. This can give rise to danger of an explosion.

- Never throw the batteries onto an open fire. The batteries may explode.

- Never drill holes in the batteries.

- Keep the batteries out of reach of small children.

- Use only AA alkaline batteries with this camera.

You can also use rechargeable AA NiMH batteries (minimum 1800 mAh).

- When the alkaline batteries (including Duracell Ultra batteries) are flat, ask your

local authority where you can dispose of them.

N.B.: Standard AAA NiCd batteries are not suitable.

N.B.: Do not use old and new batteries at the same time, because the old

batteries may deplete the new ones.

N.B.: if the camera is not to be used for a long time remove the batteries. This

will help to increase the lifetime of the batteries.

3 Approval

This device conforms with the essential requirements and other relevant provisions

of the applicable European directives. The Declaration of Conformity (DoC) is

available at www.trust.com/13835/CE.

4 Explanation of camera functions

4.1 Functions on the top, front and side

Functions on the top, front and side of the camera (figure 1)

Point Description Symbol

1 Shutter Press this button to take a photograph. See the

Quick Reference Guide.

2 Mode Switch Slide to select the camera mode: Capture, Film,

or Playback. See the Quick Reference Guide.

3 On/off Button Press this button to turn on the camera.

Press it again to turn the camera off.

4 Built-in Flash You can use the flash to take

hotos in

laces

TRUST 913 POWERC@M ZOOM

Point Description Symbol

where there is very little light. You can also use

the flash in well lit surroundings to avoid

undesirable shadows.

5 Video Out Port Connect your video out cable here and the

other end to your television set in order to use

the television to preview your pictures.

6 USB connection The USB (Universal Serial Bus) port is used to

connect the camera to a PC as well as for

transferring photos. The USB port also enables

you to use the camera as a PC camera.

7 Lens Focus

Switch

Optimize the focus for portrait or landscape

style photos.See section 6.2.

8 Lens The lens focuses the light onto the digital

image capturing circuitry. For the best picture

quality, care should be taken to ensure it

remains free of dust, fingerprints, and

scratches.

Table 1: Functions on the top, front and side of the camera

4.2 Functions on the back

Functions on the back of the camera (figure 2)

Point Description Symbol

1 LCD display Use the LCD Screen to preview photos.

The LCD Screen can be used to check the

configuration details while in the Setup menu.

2 Left Button

(Å)

Use the Left Button to broswse to the left during

picture playback.

The Left Button can be used to reduce the lighting

level while in Capture mode and Film mode.

3 Buttom “T”

(zoom

in/browse

up) (Ç)

Use the Zoom-in Button to zoom-in on your subject

while in Capture mode.

Use this button to zoom-in on a photo while in

Playback mode.

The Zoom-in button is also used to move up through

menus.

4 Right Button

(Æ)

Use the right button to browse to the right while in

Playback mode.

You can use the right button to raise the lighting level

while in Capture or Film mode.

5 Button “W”

(zoom

ou/browse

down) (È)

Use the Zoom-out Button to zoom-out on your

subject while in Capture mode.

In Playback mode, use this button to Zoom-out and

switch between Thumbnail Review and Full-Screen

modes.

The Zoom-out button is also used to move down

through menus.

TRUST 913 POWERC@M ZOOM

Point Description Symbol

6 Neck Strap

Loop

Use the Neck Strap Loop to fix the neck strap to the

camera for easy carrying.

7 “MENU”

Button

Press the “MENU” button to enter the menu system.

8 “DISP”

Button

Displayed on the LCD screen. See the Quick

Reference Guide.

9 Tripod

connector

Use the Tripod Connector to fix the camera to a

tripod.

This optional accessory is used to hold the camera

still. It is especially useful for taking low light night

pictures.

10 Status light Indicates the power status.

The light is always on when in Playback and Film

mode.

When using the Capture mode with flash the light

flashes once every second until the flash is fully

charged.

Table 2: Functions at the rear of the camera

4.3 LCD display

See Figure 3.

Point Symbol Description

1 Zoom Indicates the level of digital zoom currently applied.

See section 6.1.

2 Lighting value See section 9.1.

3 Type of

memory

See section 10.3.

4 Self-timer Indicates that the camera is using the Self-Timer

setting. See section 9.5.

5 Number of

photos taken.

Number of photos stored in the memory.

6 Pictures

Remaining

Number of photos that can still be stored in the

memory (indication).

7 Image quality Set values of resolution/quality. See section 9.4.

8 Portrait This preset is optimized for taking portrait photos

focusing more on the centre of the frame than on the

peripheral areas. See section 6.2.

9 Continuous Use the continuous setting to take consecutive

images. See section 9.6.

10 Flash Flash indication, see section 9.2

11 White

balance

White balance indication See section 9.3.

12 Battery status See Table 4:

13 Film mode Film mode selected. See chapter 8.

TRUST 913 POWERC@M ZOOM

Point Symbol Description

14 Recording

number

Recording number

15 Total number

of photos

The total number of photos stored in the memory

16 Playback

mode

Playback mode selected

17 DPOF DPOF recording selected See section 10.4.

18 Image Type Indicates the playback image type, either still image

(JPG) or video file (AVI).

Table 3: Functions on the LCD screen

5 Preparing the camera for use

5.1 Inserting and removing the batteries

See Figures 4a to 4e in the front of this manual or Step 1 of the Quick Installation

Guide for how to insert and remove the batteries.

The battery status will be shown in the bottom left of the LCD screen.

Batteries charged.

Batteries half charged.

Batteries flat. Replace the batteries.

Table 4: Battery status on the LCD screen

Notes about lifetime of the batteries: It is recommended that Ni-MH batteries are

used with this camera rather than Alkaline batteries. Trust has

various Ni-MH battery chargers in its range.

(Check: www.trust.com/battery-chargers)

5.2 Choosing a Language

The digital camera can display text in English, Spanish, German, French, Italian and

Dutch.

Follow the instructions below to set the camera to your wishes.

1. Switch on the camera.

2. Press the “MENU” button to show the menu system.

3. Use the button (W) (È) to select [SETUP] then press the right button (Æ)to

open the [SETUP] menu.

4. Use the button (W) (È) to select [LANGUAGE] then press the right button (Æ).

5. Use the “T”- (Ç) and “W”- (È) buttons to select the language you want to use

and then press the right button (Æ) to set the language.

6. Press the “MENU”button to exit the menu.

TRUST 913 POWERC@M ZOOM

5.3 Other settings

Consult the Quick Reference Guide for other settings in the menu.

6 Taking a picture ( )

Before you can take pictures you must slide the camera out of its protective case

(Figure 4a) and put the camera back in the case (figure 4e).

Switch the camera on (3, Figure 1) and set the mode switch (2, Figure 1) to

“Capture”. Focus on the object to be taken and press the shutter (1, Figure 1) in

order to take the photo.

Note: hold the camera steady to avoid taking blurred pictures.

6.1 Zooming in and out

You can use the Zoom-in (T) or Zoom-out (W) buttons to narrow or widen the

camera’s field of view. Use the LCD Screen to preview the effects of the zoom

function.

N.B.: The digital zoom decreases the image quality.

6.2 Focus

The lens focus can be changed by the switch (7, Figure 1). Select setting the focus

mode by sliding the focus setting switch.

Landscape

130 cm -> ~

This focus is optimized for taking landscape pictures,

with the lens focus universally distributed to encompass

everything within the frame.

Portrait

60 -> 130 cm

This preset is optimized for taking portrait photos

focusing more on the centre of the frame than on the

peripheral areas.

Close up photos taken in Portrait mode have betters results than close up photos

taken in Landscape mode.

7 Making a video ( )

This allows you to save video clips in the internal memory of the camera.

To record a video clip

1. Slide the mode switch to Film mode.

2. Frame your shot, after the camera's LCD screen turns on.

3. Press the Shutter button to begin recording. The camera keeps recording until

the memory is full, or the Shutter button is pressed again.

Digital zoom

Digital zoom can be adjusted from 1.0X to 4.0X in 0.2X steps before recording a

movie clip.

Lighting

While recording a video press the left or right button to brighten or darken the film.

Inhaltsverzeichnis

Andere Trust Digitalkamera Handbücher

Trust

Trust 1290Z Bedienungsanleitung

Trust

Trust PowerCam Optical Zoom 970Z Bedienungsanleitung

Trust

Trust 820 LCD POWERC@M ZOOM Bedienungsanleitung

Trust

Trust 1220S POWERC@M Bedienungsanleitung

Trust

Trust 735 POWERC@M ZOOM Bedienungsanleitung

Trust

Trust FAMILYCAM 510FX Bedienungsanleitung

Trust

Trust 1490Z Bedienungsanleitung

Trust

Trust 350FS POWERC@M FLASH Bedienungsanleitung

Trust

Trust 740C POWERC@M ZOOM Bedienungsanleitung

Trust

Trust 962Z POWERC@M Bedienungsanleitung

Trust

Trust PowerCam Mini DC-3500 Bedienungsanleitung

Trust

Trust 750 LCD POWERC@M ZOOM Bedienungsanleitung

Trust

Trust POWERC@M ZOOM 620 LCD Bedienungsanleitung

Trust

Trust 735S POWERCAM ZOOM Bedienungsanleitung

Trust

Trust SPYC@M 300S Bedienungsanleitung

Trust

Trust POWERCAM 922Z Bedienungsanleitung

Trust

Trust 735 Powercam Zoom Bedienungsanleitung

Trust

Trust POWERCAM CCD 960 Bedienungsanleitung

Trust

Trust 500F SPYC@M FLASH Bedienungsanleitung

Trust

Trust DC-4700 POWERCAM OPTICAL ZOOM Bedienungsanleitung

Trust

Trust POWERCAM VIDEO DV-2400V Bedienungsanleitung

Trust

Trust 735S POWERCAM ZOOM Bedienungsanleitung

Trust

Trust POWERCAM OPTICAL ZOOM 910Z Bedienungsanleitung

Trust

Trust 782AV Bedienungsanleitung

Beliebte Digitalkamera Handbücher anderer Marken

Mercury

Mercury 350K Bedienungsanleitung

Pentax

Pentax Optio LS 465 Bedienungsanleitung

Sanyo

Sanyo VPC-S1085 Bedienungsanleitung

GE SMART A1255 Bedienungsanleitung

Point Grey

Point Grey Gazelle Bedienungsanleitung

Nikon

Nikon COOLPIX A Bedienungsanleitung

Pentax

Pentax P-5 Bedienungsanleitung

BlazeVideo

BlazeVideo A280 Bedienungsanleitung

Sony

Sony MCA-20 Bedienungsanleitung

Sony

Sony Alpha DSLR-A290 Bedienungsanleitung

ATIK Cameras

ATIK Cameras One Bedienungsanleitung

CohuHD Costar

CohuHD Costar 3930 Series Bedienungsanleitung

Leica

Leica M10-R Bedienungsanleitung

FujiFilm

FujiFilm FinePix A700 Bedienungsanleitung

Lorex

Lorex LNZ81P25 Series Bedienungsanleitung

GE J1470S Bedienungsanleitung

Sony

Sony A6700 Benutzerhandbuch

Canon

Canon EOS ELAN7 Bedienungsanleitung
