TRP-C51
Version:B
Bluetooth to RS232/422/485 Converter
User’s Manual
Printed Sep. 2015 Rev 1.2
Trycom Technology Co.,Ltd
No.35, Zhongxing Rd., Guishan Township, Taoyuan County 333, Taiwan.
Tel : 886-3-350-3351 Fax: 886-3-350-3352
Web: www.trycom.com.tw
Copyright
Copyright Notice: The information in this manual is subject to change without notice to improve reliability, design and
function and does not represent a commitment on the part manufacturer. No part of this manual may be
reproduced, copied, or transmitted in any form, without prior written permission by the manufacturer. Products
mentioned in this manual are mentioned for identification purposes only. In this manual, product names appearing
may or may not be registered trademarks of their respective companies or copyright.
1.Introduction
The TRP-C51 is high stability device that is able to re-connect when the external power fail in
paired mode, it provides a simple and friendly interface that allows user easy to configure the
serial data format.
Based on the 2.4g automatic frequency hopping technology, It is widely used in parking towers,
industrial automation, moving rail cars and .. etc.
TRP-C51 can operate in direct link mode and paired mode, when in paired mode, the user just
need to power two devices, and they will automatically connect.
1-1.Features
Bluetooth V1.2 Class 1 compliance. (2.5mW/4dBm)
Transmission range open filed over to 100M.
Auto reconnect when the external power lost.
Auto clear serial buffer when the data continuity input when re-boot.
Auto directionally RS485 signal communication.
Option to 1KM when replace the direction antenna.
Support all common baud rate from 1.2K to 256Kbps.
Friendly interface TRP-BT configuration windows utility
RS422 and RS485 signal auto switching.
LED indicators for Power/Link/TX/RX.
Surge protection on RS422/RS485.
Power supply: Screw terminal, or external DC adapter.
Wide input range power supply.
DIN rail and panel mount support.
1.-2.Specifications
Power requirement: DC voltage input from +10V to +30V.
RS232 signal: TXD, RXD, GND, RTS, CTS.
RS422/485 connection: industrial plug-in screw terminal.
RS485 signal: differential 2 half-duplex wires. (D+, D-)
RS422 signal: differential 4 full-duplex wires.(TX+, TX-, RX+, RX-)
Baud rate: 1.2Kbps to 256Kbps.
Data bit: 8
Support Parity check: None, Even, Odd.
Stop bit: 1, 2.
RS232 flow control RTS/CTS: Enable, Disable.
Host PC com port to TRP-C51 connection: use null modem female-female cable.
Plug-in screw terminal wiring: Accepts AWG #12 ~30 wires.
Wireless transmission distance: Open filed: 100M.
Antenna cable length:1530mm.
RS422/485 distance: up to 4000ft. (1200M)
LED indicator: Power, Link, TX, and RX.
Power input type: Screw terminal or DC plug.(5.5*2.1*12mm/500mA)
Power consumption: 1.2 watt.
Operating temperature: -10 to 50℃.
Storage temperature: -20 to 65℃.
Humidity: 10-90% Non-condensing.
Dimension: 151mm X 75mm X 26mm.
Weight: 400g.
2. Hardware Description
2-1. Panel layout
2-2.Block Diagram
2-3. LED Indictor
PWR LED:
When power is properly supplied to TRP-C51, the PWR LED will on.
LINK LED:
Turn on: Device connects availed.
TX LED: RS232/422/485 data transmitting.
RX LED: RS232/422/485 data receiving.
2-4. DIP Switch
Select RS232 or RS422 / 485
2-4-1. The 2-Pin DIP-Switch for configuration mode
SW1,2: OFF OFF: RS232
SW1,2:ON ON: RS422/485
2-4 Micro Touch button
This button is for configure setting . When you push it after the TRP-C51 TX led will be blinking
and stop all activities.
13.Install TRP-C51
23-1. Serial Connection
The TRP-C51 is equipped with one DB-9 male connector which is configured as a DTE (data
terminal equipment) device. All PC COM ports are DTE ports.
A null modem cable is required to make a connection between the PC COM port and the
TRP-C51 serial port.
3-2. Power Connection
The TRP-C51 is equipped with a 2-pin terminal block and power jack. Power can be supplied
from terminal block or external DC plug. It support wide input range from +10~+30V DC/500mA
power supply. When power is correctly supplied the PWR LED will turn on and the system is
ready.
If the power input from external, Please use the power plug specification. (5.5*2.1*12 mm).
Warning: User can only choose one of following 2 power sources.
1. External DC adapter.
2. Screw terminal DC input
Do not use both power input simultaneously.
3-3. RS232 wiring connection
3-4. RS485 wiring connection
The RS485 mode supports the Transmit and Receive channels using 2-wire half-duplex
operation. Refer to the pin assignment for connection as below.
*The RTS/CTS must be disable if the user using the RS422/485 function.
3-5. RS422 wiring connection
The RS422 mode supports 4 channels with full duplex operation for Receive and Transmit, The
data lines are in differential pairs. Refer to the pin assignment for connection as below.
*The RTS/CTS must be disable if the user using the RS422/485 function.
4. Getting start
4-1.TRP-C51 default Settings
Bluetooth Status
Name: TRP-C51
Password: 1234
Connection Mode: Slave
Device: Discoverable
UART Status
Baud Rate: 9600
Data Bit: 8
Parity Check: None
Stop Bit: 1
RTS/CTS Flow Control: Disable
4-2. Configure TRP-C51
Step1. Use a Null modem cable (crossover female to female cable) to make a connection
between the TRP-C51 DB-9 connector and PC DB-9 connector.
Step.2 Run the TRP-BT Utility.
*User may find the TRP-BT utility in TRP-C51 support CD.

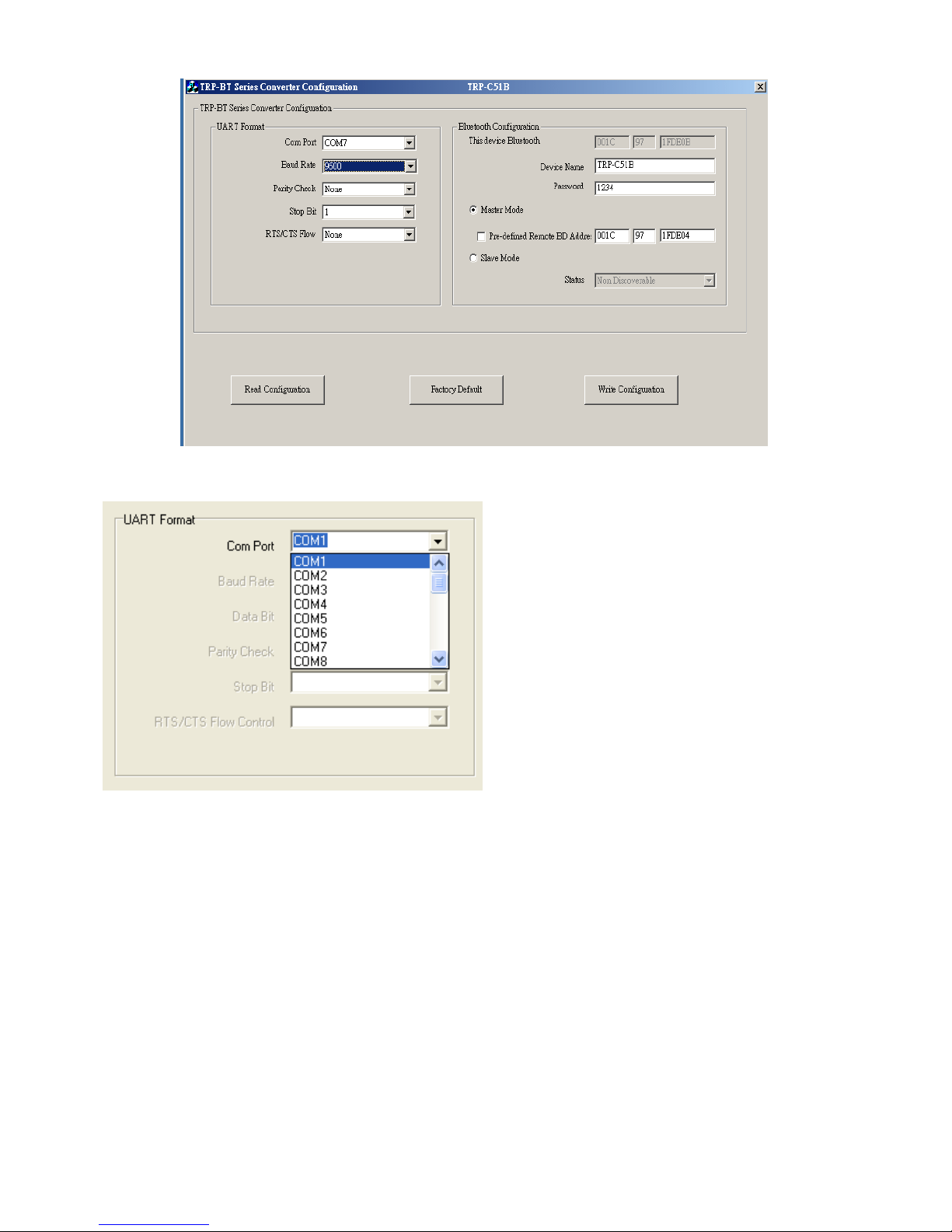

TRP-BT.EXE the configuration screen appears.
Step.3. Push the TRP-C51 external button, the TX light will be blinking.
* Make sure the TRP-C51 external switch fixed on the OFF OFF position.
Step.4. Select the PC RS232 COM Port for TRP-C51.
Step.5 Click the “Read Configuration” button to read the TRP-C51 setting configuration.
Step.6 Select the baud rate from 1200 bps ~ 256 K bps.
Step 7 Select the Parity Check.
Step 9 Select the Stop Bit.
Step 10 Select the RTS/CTS Flow Control.
Step 11 Select the device name and password.
In TRP-C51 paired mode, it is necessary to set same name and password for both TRP-C51
(Master and Slave) .
Step12. Select the Master or Slave mode.
TRP-C51 can be defined as Master device, or Slave device here.
If define TRP-C51 as a Master, and input a Slave BD address, this Master of TRP-C51 will
search only for the matched BD address of Slave device.
5. How to use TRP-C51
TRP-C51 support direct link mode and paired connection mode. User can use the host PC or
Notebook which with integrated bluetooth interface to wirelessly connect TRP-C51, after the
installation system will generate a COM Port for TRP-C51.
