A. BEFORE YOU BEGIN
1. PRODUCT DESCRIPTION
The dehumidifier is used to remove excessive moisture from the air. The resulting
reduction in relative humidity protects buildings and their contents from the adverse
effects of excess humidity.
The environmentally friendly R290 is used as the refrigerant. R290 has no damaging
influence on the ozone layer (ODP), a negligible greenhouse effect (GWP) and is
available worldwide. Because of its efficient energy properties, R290 is highly suitable as
a coolant for this application. Special precautions must be taken into consideration due
to the coolant's high flammability.
2. SYMBOLS FROM THE UNIT AND USER MANUAL
This unit uses a flammable refrigerant. If refrigerant leaks and comes in contact
with fire or heating part, it will create harmful gas and there is risk of fire.
Read the USER MANUAL carefully before operation.
Further information is available in the USER MANUAL, SERVICE MANUAL, and the
like.
Service personnel are required to carefully read the USER MANUAL and SERVICE
MANUAL before operation.
THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY
•It is strongly recommended that installation and service should be performed by a qualified
technician or the service agency.
•The unit is designed only for use with R-290(propane) gas as the designated refrigerant.
•THE REFRIGERANT LOOP IS SEALED. ONLY A QUALIFIED TECHNICIAN SHOULD ATTEMPT TO SERVICE
•Do not discharge the refrigerant into the atmosphere.
•R-290 (propane) is flammable and heavier than air.
•It collects first in low areas but can be circulated by the fans.
•If propane gas is present or even suspected, do not allow untrained personnel to attempt to find the
cause.
•The propane gas used in the unit has no odor.
•The lack of smell does not indicate a lack of escaped gas.
5
Please read this manual carefully and fully understand before operating your
dehumidifier.
PLEASE KEEP THE MACHINE UPRIGTH STAND FOR 24 HOURS BEFORE YOUR FIRST TIME
USE PLEASE ALWAYS KEEP THE MACHINE UPRIGHT WHEN USING
1. OPERATIONAL PRECAUTIONS
WARNING - to reduce the risk of fire, electric shock or injury to persons or property:
•Always operate the unit from a power source of equal voltage, frequency and rating as indicated on
the product identification plate. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
•Always use a power outlet that is grounded. The A-weighted sound pressure level is below 45 dB
•Unplug the power cord when cleaning, servicing, or when not in use.
•Do not operate with wet hands. Prevent water from spilling onto the unit.
•Do not immerse or expose the unit to rain, moisture or any other liquid.
•Do not leave the unit running unattended. Do not tilt or turn over the unit.
•Do not unplug while the unit is operating.
•Do not unplug by pulling on the power cord.
•Do not use an extension cord or an adapter plug.
•Do not put objects on the unit.
•Do not climb or sit on the unit.
•Do not insert fingers or other objects into the air outlet.
•Do not touch the air inlet or the aluminum fins of the unit.
•Do not operate the unit if it is dropped, damaged or showing signs of product malfunction.
•Do not clean the appliance with any chemicals.
•Do not operate the product with damaged plug or cord. If it is not working properly, contact a
qualified electrician or service centre for examination and repair, never try to dismantle it by yourself
(user).
•Take care to ensure that children do not play with the unit.
•Ensure the unit is far away from fire, inflammable, or explosive objects.
•The unit shall be installed in accordance with national wiring regulations.
•Do not use means to accelerate the defrosting process or to clean, other than those recommended by
the manufacture.
•If a leak is detected, immediately evacuate all persons from the store, ventilate the room and
contact the local fire department to advise them that a propane leak has occurred.
•Do not let any persons back into the store until the qualified service technician has arrived and that
technician advises that it is safe to return to the store.
•No open flames, cigarettes or other possible sources of ignition should be used inside or in the
vicinity of the units.
•Component parts are designed for propane and non-incentive and non-sparking. Component parts
shall only be replaced with identical repair parts.
FAILURE TO ABIDE BY THIS WARNING COULD RESULT IN AN EXPLOSION, DEATH, INJURY AND PROPERTY
DAMAGE.
B. FOR YOUR SAFETY
Your safety is the most important thing we concerned!
6
•The appliance shall be stored in a room without continuously operation sources (for example:
open flames, an operating gas appliance or an operating electric heater).
•Do not piece or burn, even after use.
•Be aware that refrigerants may not contain an odour.
•Pipe-work shall be protected from physical damage and shall not be installed in an unventilated
space, if that space is smaller than 14 m².
•Compliance with national gas regulations shall be observed.
•Keep any required ventilation openings clear of obstruction.
Any person who is involved with working on or breaking into a refrigerant circuit
should hold a current valid certificate from an industry-accredited assessment
authority, which authorizes their competence to handle refrigerants safely in
accordance with an industry, recognized assessment specification.
Servicing shall only be performed as recommended by the equipment
manufacturer. Maintenance and repair requiring the assistance of other skilled
personnel shall be carried out under the supervision of the person competent in
the use of flammable refrigerants.
If you don't understand something or need help, please contact the dealer services.
2. SAFETY PRECAUTIONS ON SERVICING
Please follow these warnings when to undertake the following when servicing a dehumidifier with R290.
Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to
ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following
precautions shall be complied with prior to conducting work on the system.
Work procedure
Work shall be undertaken under a controlled procedure so as to minimize the risk of a flammable gas or
vapor being present while the work is being performed.
General work area
All maintenance staff and others working in the local area shall be instructed on the nature of work being
carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned
off. Ensure that the conditions within the area have been made safe by control of flammable material.
Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure
the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment
being used is suitable for use with flammable refrigerants, i.e. no sparking, adequately sealed or
intrinsically safe.
7
Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire
extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher adjacent
to the charging area.
No ignition sources
No person carrying out work in relation to a refrigeration system which involves exposing any pipe work
that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner
that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking,
should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during
which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place,
the area around the equipment is to be surveyed to make sure that there are no flammable hazards or
ignition risks. “No Smoking” signs shall be displayed.
Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or
conducting any hot work. A degree of ventilation shall continue during the period that the work is carried
out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into
the atmosphere.
Checks to the refrigeration equipment
Where electrical components are being changed, they shall be fit for the purpose and to the correct
specification. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in
doubt consult the manufacturer’s technical department for assistance.
The following checks shall be applied to installations using flammable refrigerants:
– The charge size is in accordance with the room size within which the refrigerant containing parts are
installed;
– The ventilation machinery and outlets are operating adequately and are not obstructed;
– If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence
of refrigerant;
– Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall
be corrected;
– Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to
any substance which may corrode refrigerant containing components, unless the components are
constructed of materials which are inherently resistant to being corroded or are suitably protected
against being so corroded.
Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks and component
inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be
connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately
but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be
reported to the owner of the equipment so all parties are advised.
Initial safety checks shall include:
- those capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
- that there no live electrical components and wiring are exposed while charging, recovering or purging
the system;
- that there is continuity of earth bonding.
8
C. COMPONENTS
1. Operating the device safely
•Check the device after unpacking for any damage or scratches on it.
•Place the unit on a firm, level surface in an area with at least 50cm of free space around it allow for
proper air circulation.
•Do not operate in close proximity to walls, curtains, or other objects that may block inlet and outlet.
Keep the air inlet and outlet free of obstacles.
•If tipped more than 45°, allow the unit to set upright for at least 24 hours before start up.
•Never install the unit where it could be subject to：
•Heat sources such as radiators, heat registers, stoves or other products that products that produce
heat.
•Direct sunlight
•Mechanical vibration or shock
•Excessive dust
•Lack of ventilation, such as cabinet or bookcase
•Uneven surface

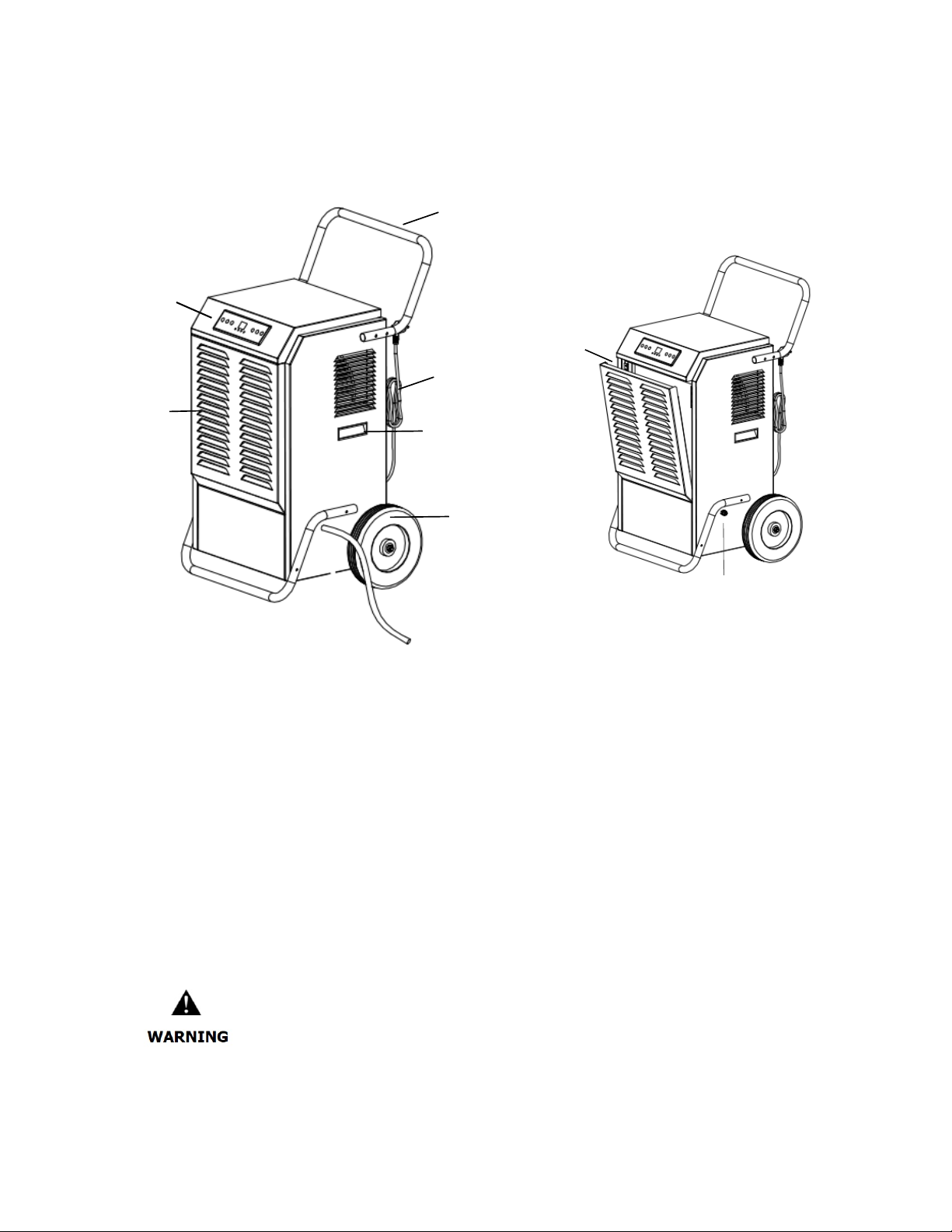

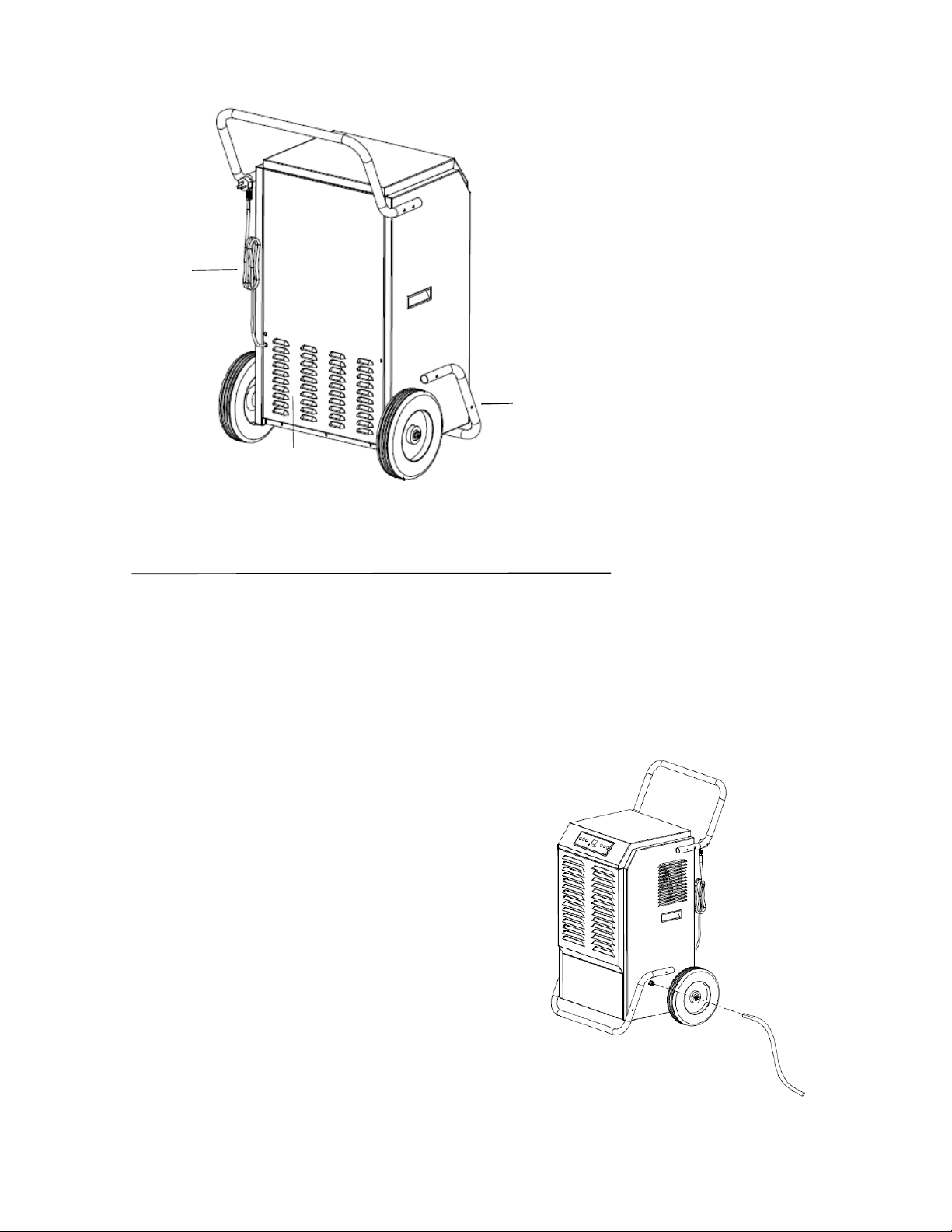

Pushing Handle
Built-in Handle
Big Wheel
Drainage Pipe
Control Panel
Air Inlet
Power Cord
Filter Mesh
Drain outlet
Install the unit in rooms which exceed: 14 m².
Do not install the unit in a place where inflammable gas may leak.
NOTE! The manufacture may provide other suitable example or may provide additional
information about the refrigerant odour..
9
2. Features
•Large Capacity
•Moveable and Easy to Store
•Built-in Auto Defrost System
to protect key working
components
•Adjustable humidity
•Timed Operation
•Quiet Running
•Energy-saving design
PRO 90N
90L/day (30℃,80%RH)
50L/day (27℃, 60%RH)
AC220-240V/50Hz
1080W/4.8A (30℃, 80%RH)
920W/4.1A (27℃, 60%RH)
≤58dB(A)
R290/290g
36kg
3.2MPa/0.7MPa
3. Specifications
MODEL
Power Cord
Support Frame
Radiator Grille
Install the included drain pipe to the draining nozzle on
the machine and direct the pipe to the desired area
before operate the machine.
WARNING: do not block the drainage hose. The end of
the drainage pipe should not be higher than the outlet
hole. If the drainage pipe end is higher than the outlet
hole, water will not drain properly and could damage
components of the unit.
Rated Capacity
Power Supply
Power Consumption
Noise
Maximum Refrigerant Charge
Net weight
Maximum design pressure
4. Drainage
10
D. OPERATION

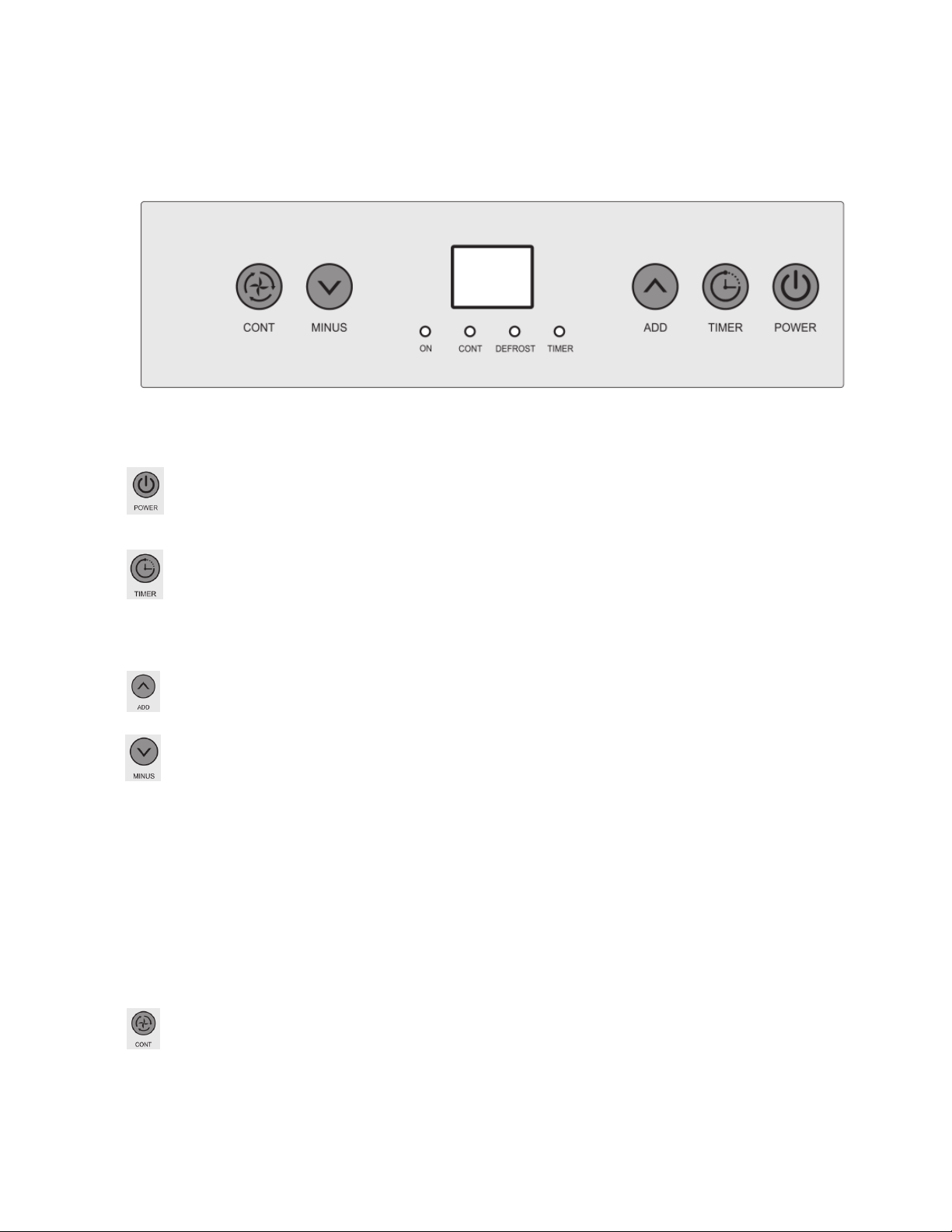

1. Control Panel
Press this button while on electric, screen light on, machine automatically goes to continuous
mode, display screen shows environmental humidity, compressor on after fan run for 3 seconds;
press this button again, compressor stops, double 8 shows “- -”, machine goes to standby mode,
fan will run for another minute and stop.
Press this button while machine is on electric, until button light goes on, press “MINUS”“ADD”to
set the time to start the machine, when the count down is over, fan and compressor start work.
Press this button button while machine is running, until the button light goes on, press
“MINUS”“ADD”to set the time to stop the machine, when the count down is over, fan and
compressor stop work. Press this button for 3 seconds shows current temperature, return to
current humidity after 10 seconds. Long press this button shows temperature.
2. Function keys and Indicators
Increase the humidity by press this button at normal mode, humidity increase 5%RH with each
press, buzzer rang each time with the press, press the button for 1 second can increase the
humidity continuously; press this button to set the time after press “TIMER”.
Decrease the humidity by press this button at normal mode, humidity decrease 5%RH with each
press, buzzer rang each time with the press, press the button for 1 second can decrease the
humidity continuously; press this button to set the time after press “TIMER”.
Note:
1) The default humidity is 50%RH, to increase and decrease as follow:
20%-25%--30%-35%-40%45%-50%-55%-60%-65%-70%-75%-80%-85%-90%
2) Environmental humidity and machine set humidity will decide the status of compressor and fan
as follow:
Environmental humidity≥machine set humidity+3% ,compressor and fan start running.
Environmental humidity＜machine set humidity+3%,compressor and fan stop running. Press
continue button at continuous mode, switch to normal dehumidification mode, set the humidity
manually.
Continuous mode---(display screen shows current humidity)machine keeps running, continuous
mode light on, humidity set is invalid, time set is available. Press continuous mode to switch to
normal mode, continuous mode light off, humidity set is operational.
Dieses Handbuch passt für folgende Modelle
2
Inhaltsverzeichnis
Sprachen:
Andere turbionaire Luftentfeuchter Handbücher
turbionaire
turbionaire SMART 8eco Bedienungsanleitung
turbionaire
turbionaire SMART 16 eco Bedienungsanleitung
turbionaire
turbionaire Smart 10 Eco Bedienungsanleitung
turbionaire
turbionaire SENSO 12 Bedienungsanleitung
turbionaire
turbionaire PRO 50 Bedienungsanleitung
turbionaire
turbionaire PRO 50N Bedienungsanleitung
turbionaire
turbionaire EPI 12 Bedienungsanleitung
turbionaire
turbionaire Practical 12 Bedienungsanleitung
