Where to position
When positioning the dehumidifier, ensure that it is placed on a level
surface and that there is a minimum of 10 cm (4") of space on either
side of the unit to allow for efficient airflow.
This dehumidifier is fitted with castors for extra mobility, if you move the
unit, it should first be switched off and the water tank emptied.
We do not recommend the use of an extension lead, so please try to
ensure that the unit is sufficiently close to a fixed mains socket. If it is
necessary to use an extension lead, please ensure the diameter of the
wires of the cable is at least 1.5 mm2.
When the dehumidifier is in operation, outside doors and windows
should be closed when necessary for most efficient use .
2
TDH-22
Before use
Caution!
Always keep the unit in vertical position.
Leave the unit to stand for one hour before connecting to the
mains supply after transport or when it has been tilted (e.g.
during cleaning).
Keep all foreign objects away from the air intake or output
openings.
The mains supply must conform to the specification shown on the
rating plate at the back of the unit.
If the supply cord is damaged, it must be replaced by an
approved service representative or a similar qualified person in
order to avoid a hazard.
Never use the plug to start and stop the unit. Always use switch
on the control panel.
Before moving the unit, first switch off, then unplug and empty
the water tank.
Don't use bug sprays or other flammable cleaners on the unit.
Never pour or spray water over the unit.
IMPORTANT!
Do not use this unit at ambient temperatures below 5oC, to prevent the
possibility of a heavily ice up evaporating coil.
3
TDH-22
Parts
Front
1. Control panel
2. Clothes drying guider
3. Air outlet
4. Water full indicator
5. Water tank
6. Handle
Rear
7. Air filter / air inlet
8. Power cord
9. Handle
10. Hole for continuous
drainage
11. Water tank
12. Caster

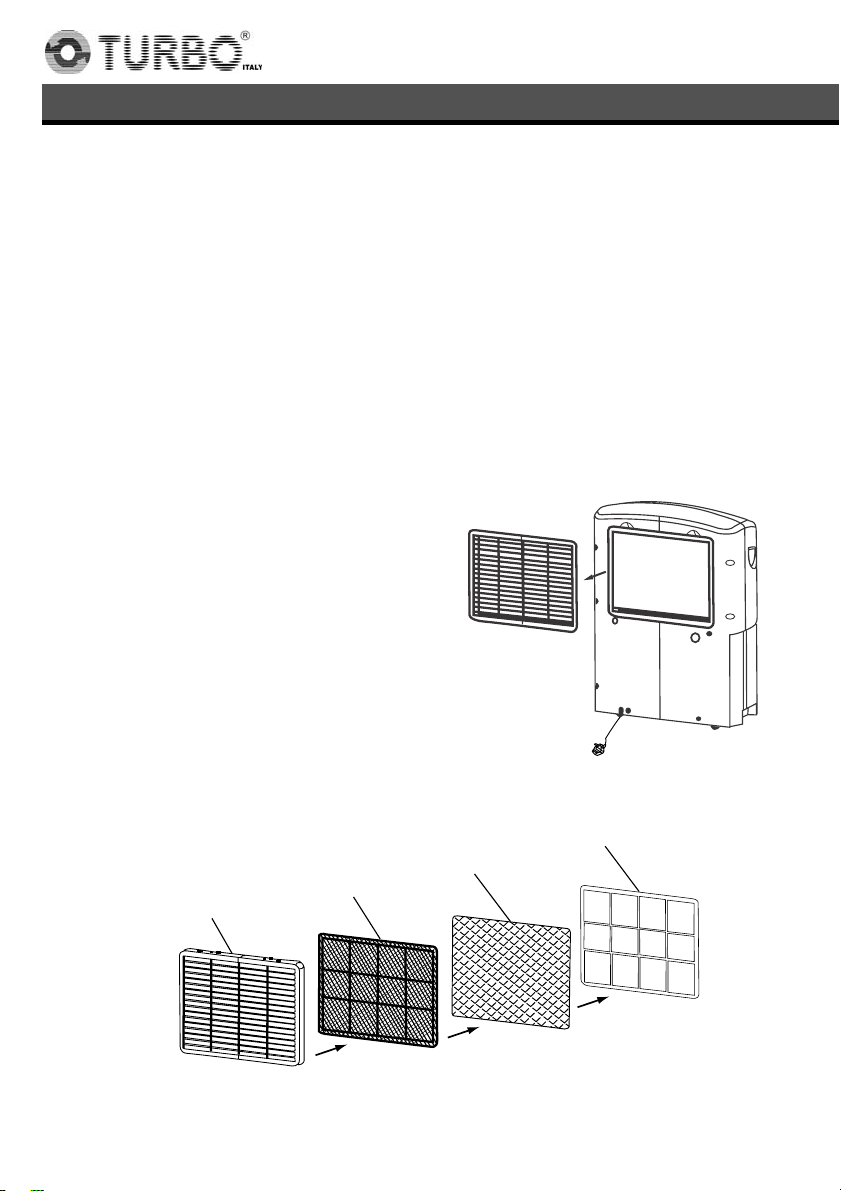

Assembly of the filters
4
Grille Washable
filter
Activated
carbon filter
Filter fixer
TDH-22
Operation
Control panel
1. Not functioned for this model
2. Not functioned for this model
3. Timer
4. Display window
5. Speed button
6. Humidity selection button
7. ON/OFF button
Display window
1. Humidity setting: continuous de-humidifying , 50%, 60%, 70%, 80%
2. Ambient humidity condition: good fair, bad
means 50% ≤ambient room humidity ≤70%
5
KU
7,0(5
63(('
+80
KU
TDH-22
means 30% ≤ambient room humidity < 50% or 70% < ambient
room humidity ≤80%
means the ambient room humidity is higher than 80%.
3. compressor is in progress. In case the de-frost function is working, the
water drops will flash.
compressor is not in progress.
water full.
4. Timer indicator, 1 to 24 hours.
5.
6. Fan speed/ventilation indicator: high speed, low speed.
Operation
1. Plug the unit into a correct mains socket.
2. Press button ON/OFF to turn on the unit. The compressor will start to work
in continuous mode.
3. Press button HUMIDITY to set the room humidity you need: continuous
de-humidifying , 50%, 60%, 70% or 80%
4. Press the speed button to choose the ventilation speed, high or low.
5. To turn off the unit, press button ON/OFF
again.
6. The direction of the air outlet can be
adjusted by hand
to dry clothes more efficiently.
6
and temperature display.
Current relative humidity
7. Press button HUM (about 2 seconds) to display
the room temperature. It will turn back to display
room humidity after 12 seconds automatically.
.
TDH-22
Drainage
While the water tank is full, the compressor will stop for self-protection and:
The sign of water full will flash.
The unit will buzz. * For stopping the buzz, you may press the ON/OFF
button to turn off the unit
The water level window will turn to red.
To move the water tank, pull it out squarely from the unit by using the
handle at the water tank. (FIG.1)
After empting the water tank, place the water tank into space. Make sure
it is properly positioned, in order for the 'water full' sign to go out and your
dehumidifier is operating. (FIG.2)
FIG.1 FIG.2
7
TDH-22
Continuous drainage
When the dehumidifier is operated at very high humidity levels, the water tank
will require more frequent drainage. In this situation, it may be more
convenient to set the unit up for continuous drainage with the following
procedures:

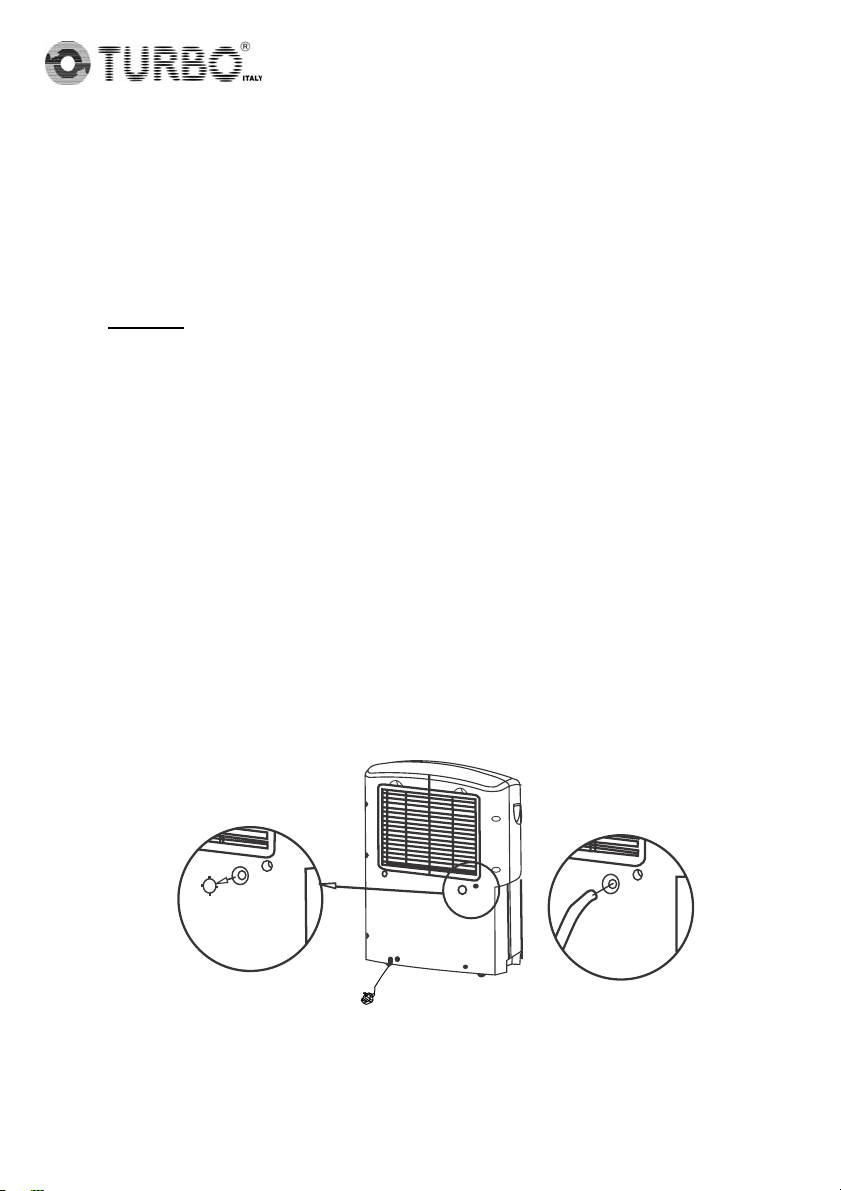

1. Cut the outlet at the unit back. (FIG.3).
* Caution:
When the outlet is cut off, the said portion would leave as a hole and
cannot be covered by any plug.. If cover the said portion by plug,
the drainage water cannot go down to the water tank.
2. Connect the drain hole with a water tube of inner diameter 12mm.
(FIG.4)
* Please note, the water tube is not supplied with the unit.
3. Ensure the water will always drain away freely and the tube will remain in
place.
Note! In very cold weather conditions, precautions should be taken to
prevent the water tube from freezing.
FIG.3
FIG.4
8
TDH-22
Maintenance
Always unplug the unit from the mains before carrying out any
maintenance or cleaning of the unit.
CLEANING THE BODY
Use soft cloth to wipe the unit clean.
Don't ever use volatile chemicals, gasoline, detergents, chemically
treated clothes, or other cleansing solutions. All these could possibly
hurt the cabinet.
CLEANING THE FILTER
For washable filter - Use a vacuum cleaner or tap the filter lightly for
easy cleaning. If the filter is particularly dirty, use warm water with a
small amount of medium strength.
For activated carbon filter - This
filter is not washable. Its life span is
variable and depends on the
ambient conditions where the
appliance is used. The filter
should be checked periodically
(about every 6 months) and
replaced if necessary.
Grille
Washable
filter
Activated
carbon filter
Filter fixer
9
