Turtle Beach Ear Force X-Ray Bedienungsanleitung

Force, and Engineered for Gaming are either trademarks or registered trademarks of VTB, Inc. All other trademarks are properties of their respective companies and are hereby acknowledged.

PlayStation is registered trademark and PS3 is a trademark of Sony Computer Entertainment. Xbox, Xbox 360, and Xbox LIVE are registered trademarks of Microsoft Corporation. Dolby and the

double-D symbol are trademarks of Dolby Laboratories. Made in China

This product is compliant with the Consumer Product Safety

Improvement Act of 2008, Public Law 110-314 (CPSIA) N30375

TurtleBeach.com /support

product support and warranty information:

youtube.com /TurtleBeachVideos

Watch Turtle Beach product training videos at:

FOR / POUR

XBOX 360

|PS3™

User Guide

LIMITED EDITION

Table of Contents

Package Contents 2

Feature / Function Map 3

Setting Up 5

Using the Transmitter / Pairing Instructions 6

Using your X-Ray Headset on XBOX 360 7

Using your X-Ray Headset on PS3 9

Bluetooth Settings 10

Surround Sound Settings 11

Phone Settings 13

Recharging 14

Specications 15

Compliance / Conformity 16

Warranty 20

Congratulations on your purchase of the Call of Duty®: Black OPS II Earforce X-Ray headset from

Turtle Beach. You now have in your possession a premium product that will bring your gaming

experience to a whole new level, heightening your senses, sharpening your reexes and

enhancing your communications. Welcome to excellence!

Turtle Beach Sticker

X-Ray Headset

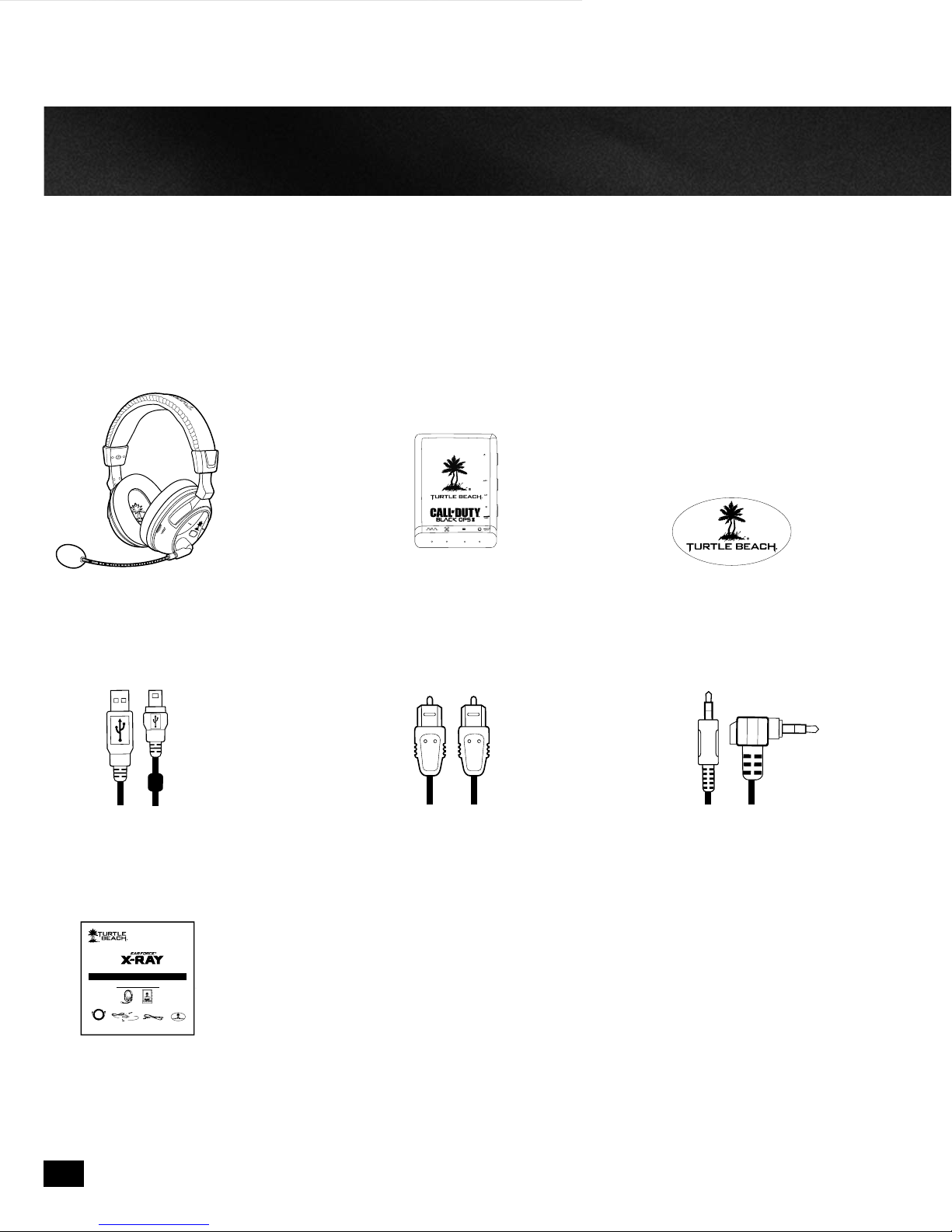

Package Contents

Quick Start Guide

For the full user guide, please go to http://www.turtlebeach.com/products/X-Ray

Package Contents |Contenu de la boîte

FOR / POUR

XBOX 360

|PS3™

X-Ray Headset

Casque X-Ray

X-Ray Transmitter

Émetteur X-Ray

TurtleBeach Sticker

Vignette TurtleBeach

Digital Optical Cable

Câble optique numérique

Headset Charging Cable

Câble casque Charge

XBOX 360 TalkbackCable

XBOX 360 câble Discussion

Digital Optical CableHeadset Charging Cable

X-Ray Transmitter

XBOX 360 Talkback Cable

Feature / Function Map (Location of controls / inputs)

1. Tone

2. Power / Pair

3. Limiter

4. Mic Monitor Control

5. XBOX Talkback Cable Jack

6. Game Volume Control

7. Bluetooth Volume Control +

8. Bluetooth Volume Control -

9. Bluetooth LED

10. Bluetooth Multi Function Button / Pair

11. Mic. Mute

12. Charge Status LED

13. USB Jack

7 8 10 11 12 13

5 6

2 3 4

Headset

Left Earcup

Right Earcup

1. Digital Input LED

2. Surround Sound LED

3. Dolby Digital LED

4. Power Indicator LED

5. Pair Button

6. Surround Angles Button

7. Surround ON / OFF Button

8. DC Connection (Hardwired)

9. SPDIF IN / OUT Jacks

10. Analog In

X-Ray Transmitter

Feature / Function Map (Location of controls / inputs)

234

PAIR SURROUND

ANGLES SURROUND

ON/ OFF

6 7

8 9 10

Setting Up

1. Connect digital optical cable (DIGITAL IN) and transmitter

power cables (included) to game console.

NOTE: Remove the protective caps from each end of the

optical cable before inserting it into the sockets.

2. Connect to power.

1. Connect the Digital Optical Cable(DIGITAL IN)

*(Requires XBOX 360 HDMI Audio Adapter, sold separately)

2. Connect to power.

Xbox 360 (Slim) and PS3 Xbox 360 (Older Models)*

Digital Optical Cable

(included)

Xbox 360

Audio Adapter Cable*

(sold separately)

Transmitter USB Cable

DIGITAL OUT

CONSOLE

Digital Optical Cable

(included)

Transmitter USB Cable

1. Headset and transmitter should be powered OFF and at least 2 feet away from each other.

2. Connect the transmitter to power (see previous page for instructions)

3. Press and hold the Pairing button on the transmitter for 5 seconds until the LED ashes rapidly. Release.

4. Press and hold Power button (approximately 6 seconds) on the headset until the LED ashes rapidly. Release.

5. Once your Turtle Beach X-Ray headset has been successfully paired, the Headset LED will blink once per second and the

transmitter Power LED will light solid.

Pairing Instructions

Using the Transmitter / Pairing Instructions

The transmitter allows wireless exibility without the restrictions of cables when using your Turtle Beach X-Ray headset. This wireless

communication is through Dual Band WiFi transmitting a signal between the transmitter and your headset from up to 30 ft. If you are

beyond this range or there are obstructions to the signal, you may hear a popping or clicking sound as the signal weakens and is

eventually lost.

For optimal performance, place the transmitter in an open area free from interference from other objects that may otherwise obstruct

the WiFi signal. Avoid placement on a metallic surface such as a home theater A/V receiver as this may cause interference or a weak

signal.

In order for your Turtle Beach X-Ray headset to use the WiFi signal, they need to be “paired” with the transmitter. Follow the pairing

instructions below, keeping the headset and transmitter at least two feet apart while doing so. The headset and transmitter are

pre-paired out of the box. The instructions below are only necessary if pre-pairing appears to have been lost.*

*The pairing process can take up to 30 seconds to complete. If pairing is unsuccessful on rst attempt, please try again. It may take as

many as ve attempts to pair successfully.

PAIR SURROUND

ANGLES SURROUND

ON/ OFF

Using your X-Ray Headset on XBOX 360

Your Turtle Beach X-Ray headset is designed to work with XBOX 360 game consoles. In order to get ideal functionality from your

headset, follow the directions below.

Select Back

Digital Output

Current Setting

Dolby Digital

Choose the digital output

type for your system.

This setting only applies

to optical digital and HDMI

audio outputs.

Digital Stereo

Dolby Digital 5.1

Dolby Digital 5.1 with WMA Pro

1. Go to XBOX Settings.

• Choose “Settings”

• Choose “System Settings”

• Choose “Console Settings”

• Choose “Audio”

• Choose “Accessory Settings”

• Choose “Audio Device Settings”

• Set “Digital Output” to“Dolby Digital 5.1.”

Voice Volume 10

Voice

Mute Kinect

Voice Output

Play Through Headset

Play Through Speakers

Play Through Both

Game Volume 10

2. Go back to XBOX Settings

3. Power X-Ray ON:

• Choose “Preferences.”

• Choose “Voice.”

• Under “Voice Output,”choose“Play Through Headset.”
