Turtle Beach Spectre Bedienungsanleitung
User GUide
Limited edition PremiUm AmPLified
GAminG HeAdset
Wired
For: Xbox 360® I PS3™ I PC
Mac® I Mobile
Congratulations on your purchase of the Call of Duty® Ghosts Ear Force® Spectre Headset from Turtle Beach.
Compatible with PS3™, Xbox 360®, PC and Mac® computers, tablets, PS Vita™, and mobile devices. The Spectre,
delivers superior, clear sound over PlayStation Network (PSN), Xbox LIVE or online PC/Mac gaming.
For our Knowledgebase and Technical Support Contact info please visit: http://www.turtlebeach.com/support
Table of Contents
Package Contents P4
Features P5
Amplifier Features P6
Basic Hardware Setup P7
PS3 Setup HDMI P8
PS3 Setup RCA P9
PS3 System Settings Configuration P10
Xbox 360 Setup - All Models P11
Xbox 360 Setup (HDMI) P12
Xbox 360 Setup (RCA) P13
Xbox 360 E Setup (HDMI) P14
Xbox 360 System Settings Configuration P15
PC/Mac Setup P16
PC System Settings Configuration P17
Mac System Settings Configuration P18
Mobile Device Setup with the Inline Amplifier P19
Mobile Device Setup without the Inline Amplifier P21
Speaker plates / Troubleshooting P22
Specifications P23
Compliance / Conformity P24
Warranty P27
4
Package Contents
Detachable Boom Mic
Xbox 360
Talkback Cable
RCA Splitter Cable
Ear Force® Spectre
Headset
Inline Amplifier
3.5mm, 4-Pole
Auxiliary Cable
Mobile Adapter Cable Turtle Beach StickersSPECTRE Quick
Start Guide
Headset Breakaway
Cable
For: Xbox 360® I PS3™ I PC
Mac® I Mobile
WIRED
Quick Start Guide
For the full user guide or set up video please go to: turtlebeach.com/spectre
Pour consulter le guide d’utilisation complet et les
vidéos de configuration, veuillez visiter le site: turtlebeach.com/spectre
-LOW- HIGH -BASS + -TREBLE +
Product support and warranty information:
Support du produit et des informations de garantie:
www.turtlebeach.com/support
For full console compatibility information
please go to:
Pour les informations de compatibilité avec
les consoles, veuillez visiter le site
www.turtlebeach.com/connect
A B C
G
H
FED
5
Features
· Independent Game and Chat: Separate volume controls for your Game and Chat audio.
· Powerful Inline Amp: Mix in Game, Chat, Mic, Music and answer a phone call all through the Inline Amp.
· Bass and Treble Levels: Tune bass and treble levels to add depth and realism
· Superb Sound: Get better sound from online music, video and communications services.
· Dynamic Chat Boost™: Automatically raises the volume of chat during intense, explosive game situations.
· Variable Mic Monitor: Hear your own voice in the headset to avoid shouting.
· Removable Boom Mic: Use the Mobile Adapter Cable with inline mic as an alternative when on the go.
· Mobile Phone Integration: Connect to the Inline Amp to mix music or take phone calls while playing.
· USB Powered: No AC adapters or batteries required.
6

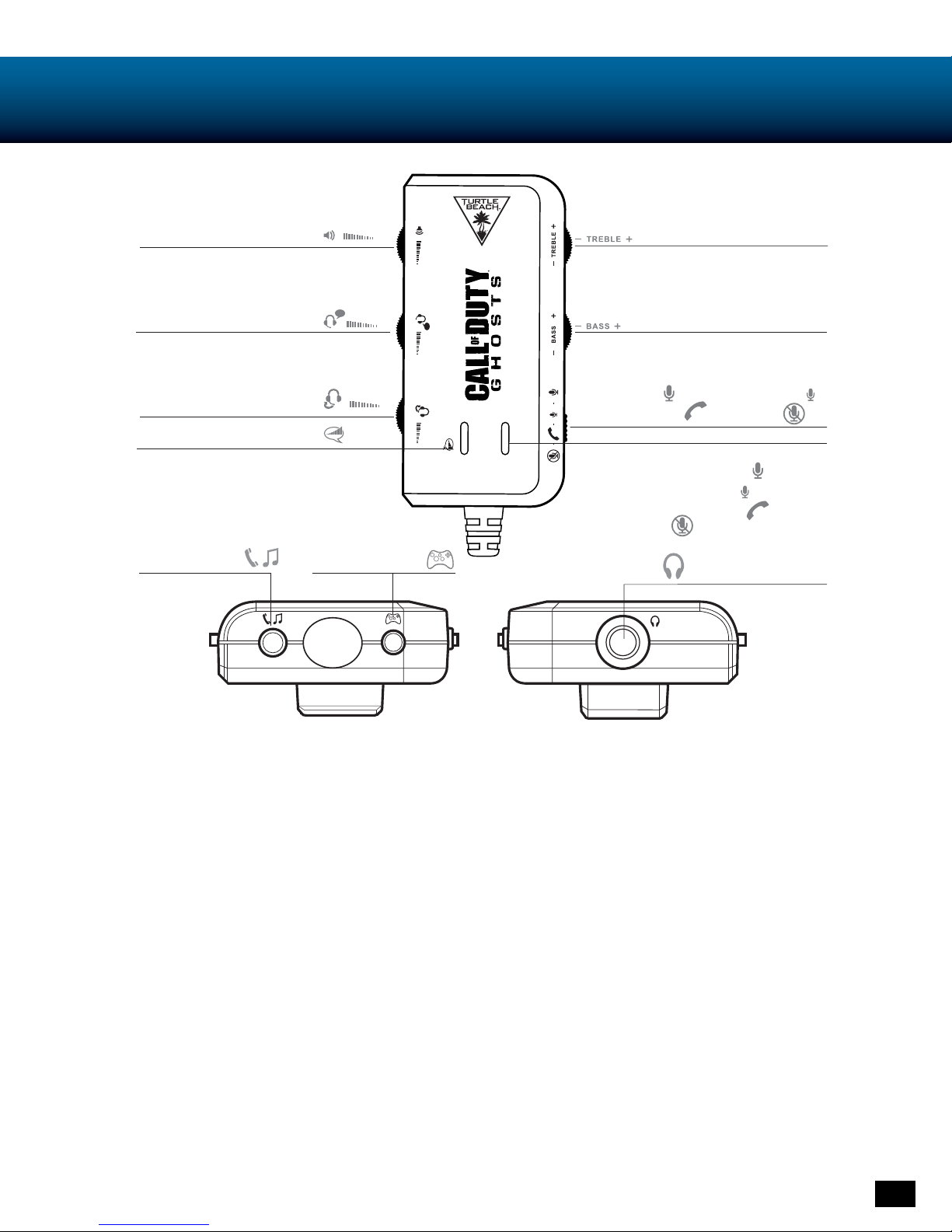

Amplifier Features
Mic Switch:
Mic On (High) Mic On (Low)
Phone Call Mode Mic Mute
Mic Mute Indicator LED:
bright blue = Mic On (High)
dark blue = Mic On (Low)
purple = Phone Call Mode
red = Mic Mute
MODE SWITCH
Headset Output
Aux Input for
Phone & Music
Xbox 360 Talkback
Cable Input
Bottom View Top View
Chat Volume Control
Variable Mic Monitor
Bass Control
Treble Control
Chat Boost Indicator LED
Game Volume Control
· Game Volume Control: Adjusts the incoming sound level from the 3.5mm connection.
· Treble/Bass Controls: Adjusts treble and bass levels of incoming sound from the 3.5mm connection.
· Chat Control: Adjusts volume of incoming chat through USB or Xbox 360 chat input
· Variable Mic Monitor: Adjusts the sound level of your voice in the headset
· Mic Switch & Mic Mute Indicator LED:
· Mic on (High) (Bright Blue): Your voice is louder to other people.
· Mic on (Low) (Dim Blue): Your voice is lower to other people.
· Phone Mode (Purple): Routes mic to phone*.
· Mute (Red): Mutes your voice to all parties
· Chat Boost Indicator: When game volume increases; chat volume increases automatically. The Blue LED indicates the Chat
Boost activating. (Brighter when louder, dimmer when softer)
· Aux Input for Phone & Music: Connect your mobile device while gaming using the Auxiliary Cable.
· Xbox Chat Input: Connect your Xbox 360 Controller for chat using the Xbox 360 Talkback Cable
· Headset Jack: Connect your Spectre headset using the Headset Breakaway Cable or the Mobile Adapter Cable.
*Note: Phone mode must be switched on in order to talk on the phone while gaming.
7
Basic Hardware Setup
Note: When connecting the boom mic, please line up to connect correctly and securely so it is oriented
properly for use. Do not force input when not in line with the keying.
1
2
A
A
B
G
C
8

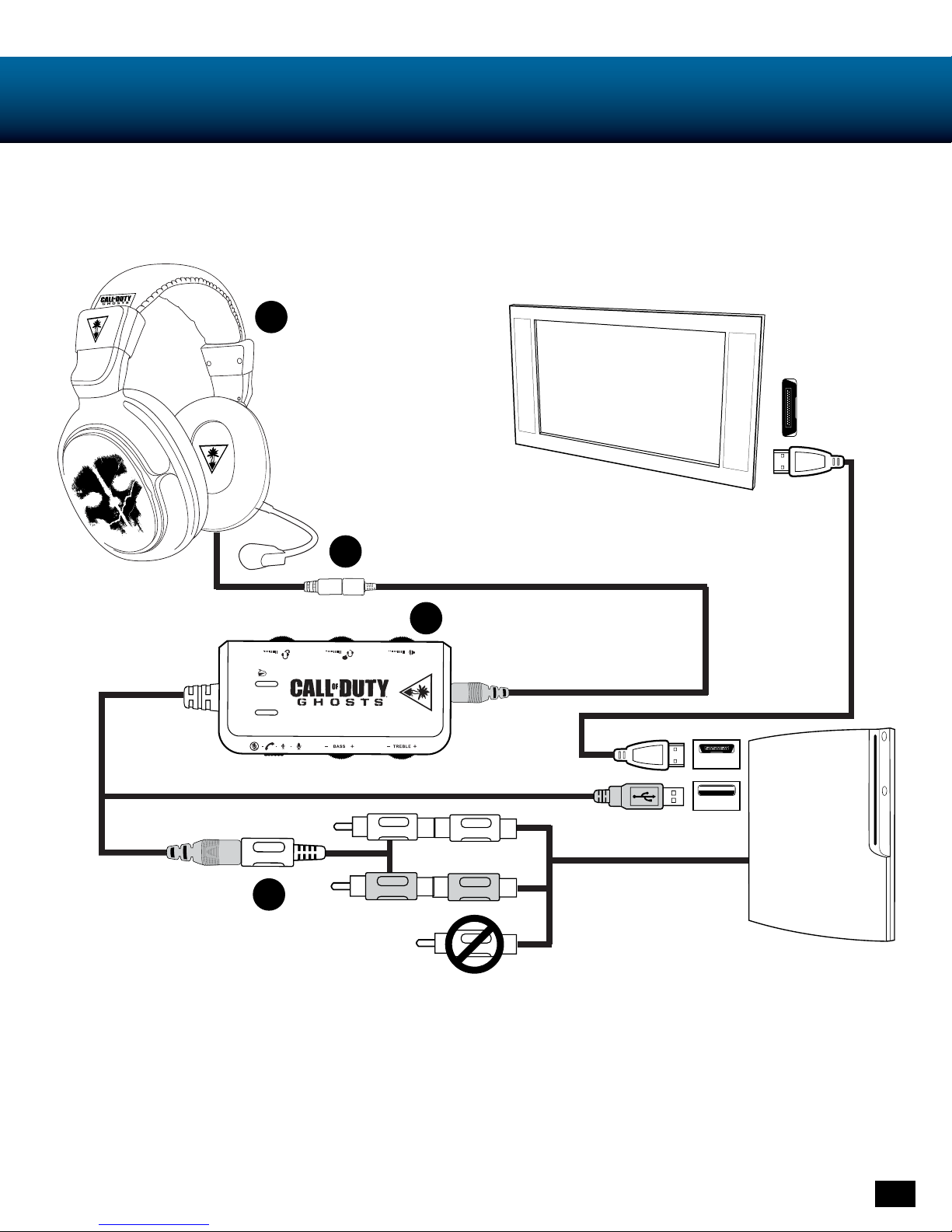

PS3 Setup HDMI
A
B
G
F
HDMI
HDMI
USB
PS3 AV Cable
The PS3 AV Cable is included with your console.
9
PS3 Setup RCA
AB
G
F
white
red
yellow
USB
The PS3 AV Cable is included with your console.
10
PS3 System Settings Configuration
PS3 Audio Output Setup
PS3 Chat Setup
In the PS3 menu, select Settings > Sound Settings
> Audio Multi-output.
1. In the PS3 menu, select Settings > Accessory
Settings > Audio Device Settings > Input Device
> Turtle Beach SPECTRE.
2. In the PS3 menu, select Settings > Accessory
Settings > Audio Device Settings > Output
Device > Turtle Beach SPECTRE.
Audio Device Settings
Microphone Level 3
Input Device TURTLE BEACH SPECTRE
Output Device TURTLE BEACH SPECTRE
Back
X Enter
OK
Audio Output Settings
12/14 12:15 PM
0
On
Sets to output audio through multiple connectors
simultaneously. Audio output to connectors that are
not selected in [Audio Output Settings] is downscaled
to 2 Ch.
Audio Device Settings
Microphone Level 3
Input Device TURTLE BEACH SPECTRE
Output Device TURTLE BEACH SPECTRE
Back
X Enter
OK
Audio Output Settings
12/14 12:15 PM
0
On
Sets to output audio through multiple connectors
simultaneously. Audio output to connectors that are
not selected in [Audio Output Settings] is downscaled
to 2 Ch.
