TYAN S7010 Bedienungsanleitung

http://www.tyan.com

S7010

Version 1.1

registered trademark of MiTAC International Corporation.

Trademark

All registered and unregistered trademarks and company names contained in this

manual are property of their respective owners including, but not limited to the

following.

TYAN®is a trademark of MiTAC International Corporation.

Intel®5500 Series and combinations thereof are trademarks of Intel Corporation.

AMI, AMI BIOS are trademarks of AMI Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE is a trademark of Novell.

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Notice

Information contained in this document is furnished by MiTAC International

Corporation and has been reviewed for accuracy and reliability prior to printing.

MiTAC assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. MiTAC

retains the right to make changes to product descriptions and/or specifications at

any time, without notice. In no event will MiTAC be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

http://www.tyan.com

Table of Contents

Check the box contents! 3

Chapter 1: Introduction

1.1 Congratulations 5

1.2 Hardware Specifications 5

1.3 AST2050 8

Chapter 2: Board Installation

2.1 Board Image 9

2.2 Block Diagram 10

2.3 Board Parts, Jumpers and Connectors 11

2.4 Installing the Processor and Heatsink 22

2.5 Thermal Interface Material 24

2.6 Finishing Installing the Heatsink 25

2.7 Tips on Installing Motherboard in Chassis 26

2.8 Installing the Memory 27

2.9 Attaching Drive Cables 31

2.10 Installing Add-in Cards 32

2.11 Installing I/O Shield 33

2.12 Connecting External Devices 34

2.13 Installing the Power Supply 35

2.14 Finishing up 35

Chapter 3: BIOS Setup

3.1 BIOS Main Menu 39

3.2 Advanced Menu 40

3.3 PCI PnP Menu 71

3.4 Boot Menu 73

3.5 Security Menu 77

3.6 Chipset Menu 78

3.7 Exit Menu 83

Chapter 4: Diagnostics

4.1 Beep Codes 85

4.2 Flash Utility 85

4.3 AMI BIOS Post Code 86

Glossary 89

Technical Support 95

http://www.tyan.com

Check the box contents!

1x S7010 motherboard

6 x Serial ATA Cable

1 x USB2.0 cable

1 x IEEE1394 Cable

1 x S7010 user’s manual

1 x S7010 Quick Reference guide

1 x IO Shield Installation guide

1 x TYAN driver CD

1 x I/O shield

1 x Audio cable (optional, P/N # 422774700001)

3 x Serial ATA power cable (optional, P/N # 332810000275)

SAS Cable (optional, P/N # 422763500002)

1x Serial Port Cable (optional, P/N # 422749400001)

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

NOTE: Please contact your vendor for optional cables purchase.

http://www.tyan.com

NOTE

http://www.tyan.com

Chapter 1: Introduction

1.1 - Congratulations

You have purchased one of the most powerful server solutions. Based on Intel®

5520 (36D/24D) and Intel®82801JIR ICH10/R chipsets, the S7010 is designed to

support up to two Nehalem-EP 5500/5600 Series processors and up to 96GB

DDR3-800/1066/1333 memory, providing a rich feature set and incredible

performance. Leveraging advanced technology from Intel, the S7010 is capable of

offering scalable 32 and 64-bit computing, high-bandwidth memory design, and

lightning-fast PCI-E bus implementation.

The S7010 not only empowers your company in today’s demanding IT environment

but also offers a smooth path for future application usage. All of this provides the

S7010 the power and flexibility to meet the needs of nearly any server application.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 - Hardware Specifications

Supported CPU Series Intel Xeon 5500/5600 series QC/DC processors

Socket Type / Q'ty LGA1366 / (2)

Max CPU wattage 130W

Processor

System Bus (MHz) Intel QuickPath Interconnect (QPI) 6.4GT/s

IOH / ICH Intel 5520 / ICH10R

Chipset

Super I/O Winbond W83627

Supported DIMM Qty (12) DIMM sockets

DIMM Type / Speed DDR3 800/1066/1333 RDIMM, UDIMM

Capacity Up to 96GB at launch w/ quad rank RDIMMs

Memory

Memory channel 3-Channel

PCI-E (1) PCI-E x16 slot (Gen 2) / (2) PCI-E x8 slots (Gen 2)

/ (1) PCI-E x4 slot (Gen 1)

PCI (1) PCI 32 bit slot

Expansion

Slots

Recommended Tyan

Riser Card

M2083-RS, PCI-E x16 1U riser card (left) / M2061,

PCI-E x8 to PCI-X 1U riser (left)

http://www.tyan.com

Port Q'ty (2)

LAN

Controller Intel 82574

Connector (6)

Controller ICH10R

Speed 3.0 Gb/s

Storage SATA

RAID S/W RAID 0/1/10/5 standard/Windows only

Chipset Realtek ALC262

Audio

Feature HDA 2.0 spec.compliant

Port Q’ty (2)

FireWire

Chipset VIA VT 6308

Connector type D-Sub 15pin

Resolution 1600x1200

Graphic

Chipset Aspeed AST2050

USB (6) USB2.0 ports (4 at rear, 2 via cable)

COM (2) ports (1 at rear, 1 via cable)

VGA (1) D-Sub 15pin VGA port

Audio (1) 2x5 pin header / (1) CD-IN header / (1) Audio front

panel header

RJ-45 (2) GbE ports

Firewire (2) 2x5 pin header

Power SSI 24-pin + 8-pin + 8-pin power connectors / SSI

EEB spec. 2008

Front Panel (1) 2x12 pin SSI Front Panel header

Input

/Output

SATA (6) SATAII connectors

Chipset Winbond W83793G

Voltage Monitors voltage for CPU, memory, chipset & power

supply

Fan Total (5) 4-pin headers

Temperature Monitors temperature for CPU & system environment

System

Monitoring

LED Fan fail LED indicator

http://www.tyan.com

Others Chassis intrusion detection / Watch Dog timer support

Onboard Chipset Onboard Aspeed AST2050

AST2050 IPMI Feature

IPMI 2.0 compliant baseboard management controller

(BMC) / Supports storage over IP and remote

platform-flash/ BIOS update / USB 2.0 virtual Hub

Server

Management

AST2050 iKVM

Feature

24bit High quality video compression / Dual 10/100

Mb/s MAC interfaces

Brand / ROM size AMI / 4MB

BIOS

Feature

Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3

/PXE Boot / ACPI 2.0 power management /Power on

mode after power recovery / User-configurable H/W

monitoring / Auto-configurable of hard disk types /

Multiple boot options

Form Factor SSI EEB

Form Factor

Board Dimension 12"x13" (305x330mm)

Operation

System OS supported list Please visit our Web site for the latest OS supported

list.

FCC (Doc) Class B

CE (Doc) Yes

C-Tick Yes

Regulation

VCCI Yes

Operating Temp 10° C ~ 35° C (50° F~ 95° F)

Non-operating Temp - 40° C ~ 70° C (-40° F ~ 158° F)

Operating

Environment In/Non-operating

Humidity 90%, non-condensing at 35° C

RoHS RoHS 6/6 Complaint Yes

Motherboard (1) TYAN motherboard

Manual (1) User's manual / (1) Quick Ref. Guide

Installation CD (1) TYAN Installation CD

I/O Shield (1) I/O Shield

SATA (6) SATA signal cables

USB (1) USB bracket cable

Accessory

list

Cable

IEEE1394 (1) IEEE1394 bracket cable

Optional

accessories

Riser Card M2083-RS, PCI-E x16 1U riser card (right) / M2061,

PCI-E x8 to PCI-X 1U riser card (left)

http://www.tyan.com

accessories

for future

upgrade

Cable (1) CCBL-0615, COM port cable

(1) Audio bracket cable

1.3 - AST2050

Please visit the TYAN Web Site at http://www.tyan.com to download the latest

AST2050 User’s Guide.

http://www.tyan.com

Chapter 2: Board Installation

You are now ready to install your motherboard. The mounting hole pattern of the

S7010 matches the SSI EEB specification. Before continuing with installation,

confirm that your chassis supports an SSI EEB motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic

bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED.

http://www.tyan.com

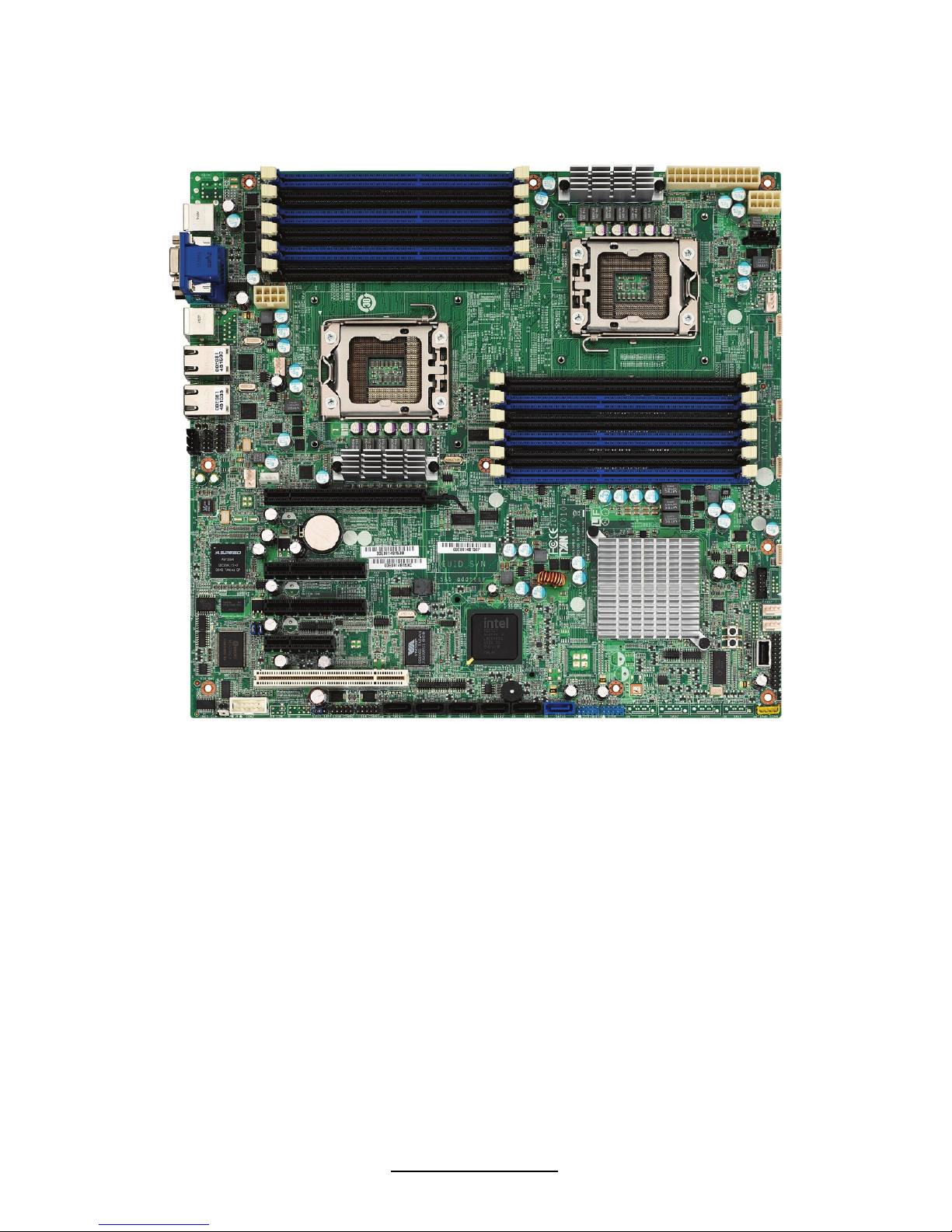

2.1 - Board Image

S7010

This picture is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above

picture.
