TYAN S7012 Bedienungsanleitung

http://www.tyan.com

S7012

Version 1.1

registered trademark of MiTAC International Corporation.

Trademark

All registered and unregistered trademarks and company names contained in this

manual are property of their respective owners including, but not limited to the

following.

TYAN®is a trademark of MiTAC International Corporation.

Intel®Nehalem-EP Series and combinations thereof are trademarks of Intel

Corporation.

AMI, AMI BIOS are trademarks of AMI Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE is a trademark of Novell.

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Notice

Information contained in this document is furnished by MiTAC International

Corporation and has been reviewed for accuracy and reliability prior to printing.

MiTAC assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. MiTAC

retains the right to make changes to product descriptions and/or specifications at

any time, without notice. In no event will MiTAC be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

http://www.tyan.com

Table of Contents

Check the box contents! 3

Chapter 1: Introduction

1.1 Congratulations 5

1.2 Hardware Specifications 5

1.3 AST2050 Application 6

Chapter 2: Board Installation

2.1 Board Image 8

2.2 Block Diagram 9

2.3 Board Parts, Jumpers and Connectors 10

2.4 Installing the Processor and Heatsink 20

2.5 Thermal Interface Material 23

2.6 Finishing Installing the Heatsink 24

2.7 Tips on Installing Motherboard in Chassis 25

2.8 Installing the Memory 26

2.9 Attaching Drive Cables 29

2.10 Installing Add-in Cards 30

2.11 Installing I/O Shield 31

2.12 Connecting External Devices 32

2.13 Installing the Power Supply 33

2.14 Finishing up 33

Chapter 3: BIOS Setup

3.1 BIOS Main Menu 37

3.2 Advanced Menu 38

3.3 PCI PnP Menu 64

3.4 Boot Menu 66

3.5 Security Menu 70

3.6 Chipset Menu 71

3.7 Exit Menu 76

Chapter 4: Diagnostics

4.1 Beep Codes 77

4.2 Flash Utility 77

4.3 AMI BIOS Post Code 78

Glossary 81

Technical Support 87

http://www.tyan.com

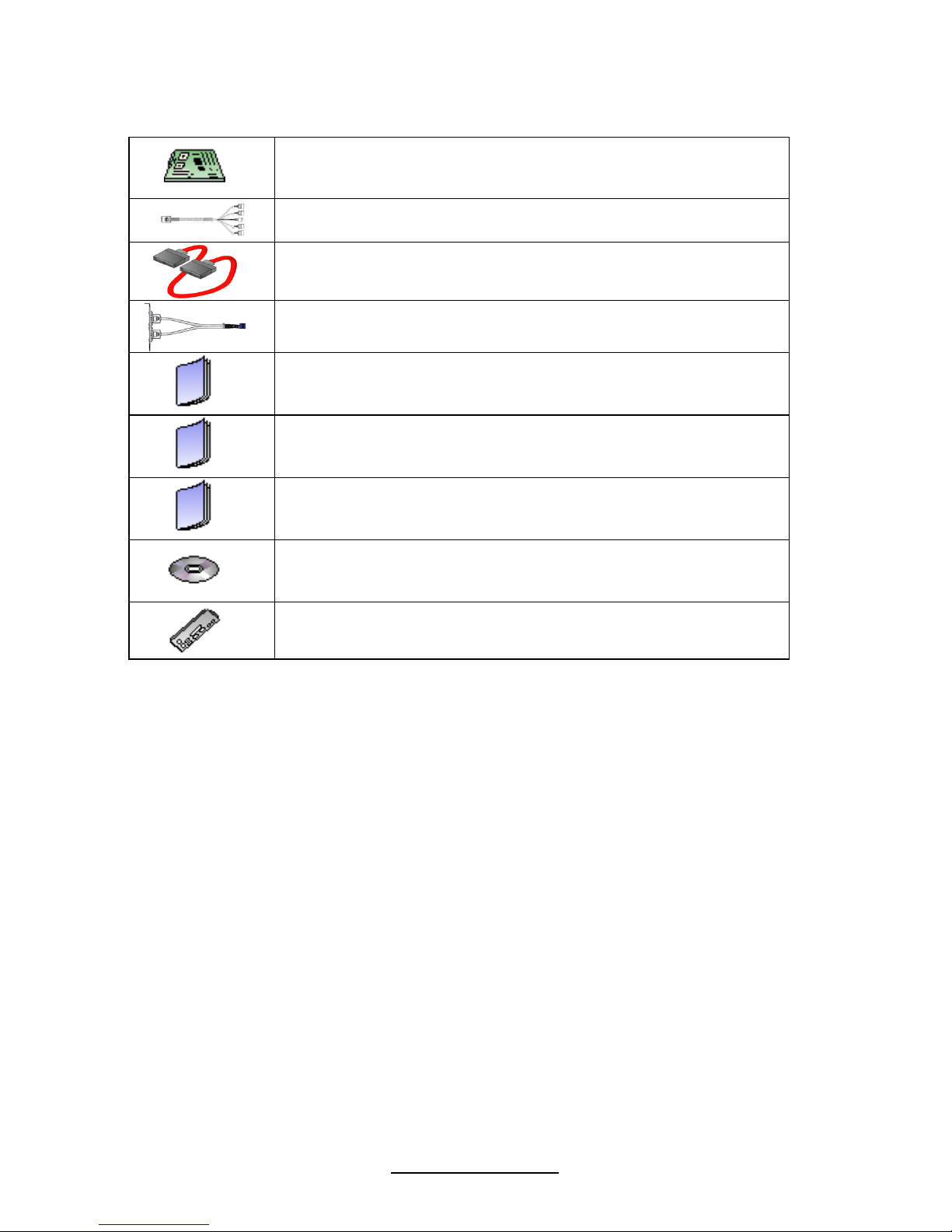

Check the box contents!

1x S7012 motherboard

2 x mini SAS Cable (optional)

6 x Serial ATA Cable

1 x USB2.0 cable

1 x S7012 User’s Manual

1 x S7012 Quick Reference Guide

1 x I/O Shield Installation Guide

1 x TYAN Installation CD

1 x I/O shield

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

http://www.tyan.com

NOTE

http://www.tyan.com

Chapter 1: Introduction

1.1 - Congratulations

You have purchased one of the most powerful server solutions. Based on Intel®

5520 and ICH10R chipsets, the S7012 is designed to support up to two Nehalem-

EP Series processors and up to 144GB DDR3-800/1033/1066/1333 memory,

providing a rich feature set and incredible performance. Leveraging advanced

technology from Intel, the S7012 is capable of offering scalable 32 and 64-bit

computing, high-bandwidth memory design, and lightning-fast PCI-E bus

implementation.

The S7012 not only empowers your company in today’s demanding IT environment

but also offers a smooth path for future application usage. All of this provides the

S7012 the power and flexibility to meet the needs of nearly any server application.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 - Hardware Specifications

Supported CPU Series

Intel Xeon Processor 5500 Series

Socket Type / Q'ty LGA1366 / (2)

Thermal Design

Power (TDP) wattage Max up to 130W

Processor

System Bus Up to 4.8/ 5.86/ 6.4GT/s with Intel QuickPath Interconnect

(QPI) support

IOH / ICH Intel 5520 / ICH10R

Chipset Super I/O Winbond W83627DHG

Supported DIMM Qty (18) DIMM slots

DIMM Type / Speed DDR3 800/1066/1333* RDIMM/UDIMM / * limit 1 per

channel for 1333MHz speed

Capacity Up to 144GB at launch w/ dual rank RDIMMs

Memory channel 3 Channels per CPU

Memory

Memory voltage 1.5V

Expansion

Slots PCI-E (1) PCI-E x8 slot (w/ x4 link) / (4) PCI-E Gen.2 x8 slots

Port Q'ty (4)

LAN Controller Intel 82574L / Intel 82576EB

Connector (2) Mini-SAS connectors (totally support 8 ports)

Controller LSI SAS1068E

Speed 3.0 Gb/s

SAS

(optional)

RAID RAID 0/1/1E (LSI Integrated RAID)

Connector (6) SATA

Controller ICH10R

Speed 3.0 Gb/s

Storage

SATA

RAID RAID 0/1/10/5 (Intel Matrix RAID)

Graphic Connector type D-Sub 15-pin

http://www.tyan.com

Resolution 1600x1200@60Hz

Chipset Aspeed AST2050

USB (7) USB2.0 ports (4 at rear, 2 via cable, 1 type A onboard)

COM (1) port (rear)

SAS (2) Mini-SAS (4-in-1) connectors

VGA (1) D-Sub 15-pin VGA port

RJ-45 (4) GbE ports

Power SSI 24-pin + 8-pin + 8-pin power connectors / EPS12V

Front Panel (1) 2x12-pin SSI front panel header

Input /Output

SATA (6) SATA-II connectors

Chipset Winbond W83793G

Voltage Monitors voltage for CPU, memory, chipset & power supply

Fan Total (5) 4-pin headers / Total (5) 8-pin headers

Temperature Monitors temperature for CPU & system environment

System

Monitoring

Others Chassis intrusion detection / Watchdog timer support

Onboard Chipset Onboard Aspeed AST2050

AST2050 IPMI

Feature

IPMI 2.0 compliant baseboard management controller

(BMC) / Supports storage over IP and remote platform-

flash/ BIOS update / USB 2.0 virtual hub

Server

Management

AST2050 iKVM

Feature

24-bit high quality video compression / Dual 10/100 Mb/s

MAC interfaces

Brand / ROM size AMI / 4MB

BIOS Feature

Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE

boot / ACPI 2.0 power management /Power on mode after

power recovery / User-configurable H/W monitoring / Auto-

configurable of hard disk types / Multiple boot options

Form Factor SSI EEB

Form Factor Board Dimension 12"x13" (305x330mm)

Operating

System OS supported list Please refer to our OS supported list.

http://www.tyan.com/tech/os_support1.aspx

FCC (DoC) Class B

Regulation CE (DoC) Yes

Operating Temp. 10° C ~ 35° C (50° F~ 95° F)

Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)

Operating

Environment In/Non-operating

Humidity 90%, non-condensing at 35° C

RoHS RoHS 6/6 Complaint Yes

Motherboard (1) S7012 Motherboard

Manual (1) User's manual / (1) Quick Ref. Guide (1) IO Shield QR

Installation CD (1) TYAN installation CD

I/O Shield (1) I/O Shield

SATA (6) SATA signal cables

SAS (2) Mini-SAS (2x SFF-8470) cables

Package

Contains

Cable

USB (1) CCBL-035J, 2-port USB bracket cable

Riser Card M2091, PCI-E 1U riser card (left)

Optional

accessories for

future

upgrade

Cable

(1) CCBL-0615, COM port bracket cable / (1) CCBL-0311,

SATA 1-to-2 power cable / (1) CCBL-035J, 2-port USB

bracket cable

1.3 - AST2050 Application

Please visit the TYAN Web Site at http://www.tyan.com to download the latest

AST2050 User’s Guide.

http://www.tyan.com

Chapter 2: Board Installation

You are now ready to install your motherboard. The mounting hole pattern of the

S7012 matches the SSI EEB specification. Before continuing with installation,

confirm that your chassis supports an SSI EEB motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic

bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED.

http://www.tyan.com

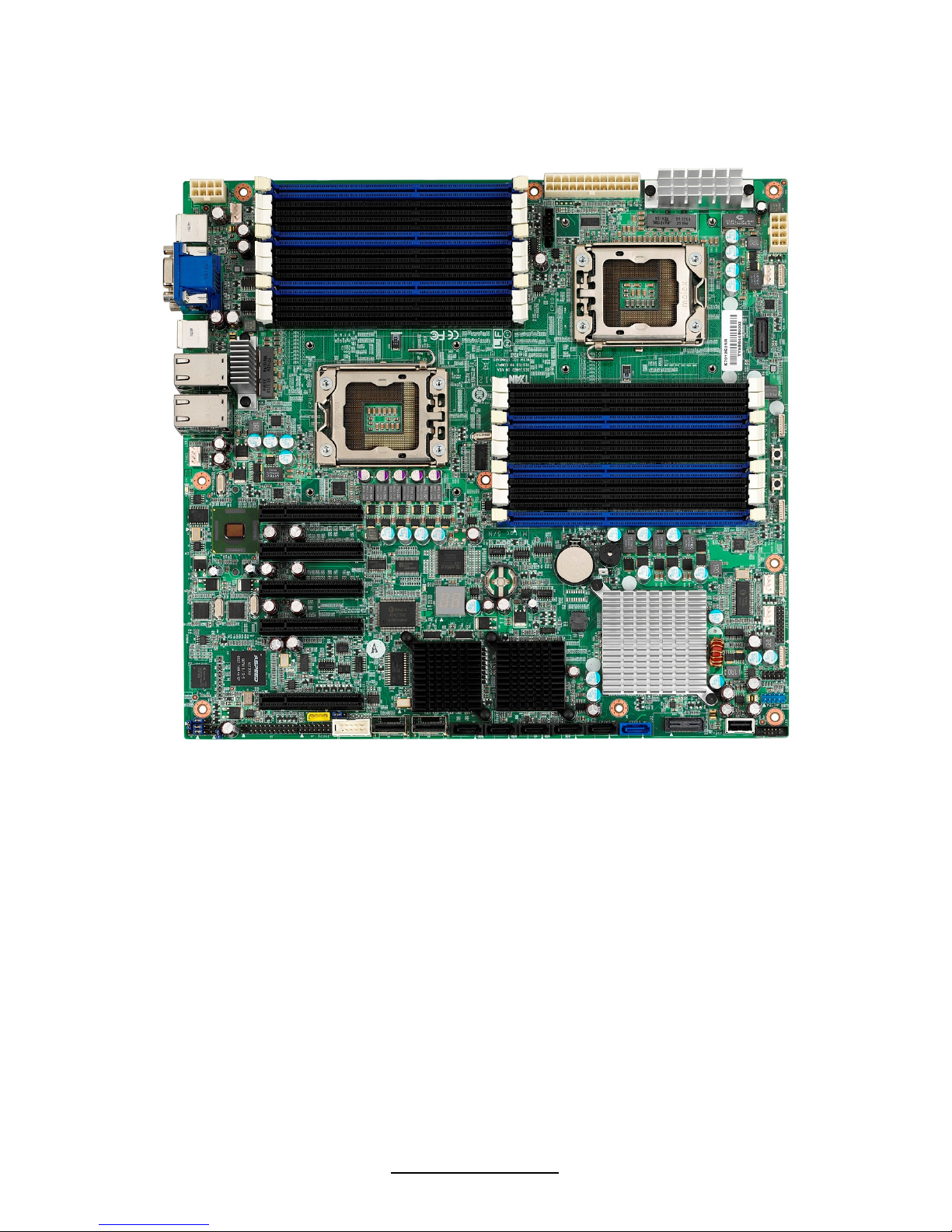

2.1- Board Image

S7012

This picture is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above

picture.

http://www.tyan.com

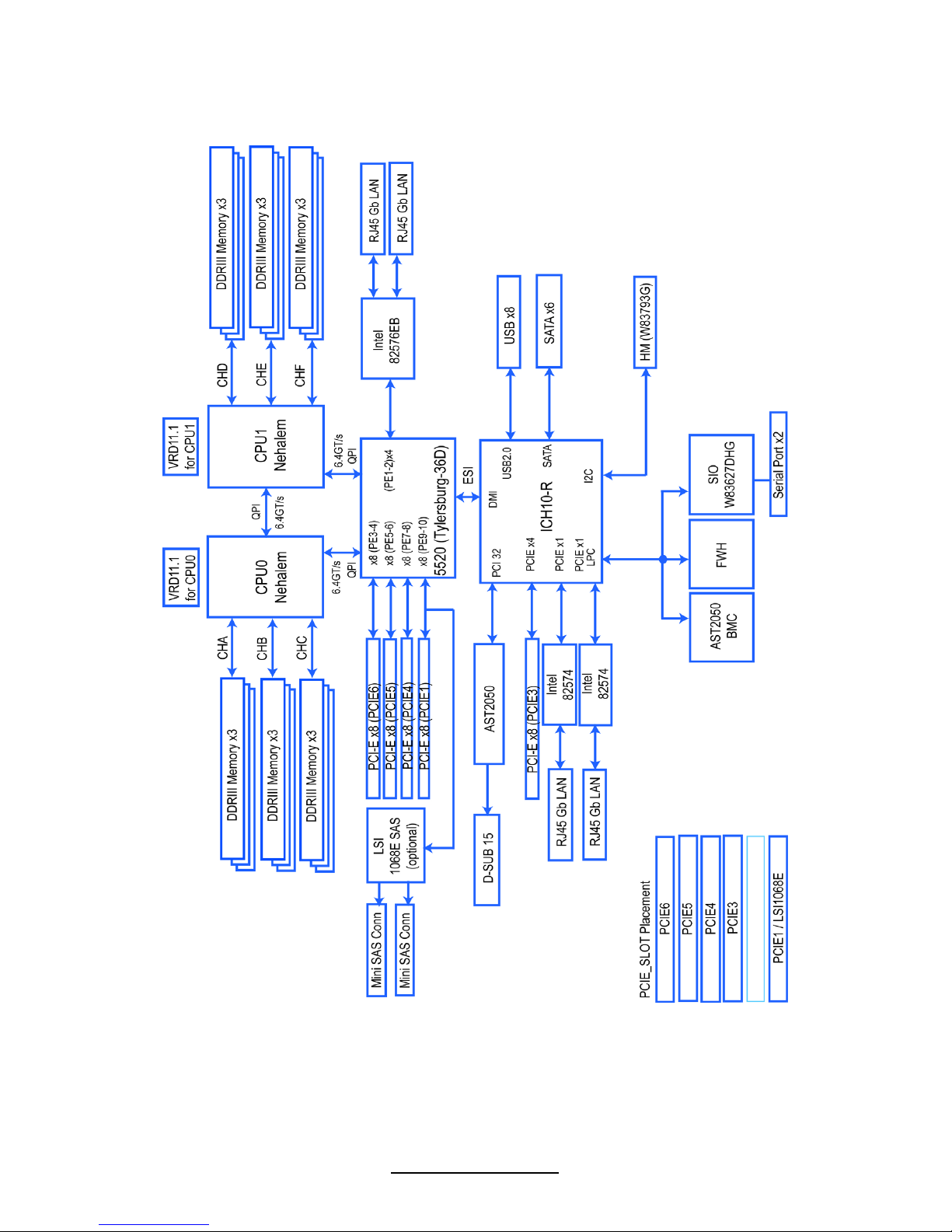

2.2 - Block Diagram

S7012

http://www.tyan.com

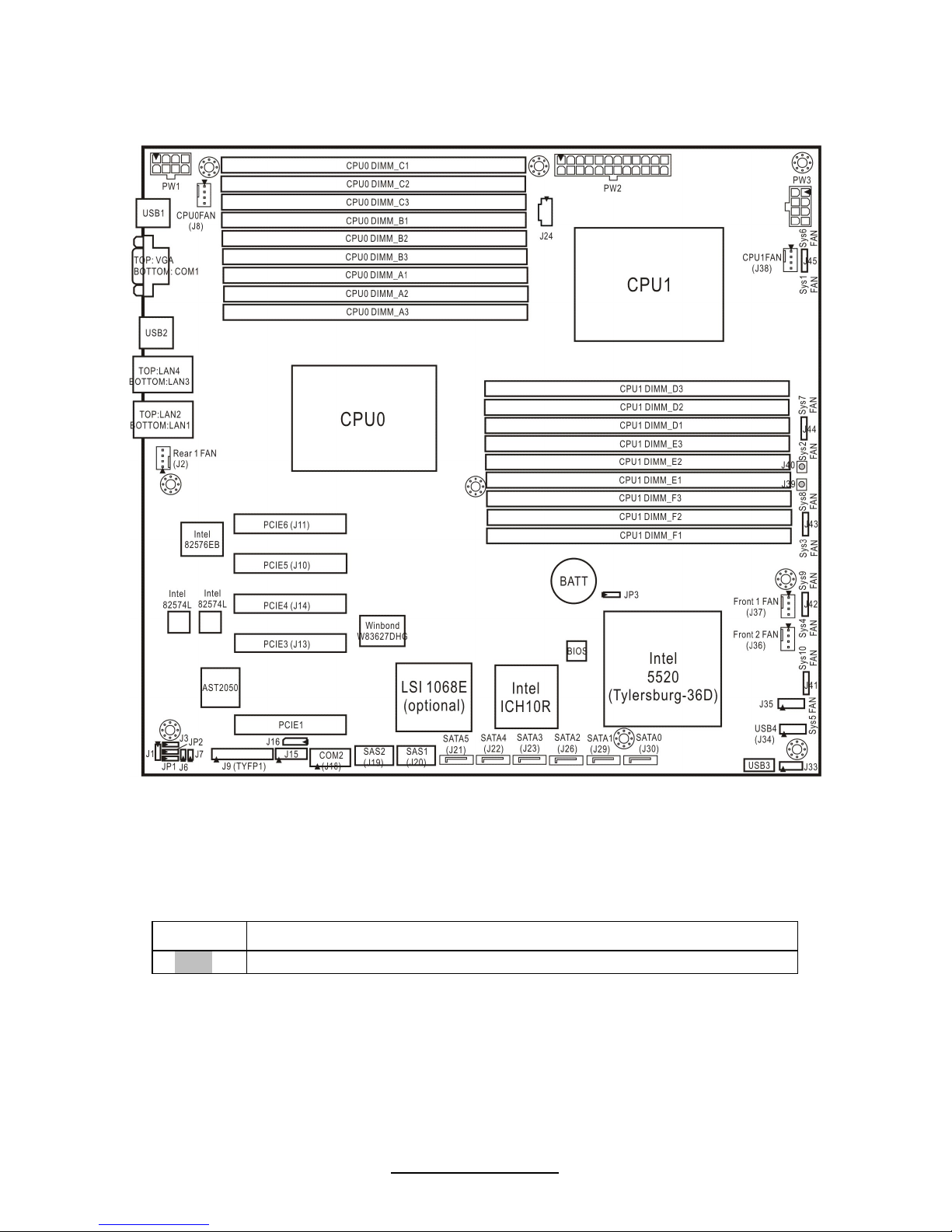

2.3 - Board Parts, Jumpers and Connectors

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.

Jumper Legend

 OPEN - Jumper OFF, without jumper cover

 CLOSED – Jumper ON, with jumper cover
