Chapter 1: Introduction

1.1 –Congratulations!

You have just purchased one of the most advanced Dual Intel processor solutions, the Thunder

i7500 Pro. Based on Intel's E7500 chipset, the Thunder i7500 Pro is Hyper-Threading ready -

utilizing onboard resources so that a second thread of data can be processed in one processor.

With two Gigabit Ethernet ports and one fast Ethernet port, six DDR DIMM sockets, plus an

optional Dual Channel Ultra320 SCSI, the Thunder i7500 Pro is fast and flexible enough to fit your

server needs.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can find information on all

of TYAN’s products with FAQs, distributors list and BIOS setting explanations.

1.2 –Hardware Specifications

Processor

• Dual PGA603 ZIF sockets

• Supports up to two Intel Xeon processors

with 512KB L2 cache

• Onboard VRM (VRM 9.1 spec)

• Front-Side Bus support for 400MHz

Chipset

• Intel E7500 chipset

• MCH + ICH3 + P64H2 + P64H2 + FWH

• P64H2s supports four 133MHz PCI-X buses

• Winbond 83627HF Super I/O ASIC

Memory

• Six 184-pin 2.5V DDR DIMM sockets

• Supports up to 12GB of Registered ECC

PC1600/2100* DDR memory

• Supports 72-bit ECC memory modules

Expansion Slots

• Five independent PCI-(X) buses

• Two 64-bit 133/100/66MHz (3.3V) PCI-X slots

• One 64-bit 100/66MHz (3.3V) PCI-X slot

• One 32-bit 33MHz (5V) PCI slot

• Total of four usable slots

*The Thunder i7500 Pro supports both

PC2100 and PC1600 but Intel’s E7500

chipset will only operate at PC1600.

Integrated SCSI (manufacturing option)

• Adaptec AIC –7902W controller

• 320 MB/sec maximum data throughput per

channel

• Connects to PCI-X bus for maximum

throughput

• Dual Channel Ultra320 SCSI support

• Supports up to 15 LVD SCSI devices per

channel

• Supports Intel ZCR (Zero Channel RAID) and

Adaptec ZCR (Zero Channel RAID)

* For more details, please see the Thunder

i7500 Pro FAQ page on the Tyan website:

www.Tyan.com.

Integrated 2D/3D Graphics

• ATI RAGE XL graphics controller

• 8 MB frame buffer

• Standard 15-pin analog VGA port

Integrated LAN Controllers

• Two 10/100/1000 GbE ports

• Intel 82546EB controller

• Operating at PCI-X 133MHz Bus

(Independent Bus)

• One 10/100 port

• Intel 82551QM controller

• Up to 3 LAN ports.

http://www.TYAN.com

Integrated PCI IDE

• Dual Channel master mode

• Supports up to four Enhanced IDE devices

• Support for ATA-100/66/33 IDE and ATAPI

compliant devices

Integrated I/O

• One floppy connector supports up to two

drives

• Two 9-pin 16550-based serial ports (one via

optional cable)

• One 25-pin SPP/ECP/EPP parallel port

• Two USB 1.1 ports

• Two internal USB headers

• PS/2 keyboard and mouse ports

Form Factor

• SSI EEB v3.0 footprint (12" x 13")

• EPS12V power connectors (24-pin and 8-pin)

• Stacked parallel (one), serial (one) and VGA

(one) ports

• Stacked USB (two) ports + (one) LAN port

• Side-by-side LAN (two) ports

• Stacked keyboard and mouse ports

1.3 Software Specifications

Hyper-Threading Support In:

Windows 2000 Server

Windows 2000 Advanced Server

Windows XP Pro

Linux (Kernel 2.4.18)

NT 4.0 Server

Novell NetWare 6 with Support Pack 1

TYAN reserves the right to add support or

discontinue support for any OS with or

without notice.

Intelligent Platform Management Interface

(Manufacturing Option)

§QLogicTM Zircon Baseboard

Management Controller (BMC)

based on powerful ARM7 technology

§Tailored for IPMI highest 1.5 Spec.

§Supports KCS and BT styles

§Supports flexible Windows and Linux

based Management Solution

§Supports RMCP and SNMP

protocols

§Supports ASF standard and EMP

§I2C serial multi-master controllers

and UARTs

§Built-in IPMB connector

§Supports remote Power on/off and

reset support (IPMI-over-LAN)

§Server Management Daughter card

via built-in 2x25 header

Hardware Monitoring

• Winbond W83782D hardware monitoring

ASIC

• CPU temperature/voltage monitoring

• Total 11 fan headers:

-Three monitored and controlled 3-pin fan

headers

-Three monitored 3-pin fan headers

-Five additional 3-pin fan headers

• 2-pin chassis intrusion header

• 3-pin Wake-on-LAN (WoL) header

BIOS

• AMI BIOS on 4Mbit Flash ROM

• User settings for hardware monitoring

• Auto-configuration of IDE hard drive types

• Multiple boot options

Regulatory

• FCC DoC (Declaration of Conformity)

• European CE (Declaration of Conformity)

http://www.TYAN.com

Chapter 2: Board Installation

WARNING: The Thunder i7500 Pro only

supports EPS12V power supplies and will not

operate with other types. Refer to section 2.12 for

instructions on installing EPS12V power supplies.

DO NOT use ATX 2.x, ATX12V and dual ATXGES

power supplies as they will damage the board and

void your warranty.

Only EEB V3.0 form factor chassis is supported.

Other form factors may short the board because the

installation studs are in different locations than

ones required by the Thunder i7500 Pro.

Installation

You are now ready to install your motherboard. The mounting hole pattern of the Thunder i7500

Pro matches the EEB V3.0 specification. Before continuing with installation, confirm that your

chassis supports a standard EEB V3.0 motherboard.

How to install our products right….the first time!

The first thing you should do is read this user’s manual. It contains important information that will

make configuration and setup much easier. Here are some precautions you should take when

installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic bag.

Unplug the power from your computer power supply and then touch a safely grounded

object to release static charge (i.e. power supply case). For the safest conditions, Tyan

recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board, or flex the

board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors, memory modules,

and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic bag that the

board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your chassis, as well

as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.TYAN.com

2.1 –Board

The following is an image of the S2721 Thunder i7500 Pro.

The above photograph is purely representative. Due to engineering updates and new board

revisions, certain components may change and or be repositioned. The picture above may

or may not look exactly like the board you received.

The following page includes details on the vital components of this motherboard.

http://www.TYAN.com

2.2 –Board Jumpers, LEDs, and Fans

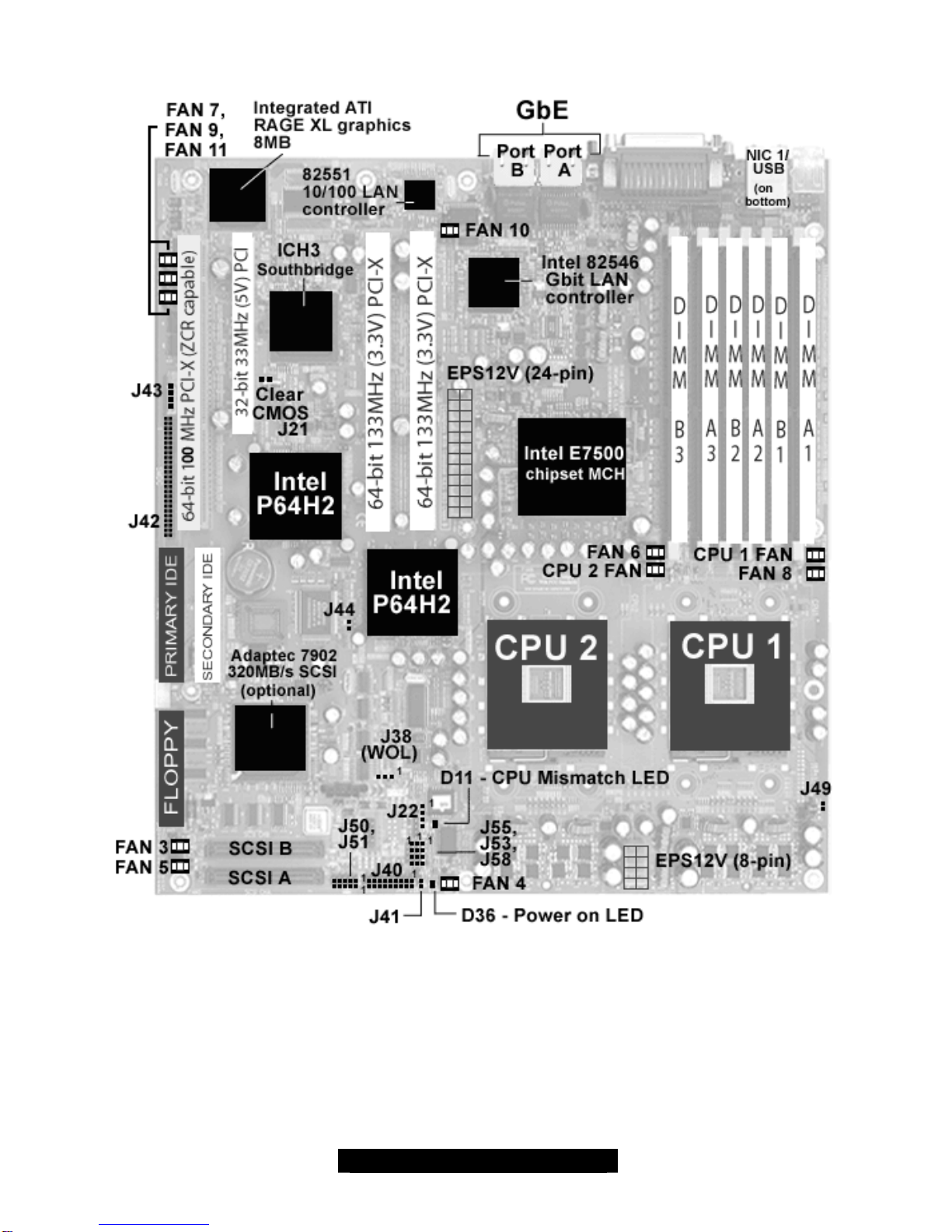

This jumper diagram is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above diagram.

IMPORTANT NOTE:

Fan locations as labeled on some revisions of the motherboard may be incorrect. It is highly

recommended if you intend to monitor fans, that you use the information in this manual for

accuracy. If you found the addendum in your package you absolutely will need to follow the

manual for accurate location and function of fan headers.

http://www.TYAN.com

2.3 –Jumper Definitions

* WOL is only supported by NIC1 (82551QM, 10/100 Mbps). See page 8.

Jumper Example

Jumper OFF –open (without jumper cover)

Jumper ON –closed (with jumper cover)

CMOS Reset (J21)

Clear CMOS

Normal

You can reset the CMOS settings in case an incorrect setting causes system

instability or you have forgotten your system/setup password or have just

flashed your BIOS by using these jumpers.

-Power off system, disconnect power supply from motherboard

-Set jumper J21 to Clear CMOS

-Wait about 5 seconds

-Set jumper J21 to Normal

Jumper Function

J21

J22

J38 *

J40

J41

J42

J43

J44

J49

J50

J51

J53 & J58

(Port A/Port B)

J55

Clear CMOS

External speaker header

Wake On LAN

Front Panel connector

Hard drive external activity LED

SMDC connector (Server Management daughter card)

I2C bus connector

PCI-X Force 100Mhz (see description on the next page)

Hyper -Threading (see description on the next page)

USB internal port #3

USB internal port #4

Intel GbE 82546 4-pin external LAN activity/link

LED headers. Note: Left most pin is pin1.

Intel 82551 4-pin external LAN activity/link LED header

http://www.TYAN.com

PCI-X Force 100MHz (J44)

Normal

Force 100MHz

Jumper open = Card dependent, will run at PCI-X capability of card

inserted up to PCI-X 133.

Jumper closed = Forces 100Mhz on PCI-X slot 1 (see next page for

slot location).

NOTE: This ONLY effects the PCI1 slot as labeled on the board.

Hyper-Threading (J49)

Normal

Hyper -Threading

Disabled

Jumper open = BIOS controls Hyper-Threading.

Jumper closed = Disables Hyper-Threading, no matter what the BIOS

setting is.

Front Panel Connector (J40)

Your chassis will usually come with connectors to install onto the motherboard, such as HD and

Power LEDs. The Front Panel Connector (J40) has been implemented for such purposes.

Andere Handbücher für Thunder i7500 Pro S2721

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TYAN Hauptplatine Handbücher

TYAN

TYAN THUNDER K8SD PRO Bedienungsanleitung

TYAN

TYAN 1.00 Bedienungsanleitung

TYAN

TYAN TITAN VX AT Bedienungsanleitung

TYAN

TYAN S4992 Bedienungsanleitung

TYAN

TYAN Tempest i5100W Bedienungsanleitung

TYAN

TYAN TOMCAT I7230A Bedienungsanleitung

TYAN

TYAN Thunder n3600QX Bedienungsanleitung

TYAN

TYAN THUNDER H2000M Bedienungsanleitung

TYAN

TYAN TOMCAT K8SH Bedienungsanleitung

TYAN

TYAN S7053 Bedienungsanleitung

TYAN

TYAN S5545 Bedienungsanleitung

TYAN

TYAN S7012 Bedienungsanleitung

TYAN

TYAN TIGER 200 Bedienungsanleitung

TYAN

TYAN S7076 Bedienungsanleitung

TYAN

TYAN Tiger K8WE Bedienungsanleitung

TYAN

TYAN TEMPEST I5000PW Bedienungsanleitung

TYAN

TYAN S7070 Bedienungsanleitung

TYAN

TYAN S5515 Bedienungsanleitung

TYAN

TYAN THUNDER K8QSD PRO Bedienungsanleitung

TYAN

TYAN Tiger 100 S1832DL Bedienungsanleitung

TYAN

TYAN Tempest i5000VS S5372-LC Bedienungsanleitung

TYAN

TYAN S1846 Tsunami ATX Bedienungsanleitung

TYAN

TYAN THUNDER K7 Montage- und Bedienungsanleitung

TYAN

TYAN Thunder 100 S1836 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
