Thunder i7505 ///

S2665

Revision 1.03

reproduced or translated without prior written consent from TYAN Computer Corp.

All registered and unregistered trademarks and company names contained in this manual are

property of their respective owners including, but not limited to the following.

TYAN, Thunder i7505 S2665 are trademarks of TYAN Computer Corporation.

Intel, Xeon, and combinations thereof are trademarks of Intel Corporation.

Microsoft and Windows are trademarks of Microsoft Corporation.

Phoenix BIOS is a trademark of Phoenix Technologies.

Winbond is a trademark of Winbond Electronics Corporation.

Adaptec is a trademark of Adaptec Inc.

AnalogDevice and ADMare trademarks of Analog Devices Inc.

Sony/Philips Digital Interface (SPDIF) is a trademark of Sony Corporation and Philips Electronics.

PS/2 is a trademark of International Business Machines Corporation.

Portable Document Format (PDF) is a trademark of Adobe Corporation.

Information contained in this document is furnished by TYAN Computer Corporation and has been

reviewed for accuracy and reliability prior to printing. TYAN assumes no liability and disclaims any

express or implied warranty relating to sale and/or use of TYAN products; we also assume no

including liability or warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications at any time without

notice. In no event will TYAN be held liable for any direct or indirect, incidental or consequential

damage, loss of use, loss of data or other malady resulting from errors or inaccuracies of

information contained in this document.

http://www.TYAN.com

Table of Contents

Before you begin…

Chapter 1: Introduction

1.1 Congratulations

1.2 Hardware Specifications

Chapter 2: Board Installation

2.0 Board Image

2.1 Board Parts, Jumpers and Connectors

2.2 Jumper and Connector Settings

2.3 AUX Audio and CD Audio Connector

2.4 Enable/Disable On board LAN Jumper

2.5 Fan Connectors

2.6 ACPI Wake-up Jumper for PS/2

2.7 ACPI Wake-up Jumper for USB Port-A ~ D

2.8 Slot-A PCI-X/PCI-2.2 Jumper

2.9 Slot-B and Slot-C PCI-X/PCI-2.2 Jumper

2.10 Clear CMOS Jumper

2.11 ACPI Wake-up Jumper for USB Port-E ~ F

2.12 IEEE 1394 Connectors

2.13 LCD Connectors Chassis Intrusion Connector

2.14 Front Panel Audio Connector

2.15 Chassis Intrusion Connector

2.16 Front Panel USB Header

2.17 Front Panel Connector

2.18 SCSI RAID PCI Slot-C

2.19 OEM Reserved Connectors and Jumpers

2.20 Mounting the Motherboard

2.21 Installing the Memory

2.22 Installing the Processor and Heatsink

2.23 Installing Add -InCards

2.24 Connecting External Devices

2.25 Installing the Power Supply

2.26 Attaching IDE and Floppy Drive Cables

2.27 Finishing Up

Chapter 3:BIOS

3.0 BIOS Setup Utility

3.1 BIOS Menu Bar

3.2 BIOS Legend Bar

3.3 BIOS Main Menu

3.4 BIOS Advanced Menu

3.5 BIOS Security Menu

3.6 BIOS Power Menu

3.7 BIOS Boot Menu

3.8 BIOS Exit Menu

Chapter 4: Diagnostics

4.1 Beep Codes

4.2 Flash Utility

Appendix I: Glossary

Technical Support

………………………………….Page 3

………………………………….Page 4

………………………………….Page 6

………………………………….Page 7

………………………………….Page 8

………………………………….Page 9

………………………………..Page 10

………………………………..Page 11

………………………………..Page 12

………………………………..Page 13

………………………………..Page 14

………………………………..Page 15

………………………………..Page 16

…………………

……………..Page 18

………………………………..Page 20

………………………………..Page 21

………………………………..Page 22

………………………………..Page 23

………………………………..Page 24

………………………………..Page 25

………………………………..Page 26

………………………………..Page 27

………………………………..Page 28

………………………………..Page 31

………………………………..Page 32

………………………………..Page 33

………………………………..Page 34

………………………………..Page 35

………………………………..Page 39

http://www.TYAN.com

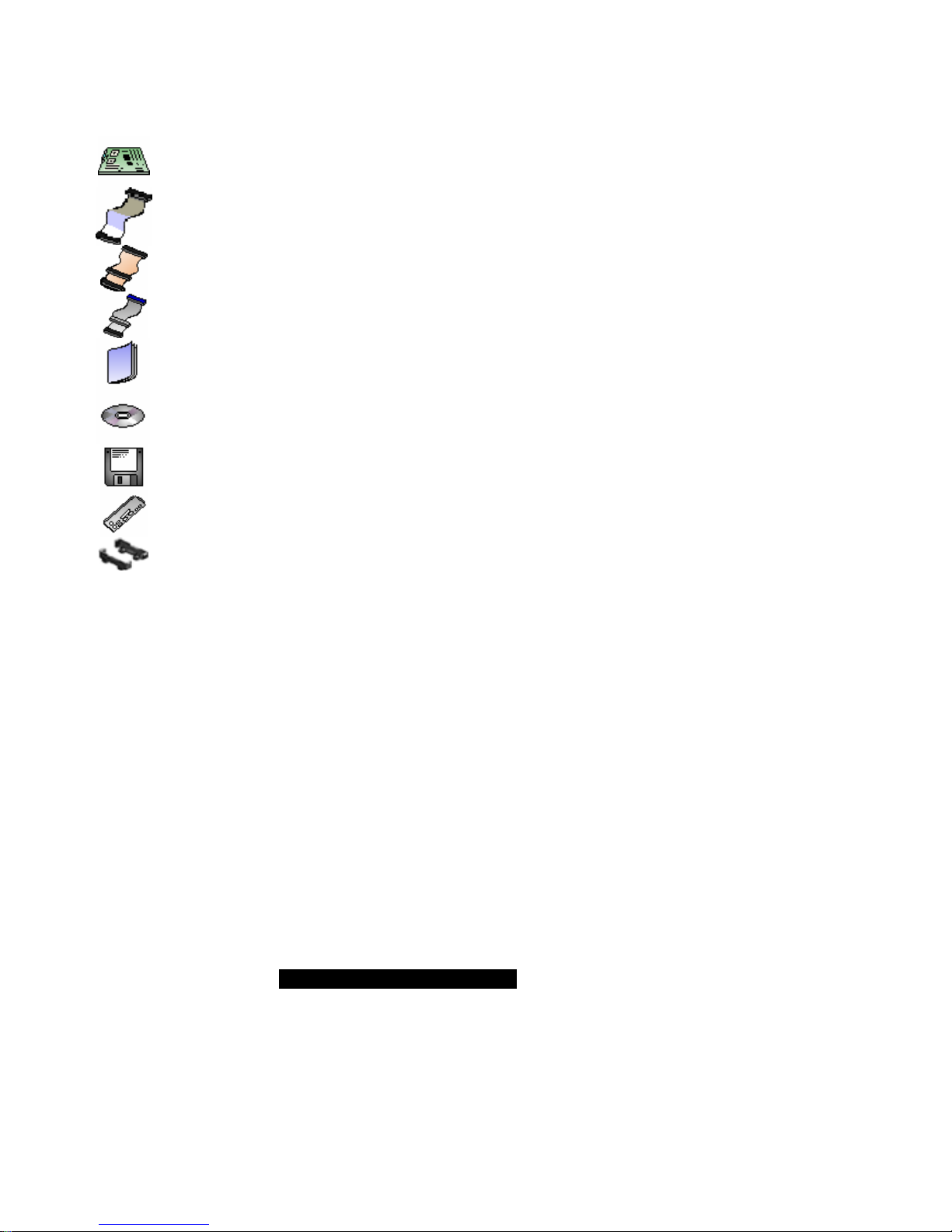

Before you begin…

Check the box contents!

The retail motherboard package should contain the following:

1x Thunder i7505 S2665

1x 34-Pin floppy drive cable

1x Ultra160/320 LVD SCSI cable (if optional SCSI included)

1x Ultra-DMA-100/66/33IDE cable

1x Thunder i7505 S2665 User’s Manual

1x TYAN driver CD

1x Adaptec Ultra160/Ultra320 SCSI driver diskette (if optional SCSI included)

1x I/O shield

2X CPU retention

If any of these items are missing, please contact your vendor/dealer for replacement before

continuing with the installation process.

http://www.TYAN.com

Chapter 1: Introduction

1.1–Congratulations!

You are now the owner of one of the most advanced dual Intel Xeon processor solutions

available: the Thunder i7505 S2665. Based on Intel's E7505 chipset, the Thunder i7505 S266 5 is

Hyper-Threadingready -utilizing onboard resources so that many data threads can be handled

with ease by two processors.

With a 8x/4x AGP slot, six USB 2.0 and 1.1 compatible ports, two FireWire (IEEE-1394) ports,

four DDR DIMM sockets, a Gigabit Et hernet port , plus an optional Dual Channel Ultra320 SCSI,

the Thunder i7505 S2665 is fast and flexible enough to fit your server needs.

Remember to visit TYAN’s Website athttp://www.tyan.com. There you can find information on all

of TYAN’s products with FAQs, distributors list and BIOS setting explanations.

1.2–Hardware Specifications

Processor

§Dual mPGA604 ZIF sockets

§Supports one or two Intel Xeon processors

with 512KB of integrated L2 cache

§Onboard 4-phase VRM (VRM 9.1 spec)

§Supports 400/533MHz Front-Side Bus

Chipset

§IntelE7505chipset

§MCH + ICH4 + P64H2 + FWH

§Intel P64H2 supports two PCI-(X) buses

§Winbond W83627HF Super I/O chip

§Analog Device ADM1027 systems monitor

and multiple fan controller

Memory

§Four184-pin2.5-Volt DDR DIMM sockets

§Dual channel memory bus

§SupportsECC/non-ECC type unbuffered

memorymodules

§SupportsPC1600/PC2100 DDR

(DDR200/DDR266)

§Maximum4GB

ExpansionSlots

§Three independent PCI-(X)buses

§One 8x/4x mode AGP Pro50 slot

§One64-bit133/100/66MHz(3.3-Volt) PCI-X

slot

§Two64-bit 100/66MHz (3.3 -Volt) PCI-X slot

§Two32-bit 33MHz (5-Volt)PCIslots

§Total of six usable slots

Integrated SCSI (Manufacturing Option)

§Adaptec 7902 dual channel Ultra160/320

SCSIatPCI-X100MHz

§Intel RAIDIOS and Adaptec Zero-Channel

RAID ready through a PCI slot

Integrated LAN

§Intel 82540EM Gigabit Ethernet

-(Manufacture loading option with Intel

82551QM 10/100Mbit Ethernet)

Integrated Audio

§Intel ICH4 AC’97 compliant audio link

§AD1981A CODEC

§Line-in, Line-out, Mic-in rear jacks

§SPDIF digital output with rear RCA connector

§Front panel audio header

§One 4-pinCD-ROM audio input header

§One 4-pin Auxiliaryheader

BIOS

§Phoenix BIOS 6.0 on 4/8Mbit Flash ROM

§Supports Hyper-Threadingtechnology

§Supports BIOSBootSpecification v1.1 (BBS)

§Supports ACPI

§Supports SMBIOS v2.3

§Support LAN remote boot (PXE)

§Auto configuration of IDE hard disk types

Integrated 1394

§TITSB43AB22single-chip solution

§Two ports (one on rear panel and one

header for the front panel via an optional

cable)

http://www.TYAN.com

Integrated PCI IDE

§Provides two PCI bus master channels for

up to four Enhanced IDE devices

§Supports for UDMA 33/66/100 IDE drives

and ATAPI compliant devices

§Supports up to four Enhanced IDE devices

Integrated I/O

§Six USB 2.0 and 1.1 compatible ports

(4 rear connectors and 2 front panel headers

viaanoptionalUSBcable)

§Supportsonefloppydrivewith 3 mode

§One9-pin serial connector

§One25-pin ECP/EPP/SPP parallel

connector

§PS/2 mouse and keyboard connectors

§TwoIEEE1394(firewire)ports(1rear

connector and 1 front connector)

§One SPDIF RCA connector

System Management

§Total seven 3-pin fan headers

§Six fan headers with tachometer monitoring

§One3-pin Chassis Intrusion header

§Temperature, voltage and fan monitoring

Form Factor

§SSI EEB v3.0 footprint (12" x 13")

§8-layer design

§EPS12V

§Stacked PS/2 keyboard and mouse ports

§Stacked four USB2.0/1.1 ports

§Stacked one serial port and one parallel port

§One RJ45 LAN port with LEDs

§One IEEE-1394 port

§One SPDIFRCA port

§Audio Line-in,HI-out, and Mic-in ports

(Amplifier integerated)

Regulatory

§FCCDoC(DeclarationofConformity)

§European CE (Declaration of Conformity)

http://www.TYAN.com

Chapter 2: Board Installation

Installation

You are now ready to install your motherboard. The mounting hole pattern of the Thunder i7505

S2665 matches the EEB V3.0 specification. Before continuing with installation, confirm that your

chassis supports a standard EEB V3.0 motherboard.

How to install our products right….the first time!

The first thing you should do is read this user’s manual. It contains important information that will

make configuration and setup much easier. Here are some precautions you should take when

installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic bag.

Unplug the power from your computer power supply and then touch a safely grounded

object to release static charge (i.e. power supply case). For the safest conditions, Tyan

recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges. Do not touch the bottom of the board or flex the

board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors, memory modules,

and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic bag that the

board was shipped in.

(5) Inspecttheboardfordamage.

The following pages include details on how to install your motherboard into your chassis, as well

as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

WARNING:

The Thunder i7505 S2665 only supports EPS12V power supplies and will not operate with

other types. DO NOT use ATX 2.x, ATX12V and dual AMDGES power supplies as they will

damage the board and voidyourwarranty.

Only EEB V3.0 form factor chassis is supported. Other form factors may short the board

because the installation studs are in different locations.

http://www.TYAN.com

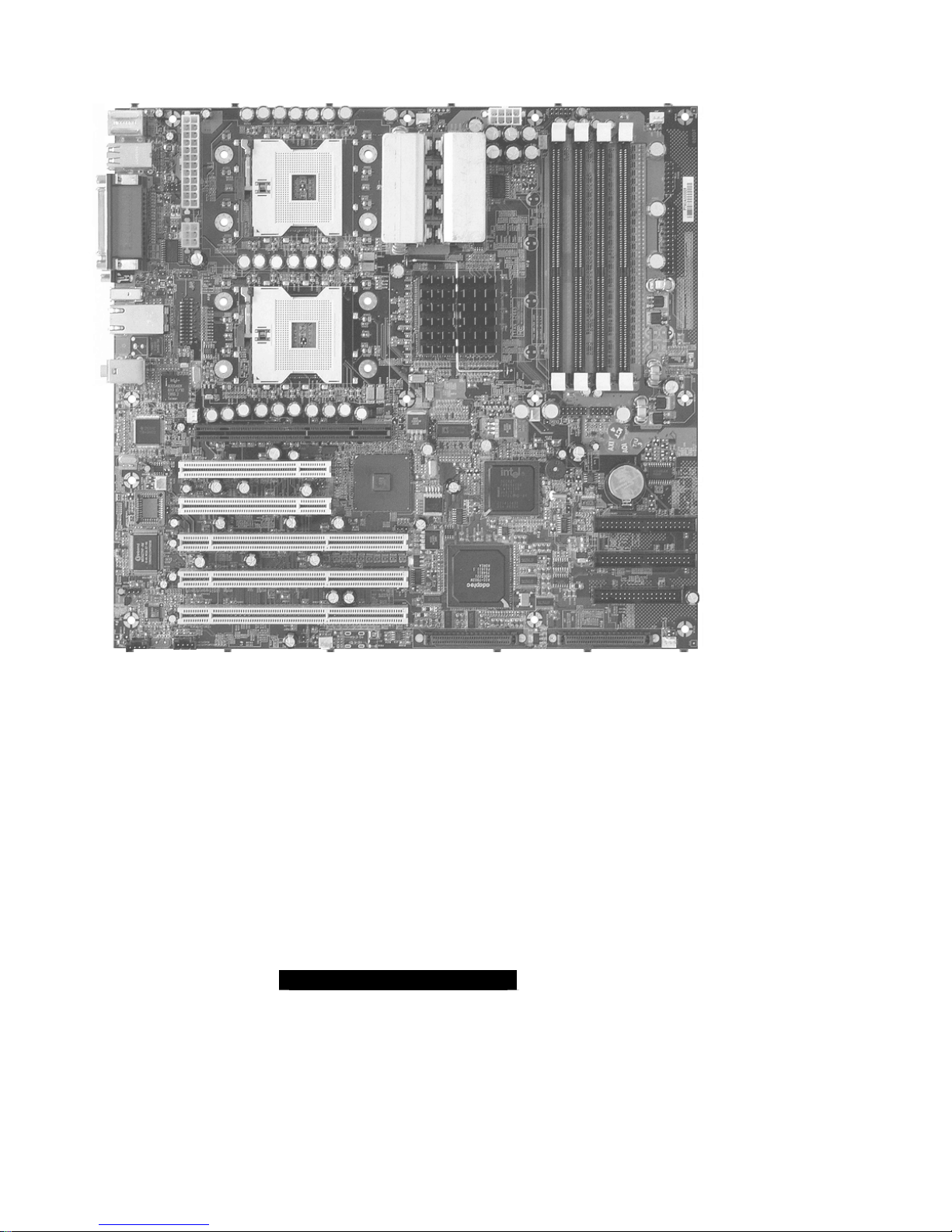

2.0–Board

The following is an image of the S2665.

This picture is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above picture.

The following page includes details on the vital components of this motherboard.

http://www.TYAN.com

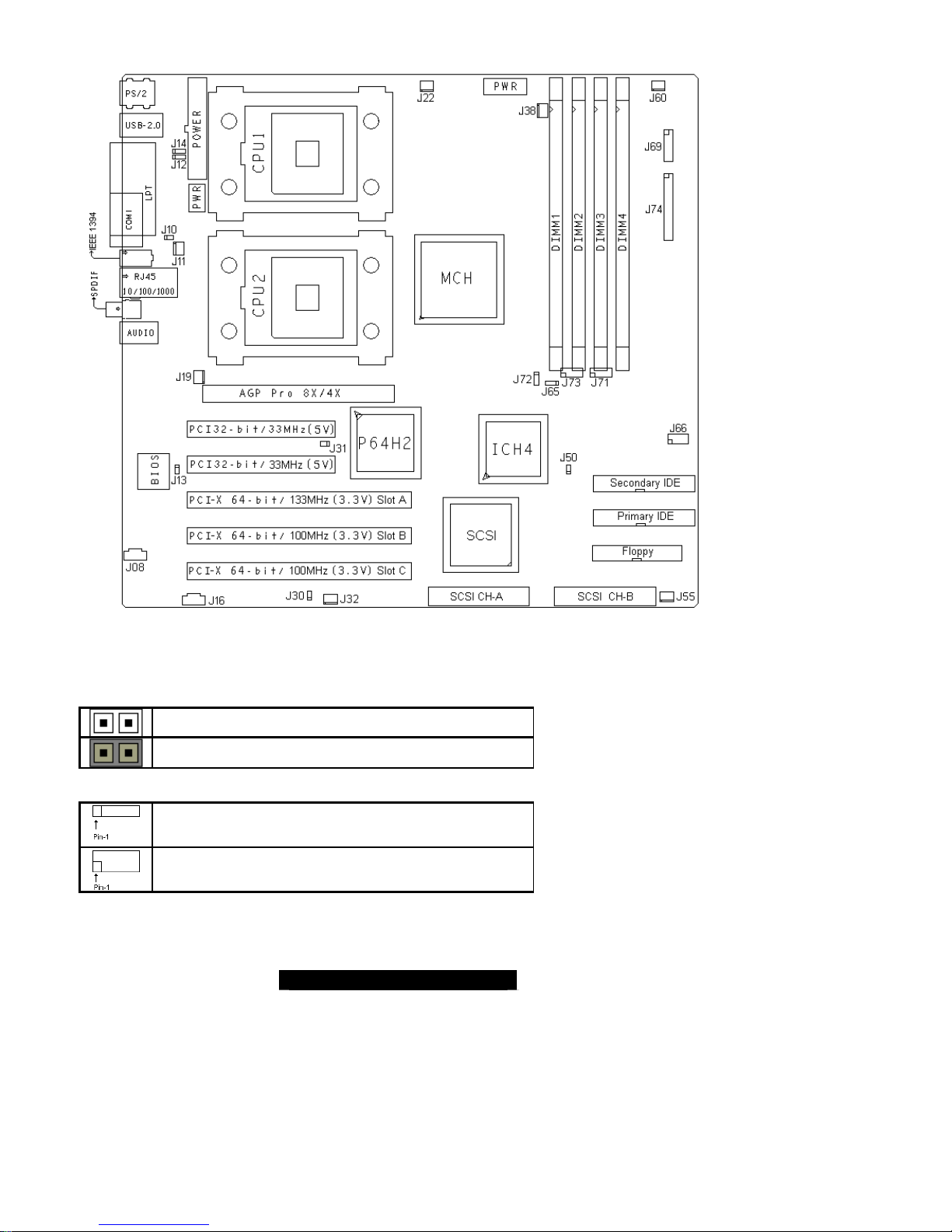

2.1–Board Parts, Jumpers a nd Connectors

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.

Jumper Legend

Jumper OFF without jumper cover

Jumper ON withjumper cover

To indicate where the location of pin-1

http://www.TYAN.com

2.2–Jumper and Connector Settings

Jumper /

Connector Function Settings

J8 AUX Audio Connector

J10 Enable/Disable Onboard Intel

82540EMGbENIC Open: Enable (Default)

Close: Disable

J11

Fan Connector Withtachometermonitoring

J12 ACPI Wake-up Jumper

(PS/2keyboardandPS/2

mouse)

ClosePin-1 and Pin-2 (Default)

PS/2 devices’ ACPI S1 wake up

ClosePin-2 and Pin-3

PS/2 devices’ ACPI S1/S4 wake up function

J14 ACPI Wake-up Jumper

(USBPort-A, USB Port-B, USB

Port-C and USB Port-D)

ClosePin-1 and Pin-2 (Default)

Rear panel USB devices’ ACPI S1 wake up

ClosePin-2 and Pin-3

Rear panel USB devices’ ACPI S1/S4 wake up

J16 CD Audio Input Connector

J19

Fan Connector Withtachometermonitoring

J22

Fan Connector Withtachometermonitoring

J30 Slot-A PCI-X/PCI-2.2 Jumper Open: PCI-X Compatible (Default)

Close: PCI-2.2 Compatible

J31 Slot-B, Slot-C and Onboard

SCSI PCI-X/PCI-2.2 Jumper Open: PCI-X Compatible (Default)

Close: PCI-2.2 Compatible

J32

Fan Connector Withtachometermonitoring

J38

Fan Connector Without tachometer monitoring

J50 ClearCMOSJumper Open: Normal (Default)

Close: Clear CMOS Mode

J55

Fan Connector Withtachometermonitoring

J60

Fan Connector Withtachometermonitoring

J65 ACPI Wake-up Jumper

(USBPort-E andUSBPort-F)

ClosePin-1 and Pin-2 (Default)

Front panel USB devices’ ACPI S1 wake up

ClosePin-2 and Pin-3

Front panel USB devices’ ACPI S1/S4 wake up

J66 IEEE1394Connector

J69 LCDConnector

J71 Front Panel Audio Connector

J72 Chassis Intrusion Connector

J73 Front Panel USB Connector

J74 Front Panel Connector

http://www.TYAN.com

2.3–AUX Audio Connector (J8) and CD Audio Connector (J16)

J 8 (AUX Audio connector)

Connects to internal audio sources such as TV

tuner, MPEG, or other similar cards

J16 (CD Audio connector)

Connects to a CD-ROM drive via an optional

CD audio cable

2.4–Enable/Disable Onboard LAN Jumper (J10)

OPEN (Default)

Toenable onboardLAN

To disable onboard LAN

2.5–Fan Connectors (J11, J19, J22, J32, J38, J55 and J60)

Use these headers to connect chassis and

processor cooling fans to your motherboard.

Cooling fans can keep the system stable and

reliable for its product life.

Max 850mA fans supported

Andere Handbücher für THUNDER I7505

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TYAN Hauptplatine Handbücher

TYAN

TYAN S8010 Bedienungsanleitung

TYAN

TYAN TIGER MPX Bedienungsanleitung

TYAN

TYAN S7086 Bedienungsanleitung

TYAN

TYAN TAHOE-A ATX Bedienungsanleitung

TYAN

TYAN S5532 Bedienungsanleitung

TYAN

TYAN TIGER K8SSA Bedienungsanleitung

TYAN

TYAN Tiger K8WE S2877 Bedienungsanleitung

TYAN

TYAN TIGER I7501R Bedienungsanleitung

TYAN

TYAN S5560 Bedienungsanleitung

TYAN

TYAN Tempest i5400PW Bedienungsanleitung

TYAN

TYAN THUNDER H2000M Bedienungsanleitung

TYAN

TYAN S7025 Bedienungsanleitung

TYAN

TYAN S5510 Bedienungsanleitung

TYAN

TYAN THUNDER K7X Bedienungsanleitung

TYAN

TYAN S8032 Bedienungsanleitung

TYAN

TYAN S1830 TSUNAMI AT Bedienungsanleitung

TYAN

TYAN TOMCAT N3400B Bedienungsanleitung

TYAN

TYAN S3115 Bedienungsanleitung

TYAN

TYAN TOMCAT N3400B Bedienungsanleitung

TYAN

TYAN TRINITY GC-SL Bedienungsanleitung

TYAN

TYAN THUNDER K8QSD PRO Bedienungsanleitung

TYAN

TYAN TEMPEST II Bedienungsanleitung

TYAN

TYAN S5501 Bedienungs- und Wartungshandbuch

TYAN

TYAN Tiger MPX S2466 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
