TYAN THUNDER H2000M Bedienungsanleitung

http://www.tyan.com

Thunder h2000M ///

S3992

Version 1.0

this manual may be reproduced or translated without prior written consent from

TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Taro andThunder h2000Mare trademarks of TYAN Computer

Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

Nvidia and nForce are trademarks of Nvidia Corporation

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of Novell.

Linux is a trademark of Linus Torvalds

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

http://www.tyan.com

Table of Contents

Chapter 1: Introduction

1.1 Congratulations Page 5

1.2 Hardware Specifications Page 5

Chapter 2: Board Installation

2.1 Board Image Page 8

2.2 Block Diagram Page 9

2.3 Board Parts,Jumpers and Connectors Page 10

2.4 Tips on Installing Motherboard in Chassis Page 22

2.5 Installing the Processor(s) Page 23

2.6Installing the Memory Page 28

2.7Attaching Drive Cables Page 31

2.8Installing Add-In Cards Page 33

2.9Installing Optional SO-DIMM Modules Page 34

2.10 Connecting External Devices Page 35

2.11Installing the Power Supply Page 36

2.12Finishing Up Page 37

Chapter 3: BIOS

3.1 BIOS Setup Utility Page 39

3.2 BIOS Menu Bar Page 40

3.3 BIOS Legend Bar Page 40

3.4 BIOS Main Menu Page 42

3.5 BIOS Advanced Menu Page 43

3.6 BIOS PnP/PCI Menu Page 63

3.7 BIOS Boot Menu Page 65

3.8 BIOS Security Menu Page 69

3.9 BIOS Chipset Menu Page 70

3.10 BIOS Exit Menu Page 80

Chapter 4: Diagnostics

4.1 Beep Codes Page 81

4.2 Flash Utility Page 81

4.3 AMIBIOS Post Code Page 82

Appendix I: SMDC Information Page 85

Appendix II: How to Make a Driver Diskette Page 87

Glossary Page 89

Technical Support Page 95

http://www.tyan.com

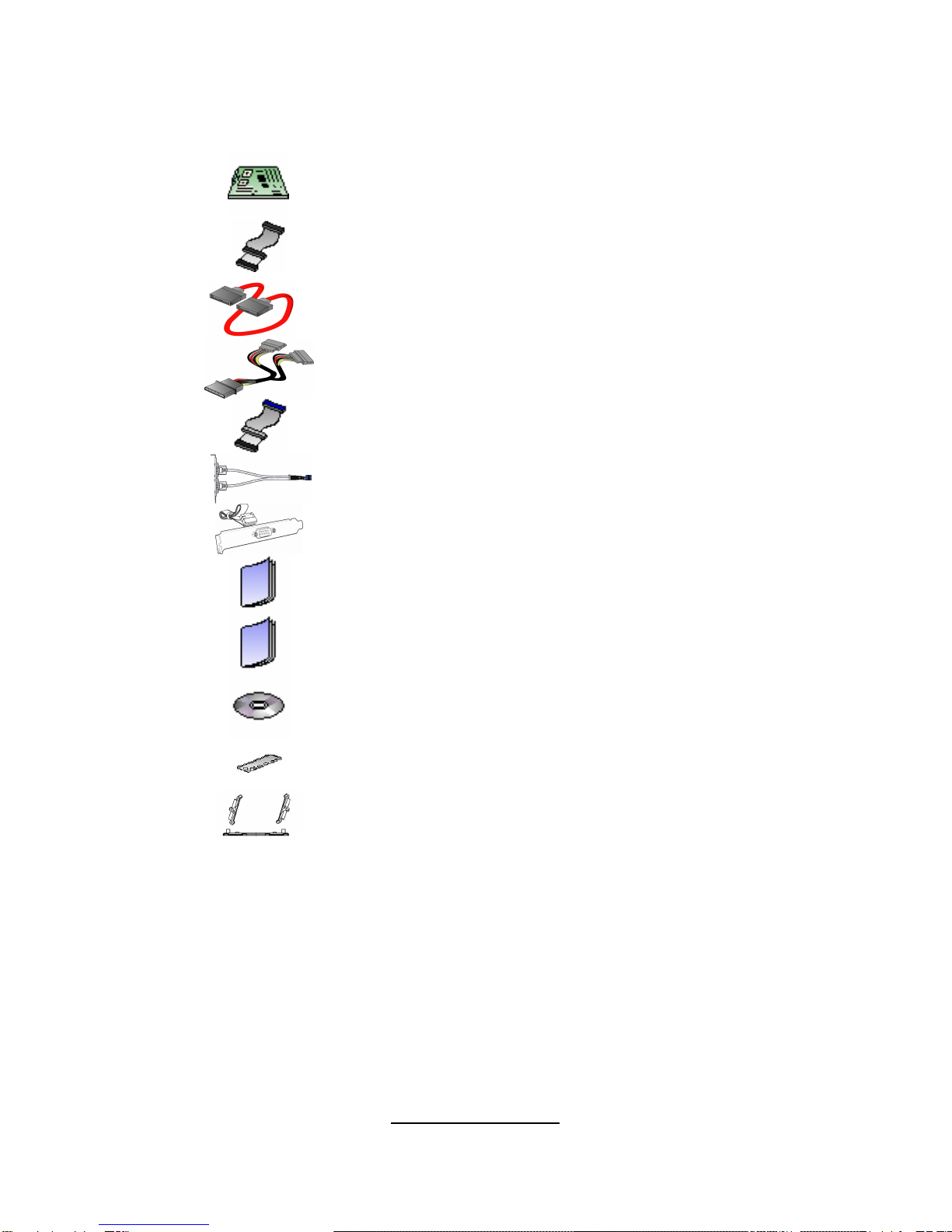

Check the box contents!

The retail motherboard package should contain the following:

1x Thunder h2000Mmotherboard

1x 34-Pin floppy drive cable

4x SATA cable

2 x S-ATA Power cable

1 x Ultra-DMA-100/66 IDE cable

1 x USB2.0 cable

1x COM Port cable

1x Thunder h2000MUser’s Manual

1x Thunder h2000MQuick ReferenceGuide

1x TYAN driver CD

1x I/O shield

2 x CPU Retention Frame and Back Plate

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

http://www.tyan.com

NOTE

http://www.tyan.com

Chapter 1: Introduction

1.1 -Congratulations

You have purchased one of the most powerful server solutions available. The

Thunder h2000M(S3992) is a high-endservermotherboard, based onthe

ServerWorks BCM5780 & BCM5785 chipsets. It also includes the NS PC87417

Super I/O and SMSC EMC6D103 Hardware Monitoring chipsets.

This motherboard is designed to support up to two AMD Opteron™2000 Series

processors and DDRII 667/533 memory. The S3992 is ideal for CPU, memory,

and network intensive applications required in the HPC and clustering

environments.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 -Hardware Specifications

Processors

•Two uPGA 1207-pin ZIF sockets

•Supports up to two AMD OpteronTM

2000 Series processors

•Integrated 128-bit DDRII memory

controller

Chipset

•ServerWorks BCM5780 (HT2000) +

BCM5785 (HT1000) chipsets

•National PC87417 Super I/O chip

Memory

•128-bit dual channel memory bus

•Total sixteen (16) 240-pin 1.8V DDRII

DIMM sockets (8 on CPU1 and 8 on

CPU2)

•Supports up to DDRII 667MHz

•Registered, ECC module supported

System Management

•Two (2) EMC6D103 hardware

monitoring IC

•Eight (8) 3+1 fan headers support

tachometer monitoring, six (6) of them

with smart FAN control

Integrated Video Controller

•ATI ES1000 controller

•32MB DDR frame buffer

Integrated Enhanced IDE

Controller

•Single-channel master mode supports

up to two IDE devices

•Supports IDE drives and ATAPI-

compliant devices

Integrated SATA Controllers

•Supports Four SATA ports at 1.5Gb/s

with NCQ.(BCM5785 Chipset)

•RAID 0/1/5/10 supported

BIOS

•AMI BIOS on 8Mbit LPC Flash ROM

•ACPI 2.0 and SRAT support

•PXE via Ethernet, USB device boot

•SMBIOS 2.3.1, BBS 1.1 compliant

•Headless Operation via serial console

redirect

•48-bit LBA Support

http://www.tyan.com

•Temperature and voltage monitoring

•Watchdog timer support

Expansion Slots

•Two (2) PCI Express X16 slots (each

w/x8signal)

•Two (2) PCI-X 133/100MHz slots

•One (1) PCI-X 100MHz slot

•One (1) PCI 32-bit/33MHz, v2.3

compliant slot

•One (1) TYAN “TARO”SO-DIMM

socket

Integrated I/O

•One floppy connector

•One IDE connector

•Four SATA connectors

•Four USB2.0 ports (2 at rear, 2 via

cable)

•Two COM ports (1 at rear, 1 via cable)

•Tyan 2 x9front panel pin header

•Tyan 2 x6 front panel pin header for

LAN/ID LED

•Tyan 2 x 7 pin header (2.0mm) for

FAN tachometer and PWM

•2x25 connector for optional TYAN

IPMI SMDC

Back Panel I/O Ports

•Stacked PS/2 Mouse & Keyboard

ports

•Stacked 2 USB ports and 1 10/100

RJ45 port

•One 9-pin COM port

•One 15-pin VGA connector

•Twoside-by-side RJ-45 ports

Form Factor

•Extended ATX footprint (13”x 12”)

•EPS12V/ATX 12V universal power

connectors

Integrated LAN Controllers

•Dual GbE LAN (from BCM 5780)

-Embedded in BCM5780

-Two 10/100/1000 RJ-45 LAN ports

w/LED

•One Intel i82551 QM fast Ethernet

controller

-One 10/100 RJ-45 LAN port w/LED

-Operating on 32bit/33MHz PCI bus

Optional Modules

•M3291, IPMI 2.0 Remote System

Mgmt card

-Renesas H8S2167 BMC controller

-BT, KCS, Logging support

-IPMI-over-LAN

-Remote power on/off and reset

•M7901/M7902, Ultra 320 SCSI TARO

card

-AdaptecAIC-7901/7902 single/dual-

channel Ultra320 SCSI controller

-Adaptec Host RAID 0, 1, 10 supported

•M9000 SAS/SATA II TARO card

-AdaptecAIC-9405/9410 SAS

controller

-Supports up to 4-port(M9000-5) and

8-port(M9000-10) SAS & SATA running

at 3.0Gb/s

-Adaptec HostRAID 0, 1 & 10

supported

Power

•Onboard dual 4-phaseVRM

•EPS12V/SSI v3.51 (24+8) power

connectors

Regulatory

•FCC Class B (DoC)

•European Community CE (DoC)

http://www.tyan.com

Chapter 2: Board Installation

Precautions: TheThunder h2000Msupports SSI, EPS12V type powersupplies

(24pin + 8pin) and will not operate with any other types. For proper power

supply installation procedures see page 36.

DO NOT USE ATX 2.x or ATXGES power supplies as they will damage the

board and void your warranty.

How to install our products right…the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED.

http://www.tyan.com

2.1-Board Image

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.

The following page includes details on the vital components of this

motherboard.

http://www.tyan.com

2.2 -Block Diagram

Thunder h2000M (S3992)Block Diagram

http://www.tyan.com

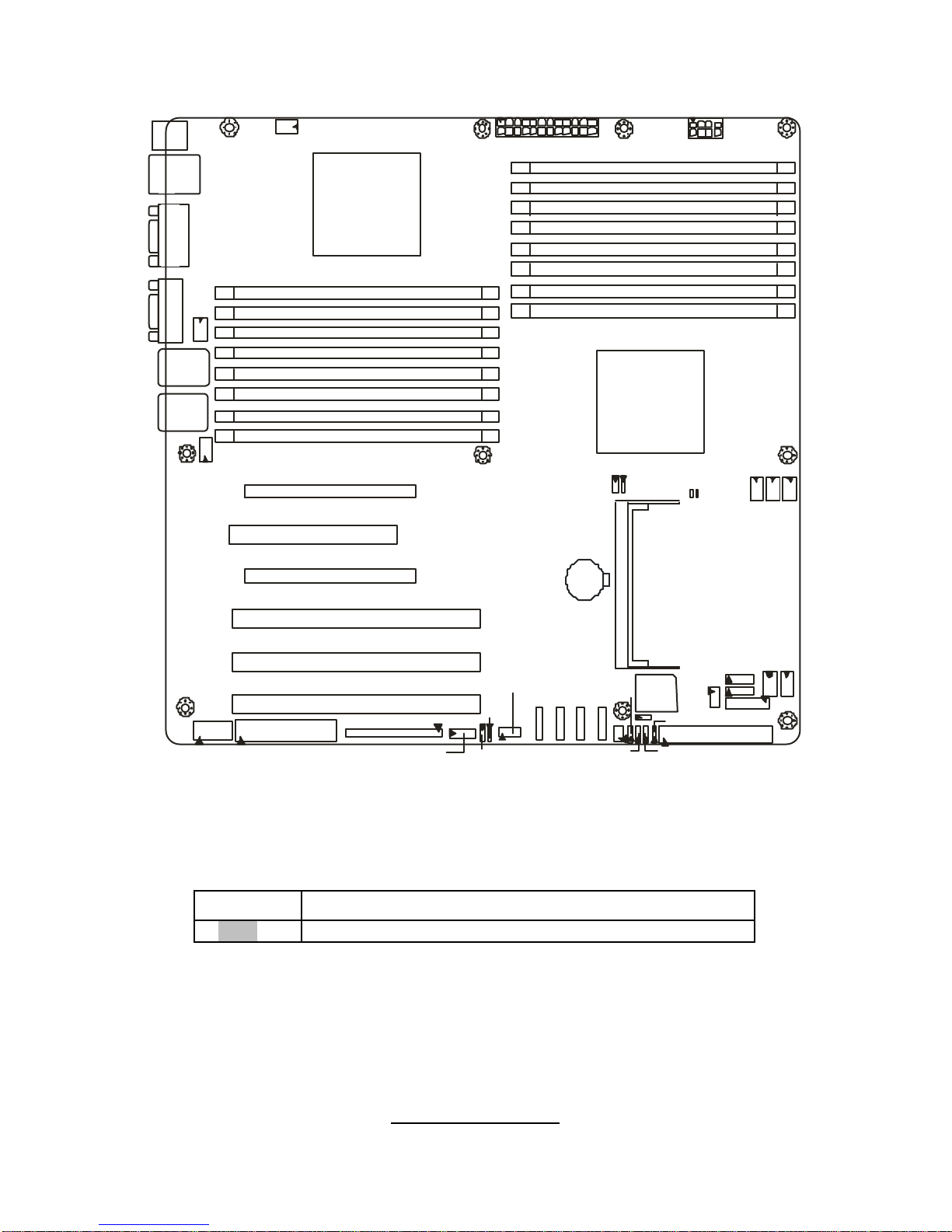

2.3 -Board Parts, Jumpers and Connectors

CPU1

KB/MS

LAN3

USB x 2

COM1

VGA

LAN2

LAN1

CPU2

PW2

PW1

CPU1_DIMMA0

CPU1_DIMMB0

CPU1_DIMMA1

CPU1_DIMMB1

CPU1_DIMMA2

CPU1_DIMMB2

CPU1_DIMMA3

CPU1_DIMMB3

CPU2_DIMMA0

CPU2_DIMMA1

CPU2_DIMMA2

CPU2_DIMMA3

CPU2_DIMMB0

CPU2_DIMMB1

CPU2_DIMMB2

CPU2_DIMMB3

PCI-E1

PCI-E2

PCI

PCIX-P1

PCIX-S2

PCIX-S1

COM2

(J9) FDD (J10) SMDC (J18)

SATA3

IPMB (J19)

J43

JP2

IDE (J44)

USB2 (J28) JP5 J47

J46 J49

CPUFAN1

FAN3

JP8

JP3

JP1

SATA2

SATA1

SATA0

JP7

JP9

FAN4 FAN1

FAN2

JP4

SO-DIMM Socket

JP10

FAN5 FAN6

CPUFAN2

J60

LED1

LED2

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.

Jumper Legend

Andere Handbücher für THUNDER H2000M

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TYAN Hauptplatine Handbücher

TYAN

TYAN M4881 Bedienungsanleitung

TYAN

TYAN TEMPEST I5000XT Bedienungsanleitung

TYAN

TYAN Tempest i5100X S5375 Bedienungsanleitung

TYAN

TYAN THUNDER HESL-T Bedienungsanleitung

TYAN

TYAN THUNDER I7525 Bedienungsanleitung

TYAN

TYAN THUNDER K8QW Bedienungsanleitung

TYAN

TYAN S5535 Bedienungsanleitung

TYAN

TYAN S7012 Bedienungsanleitung

TYAN

TYAN TIGER 133 Bedienungsanleitung

TYAN

TYAN TRINITY 450 Bedienungsanleitung

TYAN

TYAN Tomcat i875P S5102 Bedienungsanleitung

TYAN

TYAN TOMCAT I845GV Bedienungsanleitung

TYAN

TYAN TACOMA Bedienungsanleitung

TYAN

TYAN S5530 Bedienungsanleitung

TYAN

TYAN TIGER K8W Bedienungsanleitung

TYAN

TYAN S7082 Bedienungsanleitung

TYAN

TYAN S7012 Bedienungsanleitung

TYAN

TYAN TOMCAT I II Bedienungsanleitung

TYAN

TYAN TAHOE AT Bedienungsanleitung

TYAN

TYAN THUNDER I7520, D, R, RD Bedienungsanleitung

TYAN

TYAN S7070 Bedienungsanleitung

TYAN

TYAN TRINITY 100AT Bedienungsanleitung

TYAN

TYAN TIGER 100 Bedienungsanleitung

TYAN

TYAN S1846 Tsunami ATX Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
