Before you begin…

Check the box contents!

The retail motherboard package should contain the following:

1x Tomcat i815ef motherboard

1x 34-Pin floppy drive cable

1x Ultra-DMA-100/66/33 IDE cable

1x Tomcat i815ef user’s manual

1x TYAN driver CD

1x I/O shield plate with dual LAN ports

If any of these items are missing, please contact your vendor/dealer for replacement before

continuing with the installation process.

http://www.tyan.com

Chapter 1: Introduction

1.1 Congratulations!

You are now the owner of the TYAN Tomcat i815ef motherboard. The TYAN Tomcat i815ef

provides leading edge features and performance for systems based on the Flex ATX form factor.

Utilizing the Intel 815e (B-Step) chipset, this system board supports Intel’s Celeron, Pentium III as

In addition to flexible processor support, the Tomcat i815ef features dual LAN ports, perfect for

supporting simultaneous connections to a network and a broadband communications device. This

platform also features two DIMM sockets, two PCI slots, dual-channel UltraDMA-100, USB and

more! *Please see TYAN’s website for updates and information concerning CPU information and

support:

http://www.TYAN.com

While the Tomcat i815ef is designed to fit into tight quarters, it also offers expansion options via

two PCI slots. However, with all critical devices and tool built onboard already, the Tomcat i815ef

cuts down on costs as well as time.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can find information on all

of TYAN’s products with FAQs, distributors list and BIOS setting explanations.

1.2 Hardware Specifications

Processor

•Single PGA370 ZIF sockets

•Supports one Intel Celeron or Pentium III

processor, including the new Tualatin CPU

•SDR bus support for 133MHz

•Integrated VRM (VRM 8.5 spec)

Chipset

•Intel i815e (B-Step) Chipset

•National PC87366 Super I/O ASIC

Memory

•Two 3.3v 168-pin DIMM sockets

•Supports up to 512MB of unbuffered PC133

SDRAM (only)

Expansion Slots

•2 32-bit/33MHz PCI bus mastered slots (5V)

Integrated PCI IDE

•Two 40-pin IDE connectors for up to 4

devices

•PIO mode 3, 4, UltraDMA 33/66/100 support

•ATAPI, HDD, CDROM device support

Integrated LAN

•Two Intel 10/100 LAN controllers (per

controller)

•One via 82599 controller and one via Intel’s

ICH2 (8252EM)

Integrated 2D/3D Graphics

•Onboard Intel 815e graphics accelerator

•Standard 15-pin analog VGA out

BIOS

•AMI 4Mb BIOS Flash ROM

•Fully Plug-and-Play

•APM 1.2/ACPI 1.0/PC99 compliant

•DMI 2.0 compliant

•Soft Power Down

•Multiple boot options

Form Factor

•Flex ATX footprint (9” x7.5”

228.6mmx190.5mm)

•One 20-pin ATX power connector

•Stacked USB (two) ports

•Stacked keyboard and mouse ports

http://www.tyan.com

Integrated I/O

•One floppy connector supports up to two

drives

•Two 9-pin 16550-based serial ports

•One 25-pin SPP/ECP/EPP parallel port

•One IR Tx/Rx header

•2 USB ports (additional via optional cable)

•PS/2 keyboard and mouse ports

Regulatory

•FCC DoC (declaration of Conformity)

•European Community of CE (declaration of

Conformity)

1.3 Software Specifications

OS Windows 9x/ME/NT/2000

http://www.tyan.com

Chapter 2: Board Installation

Installation

You are now ready to install your motherboard. The mounting hole pattern of the Tomcat i815ef

matches the ATX system board specifications. Your chassis should support a standard ATX

motherboard form factor.

How to install our products right… the first time

The first thing you should do is read this user’s manual. It contains important information which will

make configuration and setup much easier. Here are some precautions you should take when

installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic bag.

Unplug the power from your computer power supply and then touch the power supply.

For the safest conditions, Tyan recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board.

(3) Avoid touching the motherboard components, IC chips, connectors, and leads.

(4) Avoid touching memory module contacts and IC chips

(5) Place the motherboard on a grounded antistatic surface or on the antistatic bag from

which it came in.

Having reviewed the precautions above, the next step is to take the motherboard out of the

cardboard box and static bag, hold it by its edges and place it on a grounded antistatic surface,

component side up. Inspect the board for damage.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.tyan.com

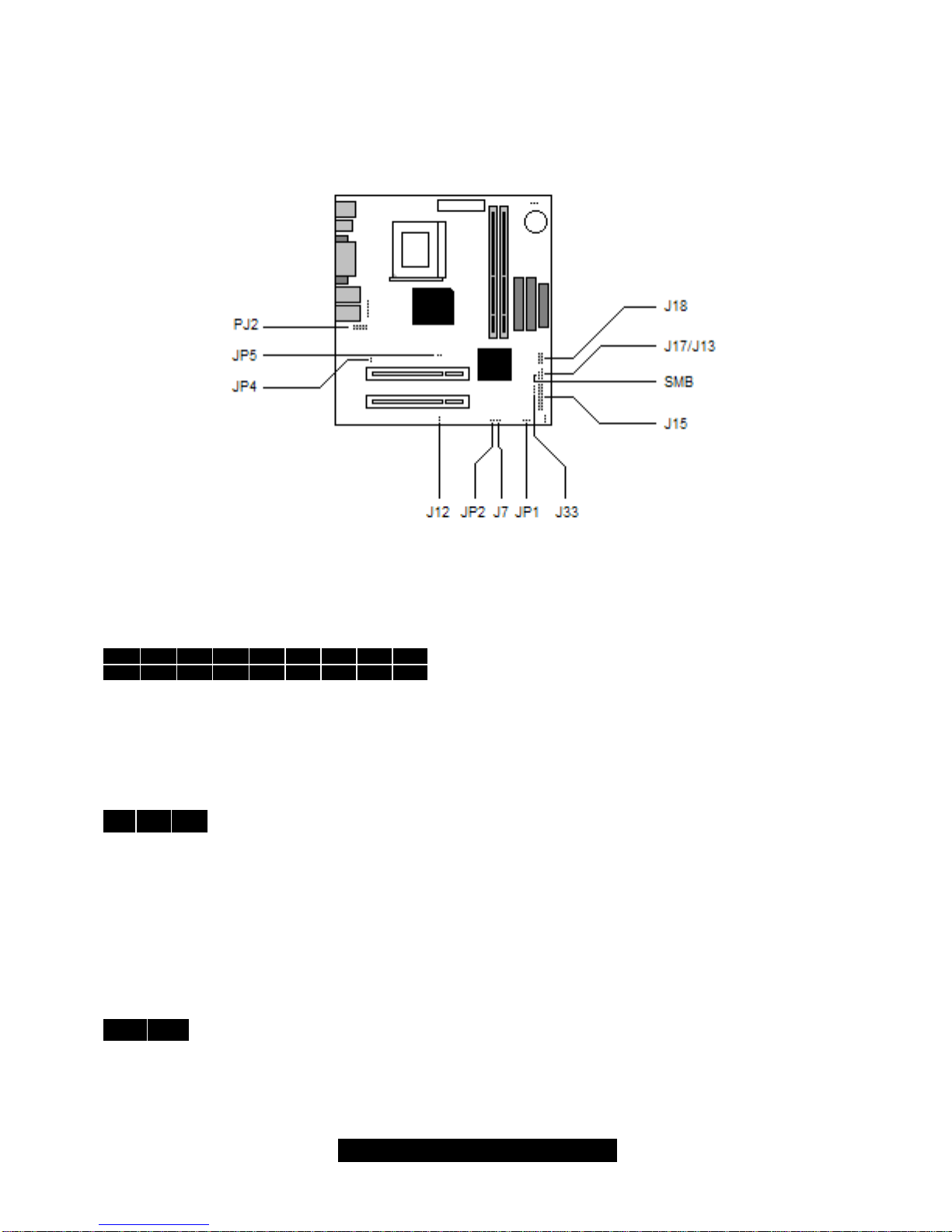

2.1 – Jumper Section

Pin outs for certain connectors are available on the Tyan website: http://www.tyan.com

2.1a Front Panel Connector (J15)

Your chassis will usually come with connectors to install onto the motherboard, such as HDD and

Power LEDs. The Front Panel Connector (J80) has been implemented for such purposes.

17 15 13 11 9 7 5 3 1

18 16 14 12 10 8 6 4 2 1,3: HD LED

2,4: Power LED

5,7: Reset Switch

6,8: Power Switch

11-17: Infra Red (IR) On/Off

2.6b – CMOS Reset (JP1)

1 2 3 1,2: Connect these two pins together to reset the CMOS settings in case an

incorrect setting causes system instability or you have forgotten your system/setup

password of have just flashed your BIOS.

-Power off the system and disconnect the power supply.

-Close pins 2 and 3 on JP1

-Wait about 5 seconds

-Close pins 1 and 2 on JP1

-Reconnect the power supply and power on the system

2.6c – Disable/Enable LAN1 (JP5)

1 2 Closed (default): LAN1 port is disabled.

Open: LAN1 port is enabled.

http://www.tyan.com

2.6d – Disable/Enable LAN2 (JP4)

Closed (default): LAN1 port is disabled.

Open: LAN1 port is enabled.

2.6e – Hard drive activity LED (J12)

Use this jumper to connect your chassis’ hard drive LED.

2.6f – Flash Open (JP2)

1 2 Closed (default): Allows you to upgrade the onboard CMOS

Open: Prevents onboard CMOS from being upgraded

2.6g – COM2 connector (PJ2)

This connector allows you to use the supplied serial extension cable if you need to use more than

1 serial devices.

2.6h – Chassis Intrusion header (J7) [optional]

1 2 Use these connectors if your chassis has intrusion detection, otherwise, leave it as is.

2.6i–USB connector (J18)

This connector allows you to use your chassis’ front panel USB connector if it comes with one.

If 3 and 4 are connected (default), the motherboard will use the onboard speaker for

audio related purposes. If 3 and 4 are not connected, you may use you chassis’

internal speaker. Either one will be fine.

2.6k –ACPI LED (J33)

Use this connector if your chassis has front LEDs for notification for sleep or suspend

modes.

http://www.tyan.com

2.7 Mounting the motherboard

Your chassis may include mounting hardware. If mounting hardware was included, you can use

the following examples to help you in stalling your motherboard into the chassis.

If your chassis has the studs integrated into the chasses wall, then you would only need to use

screws (possibly included with your chassis) to install the motherboard. See examples (Figure 2.0,

shown below for more details.

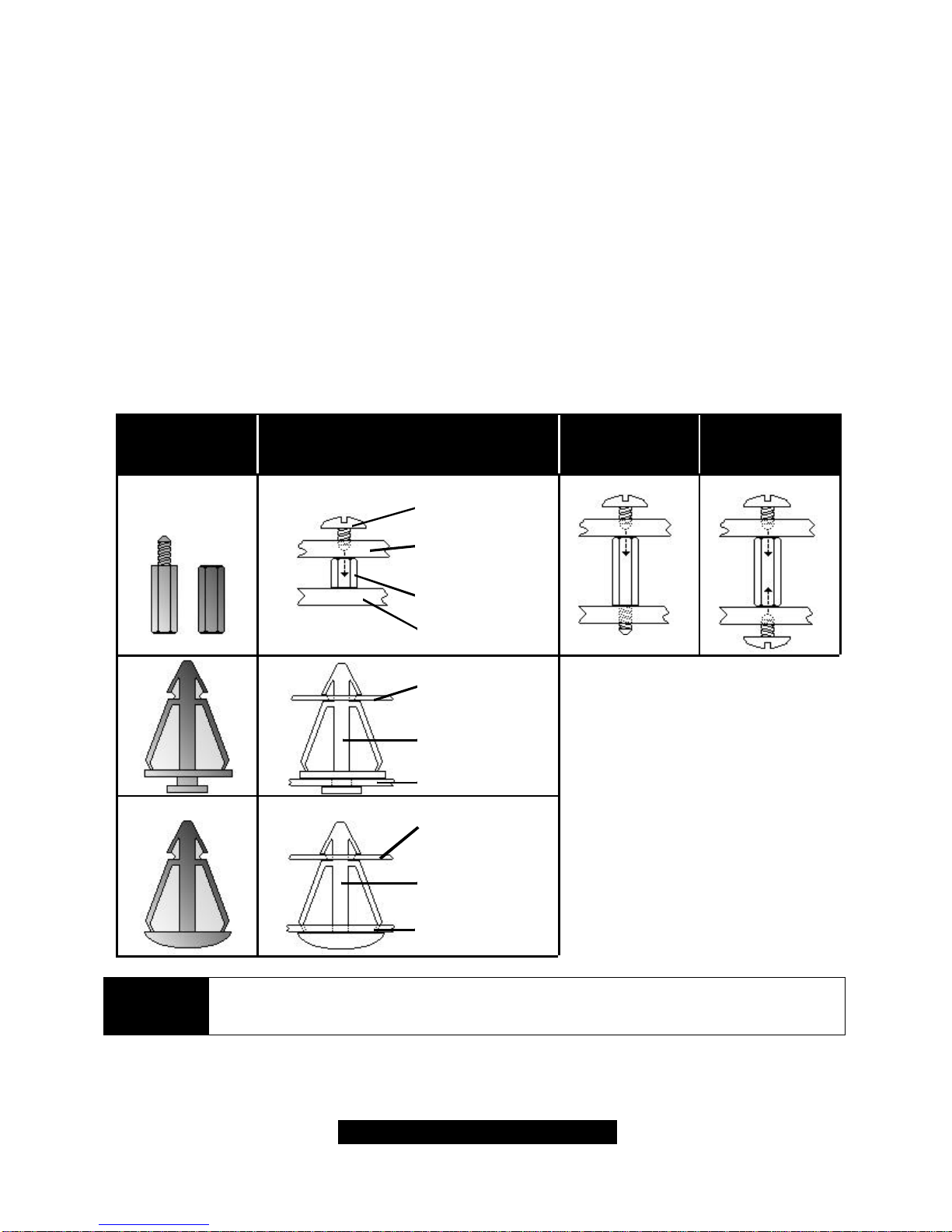

If the chassis includes mounting hardware without the studs pre-installed, then you will need to

install the motherboard using the mounting hardware as shown in the examples below.

Remember not to over tighten any of the screws, or you may risk breaking internal traces in the

surrounding area, or damage the motherboard in some other way.

Other examples of how to install your motherboard using other hardware (that may or may not

have been included with your chassis) are shown below.

One solution for installing motherboardType of hardware Another solution

NOTE The diagrams above are only representative of a few solutions for installing a

motherboard into the chassis. The installation procedure for installing your

motherboard into the chassis may differ.

http://www.tyan.com

2.8 Installing Memory

Please keep in mind that although some memory modules may appear to be high-quality, they

may contain inferior or substandard parts. The type of memory you choose to install should be

checked against the memory compatibility list, which is available from Tyan’s website at

http://www.tyan.com.

Here are some details of memory installation for this board:

-At least one SDRAM DIMM must be installed for the system to POST.

-Supports 128MB, 256MB, and 512MB PC133/100 SDRAM.

-All installed memory will be automatically detected.

-The motherboard supports up to 512MB of PC133 unregistered/unbuffered SDRAM

memory.

Memory Installation Procedure

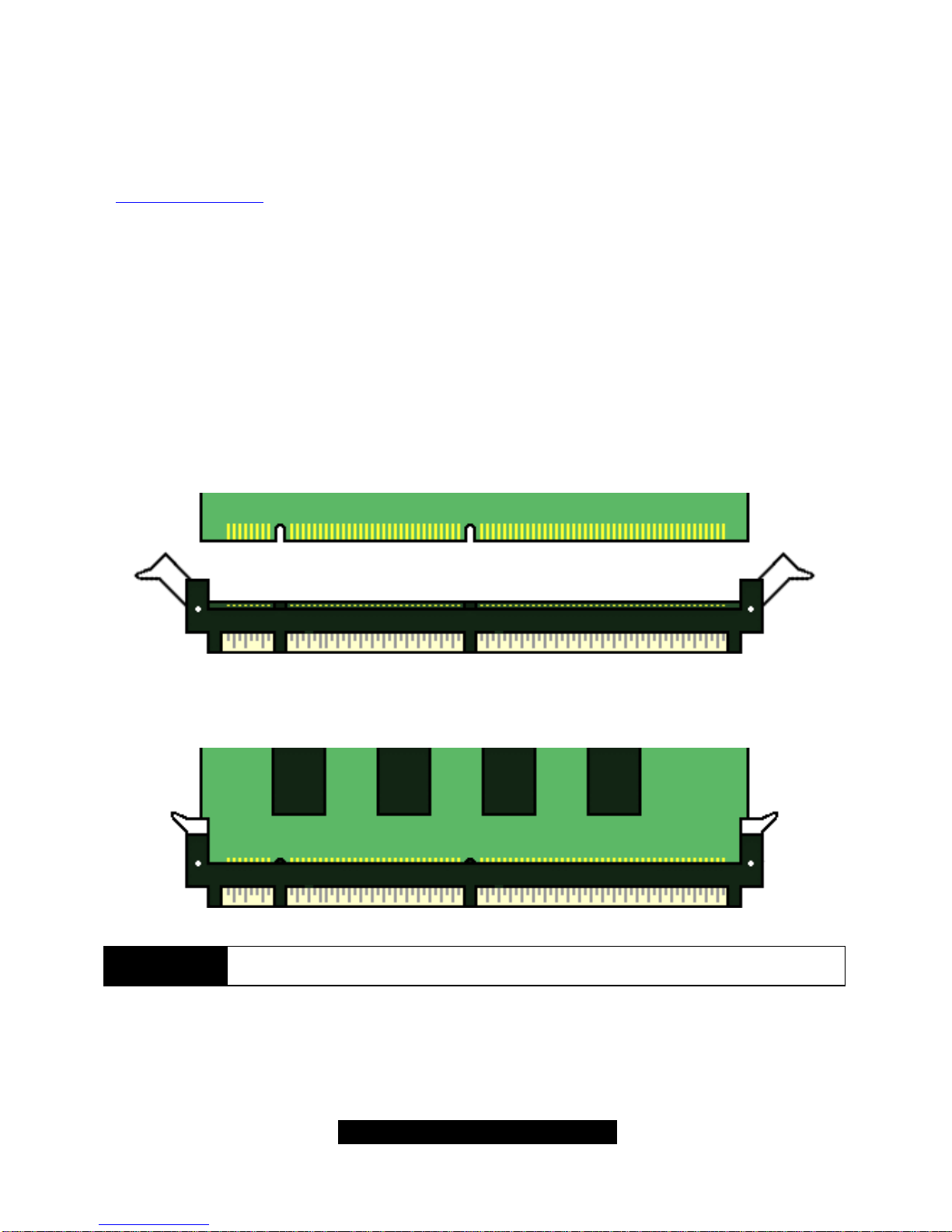

Step1: Line your module up so that the pins fit into the socket. There is only one way your DIMM

can fit properly. Make sure that the short row of pins is lined up with the short gap in the DIMM

socket, just as the long row of pins should line up with the long gap in the DIMM socket.

Step2: Insert the DIMM by pushing the module into the socket with even force Do not insert one

end and then the other: install the whole module at once or you might bend the DIMM pins. Make

sure the DIMM is securely seated.

NOTE Your memory modules may not look like those in the above diagram; they are

used simply as examples.

Look the DIMM into place by pushing the clips back on either end of the socket onto the notches

in the ends of the DIMM (see pictures above details).

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TYAN Hauptplatine Handbücher

TYAN

TYAN Tempest i5000VS S5372-LC Bedienungsanleitung

TYAN

TYAN TIGERCUB ATX Bedienungsanleitung

TYAN

TYAN S7053 Bedienungsanleitung

TYAN

TYAN TIGER GC-SL Bedienungsanleitung

TYAN

TYAN TRINITY 400 Bedienungsanleitung

TYAN

TYAN Toledo q35T Bedienungsanleitung

TYAN

TYAN THUNDER K7 Montage- und Bedienungsanleitung

TYAN

TYAN S7106 Bedienungsanleitung

TYAN

TYAN Thunder n3600QX Bedienungsanleitung

TYAN

TYAN THUNDER K8QSD PRO Bedienungsanleitung

TYAN

TYAN TITAN TURBO ATX-2 Bedienungsanleitung

TYAN

TYAN Tomcat i7221 S5150 Bedienungsanleitung

TYAN

TYAN THUNDER I7501 XTREME Bedienungsanleitung

TYAN

TYAN THUNDER LE-T Bedienungsanleitung

TYAN

TYAN S8028 Bedienungsanleitung

TYAN

TYAN S5548 Bedienungsanleitung

TYAN

TYAN TIGER I7320, D, R, RD Bedienungsanleitung

TYAN

TYAN THUNDER K8S Bedienungsanleitung

TYAN

TYAN S8212 Bedienungsanleitung

TYAN

TYAN Thunder K8S Pro Bedienungsanleitung

TYAN

TYAN TEMPEST I5000XT Bedienungsanleitung

TYAN

TYAN TRINITY I845E Bedienungsanleitung

TYAN

TYAN S2723 Bedienungsanleitung

TYAN

TYAN InterServe 90 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
