5-97ESLO

Technical

Data

Product

Description

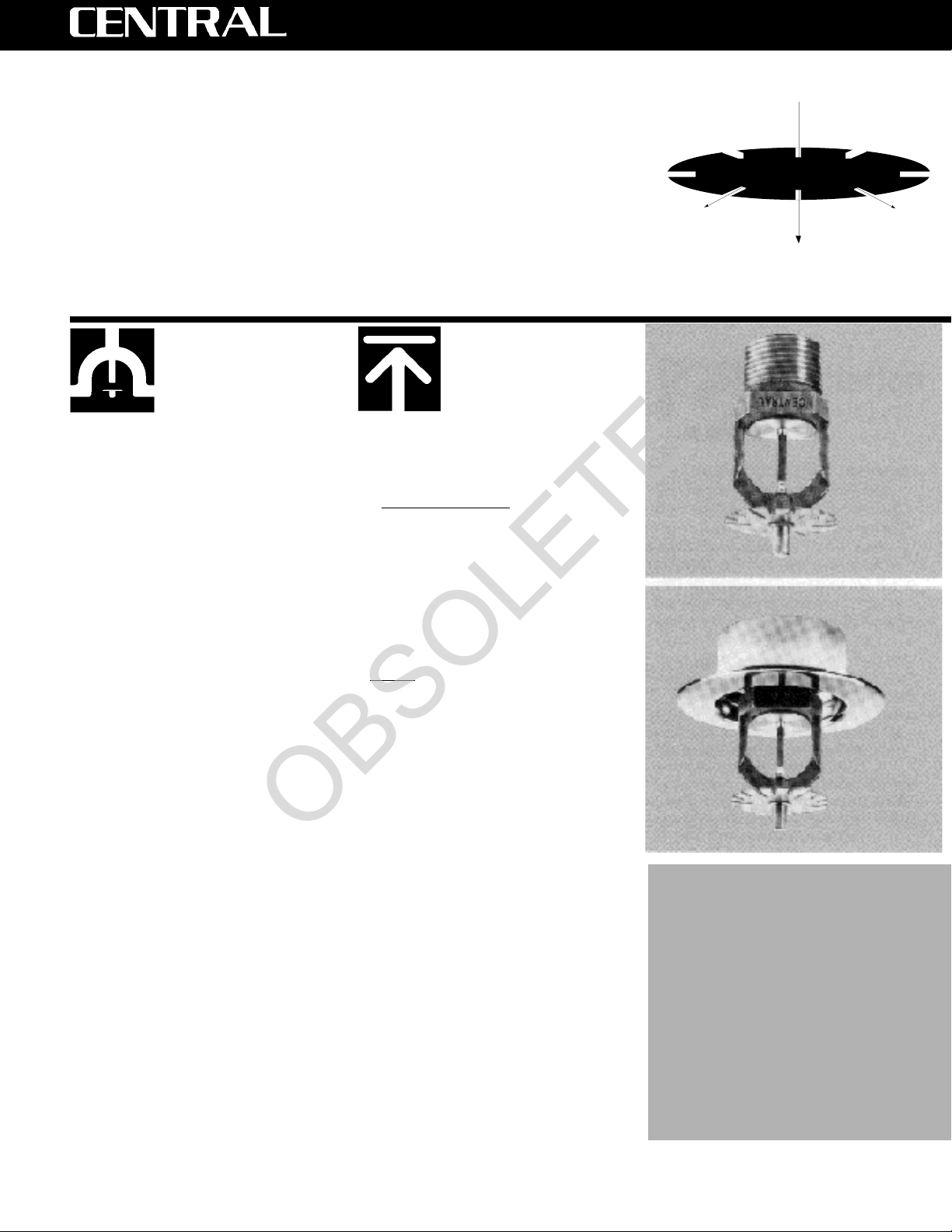

The Central Model ESLO Very Extra

Large Orifice Recessed Pendent and

Pendent Automatic Glass Bulb Sprinklers

are specifically designed for Extended

Coverage/Light Hazard for all Groups as

defined by NFPA 13. They are Listed as

Quick Response, up to 18'x18' spacing,

and as Standard Response, above 18'x18'

spacing. Maximum ceiling slope of 2" per

foot. The ESLO is Listed for smooth flat

horizontal ceilings as are all Extended

Coverage Light Hazard Sprinklers.

The ESLO provides the maximum in

design flexibility as it has a minimum

separation of only 9'-0" and is Listed for

flows and pressures associated with

16'x16', 18'x18' and 20'x20' spacing.

They are intended for use, as all ex-

tended coverage sprinklers are, with

hydraulically designed systems and using

the flows and pressures as shown in this

brochure. For the purpose of determining

the correct flow and pressure to use in the

hydraulic calculations, all spacing is

rounded up to the next higher category.

For example, 17'-6"x15'-0" spacing would

be calculated at the Listed 18'x18' flow and

pressure.

The advantage of the ESLO is the ability

to cover large areas, up to 400 square

feet, with pressures that compare to 1⁄2"

standard sprinklers spaced at their

maximum of 225 square feet. For ex-

ample, the ESLO can cover 20'x20'

spacing or 400 square feet with less

pressure than is required with 1⁄2" sprin-

klers at 225 square feet. (7.6 vs. 16.1)

The Model ESLO Sprinkler incorporates

a specially designed deflector that pro-

vides a much greater area of coverage

than standard commercial sprinklers.

The two (2) piece recessed escutcheon

assembly provides for 3⁄4" of field adjust-

ment.

Quick Response

Extended

Coverage Light

Hazard Recessed

Pendent and

Pendent

Sprinkler

Quick Response

Extended Coverage Light Hazard

Very Extra Large Orifice

Recessed Pendent and Pendent

Glass Bulb Automatic Sprinkler

ESLO

Manufactured by: Central Sprinkler Company

451 North Cannon Avenue, Lansdale, Pennsylvania 19446

Model: ESLO

Style: Recessed Pendent, Pendent

Escutcheon: Model ELO (2-piece)

Recessed

Escutcheon Part #'s:

850 - Brush Brass 853 - White

851 - Bright Chrome 848 - Off White

852 - Bright Brass 849 - Black

Note: In the recessed position, only the

Model ELO (2-piece) Recessed Escutcheon

may be used. Substitution of other

“recessed” escutcheons may impair the

operating sensitivity and distribution

pattern.

Wrench

Pendent: Part #1073

ELO/ESLO/ESFR Combination

Recessed Pendent: Part #1093

ESLO Offset

Orifice Size: 0.70"

(17.8 mm)

(VELO)

K-Factor: 14.5

(207.35)

Thread Size: 3⁄4" N.P.T.

(19.1 mm)

Temperature Rating:

155°F/68°C

200°F/93°C (Available as Standard Response Only)

250°F/121°C (Available as Standard Response Only)

Approvals: U.L., cUL

Maximum Working Pressure: 175 psi

Factory Hydro Test: 100% at 500 psi

Standard Finishes:

Sprinkler: brass or chrome plated

Decorative Finishes: white or black

painted

Escutcheon: brass, chrome plated,

white or black painted

Length: 23⁄4"

(70 cm)

Width: 11⁄2"

(3.80 cm)

Weight: 4.2 oz.

(120 grams)

No. 3-4.5

OBSOLETE

Installation Diagrams

ESLO Extended Coverage Light Hazard Recessed Pendent

Note: Central's Model 65 or 401 escutcheon may be used. When using Central's Model 65

escutcheon, the face of the R.C. is to protrude 1/8" ±1/16" beyond the finished ceiling line.

Installation Diagrams

ESLO Extended Coverage Light Hazard Pendent

2 3/4"

1 1/2" Dia.

Face of

Reducing

Coupling

Finished

Ceiling LIne

1" x 3/4" Reducing

Coupling

Model ELO (2-piece)

Recessed Escutcheon

3 1/4" Diameter

2 1/4" Dia. Min.

2 3/4" Dia. Max.

3/8" Min.

3/4" Nominal

1 1/8" Max.

OBSOLETE

Design

Data

Design Requirements — Light Hazard Extended Coverage Applications

Density .1 GPM/ft2- NFPA 13 All Editions

Temperature Rating 155°F/68°C, 200°F/93°C, and 250°F/121°C Temperatures

Maximum Minimum Design Minimum Design

Spacing Between Location From Flow per Sprinkler Pressure per Sprinkler

Sprinklers Any Wall

(gpm) (psi)

*16 x 16 feet (256 sq. ft.) 8 feet 38.4 gpm 7 psi

*18 x 18 feet (324 sq. ft.) 9 feet 38.4 gpm 7 psi

**20 x 20 feet (400 sq. ft.) 10 feet 40.0 gpm 7.6 psi

*Teflon is a trademark of the DuPont Corp.

Care &

Maintenance

Sprinklers must be handled care-

fully. They must not be transported

or stored where ambient temperature

may exceed 100°F/38°C. For best

results, store them in a dry, cool

location in the original shipping

package.

Do not install sprinklers that have

been dropped or visibly damaged.

Sprinklers must never be painted,

coated, plated, or altered in any other

way from manufactured condition or

they may not function properly. Any

sprinklers altered in such manner

must be replaced.

The owner is responsible for the

proper operating condition of all fire

protection devices and accessories.

The NFPA standard 25 entitled,

“Inspection, Testing and Maintenance

of Water-Based Fire Protection

Systems”

, contains guidelines and

minimum maintenance requirements.

Furthermore, the local

Authority

Having Jurisdiction

may have addi-

tional regulations and requirements

for maintenance, testing, and inspec-

tion that must be obeyed.

It is advisable to have sprinkler

systems inspected regularly by a

qualified inspection service. Length of

time between such inspections can

vary due to accessibility, ambient

atmosphere, water supply, and site

activity.

Do not attempt to reassemble or

otherwise reuse a sprinkler that has

operated. Replace any sprinkler

exhibiting corrosion or damage;

always use new sprinklers of the

same type and temperature rating as

replacements.

Because the discharge pattern is

critical to protection of life and

property, nothing should be hung or

attached to the sprinkler unit that

would disrupt the pattern. Such

obstructions must be removed. In the

event that construction has altered

the original configuration, the system

must be investigated and the protec-

tion level maintained.

Installation

The Model ESLO incorporates the

latest in heat-responsive glass bulb

technology. The operating mecha-

nism consists of a 3 mm liquid-filled

frangible capsule that is only 2.0 cm

in length.

Operation: The glass bulb capsule

operating mechanism contains a

heat-sensitive liquid that expands

upon application of heat. At the rated

temperature, the frangible capsule

ruptures, thereby releasing the orifice

seal. The sprinkler then discharges

water in a pre-designed spray pattern

to control the fire.

All Central Model ESLO Recessed

Pendent and Pendent Automatic

Sprinklers must be installed accord-

ing to the current NFPA 13 Standard

and these installation instructions.

Deviations from these requirements

and standards or any alteration to the

sprinkler itself will void any warranty

made by Central Sprinkler Company.

In addition, installation must also

meet local government provisions,

codes, and standards as applicable.

The system piping must be properly

sized to ensure the minimum required

flow rate at the sprinkler. Check for

the proper model, style, orifice size,

and temperature rating prior to

installation. Install sprinklers after the

piping is in place to avoid mechanical

damage; replace any damaged units.

Wet pipe systems must be

protected from freezing.

Upon completion of the installation,

the system must be tested per

recognized standards.

In the event of a thread leak,

remove the unit, apply new pipe joint

compound or tape, and reinstall.

Installation Sequence

Step 1. For Pendent and Recessed

Pendent sprinklers, the face of the

sprinkler fitting should be installed a

nominal 3⁄4" (±3⁄8") behind the ceiling

line. Adjustments are made via the

push-on escutcheon.

Step 2. Use only a non-hardening

pipe joint compound or Teflon* tape.

Apply only to the male threads.

Step 3. Hand tighten the sprinkler

into the fitting. Use a Central

Sprinkler Wrench, to tighten the unit

into the fitting. A leak-tight joint

requires only 7 to 14 ft.-lbs. of torque;

a tangential force of 14 to 28 lbs.

delivered through a 6" handle will

deliver adequate torque. Torque

levels over 21 ft.-lbs. may distort the

orifice seal, resulting in leakage.

* Listed as Quick Response.

** Listed as Standard Response Only.

≠

Recessed Pendent Sprinkler is Listed as Standard Response Only.

Caution: Minimum spacing between pendent and recessed

pendent sprinklers is 9'-0".

OBSOLETE

Printed in U.S.A. ESLO.1DC

Central Sprinkler Company

451 N. Cannon Avenue, Lansdale, PA 19446

Phone (215) 362-0700

FAX (215) 362-5385

Ordering Information: When

placing an order, indicate the full

product name. Please specify the

quantity, model, style, orifice size,

temperature rating, type of finish or

coating, and sprinkler wrench.

Availability and Service: Central

sprinklers, valves, accessories, and

other products are available through-

out the U.S. and Canada, and

internationally, through a network of

Central Sprinkler distribution centers.

You may write directly to Central

Sprinkler Company, or call (215) 362-

0700 for the distributor nearest you.

Patents: Patents are pending.

Conversion Table:

1 inch = 25.400 mm

1 foot = 0.3048 M

1 pound = 0.4536 kg

1 foot pound = 1.36 Nm

1 psi = 6.895 kpa

= 0.0689 bar

= 0.0703 kg/cm2

1 U.S. gallon = 3.785 dm3

= 3.785 liters

Conversions are approximate.

OPTIMA™ is a registered trademark of

Central Sprinkler Company.

Ordering

Information

Do not attempt to replace sprinklers

without first removing the fire protec-

tion system from service. Be certain

to secure permission from all authori-

ties having jurisdiction, and notify all

personnel who may be affected

during system shutdown. A fire

watch during maintenance periods is

a wise precaution.

To remove the system from service

mode, first refer to the system

operating guide and valve instruction.

Drain water and relieve pressure in

the pipes. Remove the existing unit

and install the replacement, using

only the special sprinkler wrench. Be

certain to match model, style, orifice,

and temperature rating.

A fire protection system that has

been shut off after an activation

should be returned to service immedi-

ately. Inspect the entire system for

damage and replace or repair as

necessary. Sprinklers that did not

operate but were subjected to corro-

sive elements of combustion or

excessive temperatures should be

inspected, and replaced if need be.

The

Authority Having Jurisdiction

will

detail minimum replacement require-

ments and regulations.

Guarantee: Central Sprinkler Com-

pany will repair and/or replace any

products found to be defective in

material or workmanship within a

period of one year from the date of

shipment. Please refer to the current

Price List for further details of the

warranty.

OBSOLETE

Andere Tyco Fire Product Bewässerungssystem Handbücher

Tyco Fire Product

Tyco Fire Product Star Luminous S170 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL GB-20 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ELO Optima Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL TFP1 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Gem G102 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product TY300-FRB Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product STAR SIN S3400 SR Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL RFII Series Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product STAR S160E Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL Royal Flush GB4-EC Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-16 GB FR Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ESFR-25 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL Omega EC-20A Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL A Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product RFII Series Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL CC1 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product RAPID RESPONSE LFII Series Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ESLO-20 GB Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL BV4-QREC Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product SIN S2983 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Mizar S210 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product the 1 inch NPT outlet of a malleable iron threaded tee Star Luminous... Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL BV4 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL H Bedienungsanleitung

Beliebte Bewässerungssystem Handbücher anderer Marken

Hunter

Hunter Institutional Series Bedienungsanleitung

Cellfast

Cellfast 52-305 Bedienungsanleitung

Oral Care Technologies

Oral Care Technologies Hydro Floss Bedienungsanleitung

Reliable

Reliable F1-300 Bedienungsanleitung

Netafim

Netafim NETBEAT Bedienungsanleitung

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Bedienungsanleitung

Tyco

Tyco CC3 Bedienungsanleitung

Reliable

Reliable F4FR Bedienungsanleitung

OpenSprinkler

OpenSprinkler OSPi Bedienungsanleitung

EINHELL

EINHELL GE-WW 5537 E Bedienungsanleitung

Valley

Valley Bender160 Bedienungsanleitung

Reliable

Reliable F1FR42 Series Bedienungsanleitung

Reliable

Reliable F1FR-300 Bedienungsanleitung

Toro

Toro 730 Series Kurzanleitung

Eden

Eden 97063-EDAMZ Bedienungsanleitung

Tyco

Tyco TY-L Series Bedienungsanleitung

Johnson Controls

Johnson Controls tyco ESFR-17 Bedienungsanleitung

Victaulic

Victaulic VicFlex I-VICFLEX.AQC-U Bedienungsanleitung
