TypeS S402 Pro Leitfaden
S402 PRO
4K Dual View Dashcam with 2K Cabin Facing Cam
Important, retain for future reference:
Read carefully
WP ITM. BT532871
Care & Use Instructions
2
TABLE OF CONTENTS
1. Introduction ...............................................................................................................................................................................3
2. Package Contents ...................................................................................................................................................................4
3. Product Specications ..........................................................................................................................................................5
4. Product Dimension ................................................................................................................................................................5
5. Product Overview ....................................................................................................................................................................6
6. Button Conguration .............................................................................................................................................................7
7. Before You Start........................................................................................................................................................................8
8. Installation ..................................................................................................................................................................................8
9. Initial Setup .............................................................................................................................................................................. 10
10. Menu Settings.... ...................................................................................................................................................................11
11. Camera Status & LED Indicators .....................................................................................................................................17
12. Recording Time .....................................................................................................................................................................17
13. Time-lapse Recording Logic ...........................................................................................................................................18
14. Technical Specications ...................................................................................................................................................18
15. Downloading and use the TYPE S Drive App ..........................................................................................................19
16. App Setup ............................................................................................................................................................................. 20
17. App Settings ......................................................................................................................................................................... 23
18. Viewing and Managing Media Files Using A Computer ................................................................................... 26
19. Safety Information ............................................................................................................................................................. 27
20. Maintenance & Warranty ................................................................................................................................................ 29
21. General Information ......................................................................................................................................................... 32
3
Please read all of the installation instructions carefully before installing the product. Improper
installation will void manufacturer’s warranty. The installation instructions do not apply to all types
of vehicles, and are written as guidelines to assist in installing the product.
Consult an experienced technician if you are not comfortable installing the product. You can also
contact TYPE S at 866.294.9244 to speak to one of our installation specialists if you have any
specic questions regarding the Dashcam.
BEFORE using the Dashcam, please read the safety information provided in this user manual.
ALWAYS use the product as outlined in this user manual.
Please make sure to read and understand all local laws and regulations regarding cameras and their
use in a vehicle. Laws vary by state.
1. INTRODUCTION
www.typesauto.com/register
Register this product within 30 days of purchase to receive 1 FREE YEAR of additional warranty coverage
(beyond the standard one year warranty), along with special product offers and announcements.
Registre este producto dentro de los 30 días siguientes a la compra para recibir 1 AÑO GRATUITO de
cobertura de garantía adicional (más allá de la garantía estándar de un año), junto con ofertas de productos
y anuncios especiales.
Enregistrez ce produit dans les 30 jours suivant l'achat pour recevoir une couverture supplémentaire
GRATUITE DE 1 AN (au-delà de la garantie standard d'un an), ainsi que des offres et des annonces spéciales.
STOP
ARRÊT
DETÉNGASE
Mon-Fri, 8am-5pm PST / Lundi au vendredi, 8h à 17h HNP /
Lun-vie, 8 a. m. a 5 p. m. Hora del Pacífico
Please contact our customer service before returning this product to
the store. Our friendly representatives are happy to help with any
questions or concerns you have.
Póngase en contacto con nuestro servicio a clientes antes de regresar
este producto a la tienda. Anuestros amables representantes les dará
mucho gusto ayudarle con cualquier pregunta o inquietud que tenga.
Veuillez communiquer avec notre service à la clientèle avant de
retourner le produit au magasin. Nosreprésentants se feront un plaisir
de vous assister pour toute question ou préoccupation.
Product code / Code de produit / Código del producto : BT533004
@TypeSAuto
ML-533004DNR_V1
Dash C am Ins tall ation Step
Please remove the static screenprotector before use it
and stick the static into the windshield at a proposition.
1
Please stick the 3M stickers from the mount into the
central location of static stickers.
2
4
1. 2.
3. 4.
5. 6.
7. 8.
9. 10.

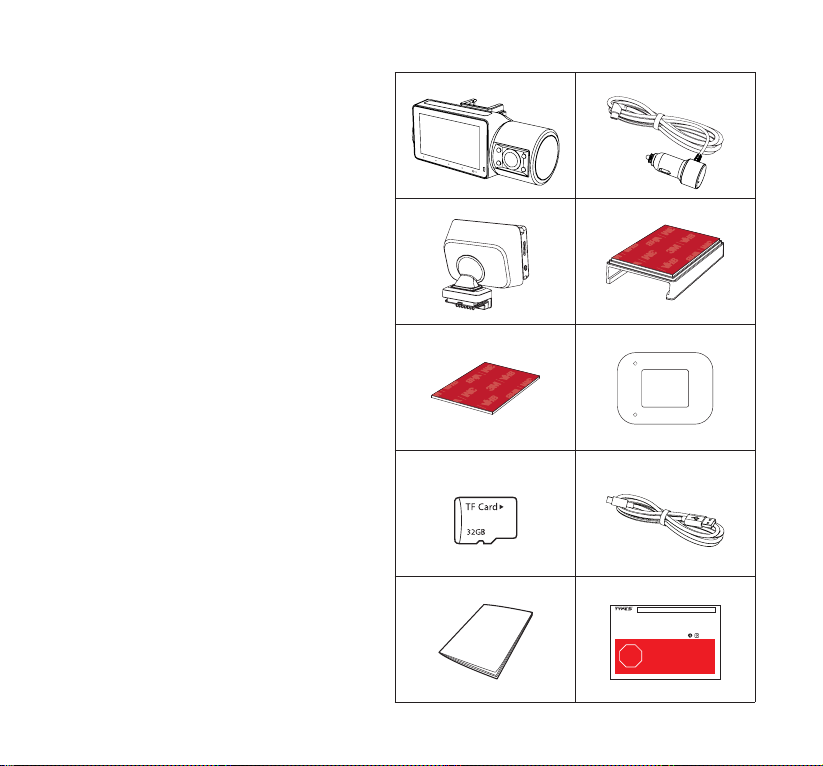

2. PACKAGE CONTENTS
1. 1 x 4K Dual View Dashcam with
2K Cabin Facing Cam
2. 1 x 12 / 24V Power Adapter
3. 1 x Windshield Mount
4. 1 x Mounting Bracket with 3M VHB™
Double-sided Tape
5. 1 x 3M VHB™ Double-sided Tape (Spare)
6. 1 x Static Sticker
7. 1 x 32GB MicroSD Card
8. 1 x 3.28’ / 1m USB-A to USB-C File
Transfer Cable
9. 1 x Instruction Manual
10. 1 x Warranty Card
5
3. PRODUCT SPECIFICATIONS
4. PRODUCT DIMENSION
Screen:
Resolution:
Frequency:
Operating Voltage:
Operating Temperature:
Viewing Angle:
Image Sensor:
Maximum Signal Range:
2.4" IPS
4K UHD - Ultra High Denition (3840 x 2160p)
2.4 GHz
DC 12 / 24V - Cigarette Lighter Adapter (CLA)
14F~140F (-10C~60 C)
139.4° (Front Camera), 132° (Cabin View Camera)
5MP
9.84 Feet/3 Meters
(without interference or obstruction)
4.17 in / 106 mm
1.77 in /
45 mm
1.53 in / 39 mm
6
5. PRODUCT OVERVIEW
1. Function Buttons
2. Display Screen
3. Mounting Socket
4. Microphone
5. Front View Camera
6. Cabin View Camera
7. Status Indicator
8. Reset Button
9. USB-C Data Port
10. MicroSD Card Slot
1
3
8
9
10
5
4
6
2
7
7
Open Menu (click once)
Switch between Front/Cabin/Rear/
3-in-1 view (click once)
Snapshot (click once)
Return to Video Mode (click once)
Screen On/O (click once)
Power On/O (press and hold for 3 sec)
Microphone On/O (click once)
Switch between Front/Cabin/Rear/
3-in-1 view (click once)
Lock/Unlock Video (click once)
Record (click once)
Screen On/O (click once)
Power On/O (press and hold for 3 sec)
6. BUTTON CONFIGURATION
Apply conguration and settings to the Dashcam
using the 5 function buttons. Refer to the screen
display below for the buttons and their
corresponding functions in dierent modes.
Function Buttons
Video Mode
Camera Mode
Camera ModeCamera Mode
Video ModeVideo Mode
Note: Rear and 3-in-1 view only available when the 1080P Rear Camera (sold separately) is connected.
8
Plug the USB-C power cable into the
input port on the Windshield Mount.
(Optional) Plug the 1080P Rear
Camera power cable into the
AV-IN port.
* 1080P Rear Camera (BT532838) sold separately.
Attach the Dashcam
to the Windshield
Mount using the
socket on the top.
2
34
5
1
7. BEFORE YOU START
Peel o the protective lm
from the display screen.
Insert the MicroSD card into the slot
if not pre-installed.
8. INSTALLATION
Before installing onto your vehicle, please test the product by powering it on and connecting it to
the TYPE S Drive App (Section 16). Please use this document for detailed instructions and product
information.
NOTE: The GPS receiver
is located inside the
Windshield Mount.
To ensure the best
performance, please
avoid placing it under a
physical obstacle.
9
Attach the Dashcam onto the windshield:
- Apply the static sticker onto the cleaned windshield and peel o the protective lm.
- Slide the Mounting Bracket into the Windshield Mount.
- Peel o the 3M VHB™ tape backer from the mount and attach the Dashcam onto the static sticker.
6
Recommended
mounting position
WARNING: When installing, please ensure that it won't obstruct the driver's eld of vision.
10
Route the power cable to your 12/24V outlet (cigarette
lighter) and hide the cable in the headliner and pillars.
We recommend going through the passenger side so
the cable doesn't get into the driver's way.
9. INITIAL SETUP
Set date & time. The date
stamps that appear on all
future recordings will follow
this setting.
10
Adjust the Cabin View Camera’s
position to get the best view of the
interior of your vehicle.
9
