8900 NORTH 55TH STREET MILWAUKEE, WISCONSIN 53223 414.354.0300 FAX 414.354.7905 U-LINE.COM

B I 2115

ICE MAKERS

Stainless Black

White Overlay

No ice shortages here.

Produces up to 25 pounds

of crescent ice (1/2" W x

3/4" H 2-1/2" L) per day.

No drain required.

FE ATURES

• Daily ice rate of up to 25 lbs of crescent ice

• Stores up to 25 lbs of ice

• Uses less than 3 gallons of water to produce 25 lbs of ice, conserving both energy

and water

• Uses less energy than a 75 watt light bulb

• Perfect size crescent ice cubes (1/2"W x 3/4"H x 2-1/2"L)

• Mechanical control monitors ice making operation to ensure maximum daily ice

production

• Manual defrost

• UL residential and commercial listings

• No drain required, easy and inexpensive to install and requires only a 1/4" outside

diameter water line

• Stainless model door must be ordered left or right hand hinged

• Blackdoormodeliseldreversible

• Self-closing door ensures a positive door seal and prevents door bounce back

• Standard commercial stainless handle is interchangeable with professional handle

option for stainless steel model

• Vinylcladtexturedcabinetismoreresistanttoscratching,peelingandaking

• Unit can be built-in or freestanding providing a custom aesthetic

• Black and white models will accept a 1/4" insert panel to match with surrounding

decor

• Optional full 3/4" overlay panel on black and white models requires purchase of

overlay kit PN: U-OL2115

• Allow a 2-1/2" clearance on hinged side for 90° door opening when installed

adjacent to a wall (for stainless steel model)

• Witha3/4"overlaypanelinstallation,allowfora130˚doorswingtoensure

removal of ice bin

• Allow 1/4" width overall for proper installation (see back side for details)

• No additional clearance around sides, top or rear of unit is needed for ventilation

• Durable,factoryinstalledlevelinglegsprovideamorepreciseundercountert

• Donotobstructfrontgrilleairow

B I 2115 2000 Se ri e S

INTEGRATION INTERIOR / ExTERIOR PERFORMANCE

*Add 5/8”For Water Line Clearance

23-3/16"

34-1/8"

15"

3-13/16"

*Add 5/8”For Water Line Clearance

15"

34-1/8"

3-13/16"

23-1/8"

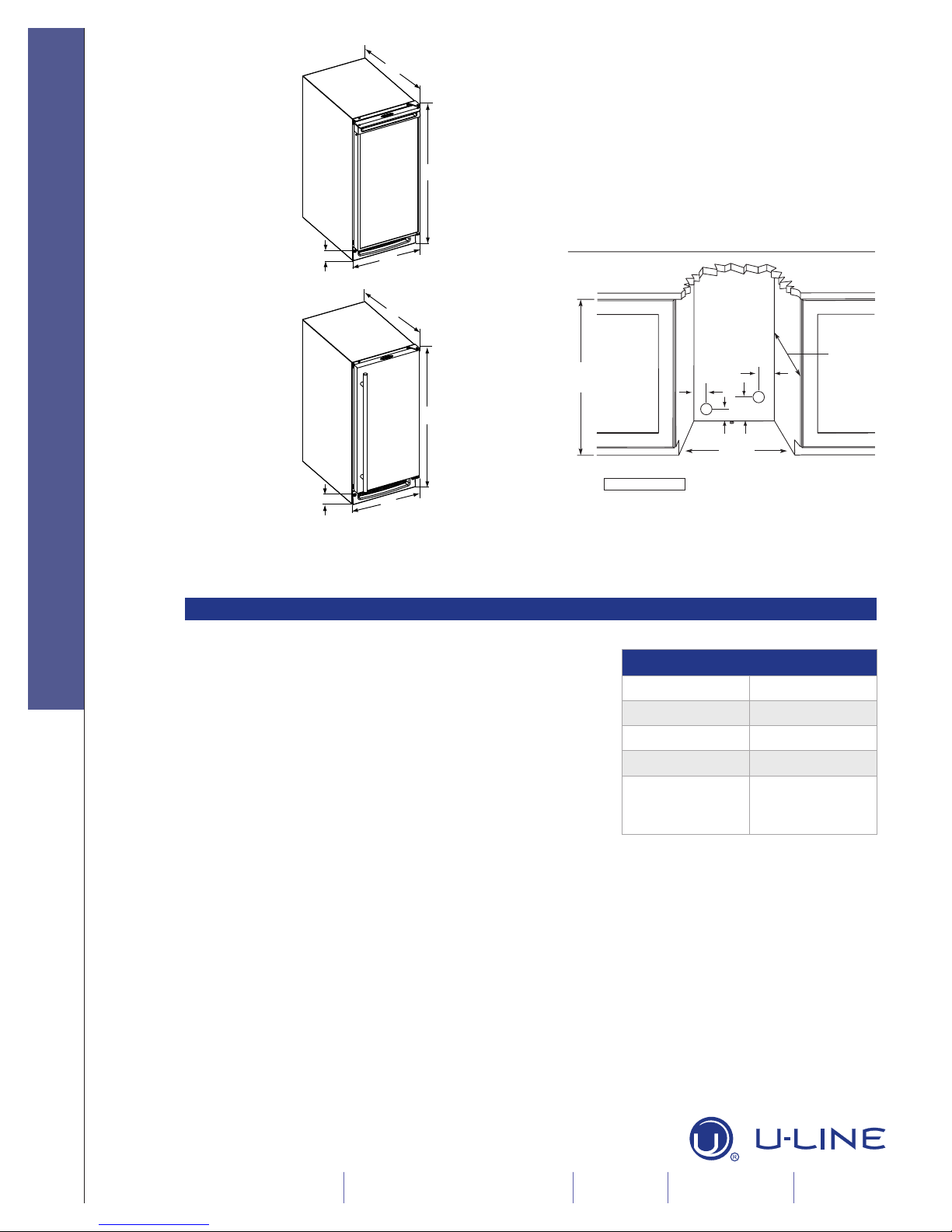

DIMENSIONS AND SPECIFICATIONS

Please visit www.u-line.com for installation guide.

All specifications are subject to change without notice.

8900 NORTH 55TH STREET MILWAUKEE, WISCONSIN 53223 414.354.0300 FAX 414.354.7905 U-LINE.COM

B I 2115

BI2115

Stainless Right-hand U-BI2115S-00

Stainless Left-hand U-BI2115S-01

Black U-BI2115B-00

White U-BI2115W-00

Overlay

U-BI2115B-00

with Overlay kit

U-OL2115B

Height 34-1/8" (86.6)

Width 15" (38.1)

Depth – black model 23-3/16" (58.9)

With stainless steel handle 25" (63.5)

Shipping weight 94 lbs (39 kg)

Running amps 2.5

Maximum start-up amps 18.0

Amps pertain to voltage rating 110/115 volt, 60 Hz

Capacities:

Approximate daily ice production Up to 25 lbs

Ice storage Up to 25 lbs

Manual defrost

Optional in 220/230 voltage, 50/60 Hz

On the 220/230 volt models, amps are decreased by

approximately 50 percent.

BI2115S Stainless Model and

BI2115B Black Model and BI2115W White Model

* Add 5/8" for water line clearance

34-3/16"

35-3/16"

15-1/4"

23-7/8"

Minimum

1-13/16"

2-1/8"

1-15/16"* 3-5/8"*

Legend: E - Electrical W - Water *Can Vary Up To +1” Depending On Height Of Leveler Legs

OVERALL DIMENSIONS

ICE MAKERS
