USER GUIDE & SERVICE MANUAL

Model: U-2224ZWCINT-00A

USER GUIDE & SERVICE MANUAL

Table of Contents

Click on any section below to jump directly there

Intro

Safety

Safety and Warning

Disposal And Recycling

Installation

Environmental Requirements

Electrical

Cutout Dimensions

Product Dimensions

Side by Side Installation

Anti-Tip Bracket

General Installation

Integrated Panel Dimensions

Integrated Grille Dimensions

Integrated Panel Installation

Grille / Plinth Installation

Door Swing

Door Stop

Door Adjust

Maintenance

Cleaning

Cleaning Condenser

Extended Non-Use

Operating Instructions

First Use

Control Operation

Sabbath Mode

Airflow and Product Loading

U-Line Wine Guide

Recommended Wine Storage

Service

Wine Rack Installation

Troubleshooting

Wire Diagram

Product Liability

Warranty Claims

Parts

Ordering Replacement Parts

R600a Specifications

System Diagnosis Guide

Compressor Specifications

Troubleshooting Extended

Control Operation - Service

Control Defaults

Thermistor

Defrost

Warranty

USER GUIDE

Introduction

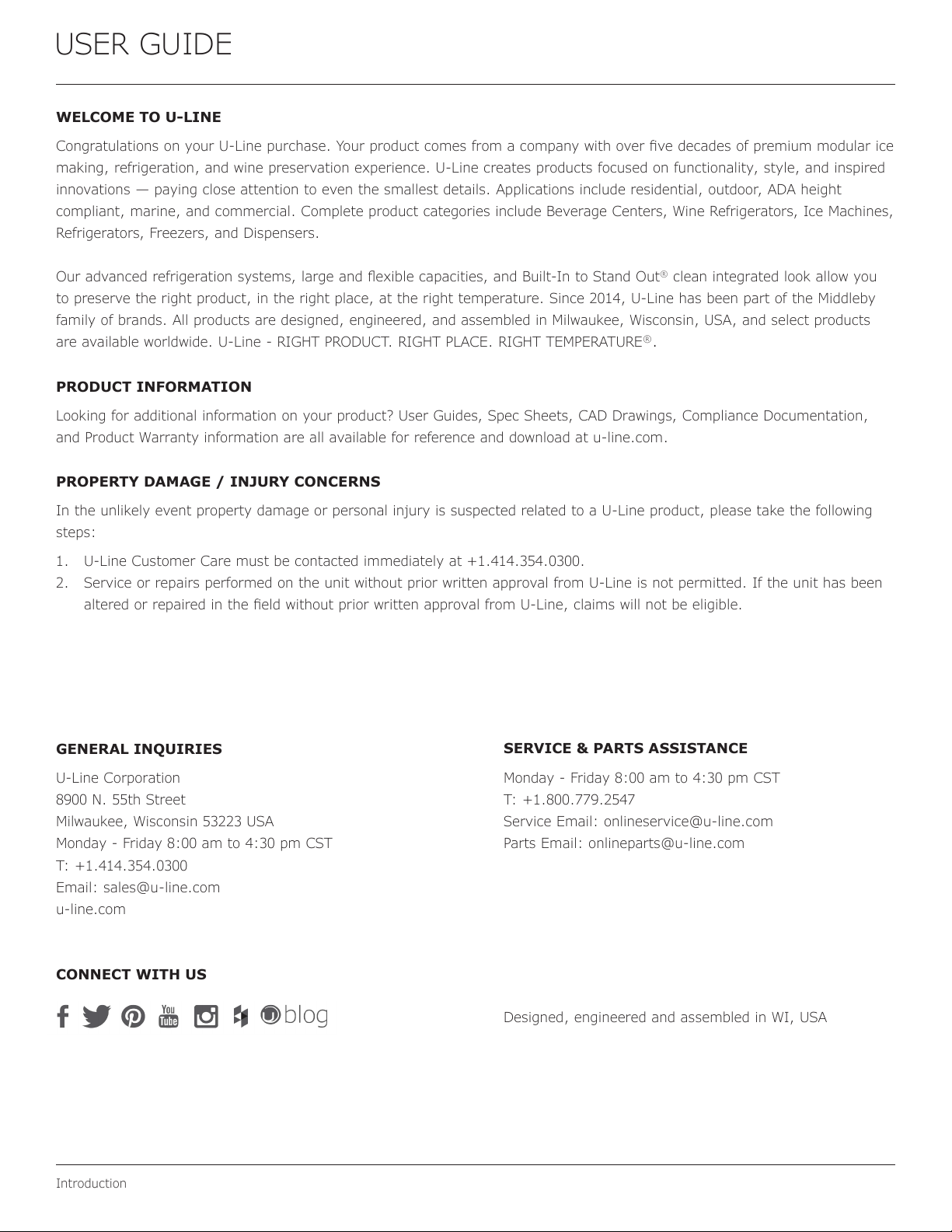

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over ve decades of premium modular ice

making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and inspired

innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA height

compliant, marine, and commercial. Complete product categories include Beverage Centers, Wine Refrigerators, Ice Machines,

Refrigerators, Freezers, and Dispensers.

Our advanced refrigeration systems, large and exible capacities, and Built-In to Stand Out®clean integrated look allow you

to preserve the right product, in the right place, at the right temperature. Since 2014, U-Line has been part of the Middleby

family of brands. All products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products

are available worldwide. U-Line - RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE®.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,

and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.800.779.2547

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

Designed, engineered and assembled in WI, USA

USER GUIDE

Safety and Warning 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

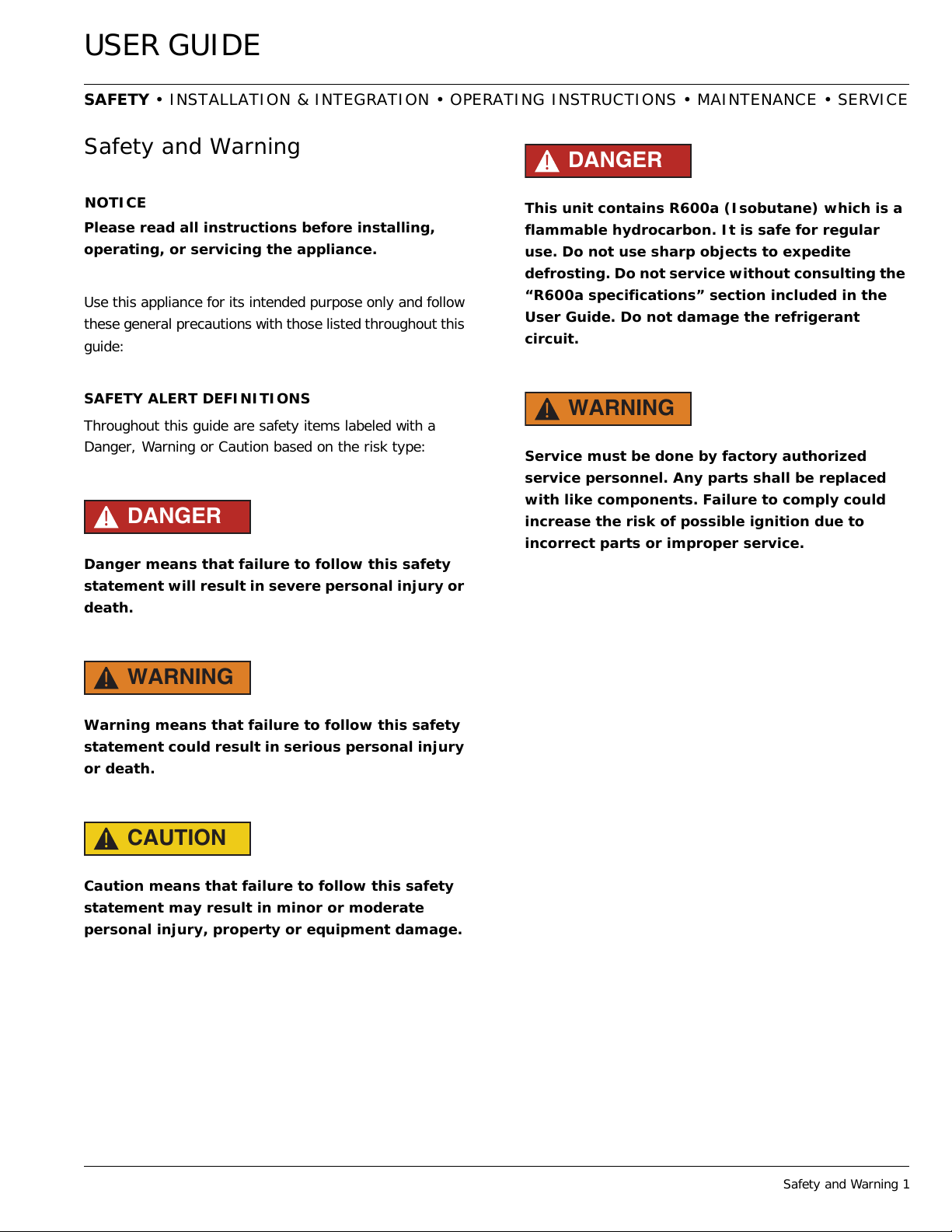

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning or Caution based on the risk type:

DANGER

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

WARNING

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

CAUTION

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property or equipment damage.

DANGER

This unit contains R600a (Isobutane) which is a

flammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specifications” section included in the

User Guide. Do not damage the refrigerant

circuit.

WARNING

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to

incorrect parts or improper service.

USER GUIDE

Disposal and Recycling 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

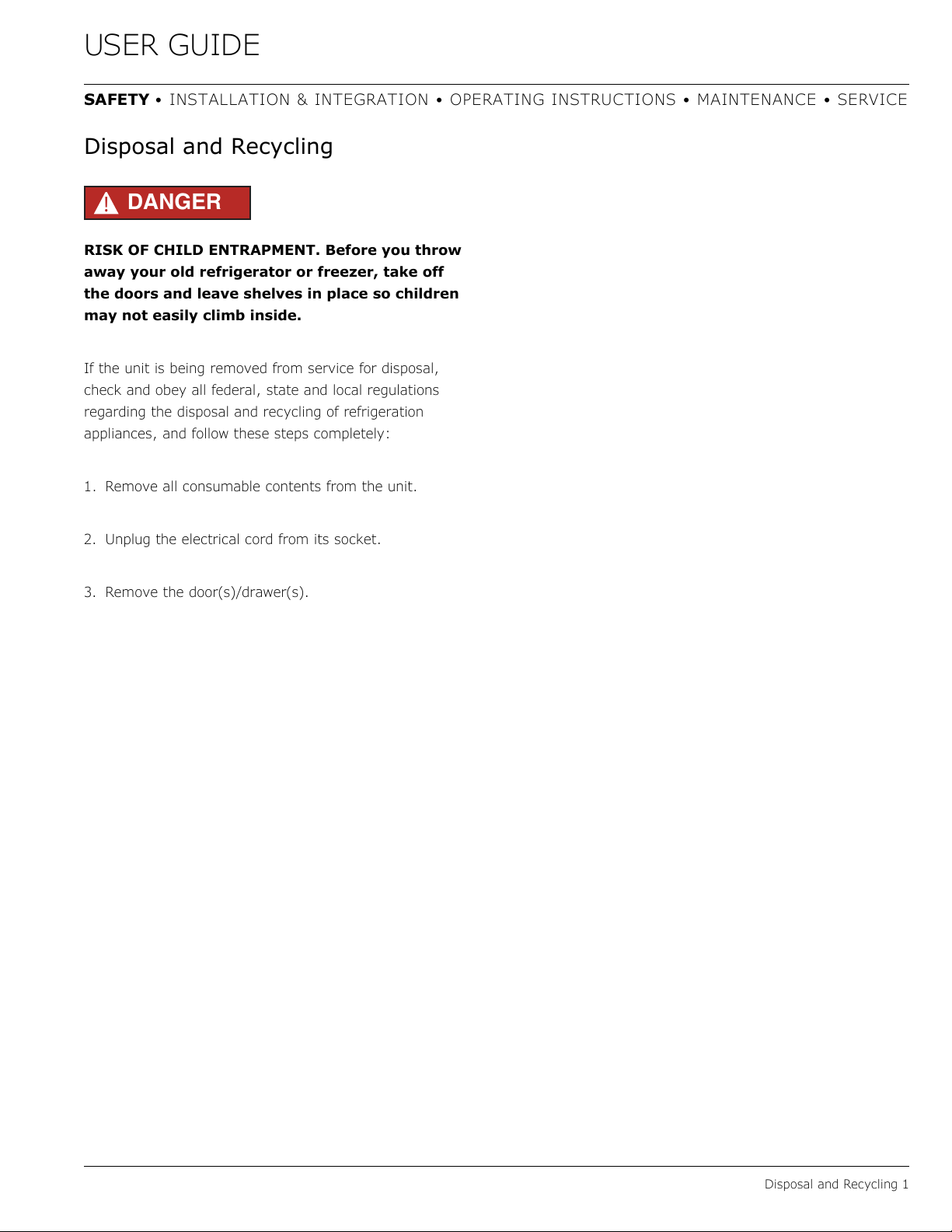

Disposal and Recycling

DANGER

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take off

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

USER GUIDE

Environmental Requirements 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

USER GUIDE

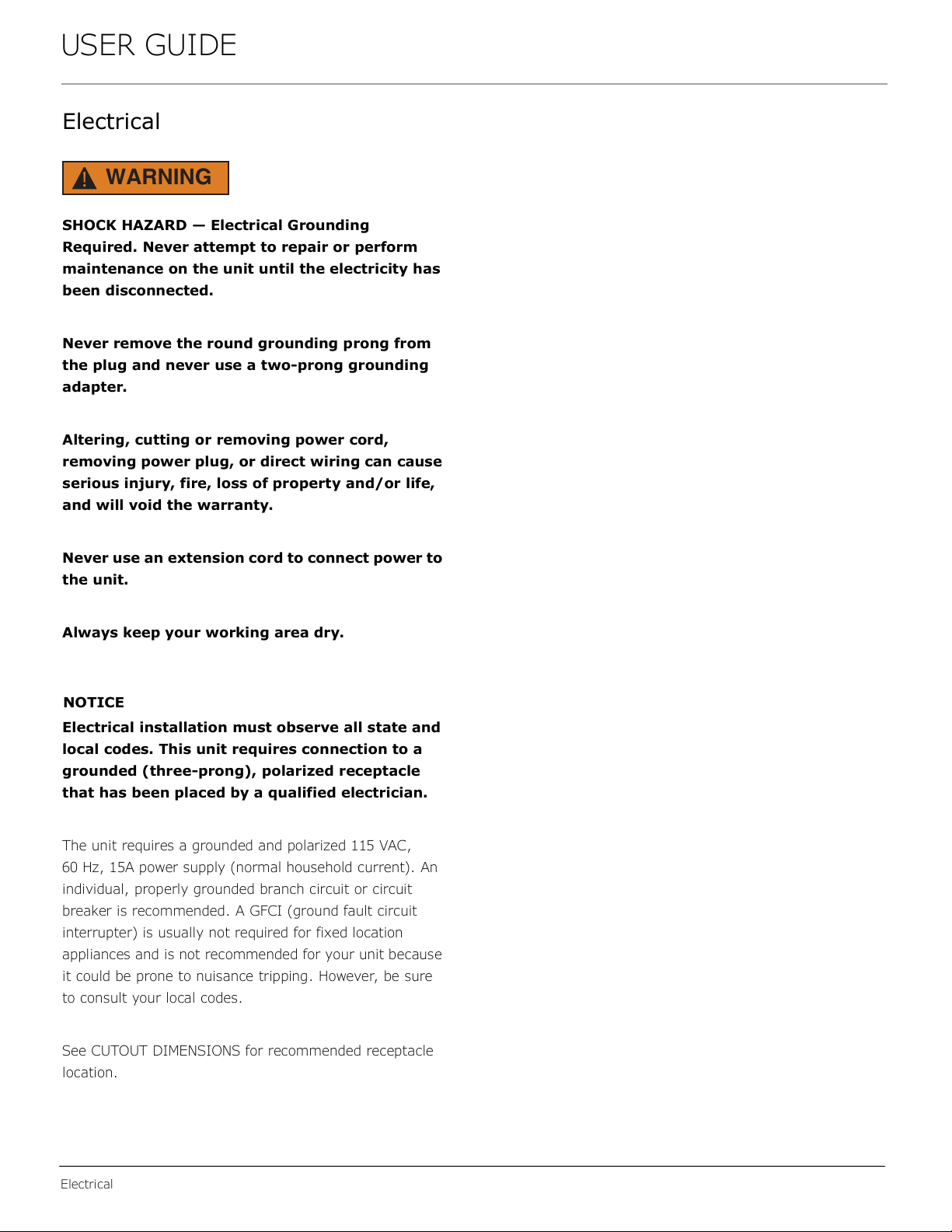

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT DIMENSIONS for recommended receptacle

location.

USER GUIDE

Cutout Dimensions 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Cutout Dimensions

PREPARE SITE

Your U-Line product has been designed exclusively for a

built-in installation. When built-in, your unit does not

require additional air space for top, sides, or rear.

However, the front grille (plinth strip/base fascia) must

NOT be obstructed.

CAUTION

Unit can NOT be installed behind a closed cabinet

door.

U-Line products are designed and manufactured

to be installed in the specified cutout openings

shown, and variance to the floors or cabinetry

must be accounted for in your installation.

CUTOUT DIMENSIONS

Metric measurements rounded and optimized.

(102 mm)

(178 mm)

33-7/8"

(860 mm)

34-7/8"

(886 mm)

23-3/4"

(605 mm)

Preferred location

for electrical outlet

is in adjacent

cabinet.

24"

(610 mm)

5/8"

(16 mm)

USER GUIDE

Product Dimensions 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Product Dimensions

3-5/8" to 4-5/8"

(92 mm to 118 mm)

33-11/16" to 34-11/16"

(856 mm to 881 mm)

23-7/16" (590 mm)*

23-5/8" (600 mm)

*Includes 3/4" (20 mm) integrated panel

USER GUIDE

Side-by-Side Installation 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

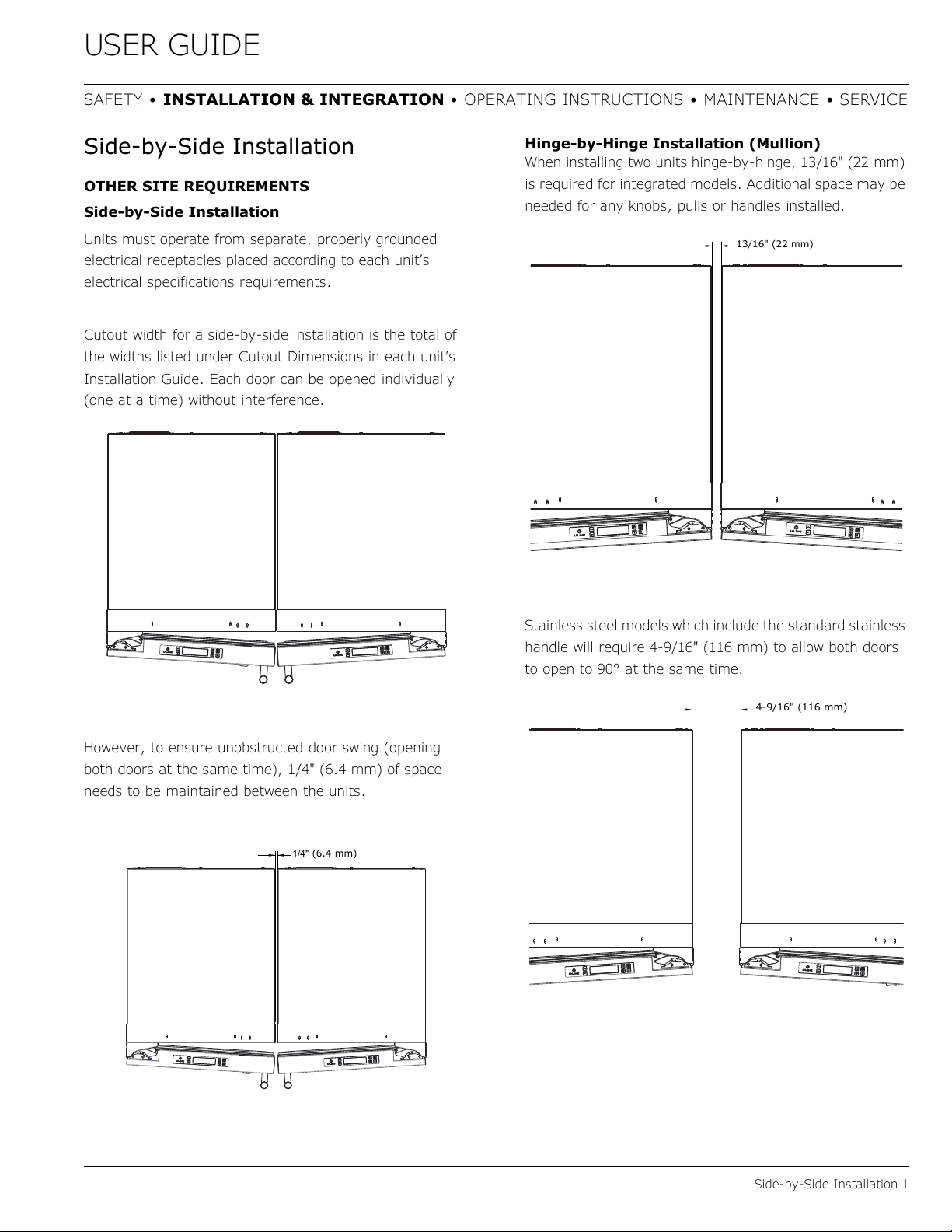

Side-by-Side Installation

OTHER SITE REQUIREMENTS

Side-by-Side Installation

Units must operate from separate, properly grounded

electrical receptacles placed according to each unit’s

electrical specifications requirements.

Cutout width for a side-by-side installation is the total of

the widths listed under Cutout Dimensions in each unit’s

Installation Guide. Each door can be opened individually

(one at a time) without interference.

However, to ensure unobstructed door swing (opening

both doors at the same time), 1/4" (6.4 mm) of space

needs to be maintained between the units.

Hinge-by-Hinge Installation (Mullion)

When installing two units hinge-by-hinge, 13/16" (22 mm)

is required for integrated models. Additional space may be

needed for any knobs, pulls or handles installed.

Stainless steel models which include the standard stainless

handle will require 4-9/16" (116 mm) to allow both doors

to open to 90° at the same time.

1/4" (6.4 mm)

13/16" (22 mm)

4-9/16" (116 mm)
