U-Line UCDE224DSS03A Installationshandbuch

USER GUIDE & SERVICE MANUAL

Model: UCDE224DSS03A

USER GUIDE & SERVICE MANUAL

u-line.com

Table of Contents

Intro

Safety

Safety and Warning

Disposal And Recycling

Installation

Environmental Requirements

Electrical

Cutout & Product Dimensions

Anti-Tip Bracket

General Installation

Grille Installation

Door Swing

Door Adjust

Maintenance

Cleaning

Cleaning Condenser

Extended Non-Use

Operating Instructions

First Use

Control Operation

Airflow and Product Loading

Service

Troubleshooting

Wire Diagram

Product Liability

Warranty Claims

Parts

Ordering Replacement Parts

R600a Specifications

System Diagnosis Guide

Compressor Specifications

Troubleshooting Extended

Control Operation - Service

Thermistor

Defrost

Remove Fan and Cover

Warranty

USER GUIDE u-line.com

Introduction

WELCOME TO U-LINE

Congratulations on your U-Line purchase! Your product comes from a company with decades of premium modular ice

making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and

inspired innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA

height compliant, marine, and commercial. Product categories include Beverage Centers, Wine Refrigerators, Ice Machines,

Refrigerators, Freezers, and Dispensers. Our advanced refrigeration systems, large and exible capacities, and clean

integrated look are what makes our products Built-In to Stand Out®. Since 2014, U-Line has been part of the Middleby family

of brands. Products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products are available

worldwide.

U-Line — RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE.®

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, and Product Warranty

information are available digitally on u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

Designed, engineered and assembled in WI, USA

USER GUIDE u-line.com

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning, or Caution based on the risk type:

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property, or equipment damage.

This unit contains R600a (Isobutane) which is a

ammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specications” section included in the

User Guide. Do not damage the refrigerant

circuit.

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to

incorrect parts or improper service.

CALIFORNIA PROPOSITION 65

This product contains chemicals known to the

state of California to cause cancer and birth

defects or other reproductive harm.

www.P65warnings.CA.gov

This equipment is to be installed with adequate

backow protection to comply with applicable

federal, state and local codes.

DANGER

WARNING

CAUTION

WARNING

USER GUIDE u-line.com

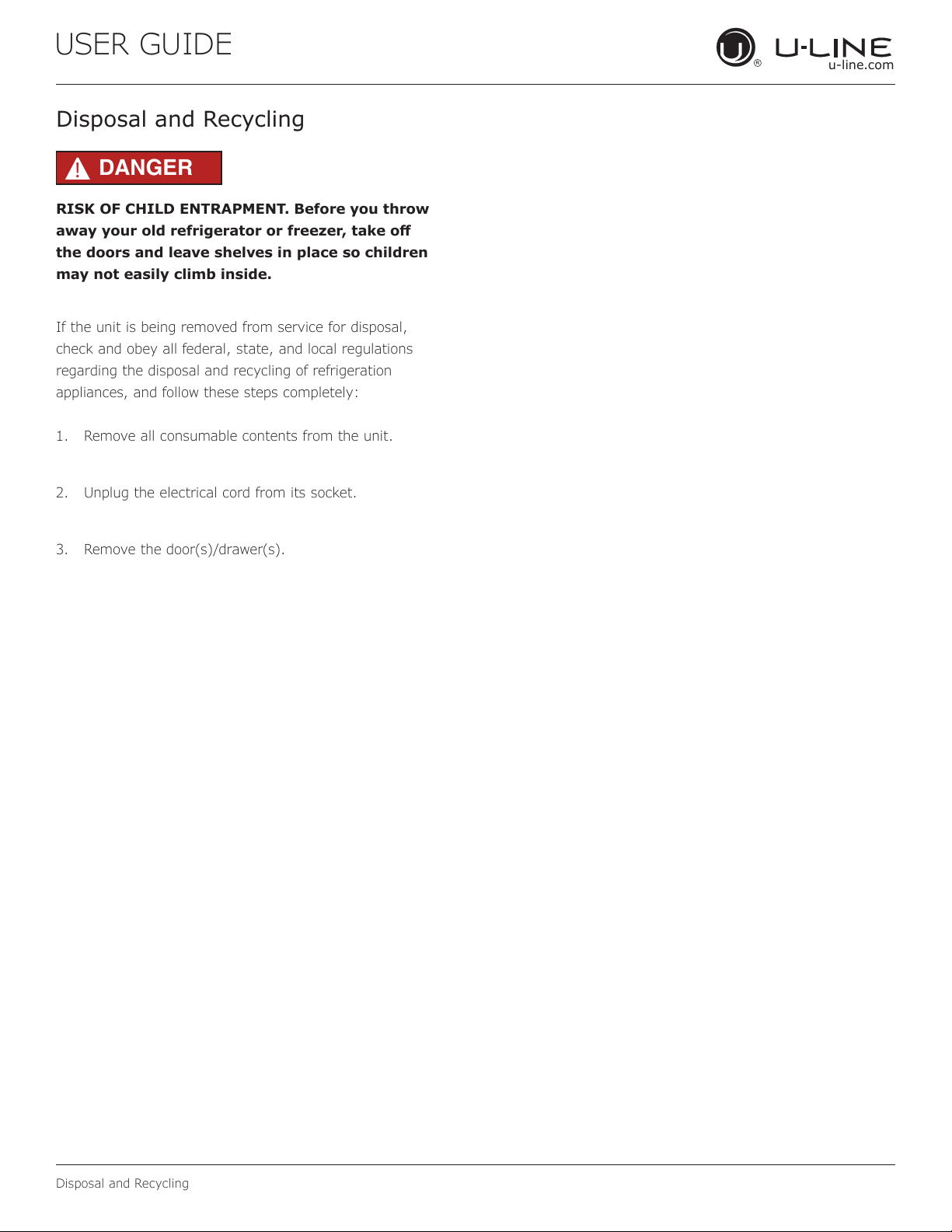

Disposal and Recycling

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take o

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state, and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

DANGER

USER GUIDE

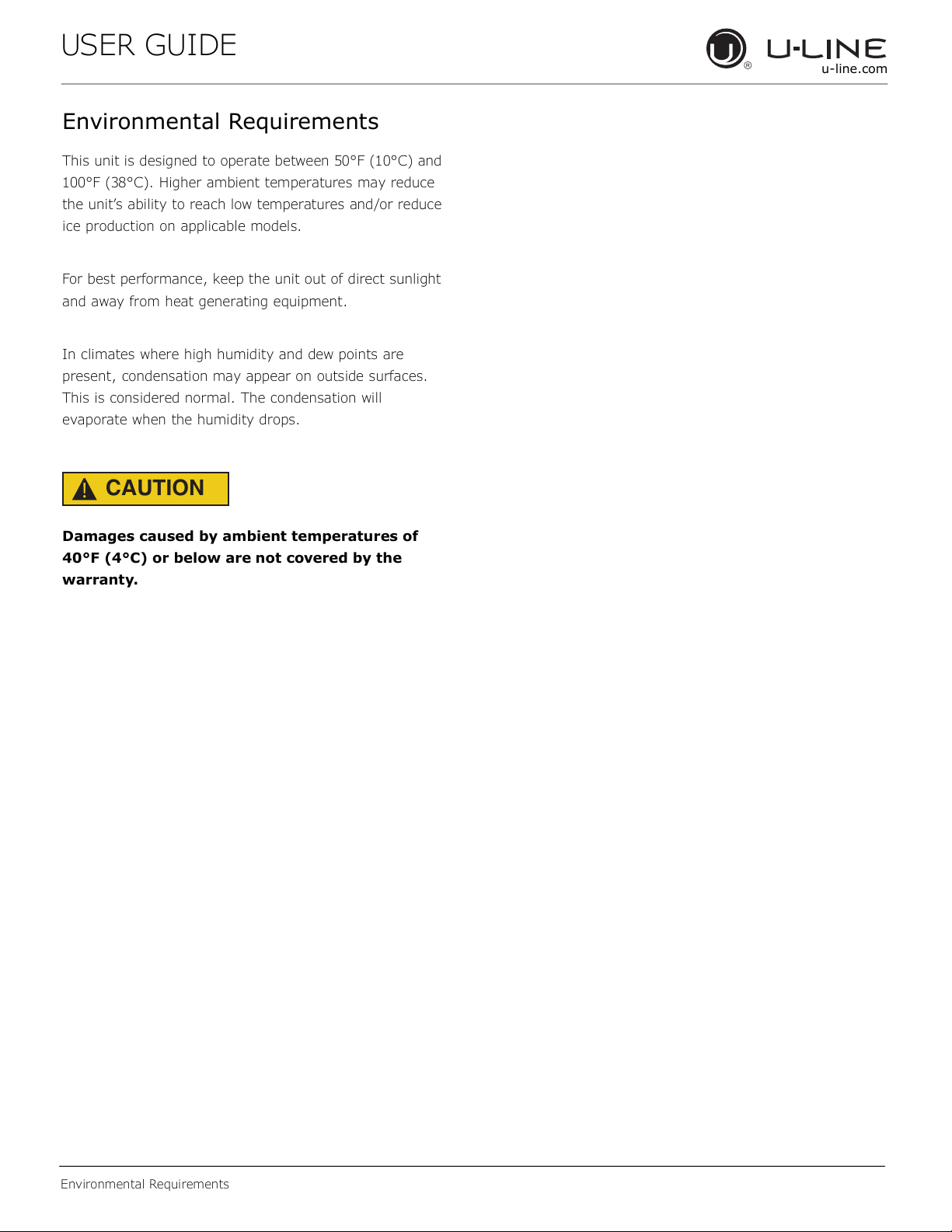

Environmental Requirements

u-line.com

Environmental Requirements

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

USER GUIDE

Electrical

u-line.com

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT & PRODUCT DIMENSIONS for recommended

receptacle location.

USER GUIDE u-line.com

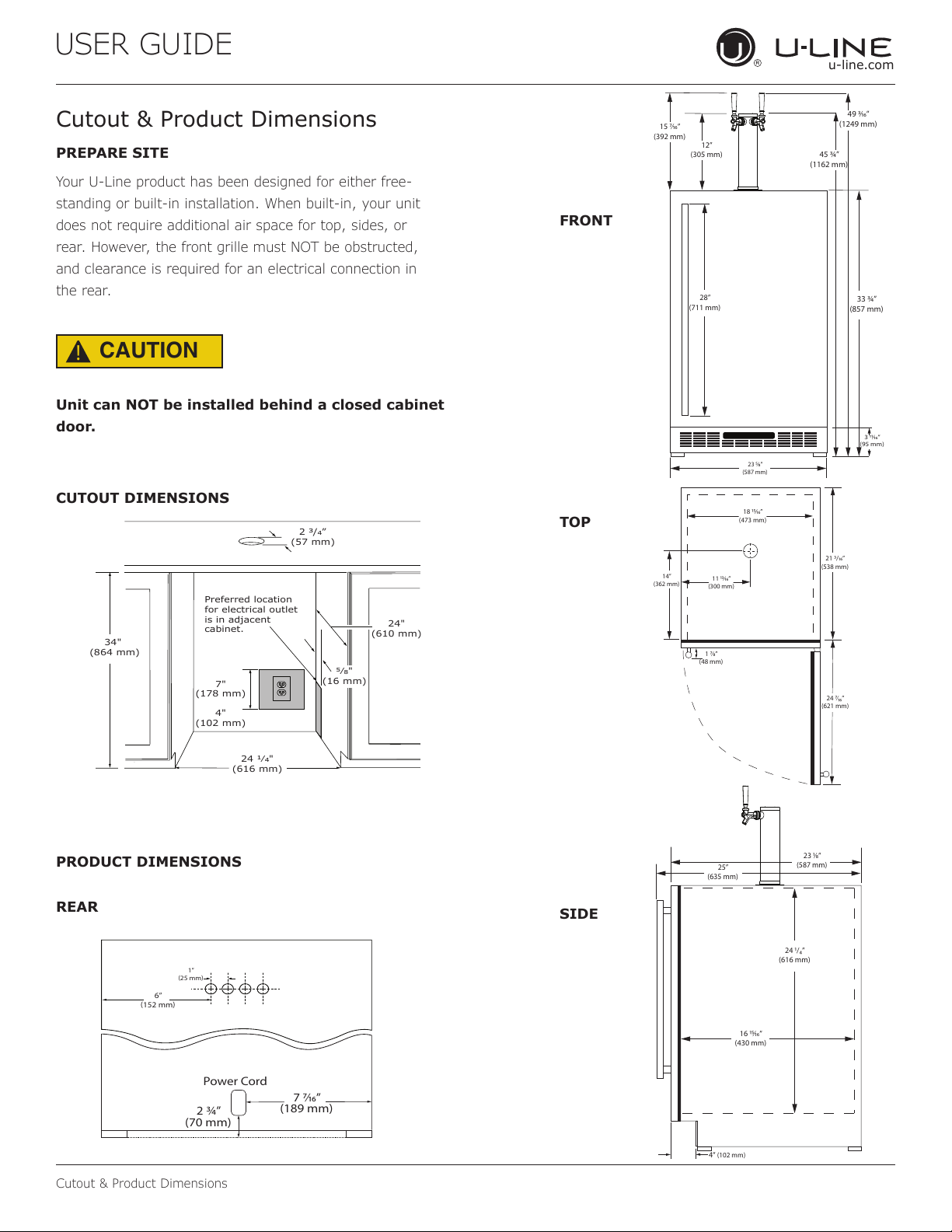

Cutout & Product Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides, or

rear. However, the front grille must NOT be obstructed,

and clearance is required for an electrical connection in

the rear.

CAUTION

Unit can NOT be installed behind a closed cabinet

door.

CUTOUT DIMENSIONS

PRODUCT DIMENSIONS

REAR

FRONT

TOP

SIDE

24 /”

(616 mm)

23 ⁄”

(587 mm)

25”

(635 mm)

4“ (102 mm)

16 ⁄”

(430 mm)

(102 mm)

(178 mm)

24"

(610 mm)

2 3/4”

(57 mm)

24 1⁄4"

(616 mm)

34"

(864 mm)

Preferred location

for electrical outlet

is in adjacent

cabinet.

5⁄8"

(16 mm)

2 ¾”

(70 mm)

Power Cord

7 ⁄”

(189 mm)

1”

25 mm

6”

152 mm

28”

(711 mm)

23 ⁄”

(587 mm)

3 ⁄”

(95 mm)

33 ¾”

(857 mm)

12”

(305 mm)

15 ⁄”

(392 mm)

49 ⁄”

(1249 mm)

45 ¾”

(1162 mm)

1 ⁄”

(48 mm)

18 ⁄”

(473 mm)

24 ⁄”

(621 mm)

21 /”

(538 mm)

11 ⁄”

(300 mm)

14”

(362 mm)

USER GUIDE u-line.com

Anti-Tip Bracket

1. Slide unit out so screws on top of unit are easily

accessible.

2. Remove the two screws from the opposite side of the

hinge assembly using a T-25 Torx driver (see below).

3. Place bracket over holes and attach to unit with two

screws removed in step 2 using a T-25 Torx driver.

Tighten screws fully.

4. Gently push unit into position. Be careful not to

entangle the electrical cord or water line, if applicable.

5. Check to be sure the unit is level from front to back

and side to side. Make any necessary adjustments.

The unit’s top surface should be approximately 1⁄8”

(3 mm) below the countertop.

6. Secure bracket into adjoining surface.

USER GUIDE u-line.com

General Installation

U-Line Double Tap Kits are designed to work with the U-Line keg refrigerator model CDE215D. Tap kits can be installed

directly on top of the keg refrigerator in a free-standing application or through a countertop in a built-in application.

MAXIMUM CAPACITY (tanks and kegs not included)

• .

• .

• .

CAUTION

Safety and Warning

WARNING

CO2can be dangerous. Handle with care.

Never exceed 60 PSI.

Most draft beers are dispensed between 8-14

PSI and most stouts are dispensed at 30-14 PSI.

Pressures above 50 PSI will release the built-in

pressure relief.

Always connect CO2tank to regulator. Never

connect the tank directly to a keg.

Ventilate area after CO2leak:

If it becomes dicult to breathe and your head

starts to ache, high levels of CO2may be pres-

ent. LEAVE THE ROOM IMMEDIATELY.

Safety and Warning

Keep CO2tank in an upright position. The regulator

may break if the tank falls.

Secure the CO2tank.



Sixth Slim

5 Gallons

53 - 12 oz. cups

9.25” x 23.5”

Kit includes:





Inhaltsverzeichnis

Andere U-Line Küchengerät Handbücher

U-Line

U-Line UHWC024 Installationshandbuch

U-Line

U-Line U-1215BEVINT-00A Installationshandbuch

U-Line

U-Line U-2224BEVS-00A Installationshandbuch

U-Line

U-Line U-3036RRINT-00B Installationshandbuch

U-Line

U-Line 2224ZWCS-15B Installationshandbuch

U-Line

U-Line 1224WC Bedienungsanleitung

U-Line

U-Line UHRI124BS01A Installationshandbuch

U-Line

U-Line UHBV115-IG01A Bedienungsanleitung

U-Line

U-Line Captain 1000 Series Installationshandbuch

U-Line

U-Line WINE CAPTAIN 1175BEV Bedienungsanleitung

U-Line

U-Line Origins 75BEV Bedienungsanleitung

U-Line

U-Line WINE CAPTAIN 1075BEV Bedienungsanleitung

U-Line

U-Line UCWC515SG33A Installationshandbuch

U-Line

U-Line 3000 SERIES Installationshandbuch

U-Line

U-Line UHBV115-SG01A Installationshandbuch

U-Line

U-Line U-2218BEV Installationshandbuch

U-Line

U-Line UCDE215FSS03A Installationshandbuch

U-Line

U-Line Wine Captain UHWC524IG01A Installationshandbuch

U-Line

U-Line 2015WCOL Wine Captain Bedienungsanleitung

U-Line

U-Line UHWC124 Installationshandbuch

U-Line

U-Line UHBV515-IG01A Installationshandbuch

U-Line

U-Line 5 Class UHBV515 Installationshandbuch

U-Line

U-Line U-1215BEVS-00A Installationshandbuch

U-Line

U-Line Wine Captain Echelon Series Bedienungsanleitung

Beliebte Küchengerät Handbücher anderer Marken

Tayama

Tayama TYG-35AF Bedienungsanleitung

AEG

AEG 43172V-MN Bedienungsanleitung

REBER

REBER Professional 40 Benutzerhandbuch

North American

North American BB12482G / TR-F-04-B-NCT-1 Bedienungsanleitung

Presto

Presto fountain popper Bedienungsanleitung

Westmark

Westmark 1035 2260 Bedienungsanleitung

Zanussi

Zanussi ZCG64396XA Bedienungsanleitung

HOFFEN

HOFFEN SM-9302M Bedienungsanleitung

Philips

Philips HD3133 Bedienungsanleitung

Ronco

Ronco Beef Jerky Bedienungsanleitung

Hendi

Hendi 470411 Bedienungsanleitung

Livoo

Livoo MEN386 Bedienungsanleitung

Vogue

Vogue D446 Bedienungsanleitung

croydon

croydon WR-10313-700 Bedienungsanleitung

ADE

ADE AUTOMATIC-L Bedienungsanleitung

Chefman

Chefman RJ43-SQ Series Bedienungsanleitung

Vacmaster

Vacmaster VP680 Bedienungsanleitung

Jetmaster

Jetmaster 900HG Bedienungsanleitung
