USER GUIDE & SERVICE MANUAL

Model: UHBV024-SG02A

USER GUIDE & SERVICE MANUAL

u-line.com

Table of Contents

Intro

Safety

Safety and Warning

Disposal And Recycling

Installation

Environmental Requirements

Electrical

Cutout & Product Dimensions

Side by Side Installation

Anti-Tip Bracket

General Installation

Grille Installation

Door Swing

Door Adjust

Interior Adjustments

Maintenance

Free Standing Kit

Cleaning

Cleaning Condenser

Extended Non-Use

Operating Instructions

First Use

Control Operation

Airflow and Product Loading

Recommended Wine Storage

Service

Troubleshooting

Wire Diagram

Product Liability

Warranty Claims

Parts

Ordering Replacement Parts

R600a Specifications

System Diagnosis Guide

Compressor Specifications

Troubleshooting Extended

Control Operation - Service

Thermistor

Defrost

Remove Fan and Cover

Warranty

USER GUIDE u-line.com

Introduction

WELCOME TO U-LINE

Congratulations on your U-Line purchase! Your product comes from a company with decades of premium modular ice

making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and

inspired innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA

height compliant, marine, and commercial. Product categories include Beverage Centers, Wine Refrigerators, Ice Machines,

Refrigerators, Freezers, and Dispensers. Our advanced refrigeration systems, large and exible capacities, and clean

integrated look are what makes our products Built-In to Stand Out®. Since 2014, U-Line has been part of the Middleby family

of brands. Products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products are available

worldwide.

U-Line — RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE.®

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, and Product Warranty

information are available digitally on u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

Designed, engineered and assembled in WI, USA

USER GUIDE u-line.com

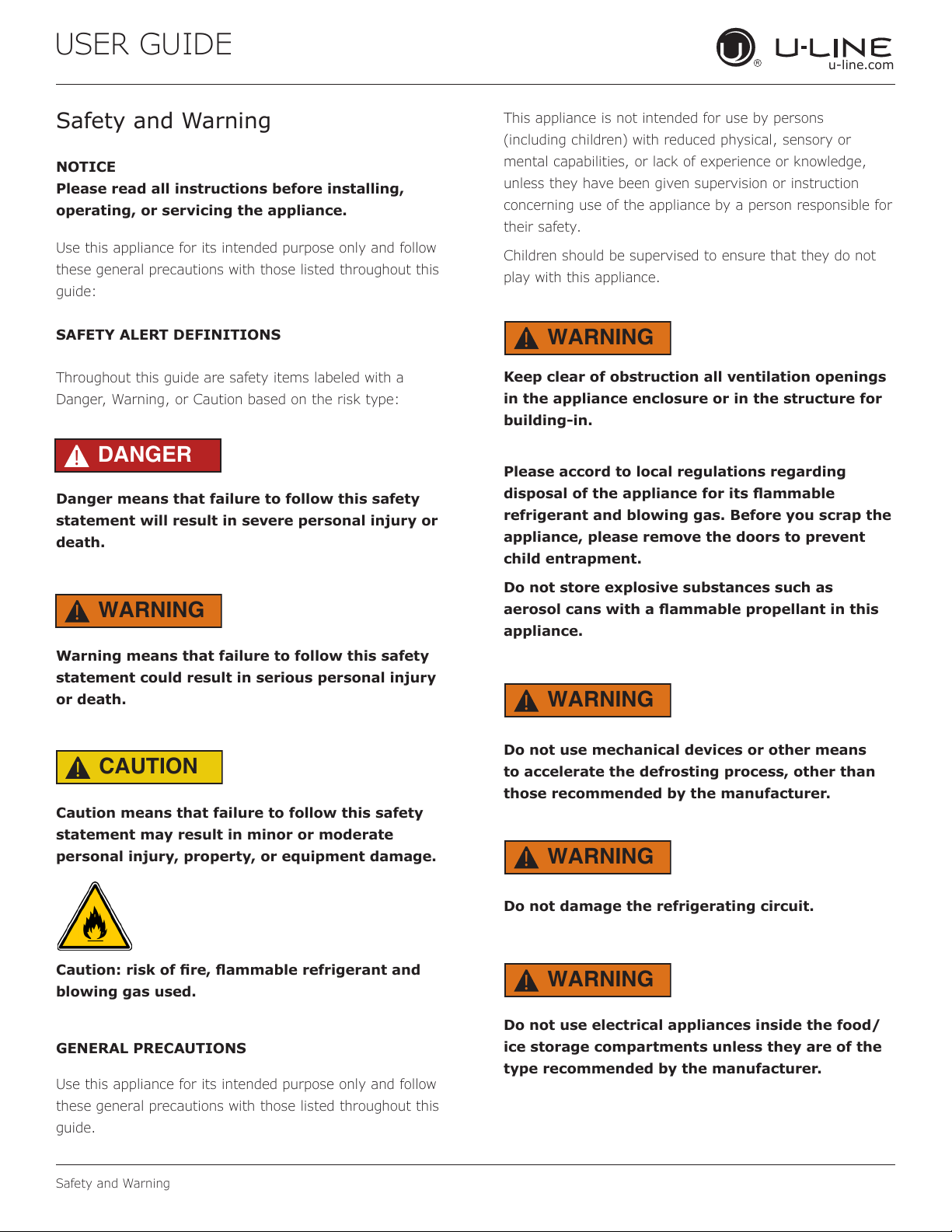

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning, or Caution based on the risk type:

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property, or equipment damage.

Caution: risk of re, ammable refrigerant and

blowing gas used.

GENERAL PRECAUTIONS

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience or knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for

their safety.

Children should be supervised to ensure that they do not

play with this appliance.

Keep clear of obstruction all ventilation openings

in the appliance enclosure or in the structure for

building-in.

Please accord to local regulations regarding

disposal of the appliance for its ammable

refrigerant and blowing gas. Before you scrap the

appliance, please remove the doors to prevent

child entrapment.

Do not store explosive substances such as

aerosol cans with a ammable propellant in this

appliance.

Do not use mechanical devices or other means

to accelerate the defrosting process, other than

those recommended by the manufacturer.

Do not damage the refrigerating circuit.

Do not use electrical appliances inside the food/

ice storage compartments unless they are of the

type recommended by the manufacturer.

DANGER

WARNING

CAUTION

USER GUIDE u-line.com

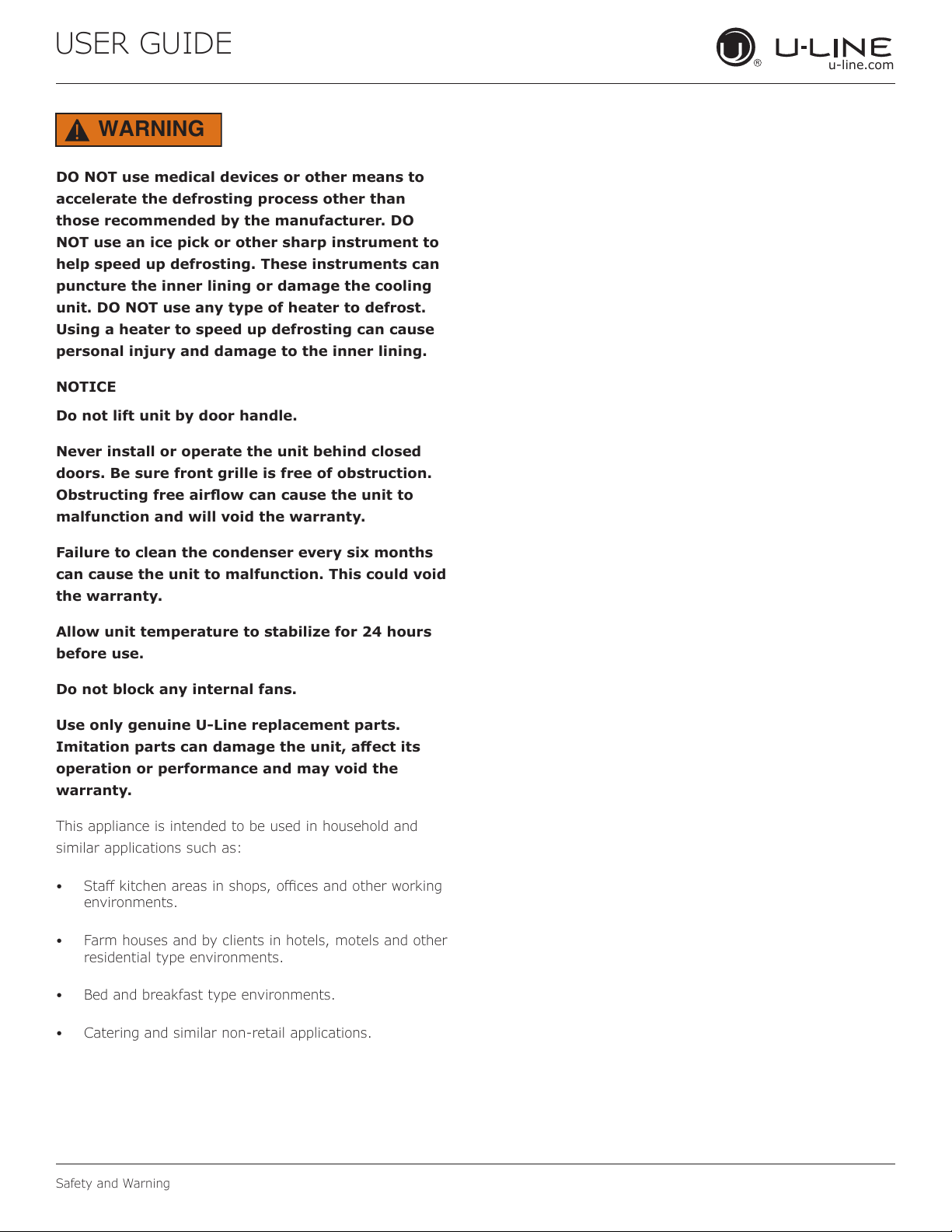

Safety and Warning

DO NOT use medical devices or other means to

accelerate the defrosting process other than

those recommended by the manufacturer. DO

NOT use an ice pick or other sharp instrument to

help speed up defrosting. These instruments can

puncture the inner lining or damage the cooling

unit. DO NOT use any type of heater to defrost.

Using a heater to speed up defrosting can cause

personal injury and damage to the inner lining.

NOTICE

Do not lift unit by door handle.

Never install or operate the unit behind closed

doors. Be sure front grille is free of obstruction.

Obstructing free airow can cause the unit to

malfunction and will void the warranty.

Failure to clean the condenser every six months

can cause the unit to malfunction. This could void

the warranty.

Allow unit temperature to stabilize for 24 hours

before use.

Do not block any internal fans.

Use only genuine U-Line replacement parts.

Imitation parts can damage the unit, aect its

operation or performance and may void the

warranty.

This appliance is intended to be used in household and

similar applications such as:

• Sta kitchen areas in shops, oces and other working

environments.

• Farm houses and by clients in hotels, motels and other

residential type environments.

• Bed and breakfast type environments.

• Catering and similar non-retail applications.

WARNING

USER GUIDE u-line.com

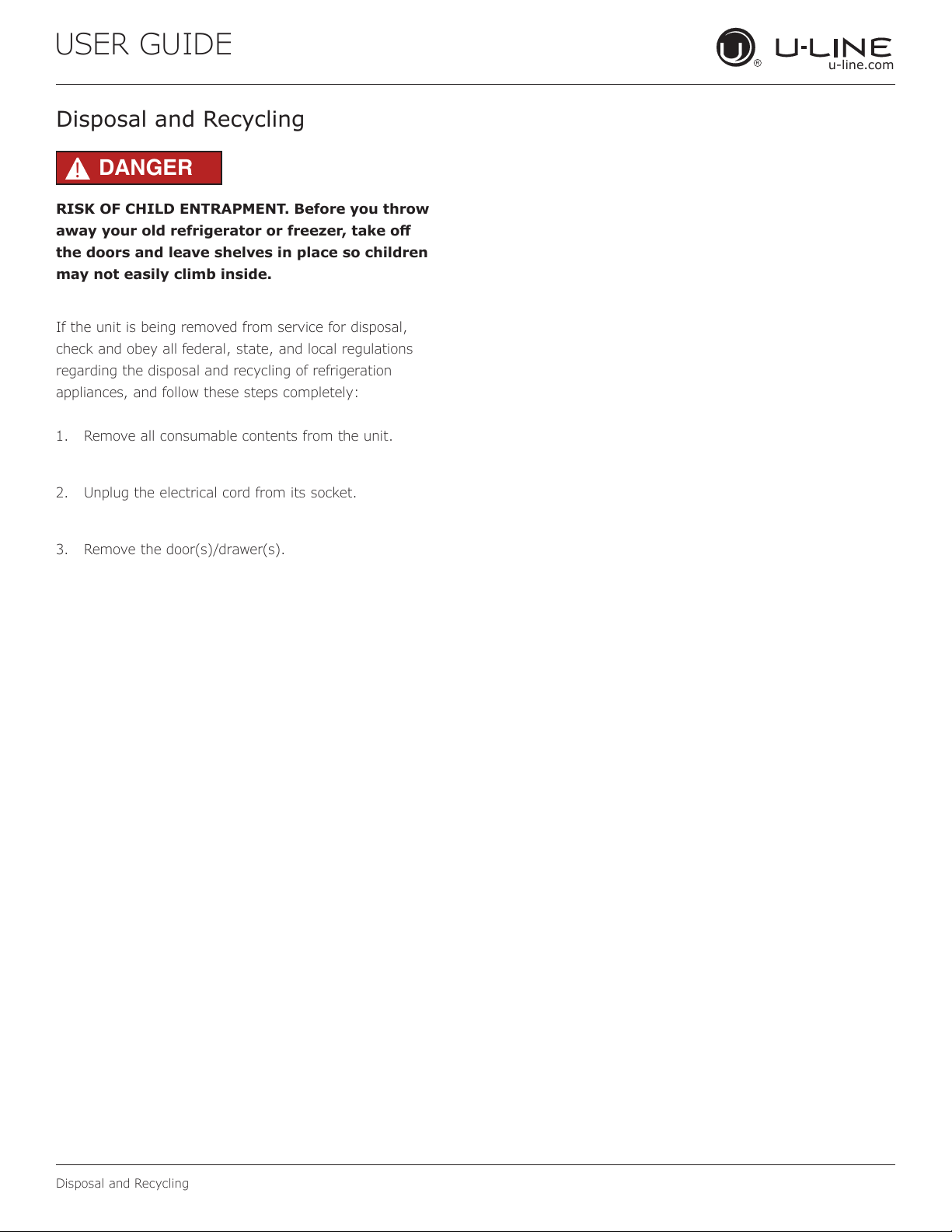

Disposal and Recycling

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take o

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state, and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

DANGER

USER GUIDE u-line.com

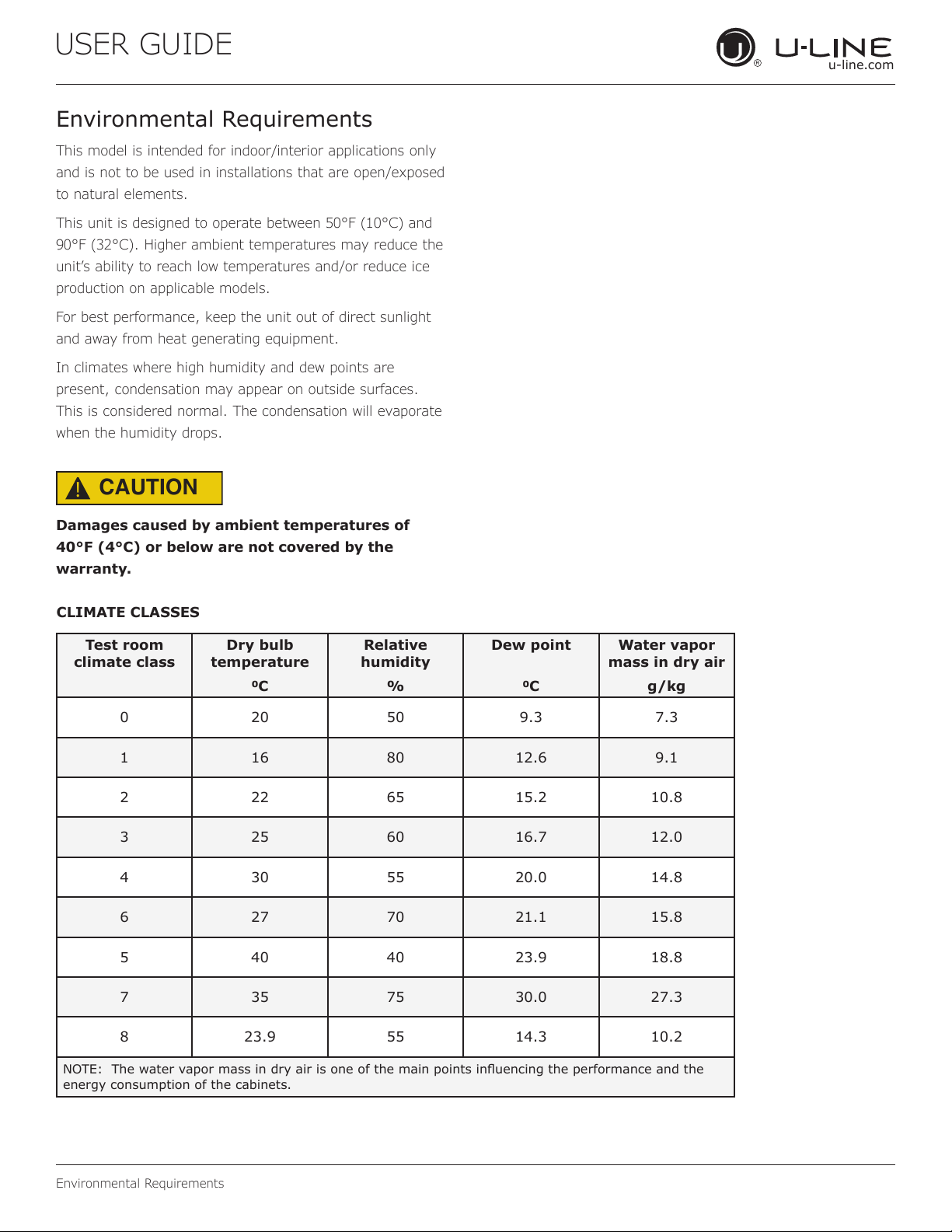

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/exposed

to natural elements.

This unit is designed to operate between 50°F (10°C) and

90°F (32°C). Higher ambient temperatures may reduce the

unit’s ability to reach low temperatures and/or reduce ice

production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will evaporate

when the humidity drops.

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

CAUTION

Test room

climate class

Dry bulb

temperature

Relative

humidity

Dew point

Water vapor

mass in dry air

g/kg

0 20 50 9.3 7.3

1 16 80 12.6 9.1

2 22 65 15.2 10.8

3 25 60 16.7 12.0

4 30 55 20.0 14.8

6 27 70 21.1 15.8

5 40 40 23.9 18.8

7 35 75 30.0 27.3

8 23.9 55 14.3 10.2

NOTE: The water vapor mass in dry air is one of the main points inuencing the performance and the

energy consumption of the cabinets.

CLIMATE CLASSES

USER GUIDE

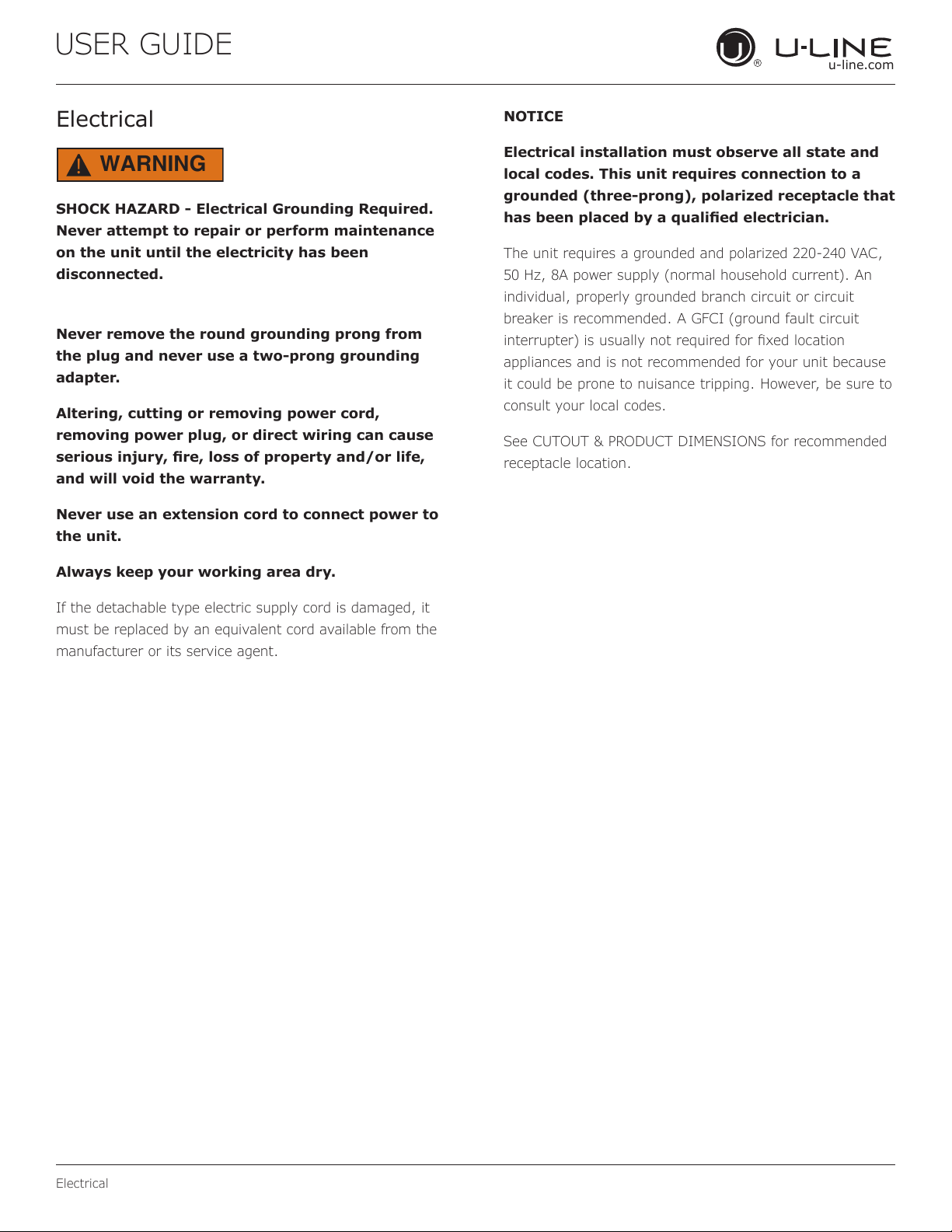

Electrical

u-line.com

Electrical

SHOCK HAZARD - Electrical Grounding Required.

Never attempt to repair or perform maintenance

on the unit until the electricity has been

disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, re, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

If the detachable type electric supply cord is damaged, it

must be replaced by an equivalent cord available from the

manufacturer or its service agent.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle that

has been placed by a qualied electrician.

The unit requires a grounded and polarized 220-240 VAC,

50 Hz, 8A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for xed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure to

consult your local codes.

See CUTOUT & PRODUCT DIMENSIONS for recommended

receptacle location.

WARNING

USER GUIDE u-line.com

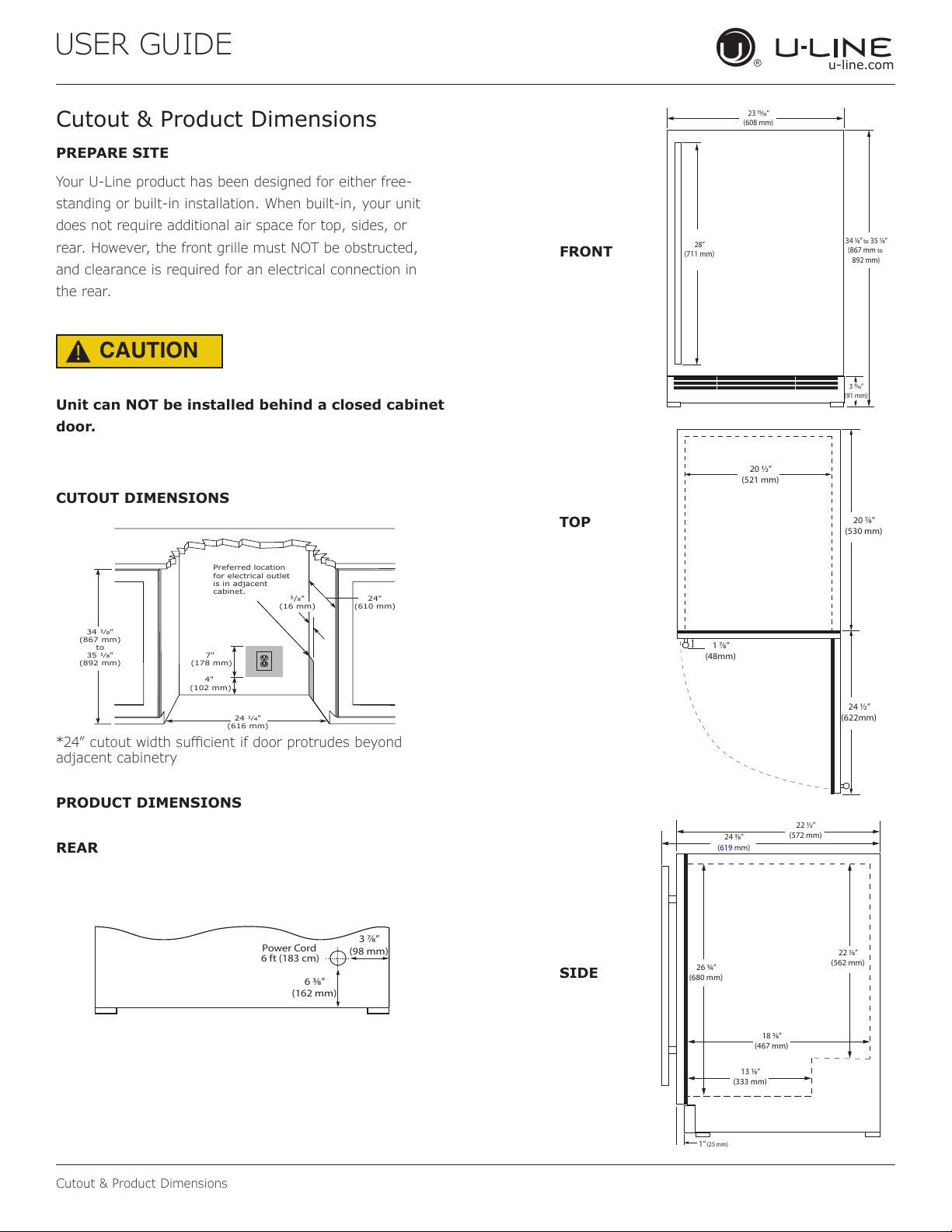

Cutout & Product Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides, or

rear. However, the front grille must NOT be obstructed,

and clearance is required for an electrical connection in

the rear.

CAUTION

Unit can NOT be installed behind a closed cabinet

door.

CUTOUT DIMENSIONS

*24” cutout width sucient if door protrudes beyond

adjacent cabinetry

PRODUCT DIMENSIONS

REAR

FRONT

TOP

SIDE

13 ⁄”

(333 mm)

18 ⁄”

(467 mm)

22 ⁄”

(562 mm)

26 ¾”

(680 mm)

22 ½”

(572 mm)

24 ⁄”

(619mm)

”

(25 mm)

(102 mm)

(178 mm)

24"

(610 mm)

24 1⁄4"

(616 mm)

34 1⁄8"

(867 mm)

35 1⁄8"

(892 mm)

Preferred location

for electrical outlet

is in adjacent

cabinet.

5/8"

(16 mm)

Power Cord

6 ft (183 cm)

6 ⁄”

(162 mm)

3 ⁄”

(98 mm)

23 ⁄”

(608 mm)

3 ⁄”

(91 mm)

34 ⁄” to 35 ⁄”

(867 mm to

892 mm)

28”

(711 mm)

1 ⁄”

(48mm)

20 ½”

(521 mm)

24 ½”

(622mm)

20 ⁄”

(530 mm)

USER GUIDE

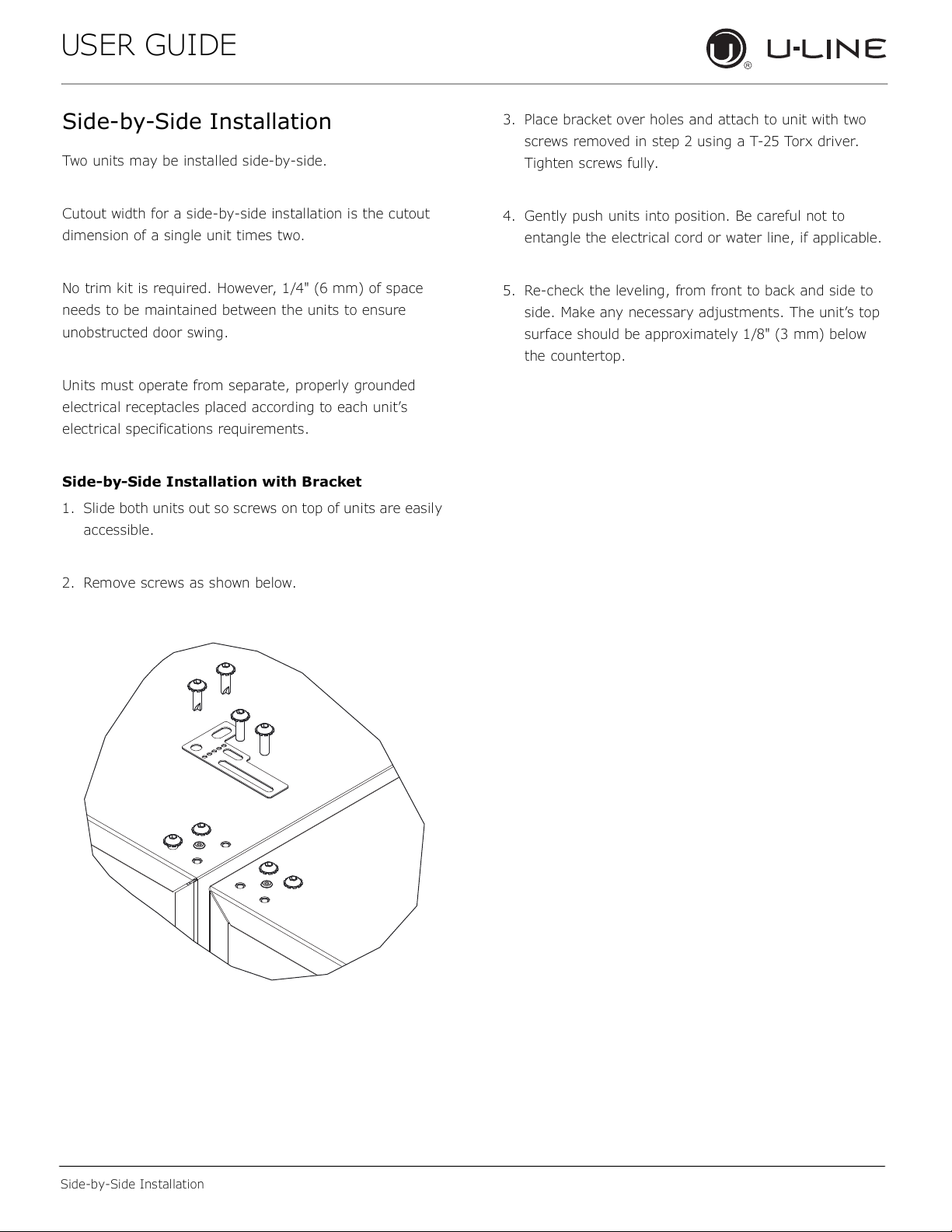

Side-by-Side Installation

u-line.com

Side-by-Side Installation

Two units may be installed side-by-side.

Cutout width for a side-by-side installation is the cutout

dimension of a single unit times two.

No trim kit is required. However, 1/4" (6 mm) of space

needs to be maintained between the units to ensure

unobstructed door swing.

Units must operate from separate, properly grounded

electrical receptacles placed according to each unit’s

electrical specifications requirements.

Side-by-Side Installation with Bracket

1. Slide both units out so screws on top of units are easily

accessible.

2. Remove screws as shown below.

3. Place bracket over holes and attach to unit with two

screws removed in step 2 using a T-25 Torx driver.

Tighten screws fully.

4. Gently push units into position. Be careful not to

entangle the electrical cord or water line, if applicable.

5. Re-check the leveling, from front to back and side to

side. Make any necessary adjustments. The unit’s top

surface should be approximately 1/8" (3 mm) below

the countertop.

Andere Handbücher für UHBV024-SG02A

Inhaltsverzeichnis

Andere U-Line Küchengerät Handbücher

U-Line

U-Line Wine Captain UHWC518-SG51A Installationshandbuch

U-Line

U-Line 1224WCINT-00B Installationshandbuch

U-Line

U-Line 2224BEVS-00B Installationshandbuch

U-Line

U-Line Wine Captain 15WC Bedienungsanleitung

U-Line

U-Line UHBV024SG01A Installationshandbuch

U-Line

U-Line Wine Captain UHWC524SG41A Installationshandbuch

U-Line

U-Line UCWC515SG33A Installationshandbuch

U-Line

U-Line Wine Captain UHWC515SG01A Installationshandbuch

U-Line

U-Line U-3036WCWCS-00B Installationshandbuch

U-Line

U-Line 2224ZWCS-15B Installationshandbuch

U-Line

U-Line Wine Captain UHWC518-IG01A Installationshandbuch

U-Line

U-Line Wine Captain UHWC524 Installationshandbuch

U-Line

U-Line UHBV518 Installationshandbuch

U-Line

U-Line UHBV024-SG02A Installationshandbuch

U-Line

U-Line Wine Captain 2000 Series Bedienungsanleitung

U-Line

U-Line Wine Captain 3000 Series Installationshandbuch

U-Line

U-Line Wine Captain Modular 3000 Series Bedienungsanleitung

U-Line

U-Line U2218BEVS13A Installationshandbuch

U-Line

U-Line 2175BEVS Bedienungsanleitung

U-Line

U-Line U-2224BEVS-00A Installationshandbuch

U-Line

U-Line U-1215WCB-00B Installationshandbuch

U-Line

U-Line U-2224ZWCINT-00A Installationshandbuch

U-Line

U-Line 3024BEV 3000 Series Bedienungsanleitung

U-Line

U-Line WINE CAPTAIN 1075BEV Bedienungsanleitung

Beliebte Küchengerät Handbücher anderer Marken

Tayama

Tayama TYG-35AF Bedienungsanleitung

AEG

AEG 43172V-MN Bedienungsanleitung

REBER

REBER Professional 40 Benutzerhandbuch

North American

North American BB12482G / TR-F-04-B-NCT-1 Bedienungsanleitung

Presto

Presto fountain popper Bedienungsanleitung

Westmark

Westmark 1035 2260 Bedienungsanleitung

Zanussi

Zanussi ZCG64396XA Bedienungsanleitung

HOFFEN

HOFFEN SM-9302M Bedienungsanleitung

Philips

Philips HD3133 Bedienungsanleitung

Ronco

Ronco Beef Jerky Bedienungsanleitung

Hendi

Hendi 470411 Bedienungsanleitung

Livoo

Livoo MEN386 Bedienungsanleitung

Vogue

Vogue D446 Bedienungsanleitung

croydon

croydon WR-10313-700 Bedienungsanleitung

ADE

ADE AUTOMATIC-L Bedienungsanleitung

Chefman

Chefman RJ43-SQ Series Bedienungsanleitung

Vacmaster

Vacmaster VP680 Bedienungsanleitung

Jetmaster

Jetmaster 900HG Bedienungsanleitung
