2015R — Refrigerator

Installation Guide

™

2015R — Refrigerator

www.U-LineService.com 202/2005

™

Contents

Exterior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Cut-Out Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Door Swing/Clearances Information . . . . . . . . . . . . . . 5

Reversing the Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Other Site Requirements . . . . . . . . . . . . . . . . . . . . . . . . 6

Side-By-Side Installation Instructions . . . . . . . . . . . . . . 7

Custom 1/4'' Door Panel Insert . . . . . . . . . . . . . . . . . . . 7

Full Overlay Door Panel . . . . . . . . . . . . . . . . . . . . . . . . . 8

Checking Door Alignment . . . . . . . . . . . . . . . . . . . . . . 12

Adjusting Door Alignment . . . . . . . . . . . . . . . . . . . . . . 12

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 13

Leveling Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Installation Tip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Installation of the 2015R . . . . . . . . . . . . . . . . . . . . . . . . 14

Relocating the Shelves . . . . . . . . . . . . . . . . . . . . . . . . . 14

Installation Troubleshooting . . . . . . . . . . . . . . . . . . . . . 14

Initial Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Start-Up Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 15

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

IMPORTANT

PLEASE READ all instructions completely before

attempting to install or operate the unit.

• This unit requires connection to a grounded (three-

prong), polarized receptacle that has been placed by a

qualified electrician in accordance with applicable

electrical codes.

Safety Alert Definitions

Safety items throughout this guide are labeled with a

Danger, Warning or Caution based on the risk type:

DANGER

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

WARNING

Warning means that failure to follow this safety

statement could result in serious personal injury,

or death.

CAUTION

Caution means that failure to follow this safety statement

may result in minor or moderate personal injury, property

or equipment damage.

1 Follow Safety Precautions

2015R — Refrigerator

02/2005 3www.U-LineService.com

™

General Precautions

Use this appliance for its intended purpose only and

follow these general precautions along with those listed

throughout this guide:

WARNING

SHOCK HAZARD — Electrical Grounding Required.

• Keep the unit unplugged throughout installation

except during testing.

• Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

• Never use an extension cord to connect power to

the unit.

• Always keep your working area dry.

CAUTION

• Use care when moving and handling the unit. Use

gloves to prevent personal injury from sharp edges.

• Do not lift the unit by the door or door handle.

• Do not install the unit behind closed doors or in any

way that would obstruct airflow to the front grille,

which may cause the unit to malfunction.

You have received a carton containing your 2015R

Refrigerator with a package inside containing a User

Manual and a Product Registration Card. Complete and

mail the Product Registration Card or register online at

www.U-LineService.com. Once your unit is installed, keep

the User Manual and this Installation Guide in a safe place

for future reference.

Your unit is Black, White or Stainless Steel. Black and

White units have a reversible door with a slightly

contoured handle across the top. They come with a flush

mounted door panel that, when removed, will accept a

custom 1/4-inch thick door panel or a 3/4-inch thick full

overlay door panel. Stainless Steel units are covered with

a protective coating and have been ordered left- or right-

hand hinged. The Stainless doors are not reversible and

do not accept custom panels. Please carefully follow the

directions that apply to your unit and your intended

design.

Tools/Materials Required

• 7/64" Allen wrench

• Screwdrivers — slotted and Phillips head

• 1/4-inch thick door panel material and cutting tools

(Black or White units)

• Full Overlay Door Panel Kit (part number U-OL2015B —

Black or part number U-OL2015W — White), 3/4-inch

door panel overlay, cutting tools, drill and bits (Black or

White units)

Inspection

Unwrap and inspect the unit on a flat, level surface

capable of supporting its entire weight.

Removing Protective Coating

(Stainless Steel Units Only)

When inspecting/installing a Stainless Steel unit, the

protective coating covering the unit must be removed

first. Start at a corner of the unit/door and pull back the

protective coating to remove it from the unit/door.

2 Inspect and Plan

2015R — Refrigerator

www.U-LineService.com 402/2005

™

After all the protective coating has been removed from

the unit/door, clean all Stainless Steel surfaces with Claire

Stainless Steel Polish and Cleaner or comparable product

or a mild detergent and warm water solution and soft

cloth. Do NOT use abrasive cleaning agents.

Note: If cleaning with mild detergent and warm water

solution and soft cloth, the unit MUST be treated with

Claire Stainless Steel Polish and Cleaner or comparable

product to prevent discoloration.

Exterior Cleaning

(As Required)

Black and White Models:

• The door, grille and cabinet may be cleaned with a mild

detergent and warm water solution. Do not use

solvent-based or abrasive cleaners. Use a soft sponge

and rinse with clean water. Wipe with a soft, clean

towel to prevent water spotting.

Stainless Steel Models:

• Stainless steel models can discolor when exposed to

chlorine gas, pool chemicals, salt water or cleaners with

bleach.

• Keep your stainless steel unit looking new by cleaning

with a good quality all-in-one stainless steel cleaner/

polish on a monthly basis. For best results use Claire

Stainless Steel Polish and Cleaner, which can be

purchased from U-Line Corporation. (The part number

is 173348.) Comparable products are acceptable.

Frequent cleaning will remove surface contamination

that could lead to rust. Some installations may require

cleaning on a weekly basis.

• Do not clean with steel wool pads.

• Do not use cleaners that are not specifically

intended for stainless steel (this includes glass,

tile and counter cleaners).

• If any surface discolors or rusting appears, clean it

quickly with Bon-Ami or Barkeepers Friend Cleanser

and a non-abrasive cloth. Always clean in the direction

of the grain. Always finish this process with Claire

Stainless Steel Polish and Cleaner or comparable

product to prevent further problems.

• Use of abrasive pads such as Scotchbrite will

cause the graining in the stainless to become

blurred.

• Rust that is allowed to linger can penetrate into the

surface of the stainless steel and complete removal of

the rust may not be possible.

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides or rear.

However, the front grille must NOT be obstructed and

clearance is required for electrical connection in the rear.

Note: Unit can NOT be installed behind a closed cabinet

door.

Cut-Out Dimensions

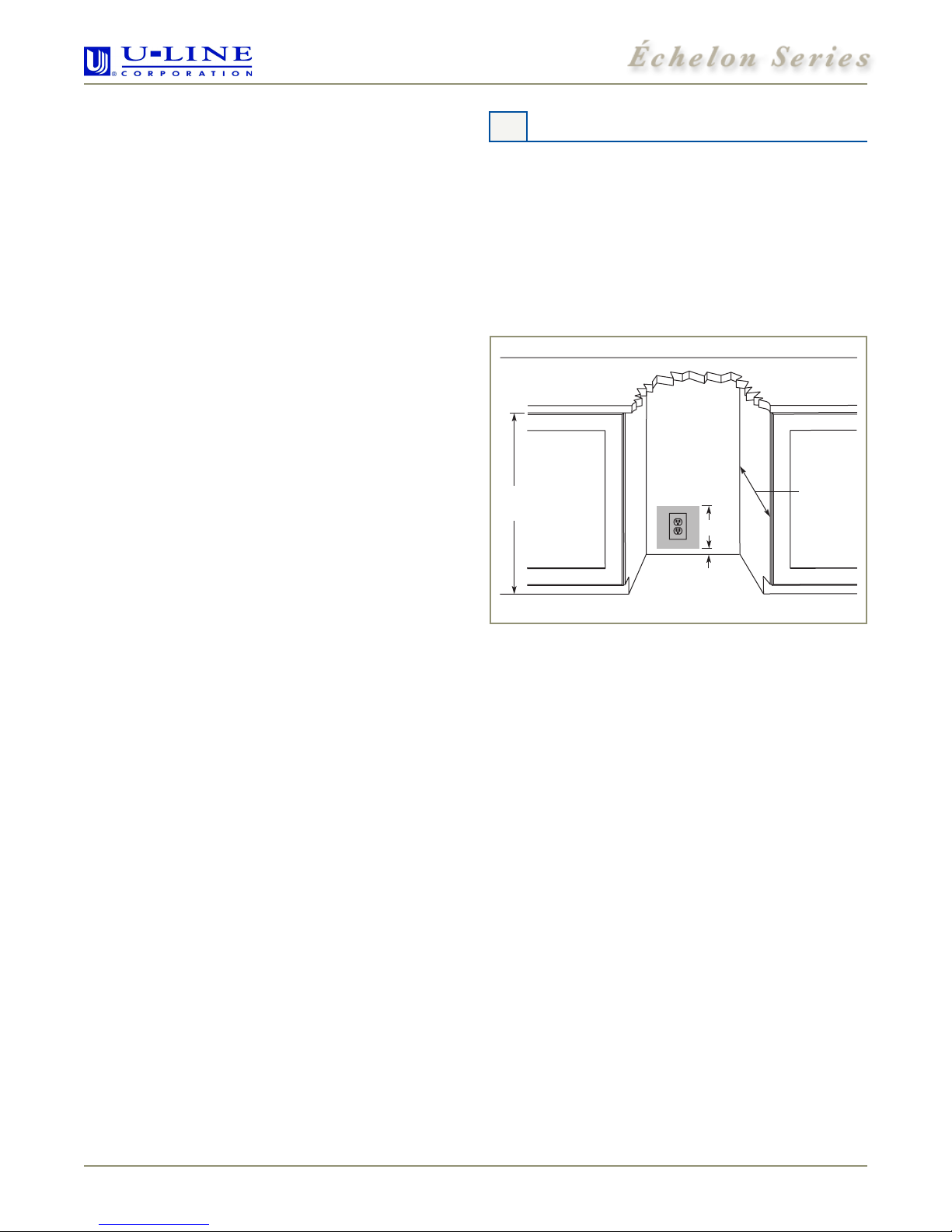

Follow the cut-out drawing in Figure 1. The 15-3/16"

width allows 1/4" for ease in installation and removal of

the unit. 24" is the counter depth in most installations.

The unit is 23-1/4" deep including the handle on Black

and White models and 23-1/4" deep including the door

and not the handle on Stainless Steel models (see

Figure 2).

3 Prepare Site

23-1/4"

34-1/4"

35-1/8"

Figure 1

2015R — Refrigerator

02/2005 5www.U-LineService.com

™

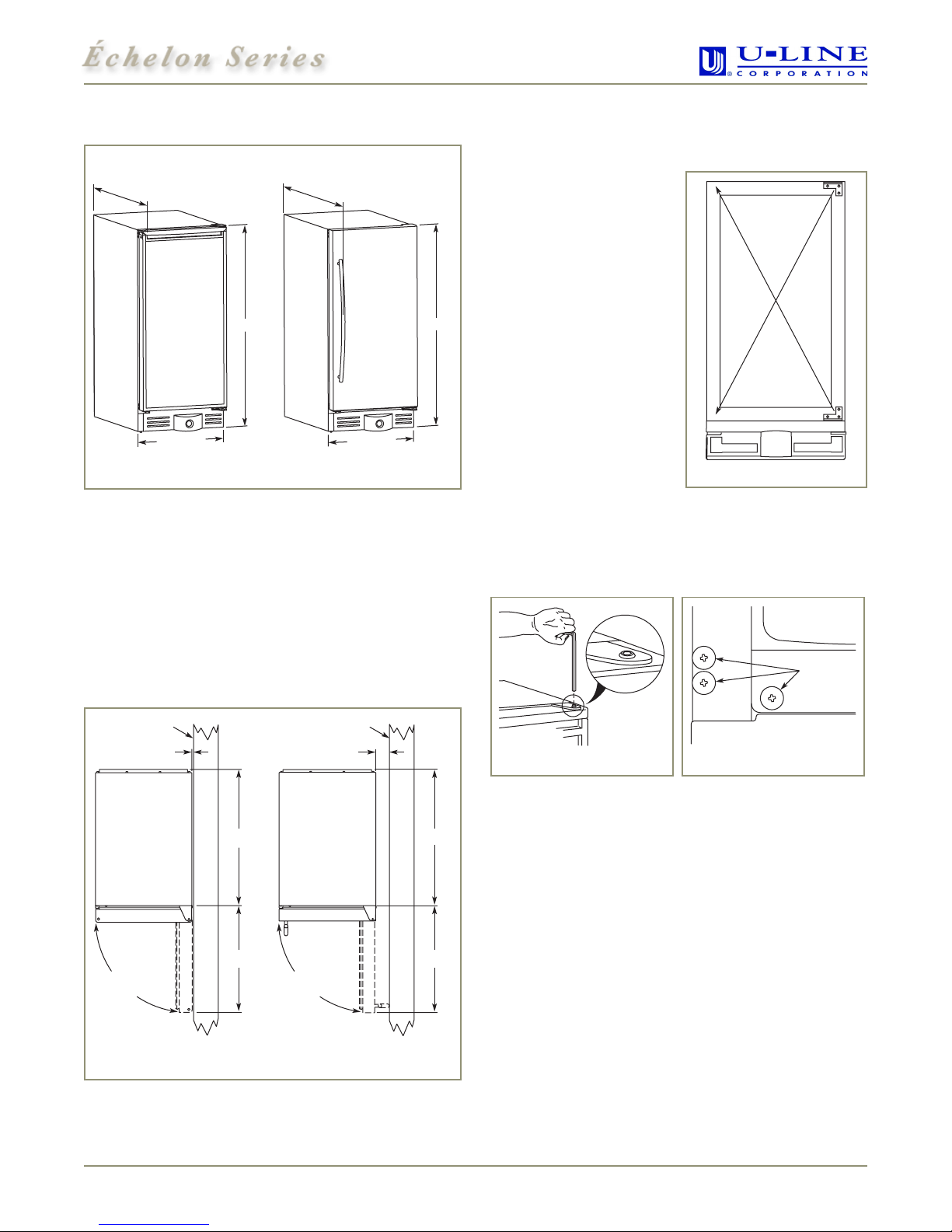

Product Dimensions

Please note that the unit has adjustable feet that can add

one additional inch to height during leveling or to match

adjacent cabinets (see Figure 32 on Page 13).

Door Swing/Clearances Information

Black and White units have a zero clearance for the door

to open 90° (see Figure 3). Stainless Steel models require

a minimum of 2-1/8" door clearance to accommodate the

handle if the unit is installed next to a wall or similar type

of structure.

Reversing the Door

(Black and White Units Only)

All U-Line units (except

Stainless Steel models) may

be left- or right-hand

opening. The door opening is

easily reversed by moving the

hinge hardware to the

opposite side. The top hinge

hardware will be used on the

bottom of the other side and

the bottom hinge hardware

will be used on the top of the

other side (see Figure 4).

To reverse the door:

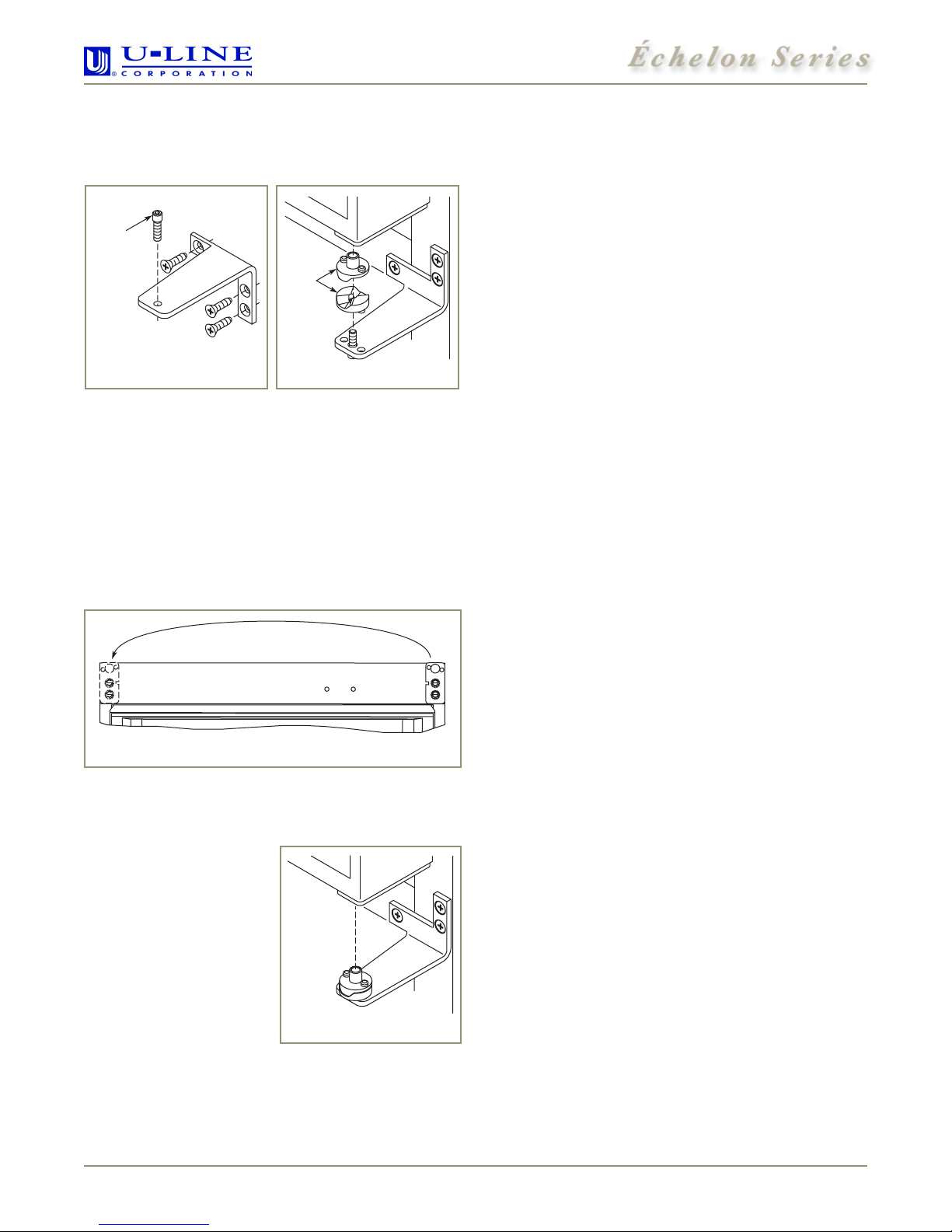

1. Remove top hinge screw

pin from door (7/64"

Allen wrench or Phillips

screwdriver, depending

on your unit’s

construction) (see Figure 5). Remove door by tilting

forward and lifting off bottom hinge pin.

Remove plastic screw plugs (3 each, top and bottom)

from new hinge location. Do not discard (see

Figure 6

3. Remove top hinge (3 screws), reinstall hinge screw pin,

and remount on opposite side BOTTOM (see

Figure 7

34-1/8"

25-3/8"

Including

Handle

23-1/4"

Including

Handle

14-15/16"

Black and White

14-15/16"

Stainless Steel

Figure 2

1/4" Min.

Wall

21"

Wall

21"

16-1/2" 16-1/2"

2-1/8" Min.

90°

Door Swing

90°

Door Swing

Black and White Stainless Steel

Figure 3

Figure 4

Screw Plugs

Figure 5 Figure 6

2015R — Refrigerator

www.U-LineService.com 602/2005

™

4. Remove the two door closer inserts from the existing

bottom hinge and install as shown on the new bottom

hinge (see

Figure 8

5. Remove existing bottom hinge (3 screws) and remount

on opposite side TOP. Remove hinge screw pin.

6. Remove the plastic hole plug from the top of the door

to allow the pivot pin to be inserted in the new

location. Install the plug into the vacated hole on the

opposite side.

7. With bottom of door facing up, remove pivot plate

(2 screws), flip over, and remount on opposite side of

door (see

Figure 9

). Be sure notch in plate faces center.

8. Holding door upright with top of door tilted forward,

place hole of door pivot plate on bottom hinge screw

pin (see

Figure 10

9. Tilt top of door into

position in top hinge and

install top hinge screw pin.

10. Install plastic screw plugs

removed in Step 2 in old

hinge holes (3 each, top

and bottom).

Other Site Requirements

Power Supply

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A circuit (normal household current). See

Electrical Specifications on Page 13.

Environmental Requirements

The surrounding air temperature must be at least 50°F

(10°C) but must not exceed 110°F (40°C). Black and White

units may be installed outdoors in a covered area.

Stainless Steel 2015R units are deemed suitable for

outdoor use by UL. The unit must not be located near

heat-generating equipment or in direct sunlight.

Figure 7 Figure 8

Hinge

Screw

Door

Closer

Inserts

Figure 9

Figure 10

2015R — Refrigerator

02/2005 7www.U-LineService.com

™

Side-By-Side Installation

Instructions

For a complete refreshment center, install your 2015R

Refrigerator beside a U-Line Ice Maker, Combo, or Wine

Captain Model (see Figure 11 for typical cut-out). Note

that each Side-By-Side Installation will be different.

• Cut-out width for a side-by-side installation is the total

of the widths listed under Cut-Out Dimensions in each

unit’s Installation Guide.

For example:

Placing a 2015R Refrigerator next to a 2015 series unit

would require a cut-out width of:

15-3/16" + 15-3/16" = 30-3/8"

Placing a 2015R Refrigerator next to a 2075 series unit

would require a cut-out width of:

15-3/16" + 24-3/16" = 39-3/8"

•

No trim kit is required. However, 1/4-inch space needs to

be maintained

between the units to ensure

unobstructed door swing.

• Units must operate from separate, properly grounded

electrical receptacles placed according to each unit’s

Electrical Specifications.

(Black and White Units Only)

Two types of custom door panels can be installed on your

Black or White unit to harmonize with or accent the

surrounding décor: a Custom 1/4" Insert or a Full Overlay.

If no custom door panel is used, go on to 5 Adjust Door.

Custom 1/4'' Door Panel Insert

Door Panel Preparation

A custom door panel can be inserted into the doorframe.

Custom door panels can be flat or raised, as long as the

maximum panel thickness where inserted into the door

reveal (channel) is 1/4"-thick. For raised panels, the depth

of the reveal is 1/4" on all four sides.

IMPORTANT

Raised panels will reduce the door’s 90° swing/zero

clearance if the unit is installed next to a wall or similar

type of structure (see Page 5).

Cut the panel insert to the following dimensions.

Custom 1/4" Dimensions:

Width: 14-1/32"

Height: 28-5/32"

The door panel must not weigh more than 20 lbs.

Door Panel Installation

Install the insert as follows:

1. Remove the door shelves by first pulling shelves up at

a 45° angle then straight out (see Figure 33 on

Page 14).

CAUTION

Use care when handling the insert. Insert edges may be

sharp.

2. Remove top hinge screw pin (7/64" Allen wrench or

Phillips screwdriver, depending on your unit’s

construction, see

Figure 12

). Remove door by tilting

forward and lifting off bottom hinge pin.

34-1/4"

35-1/8"

1/4" Space

Between Appliances

23-1/4"

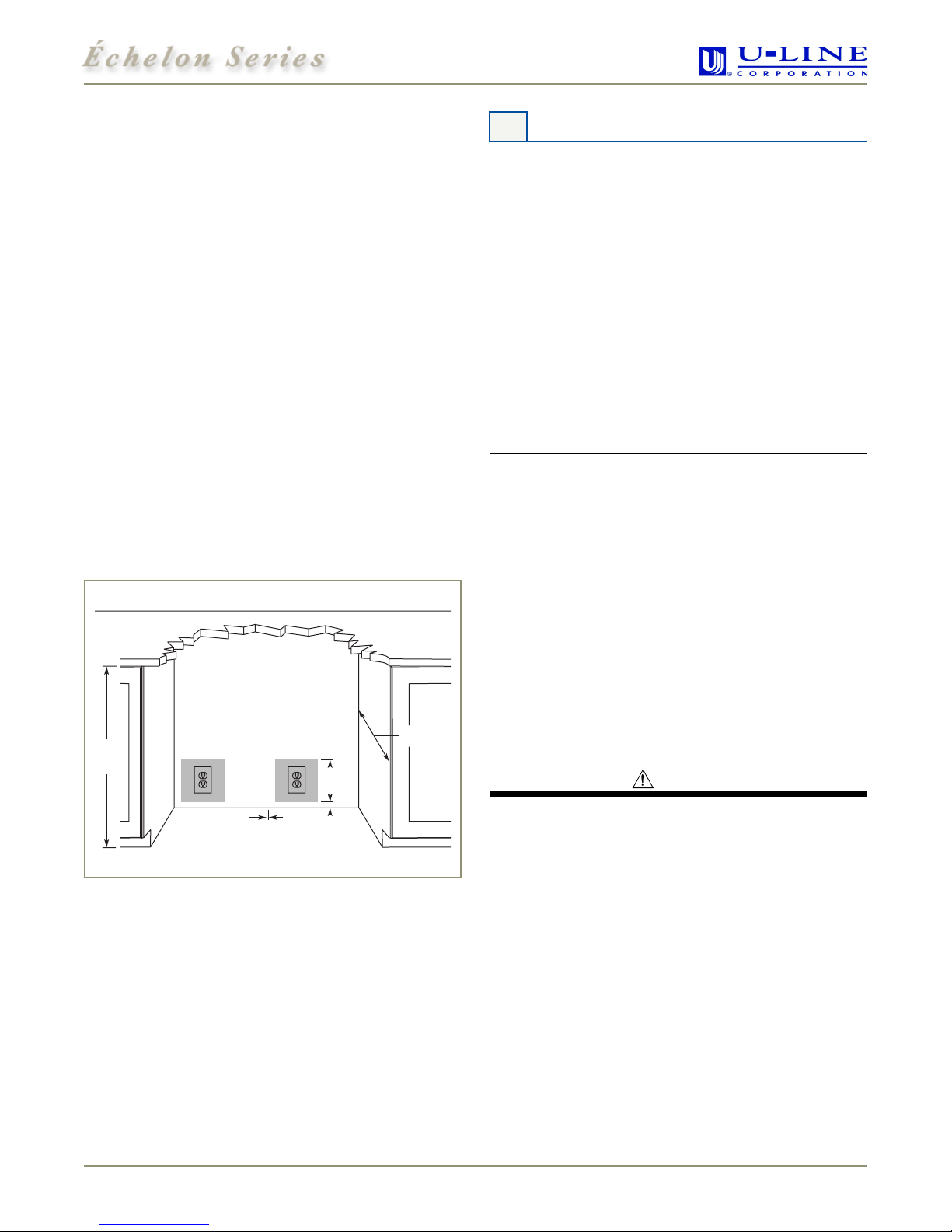

Figure 11

Typical Side-By-Side Cut-Out

4 Prepare and Install Door Panel

2015R — Refrigerator

www.U-LineService.com 802/2005

™

3. Pull door gasket out of groove (top edge of door only).

Start in the middle and pull outward, moving toward

the edge (see

Figure 13

). This may take some force. Do

not remove the three screws behind gasket.

4. Remove two outside screws holding door handle.

Slightly separate door handle from door (see

Figure 14

5. Pull handle up and off.

6. Remove and discard

existing panel and

cardboard spacer.

7. Slide custom door panel

insert into 1/4-inch

channel in door front.

8. Holding door gasket out

of the way, replace handle

on door, making sure it is

seated properly on insert and that screw holes

line up.

9. Install two small screws removed in Step 4.

10. Starting at the corners and working inward, push door

gasket into place on door.

11. Place door on bottom hinge pin and install upper hinge

screw.

12. Reinstall the door shelves by lining up the bosses and

first pushing straight in, then down at a 45° angle (see

Figure 33

Page 14

). Go on to

5 Adjust Door

Full Overlay Door Panel

Door Panel Preparation

A full overlay door panel completely covers the

doorframe and handle to give a built-in appearance. See

your U-Line dealer for the optional Full Overlay Door

Panel Kit (P/N U-OL2015B — Black or P/N U-OL2015W —

White). Appropriate hardware, Modified Handle,

Replacement Hinges and a copy of these instructions will

be included in the kit.

1. Cut the overlay to the following dimensions (see

Figure 15).

Full Overlay Dimensions:

Width: 14-3/4"

Height: 29-7/8"

The door panel must not weigh more than 20 lbs.

IMPORTANT

Rear View of wood panel for right-hand hinge shown. Use

mirror image for left-hand hinges.

2. Create a relief (see

Figure 15

) for pivot plate by cutting

notch in top corner and coinciding back corner of

overlay panel. Refer to

Figure 16

for exact

specifications.

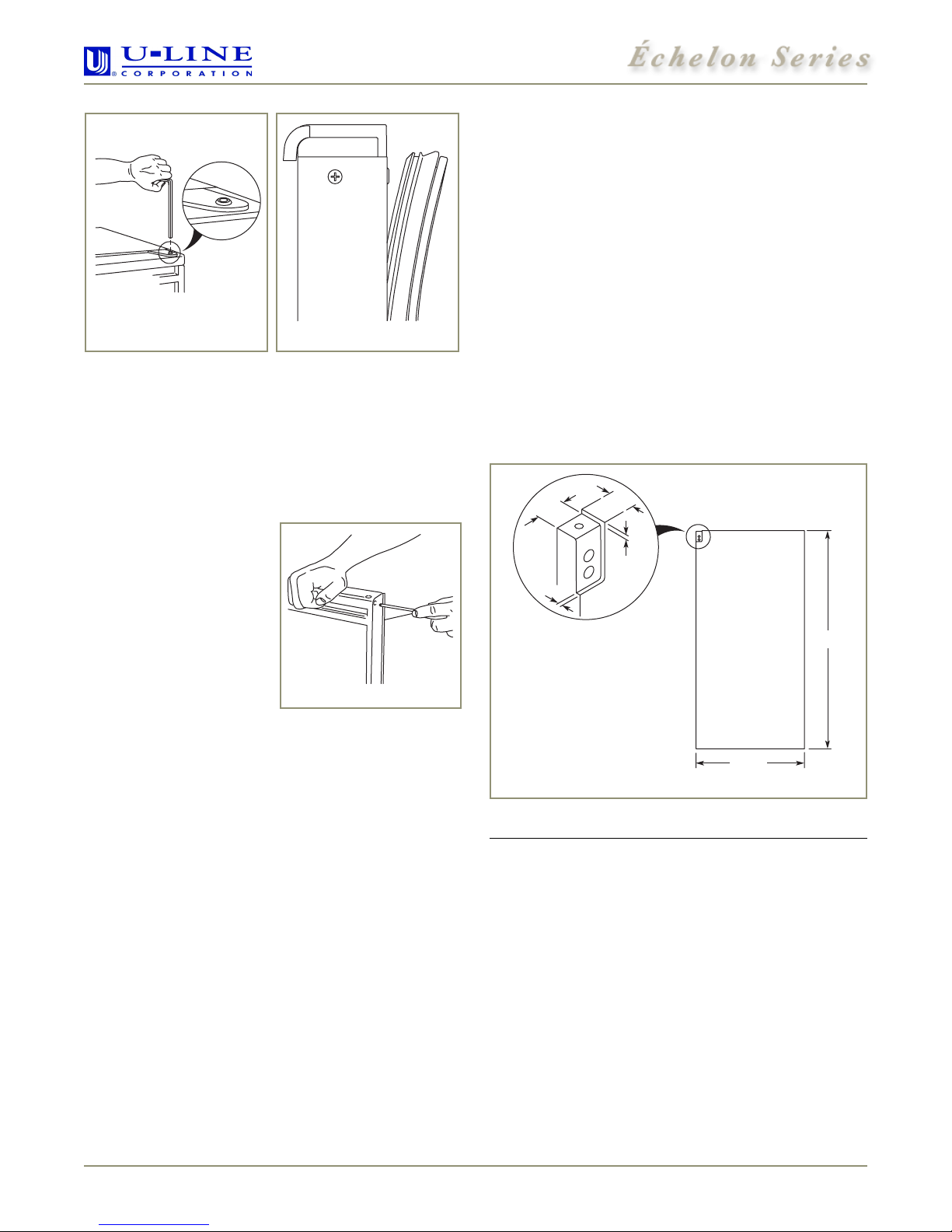

Figure 12 Figure 13

Figure 14

29-7/8"

14-3/4"

1/8"

13/16"

1/8"

Relief Notch

for Pivot Plate

Rear View

Wood Panel

3/4"

Figure 15

2015R — Refrigerator

02/2005 9www.U-LineService.com

™

Route notch in top corner of overlay panel as shown

(see Top and Side Views). Top of notch is entire depth

of panel, front to back.

Width: 13/16"

Depth: 1/8"

Route notch in backside of top corner of overlay panel

(see Back and Side Views).

Width: 13/16"

Depth: 1/8"

Height: 1-17/32" from top edge of panel (less 1/8" for

depth of notch on top of panel)

Radius of corner notch: 1/8" (see Back View)

3. Drill holes for pivot plate mounts (see

Figure 16

, Back

View).

5/16" diameter x 1/2" deep, from the routed surface

CAUTION

Be careful not to drill too deep! Drilling holes too deep

may destroy your door panel.

4. Drill hole for upper door hinge (top of panel) (see

Figure 16

, Top View).

0.177" diameter

(#16 drill) x 11/16" deep

5. Drill hole for lower door hinge (see

Figure 16

, Bottom

View).

5/16" diameter x 1/4" deep

CAUTION

It is important to ensure that all drilled holes are drilled to

the correct depth in order to avoid splits in the wood

when hardware is installed.

Installation Instructions

Removing Existing Door

1. Remove the door shelves by first pulling shelves up at

a 45° angle then straight out (see Figure 33 on

Page 14).

2. Remove top hinge screw pin (7/64" hex key or Phillips

screwdriver, depending on your unit’s construction).

Remove the door by tilting forward and lifting off the

bottom hinge pin.

3. Pull door gasket out of the groove (top edge of door

only). Start in the middle and pull outward, moving

toward the edge (see

Figure 17

). This may take some

force.

4. Remove the three screws located on the back of the

handle (see

Figure 18

Top View

Back View

Bottom View

Side View

13/16"

1-17/32"

13/16"

13/32"

3/8"

Door Bottom:

5/16" Dia. x1/4" Deep

Chamfer 1/32" x45°

3/8"

1/8" 1/8"

13/16"

7/16"

1/8"

13/32"

3/4"

13/32" 0.177" Dia. (#16 Drill)

x11/16" Deep

5/16" Dia.

x1/2" Deep

1/32" R

1/8" R

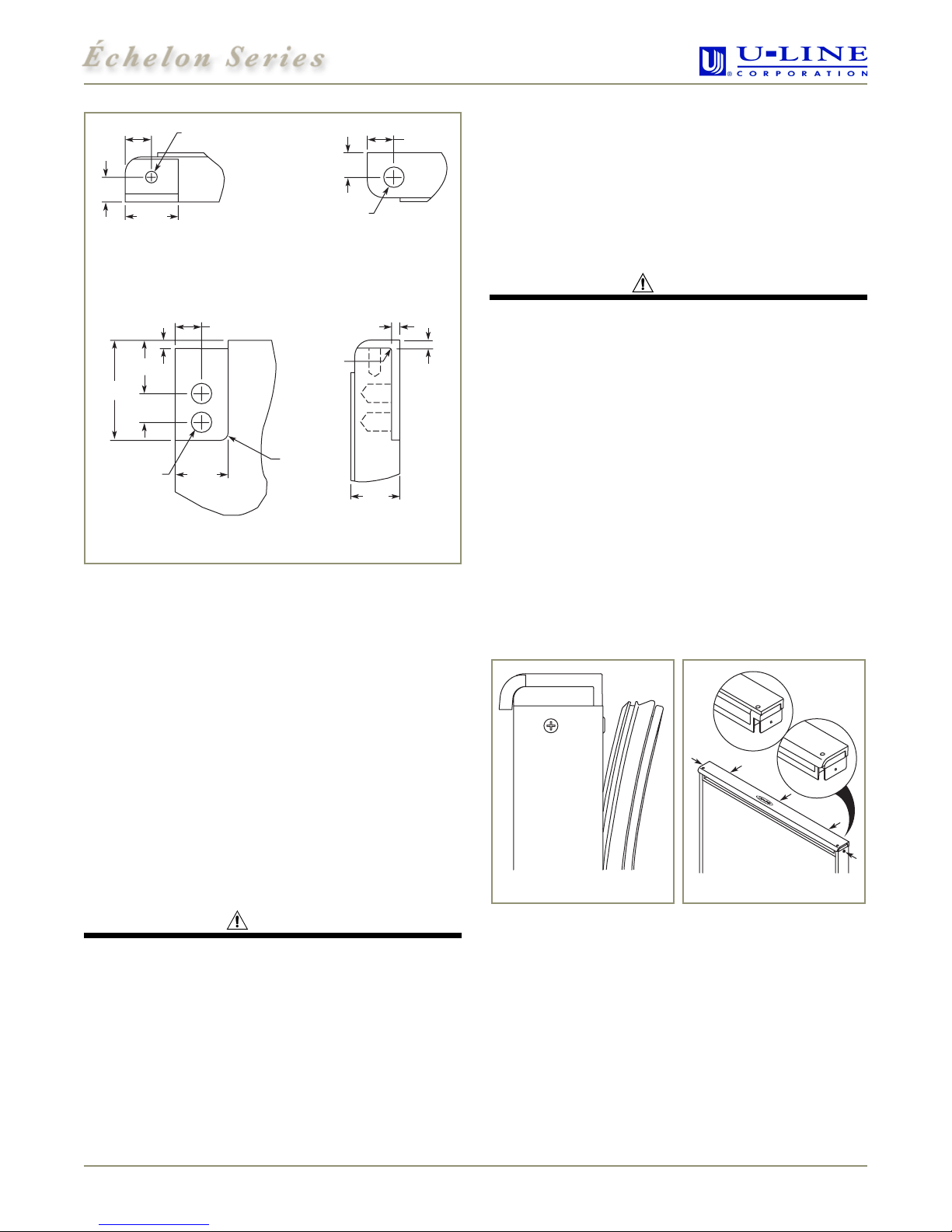

Figure 16

Figure 17 Figure 18

Old Handle

New Handle

2015R — Refrigerator

www.U-LineService.com 10 02/2005

™

5. Remove the top handle and discard. (This handle will be

replaced with the Modified Handle included in the Full

Overlay Door Panel Kit.)

6. Remove the two screws located on both sides of the

lower handle. Remove the handle.

7. Attach the Modified Handle to the lower handle using

the three screws removed in Step 4. Set aside.

8. Slide the existing door panel out of the doorframe.

Attaching the Full Overlay Panel

1. Tap nylon inserts into the top holes drilled in the

overlay panel. Use two #6 screws to attach top pivot

bracket to the overlay panel (see Figure 19).

2. Place and tape the existing door panel on the back of

the overlay panel (see

Figure 20

) and drill holes

through both panels according to

Figure 21

. Remove

tape adjoining the panels and enlarge the six holes in

the overlay panel using a 0.201" (#7) drill.

3. If a user-supplied cabinet handle will be used, attach its

hardware to the overlay panel at this time.

4. Attach the door panel to the overlay panel using #10 x

5/8" wood screws and nylon spacers. The nylon spacers

fit between the overlay panel and the door panel as

shown in

Figure 22

. The spacers

allow the original

door panel to slide back into the

1/4"-thick door

reveal (channel).

Typical Wood

Panel

Top Pivot

Plate

#6 X 5/8"

Flat Head Screw

Two Required

8 mm Plug Insert

Two Required

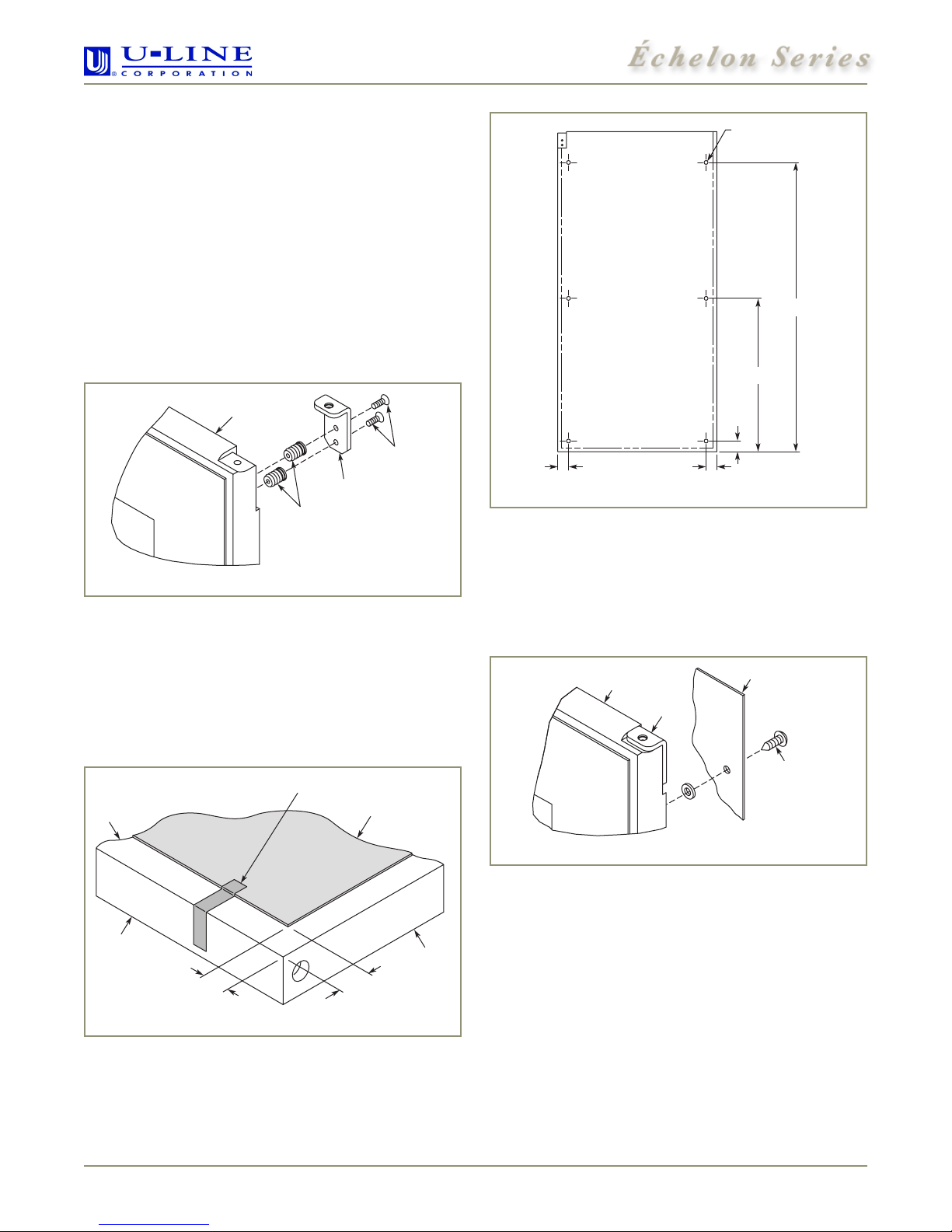

Figure 19

Removed

Door Panel

Bottom of

Wood Panel

Back of

Wood

Panel

Side of

Wood Panel

Tape

5/16"

Bottom

3/8"

Both Sides

Figure 20

Drill 5/32" x3/8" Deep for use

with #10 x5/8" Wood Screw

and Nylon Spacer –

6 Places

1"±1/8"

1"±1/32"1"±1/32"

14-5/16"±1/4"

27"±1/4"

Rear View

Wood Panel

Figure 21

Door Panel

Top

Pivot Plate

Typical

Wood Panel

Plastic Spacer

Six Required

#10 x5/8"

Round

Head Screw

Six Required

Figure 22

Andere Handbücher für Echelon 2015R

Inhaltsverzeichnis

Andere U-Line Kühlschrank Handbücher

U-Line

U-Line U2224RINT00B Installationshandbuch

U-Line

U-Line U-1224RFINT-00B Installationshandbuch

U-Line

U-Line CLRCO2175 Bedienungsanleitung

U-Line

U-Line Combo CO2175DWR Bedienungsanleitung

U-Line

U-Line UHWC524SG41AU Installationshandbuch

U-Line

U-Line U-1224FZRS-00A Installationshandbuch

U-Line

U-Line U-2224RS-00B Installationshandbuch

U-Line

U-Line Echelon CO2075DWR Bedienungsanleitung

U-Line

U-Line UHRE515IG01A Installationshandbuch

U-Line

U-Line Echelon CLRCO2175S01 Bedienungsanleitung

U-Line

U-Line 1224RF Bedienungsanleitung

U-Line

U-Line Echelon 2115RS00 Bedienungsanleitung

U-Line

U-Line U-3018RINT-00A Installationshandbuch

U-Line

U-Line Origins 75BEV Bedienungsanleitung

U-Line

U-Line Echelon 2175RC Konfigurationshandbuch

U-Line

U-Line Wine Captain U-2224ZWCINT-00B Installationshandbuch

U-Line

U-Line Echelon 2015R Bedienungsanleitung

U-Line

U-Line 2000 SERIES Installationshandbuch

U-Line

U-Line UHWC115BG01A Installationshandbuch

U-Line

U-Line UHRE124BS01A Installationshandbuch

U-Line

U-Line Origins 75R Bedienungsanleitung

U-Line

U-Line Origins 75R Bedienungsanleitung

U-Line

U-Line ADA24R Bedienungsanleitung

U-Line

U-Line CO1175 Konfigurationshandbuch

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
