QUICK START GUIDE

1000 Series •CLR1215 •115 V / 60 Hz

QUICK START GUIDE

u-line.com

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over five decades and three generations

of premium modular ice making, refrigeration, and wine preservation experience. U-Line continues to be the American

leader, delivering versatility and flexibility for multiple applications including residential, light commercial, outdoor and marine

use. U-Line’s complete product collection includes modular Wine Captain®Models, Beverage Centers, Clear Ice Machines,

Crescent Ice Makers, Glass & Solid Door Refrigerators, Refrigerator Drawers, Freezers, and Combo®Models.

U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired innovations

and attention to even the smallest details. We are known and respected for our unwavering dedication to product design,

quality and selection. U-Line is headquartered in Milwaukee, Wisconsin with a west coast office located in Laguna Beach,

California and European support in Dublin, Ireland. U-Line has shipped product to five continents for over two decades and is

proud to have the opportunity to ship to you.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Quick Reference Guides, CAD Drawings, Integrated Panel

Instructions, Compliance Documentation and Product Warranty information are all available for reference and download at

u-line.com under Documentation.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.800.779.2547.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.

SERVICE INFORMATION

Answers to Customer Frequently Asked Questions are available at u-line.com under Customer Care or you may contact our

Customer Care group directly, contact information below.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

F: +1.414.354.7905

Email: sales@u-line.com

u-line.com

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 5:30 pm CST

T: +1.800.779.2547

F: +1.414.354.5696

Service Email: onlineservic[email protected]

Parts Email: onlineparts@u-line.com

CONNECT WITH US

Designed, engineered and assembled in WI, USA

QUICK START GUIDE

u-line.com

Contents

1 Model List

2 Safety and Warning

2 Environmental Requirements

3WaterHookup

5Drain

7 Door Swing

8 General Installation

9 Control Operation

9 First Use

9Ice

10 Sabbath Mode

11 Warranty

QUICK START GUIDE

u-line.com

Model List

This guide provides the basics to get you started. Looking for more information? Visit u-line.com to view detailed User Guides

for all U-Line products.

Clear Ice

U-CLR1215S-00A

U-CLR1215S-40A

U-CLR1215INT-00A

U-CLR1215INT-40A

U-CLR1215B-00A

U-CLR1215B-40A

U-CLR1215W-00A

U-CLR1215W-40A

Outdoor Series

U-CLR1215RSOD-00A

U-CLR1215RSOD-40A

Visit http://www.u-line.com/product-literature/userguides or

scan this QR code to view all user guides online.

QUICK START GUIDE

u-line.com

Safety and Warning

NOTICE

PLEASE READ all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning or Caution based on the risk type:

DANGER

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

WARNING

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

CAUTION

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property or equipment damage.

Environmental Requirements

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (5°C) or below are not covered by the

warranty.

QUICK START GUIDE

u-line.com

Water Hookup

INDOOR MODELS

PREPARE PLUMBING

Please use the braided stainless steel water supply line

which comes attached. The water line is fitted with a

standard 1/4" (6.35 mm) compression fitting.

WARNING

Prior to installation, determine if this product

contains a gravity style drain or factory installed

drain pump. Products without a drain pump may

only use a gravity style drain. Failure to connect

water supply or drain line connections properly

may result in water leakage, personal injury,

and/or property damage. Disconnect power and

turn off water to the unit before attempting to

alter these connections. These connections are

the responsibility of the owner and must be

connected per local plumbing code. If you are

uncertain of how to safely and properly install

this product, contact a licensed plumber.

Water Supply Connection

CAUTION

Review, obey, and understand the local

plumbing codes before you install your unit.

Connect to the cold water supply. The water

pressure should be between 20 and 120 psi. The

water line MUST have a shut-off valve on the

supply line.

CAUTION

Do not use any plastic water supply line. The line

is under pressure at all times. Plastic may crack

or rupture with age and cause damage to your

home.

Do not use Teflon tape or joint compound on the

water fitting. The rubber washer provides an

adequate seal. Other materials could cause

blockage of the valve.

Failure to follow recommendations and

instructions may result in damage and/or harm,

flooding or void the product warranty.

CAUTION

Turn off water supply and disconnect electrical

supply to unit prior to installation.

1. Turn off water supply and disconnect electrical supply

to product prior to attempting installation.

2. Locate the desired cold water supply location.

3. Locate braided stainless steel

water supply line and

connect to your cold water

supply. The water line should

be looped into 2 coils. This

will allow the unit to be

removed for cleaning and

servicing. However, make

certain that the tubing is not pinched or damaged

during installation.

4. Turn on water and check for leaks.

QUICK START GUIDE

u-line.com

5. Route water supply line in cable clamp and secure with

screw.

OUTDOOR MODELS

PREPARE PLUMBING

The water valve in this unit uses a standard 1/4"

(6.35 mm) compression fitting.

WARNING

Prior to installation, determine if this product

contains a gravity style drain or factory installed

drain pump. Products without a drain pump may

only use a gravity style drain. Failure to connect

water supply or drain line connections properly

may result in water leakage, personal injury,

and/or property damage. Disconnect power and

turn off water to the unit before attempting to

alter these connections. These connections are

the responsibility of the owner and must be

connected per local plumbing code. If you are

uncertain of how to safely and properly install

this product, contact a licensed plumber.

Water Supply Connection

CAUTION

Review, obey, and understand the local

plumbing codes before you install your unit.

Connect to the cold water supply. The water

pressure should be between 20 and 120 psi. The

water line MUST have a shut-off valve on the

supply line.

CAUTION

Do not use any plastic water supply line. The line

is under pressure at all times. Plastic may crack

or rupture with age and cause damage to your

home.

Do not use Teflon tape or joint compound on the

water fitting. The rubber washer provides an

adequate seal. Other materials could cause

blockage of the valve.

Failure to follow recommendations and

instructions may result in damage and/or harm,

flooding or void the product warranty.

CAUTION

Turn off water supply and disconnect electrical

supply to unit prior to installation.

Use caution when handling back panel. The

edges could be sharp.

1. Turn off water supply and disconnect electrical supply

to product prior to attempting installation.

2. Remove the grille/access panel in the front and the

back panel.

QUICK START GUIDE

u-line.com

3. Locate water

valve in the front

of the unit and

thread water

supply line

through.

NOTICE

Route the water

supply line

through the unit

so it does not come into contact with any

internal components other than the solenoid

valve. Normal operation creates some vibration.

A water supply line contacting an internal

component or cabinet wall can cause excessive

noise during operation or damage to the line.

4. On the back panel,

break away filler feature

in bushing, with flat

screwdriver.

5. Thread water line

through back panel hole

(with bushing).

6. Turn on water supply and check for leaks.

7. Reinstall back panel and grille/front access panel.

8. Install retaining clip.

Drain

Models ending in (-00A, -01A) will not be equipped with

factory installed drain pump.

Models ending in (-40A, -41A) will have the factory

installed drain pump.

DRAIN CONNECTION

CAUTION

If your U-Line unit did not come with a factory

installed drain pump you must use a gravity

style drain connection. For assistance in

determining if your unit has a pump please

contact U-Line. The floor drain must be large

enough to accommodate drainage from all

attached drains. Follow these guidelines when

installing drain lines to prevent water from

flowing back into the ice maker storage bin and/

or potentially flowing onto the floor, which may

result in personal injury or property damage.

Remove

ZLWKɠDW

screwdriver

QUICK START GUIDE

u-line.com

NOTICE

Drain can NOT be located directly below the unit.

Unit has a solid base that will not allow the unit

to drain below itself.

There is a possibility that hose connections may

have loosened during shipment.

Verify all connections and fittings are free from

leaks.

GRAVITY DRAIN

A gravity drain may be used if:

Drain line has at least a 1" drop per 48" (approximately

2 cm drop per 100 cm) of run.

Drain line does not create traps and is vented per local

code.

1. Cut the pre-installed drain tube to length.

2. Connect to your local plumbing per the local code.

3. If necessary, insulate drain line to prevent

condensation.

CAUTION

Failure to connect water supply or drain line

connections properly can result in personal

injury and property damage. Gravity drain

connections must be routed downward from the

rest of the unit at the rate of 1/4" per foot (1 cm

per 50 cm).

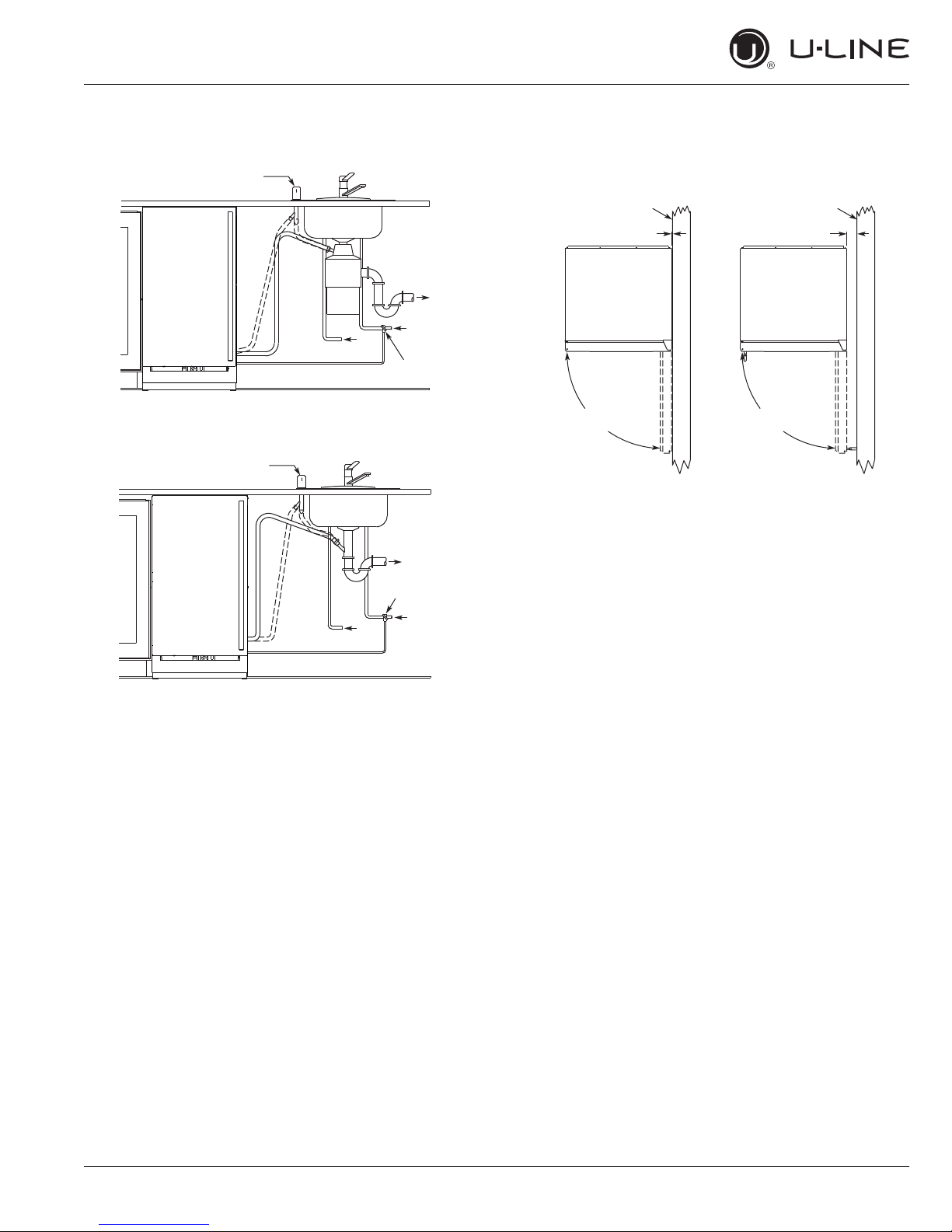

FACTORY INSTALLED DRAIN PUMP

If your drain line will run up to a stand pipe, disposal or

spigot assembly, or does not otherwise meet the

requirements for a gravity drain, you may have ordered a

pre-installed U-Line P60 drain pump.

See below for typical installations requiring a drain pump.

Normal

Proper Drain

With Trap

Poor Drainage, Water Will Back Up

With Trap and Vent

Proper Drain

Cold

Wate

Hot

Water

Waste

6KXW2ɞ

Valve

Stand Pipe

P60 Pump Required

QUICK START GUIDE

u-line.com

NOTICE

The maximum lift for the P60 drain pump is

10 feet. This must be done as close to the rear of

the unit as possible.

Door Swing

Units have a zero clearance for the door to open 90°,

when installed adjacent to cabinets.

Stainless Steel and black and white models require 2-1/8"

(54 mm) door clearance to accommodate the handle if

installed next to a wall.

Integrated models require 1/4" (6 mm) clearance if

installed next to a wall. Allow for additional space for any

knobs or pulls installed on the integrated panel/frame.

Air Gap

(Optional Hook-Up)

Cold

Water

Hot

Water

Waste

6KXW2ɞ

Valve

Disposal Assembly

P60 Pump Required

Waste

Cold

Wate

6KXW2ɞ

Valve

Hot

Water

Air Gap

(Optional Hook-Up)

Y-Branch Tailpiece

P60 Pump Required

Wall Wall

90°

Door Swing

90°

Door Swing

2-1/8" Min.

(54 mm)

1/4" Min.

(6 mm)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere U-Line Kühlschrank Handbücher

U-Line

U-Line U-1215ROD Installationshandbuch

U-Line

U-Line U-2218RINT-00A Installationshandbuch

U-Line

U-Line UHRE115 Installationshandbuch

U-Line

U-Line 2175WC Betriebsanleitung

U-Line

U-Line 1175R Bedienungsanleitung

U-Line

U-Line 1224SOD Bedienungsanleitung

U-Line

U-Line U-3018RFOL-00 Bedienungsanleitung

U-Line

U-Line U-1224KEGRSOD-00A Installationshandbuch

U-Line

U-Line Origins 75R Bedienungsanleitung

U-Line

U-Line Echelon 2115RS00 Bedienungsanleitung

U-Line

U-Line 1000 SERIES Bedienungsanleitung

U-Line

U-Line UHRF124WS01A Installationshandbuch

U-Line

U-Line 1224BEV Bedienungsanleitung

U-Line

U-Line Commercial UCBR572-SG01A Installationshandbuch

U-Line

U-Line U-2224RGLS-00A Installationshandbuch

U-Line

U-Line WINE CAPTAIN 2115R Bedienungsanleitung

U-Line

U-Line Echelon CLRCO2175S41 Handbuch

U-Line

U-Line UHRE515 Installationshandbuch

U-Line

U-Line 2000 SERIES Installationshandbuch

U-Line

U-Line U-3018WCS-00B Bedienungsanleitung

U-Line

U-Line U2224RGLINT00B Installationshandbuch

U-Line

U-Line ADA SERIES Installationshandbuch

U-Line

U-Line 1000 SERIES Bedienungsanleitung

U-Line

U-Line Wine Captain UHWD524IS01A Installationshandbuch

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
