Full Overlay Door Panel

Installation Instructions

for

Models 2075 DWR

and CO2075DWR

U-Line Corporation

P.O. Box 245040 •Milwaukee, WI 53224-9540

Phone 414.354.0300 •FAX 414.354.7905

www.U-LineService.com

Printed in U.S.A.

P/N 30012

Full overlay drawer panels completely cover the drawer frames and

handle to give a built-in appearance.

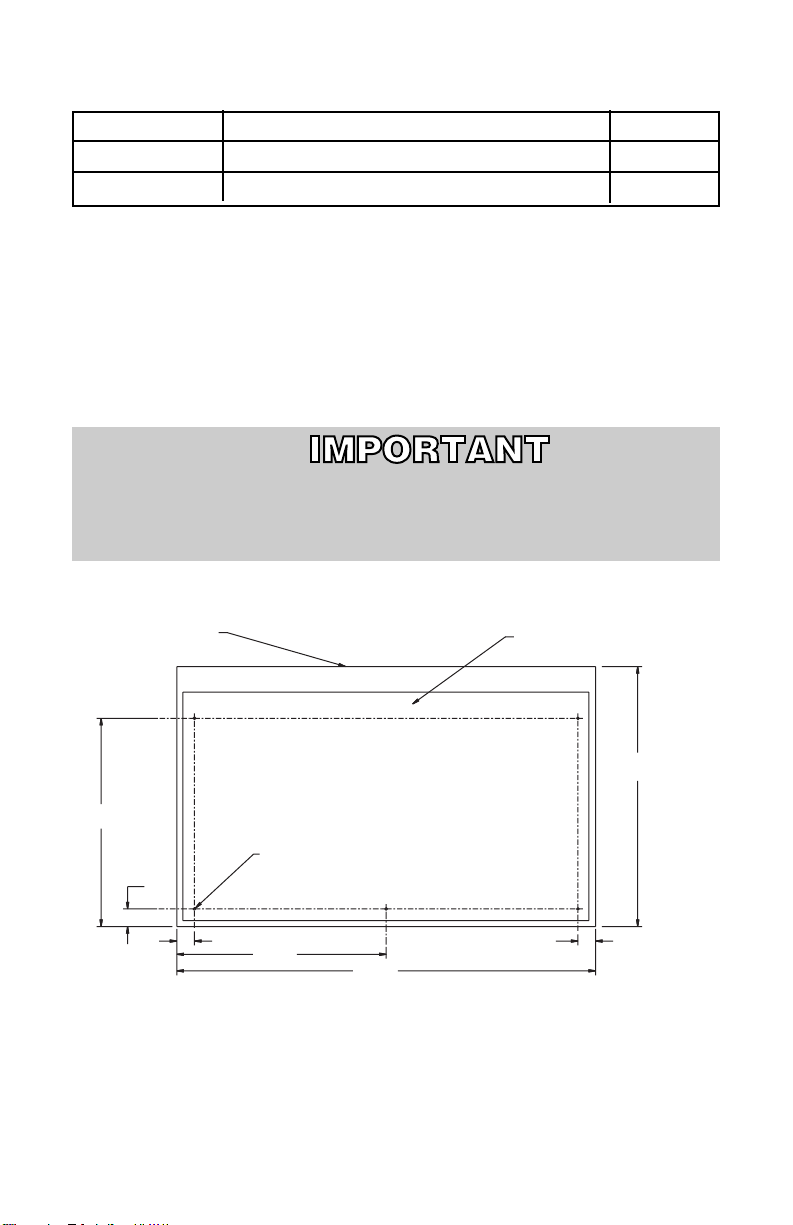

Table 1. Full Overlay Panel Dimensions

Panel Dimensions 23-3/4" wide X 14-3/4" high.

See Figure 1 for screw locations to mount panel to door.

•The total weight of both drawer panels must not weigh

more than 20 lbs.

•The thickness of the drawer panel must be 3/4".

Part Number Description Quantity

42120 Spacer Nylon 3/8 OD x .19 ID 5

42121 Screw #10 x 5/8 Round Head 5

OVERLAY PANEL KIT PARTS

14-3/4"

11-13/16"

TOP OF WOOD PANEL

5/32" X 3/8" DEEP

5 PLACES

VINYL COATED

STEEL PANEL

23-3/4"

11-7/8"

DWR_OL_004b

Figure 1

30012 Overlay Door 9/9/04 2:04 PM Page 2

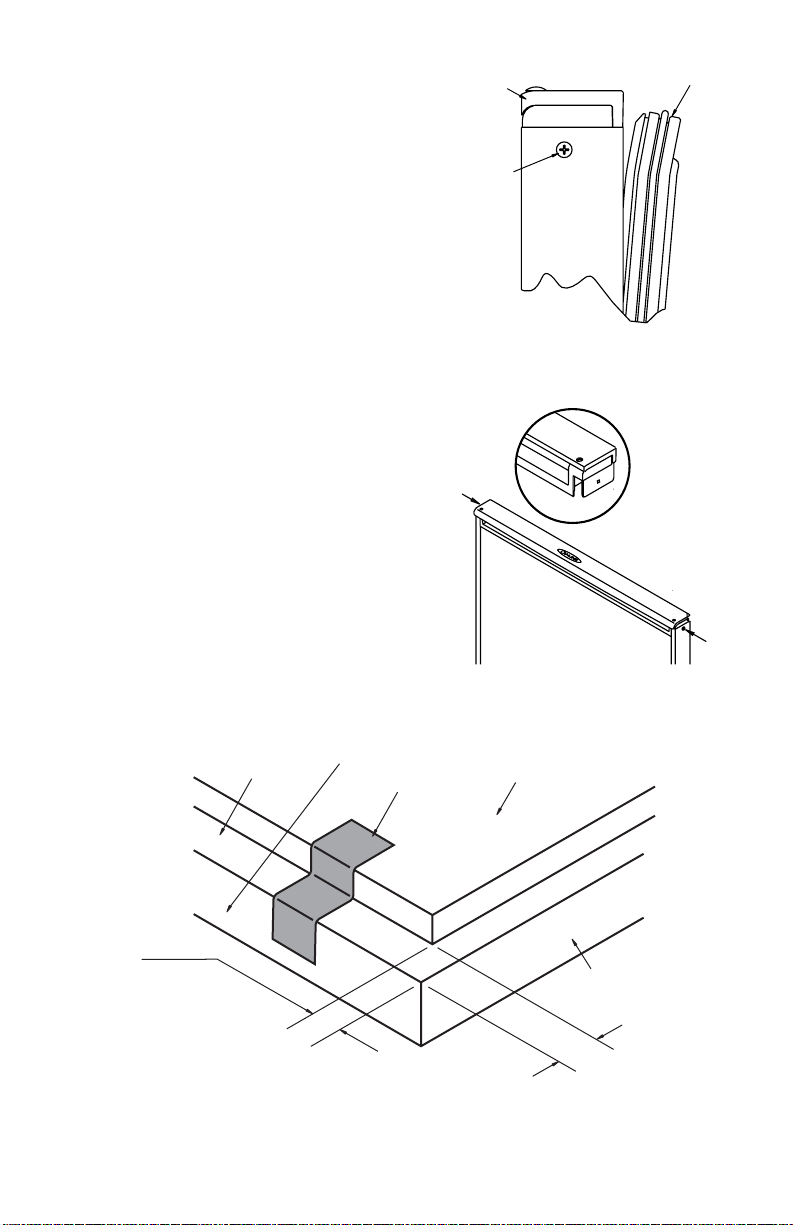

Remove existing drawer front from

cabinet:

1. Open drawer. Pull door gasket

(Figure 2) out of the groove

(top edge of door only). Start in

the middle and pull outward,

moving toward the edge. This

may take some force.

2. Remove the two screws locat-

ed on both sides of the lower

handle. Remove the handle

(Figure 3).

3. Slide the existing drawer panel

and cardboard spacer out of

the drawer frame. Discard the

spacer.

Attaching the full overlay panel:

4. If required, attach optional

cabinet handle hardware to

the overlay panel at this time.

If an optional cabinet handle is

installed, make sure the

mounting screw heads are

countersunk.

DWR_OL_002

Figure 3

GASKET

SCREW

HANDLE

DWR_OL_001

Figure 2

DOOR PANEL

BOTTOM OF

WOOD PANEL

BACK OF

WOOD PANEL

NOTE:

For 1/2" gap between

top and bottom panels,

this dimension must be

11/32".

TAPE

3/8" BOTH SIDES

DWR_OL_003a

SIDE OF

WOOD PANEL

11/32"

BOTTOM

Figure 4

5. On a clean surface, place the wood panel face down and tape the

existing drawer panel (removed in step 3) on the back of the wood

panel (Figure 4) and drill the five (5) holes (5/32" drill 3/8" deep)

through the drawer panel and 3/8" into the wood panel (Figure

1). Remove tape from the drawer panel, and enlarge the five

holes in the front panel using a .201" drill (#7) drill.

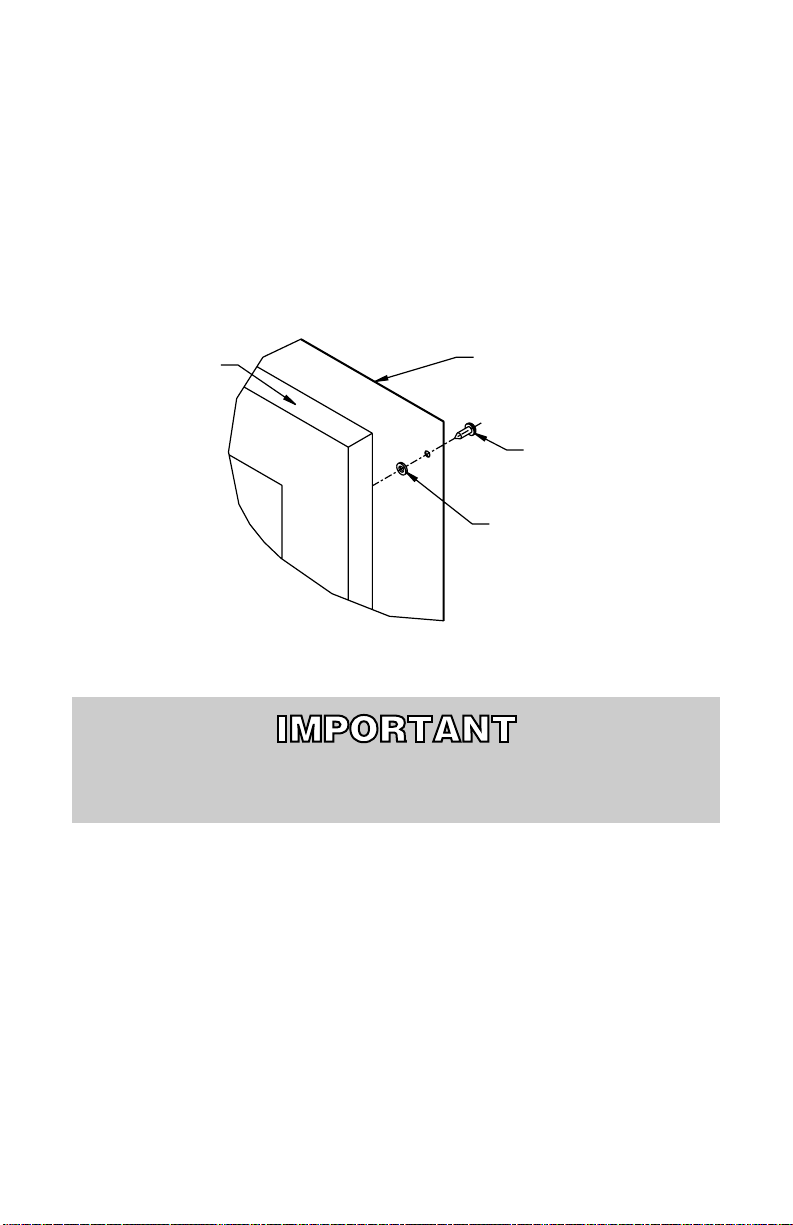

6. Attach the drawer panel to the wood panel using #10 x 5/8"

(P/N 42121) wood screws and nylon spacers (P/N 42120).

The nylon spacers fit between the wood panel and the drawer

panel as shown (Figure 5).

Drawer panel and wood panel must be aligned properly or

drawer will not operate correctly.

Assembling the drawer and wood panel:

7. Install the overlay panel by sliding the drawer panel back into the

drawer frame.

8. Replace the handle assembly and secure with the two screws

removed in Step 2.

9. Starting at the corners and working toward the center, push

the drawer gasket back into place.

TYPICAL

WOOD

PANEL

PLASTIC SPACER

FIVE REQUIRED

#10 X 5/8" ROUND

HEAD SCREW

FIVE REQUIRED

DRAWER PANEL

DWR_OL_005

Figure 5
