Model: UMRI121-WS02A

USER GUIDE & SERVICE MANUAL

Table of Contents

Click on any section below to jump directly there

Intro

Safety

Safety and Warning

Disposal And Recycling

Installation

Environmental Requirements

Electrical

Cutout & Product Dimensions

Water Hookup

General Installation

Grille Installation

Door Swing

Door Adjust

Interior Adjustments

Maintenance

Door Latch

Cleaning

Cleaning Condenser

Extended Non-Use

Operating Instructions

First Use

Ice

Airflow and Product Loading

Service

Wire Diagram

Product Liability

Warranty Claims

Parts

Ordering Replacement Parts

R600a Specifications

System Diagnosis Guide

Compressor Specifications

Troubleshooting Extended

Warranty

USER GUIDE

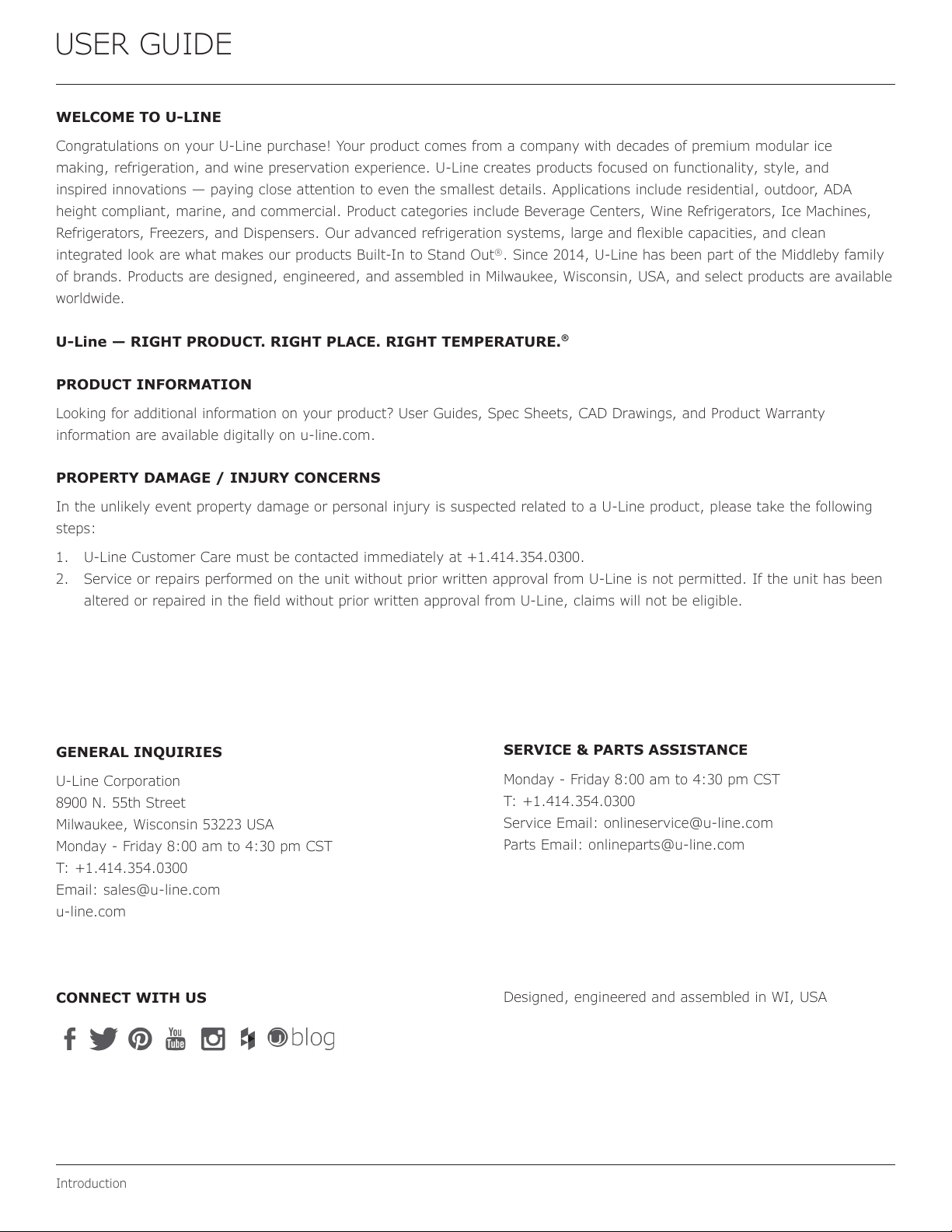

Introduction

WELCOME TO U-LINE

Congratulations on your U-Line purchase! Your product comes from a company with decades of premium modular ice

making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and

inspired innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA

height compliant, marine, and commercial. Product categories include Beverage Centers, Wine Refrigerators, Ice Machines,

Refrigerators, Freezers, and Dispensers. Our advanced refrigeration systems, large and exible capacities, and clean

integrated look are what makes our products Built-In to Stand Out®. Since 2014, U-Line has been part of the Middleby family

of brands. Products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products are available

worldwide.

U-Line — RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE.®

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, and Product Warranty

information are available digitally on u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

Designed, engineered and assembled in WI, USA

USER GUIDE

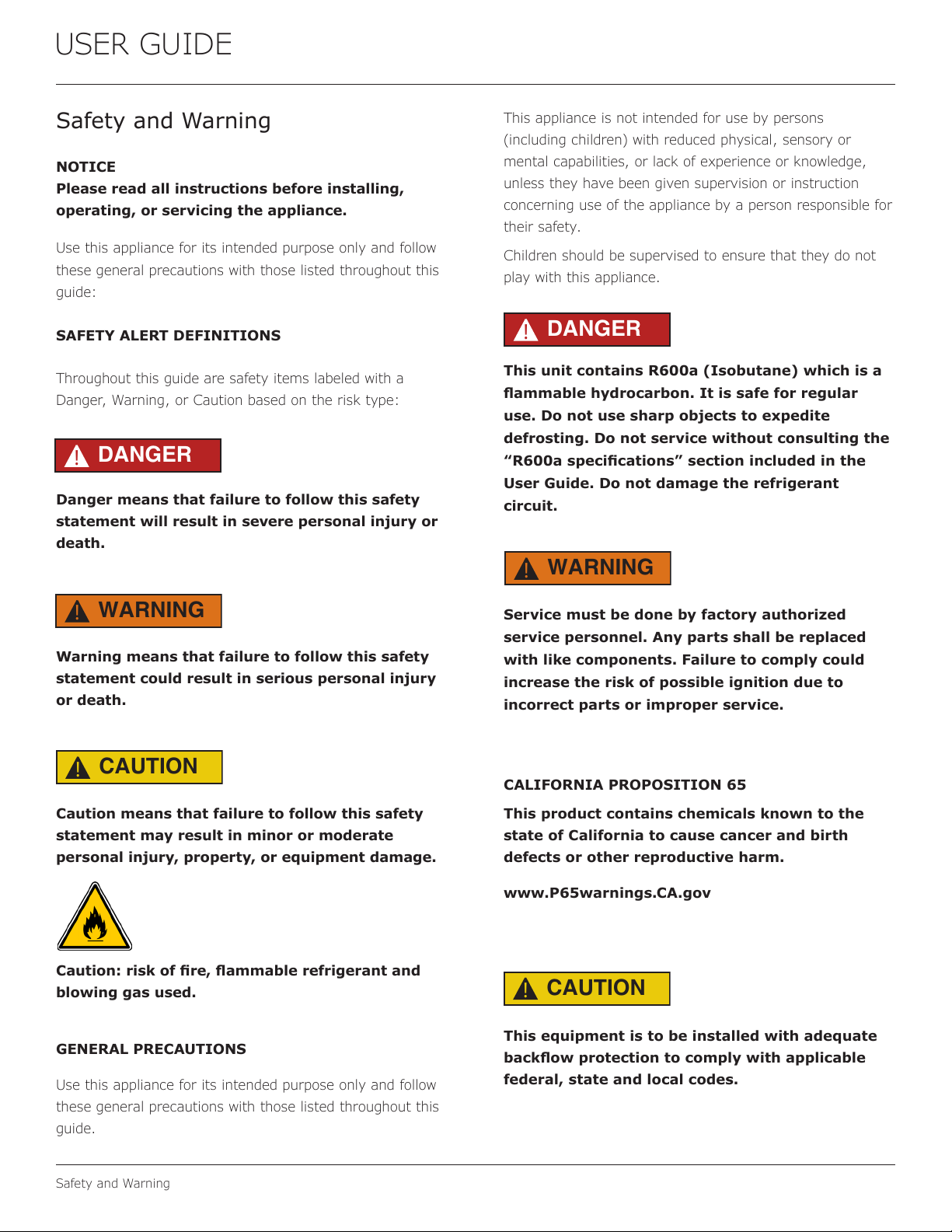

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning, or Caution based on the risk type:

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property, or equipment damage.

Caution: risk of re, ammable refrigerant and

blowing gas used.

GENERAL PRECAUTIONS

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience or knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for

their safety.

Children should be supervised to ensure that they do not

play with this appliance.

This unit contains R600a (Isobutane) which is a

ammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specications” section included in the

User Guide. Do not damage the refrigerant

circuit.

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to

incorrect parts or improper service.

CALIFORNIA PROPOSITION 65

This product contains chemicals known to the

state of California to cause cancer and birth

defects or other reproductive harm.

www.P65warnings.CA.gov

This equipment is to be installed with adequate

backow protection to comply with applicable

federal, state and local codes.

DANGER

WARNING

CAUTION

USER GUIDE

Safety and Warning

Keep ventilation openings, in the appliance

enclosure or in the built-in

structure, clear of obstruction.

Please accord to local regulations regarding

disposal of the appliance for its ammable

refrigerant and blowing gas. Before you scrap the

appliance, please remove the doors to prevent

child entrapment.

Do not store explosive substances such as

aerosol cans with a ammable propellant in this

appliance.

Do not use mechanical devices or other means

to accelerate the defrosting process, other than

those recommended by the manufacturer.

Do not damage the refrigerating circuit.

This warning is only applicable for appliances

with refrigerating circuits which

are accessible by the user.

Do not use electrical appliances inside the food/

ice storage compartments unless they are of the

type recommended by the manufacturer.

When positioning the appliance, ensure the

supply cord is not trapped or damaged.

Do not locate multiple portable socket-outlets

or portable power supplies at the rear of the

appliance.

WARNING

DO NOT use medical devices or other means to

accelerate the defrosting process other than

those recommended by the manufacturer. DO

NOT use an ice pick or other sharp instrument to

help speed up defrosting. These instruments can

puncture the inner lining or damage the cooling

unit. DO NOT use any type of heater to defrost.

Using a heater to speed up defrosting can cause

personal injury and damage to the inner lining.

NOTICE

Do not lift unit by door handle.

Never install or operate the unit behind closed

doors. Be sure front grille is free of obstruction.

Obstructing free airow can cause the unit to

malfunction and will void the warranty.

Failure to clean the condenser every six months

can cause the unit to malfunction. This could void

the warranty.

Allow unit temperature to stabilize for 24 hours

before use.

Do not block any internal fans.

Use only genuine U-Line replacement parts.

Imitation parts can damage the unit, aect its

operation or performance and may void the

warranty.

This appliance is intended to be used in household and

similar applications such as:

•Sta kitchen areas in shops, oces and other working

environments.

• Farm houses and by clients in hotels, motels and other

residential type environments.

• Bed and breakfast type environments.

• Catering and similar non-retail applications.

USER GUIDE

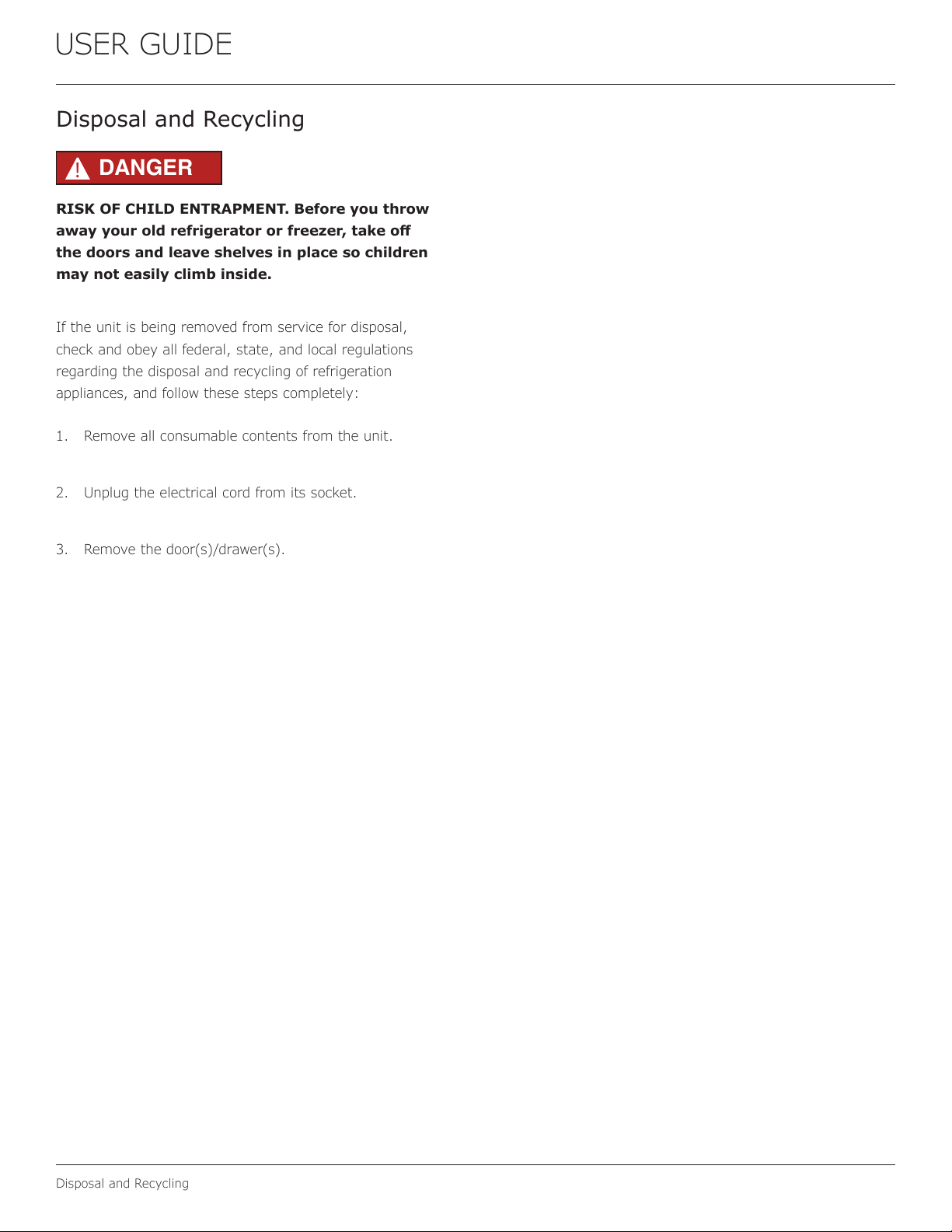

Disposal and Recycling

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take o

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state, and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

DANGER

USER GUIDE

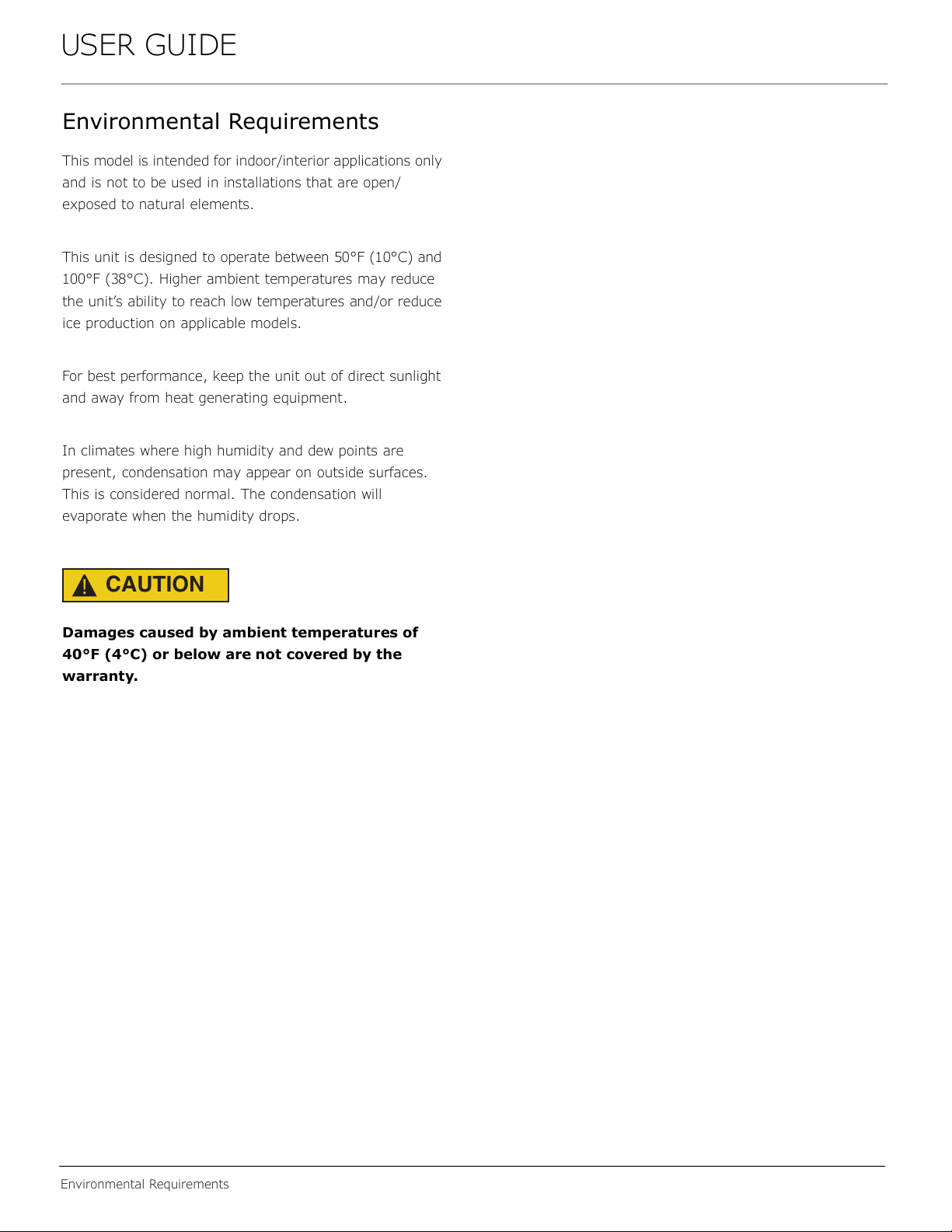

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

USER GUIDE

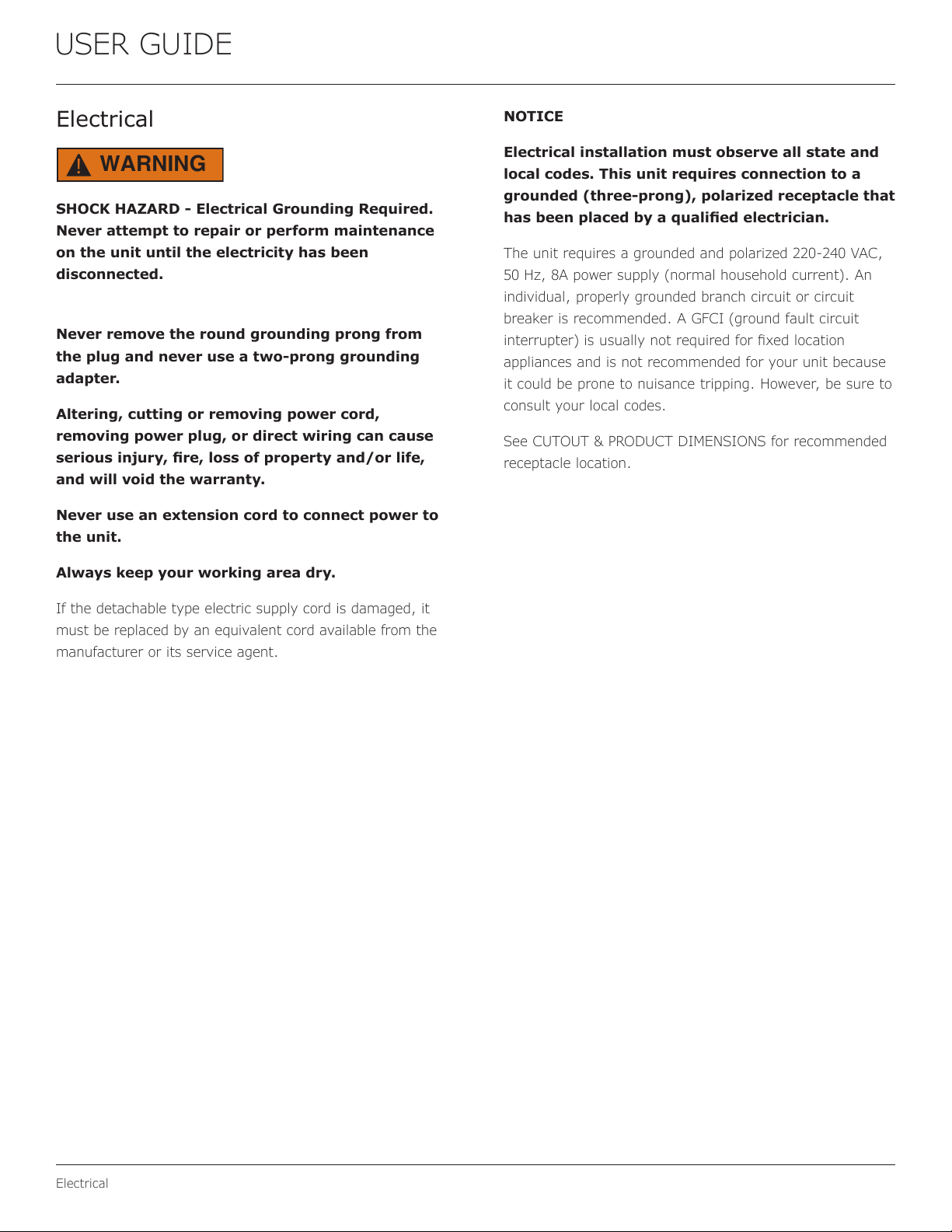

Electrical

SHOCK HAZARD - Electrical Grounding Required.

Never attempt to repair or perform maintenance

on the unit until the electricity has been

disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, re, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

If the detachable type electric supply cord is damaged, it

must be replaced by an equivalent cord available from the

manufacturer or its service agent.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle that

has been placed by a qualied electrician.

The unit requires a grounded and polarized 220-240 VAC,

50 Hz, 8A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for xed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure to

consult your local codes.

See CUTOUT & PRODUCT DIMENSIONS for recommended

receptacle location.

WARNING

USER GUIDE

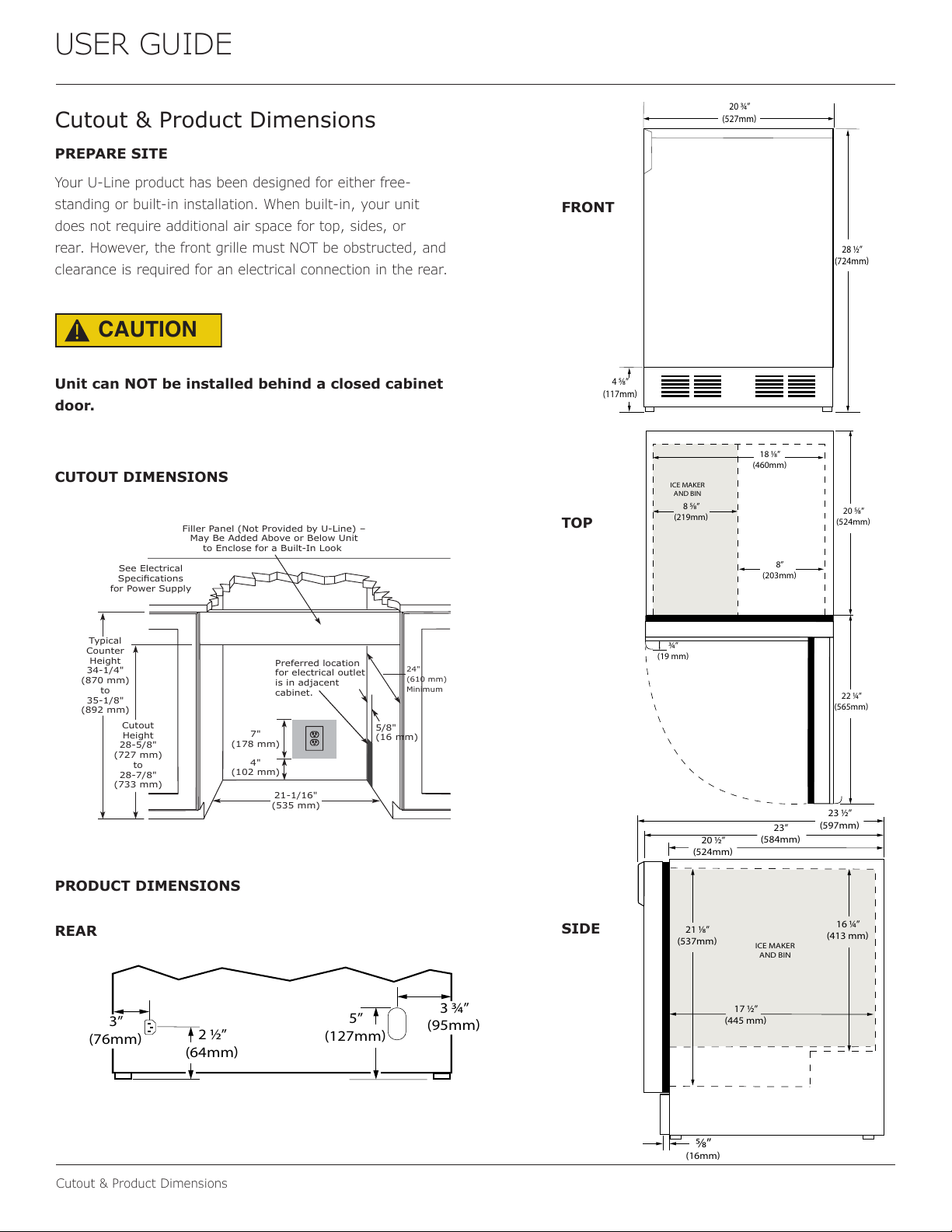

Cutout & Product Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides, or

rear. However, the front grille must NOT be obstructed, and

clearance is required for an electrical connection in the rear.

CAUTION

Unit can NOT be installed behind a closed cabinet

door.

CUTOUT DIMENSIONS

PRODUCT DIMENSIONS

REAR

FRONT

TOP

SIDE

⁄”

(16mm

20 ⁄”

(524mm

23 ⁄”

(597mm

23”

(584mm

ICE MAKER

AND BIN

21 ⁄”

(537mm

17 ⁄”

(445 mm

16 ⁄”

(413 mm

USER GUIDE

Cutout Dimensions 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Cutout Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides, or

rear. However, the front grille must NOT be obstructed,

and clearance is required for an electrical connection in

the rear.

CAUTION

Unit can NOT be installed behind a closed cabinet

door.

If you would like to align the face of the unit

with other adjacent cabinet doors, you may need

to alter the wall just behind the drain connection

on the unit to accommodate the drain.

CUTOUT DIMENSIONS

NOTICE

It is extremely important that this unit sits on a

level surface, as it does not have feet levelers. If

it is not level, the ice mold will not fill evenly.

24"

(610 mm)

Minimum

21-1/16"

(535 mm)

See Electrical

6SHFLɟFDWLRQV

IRU3RZHU6XSSO\

7\SLFDO

&RXQWHU

Height

34-1/4"

(870 mm)

35-1/8"

(892 mm)

&XWRXW

Height

28-5/8"

(727 mm)

28-7/8"

(733 mm)

)LOOHU3DQHO1RW3URYLGHGE\8/LQHȊ

0D\%H$GGHG$ERYHRU%HORZ8QLW

WR(QFORVHIRUD%XLOW,Q/RRN

(102 mm)

(178 mm)

3UHIHUUHGORFDWLRQ

IRUHOHFWULFDORXWOHW

LVLQDGMDFHQW

FDELQHW

5/8"

(16 mm)

2 ⁄”

(64mm

5”

(127mm

3 ⁄”

(95mm

3”

(76mm

28 ⁄”

(724mm

20 ⁄”

(527mm

4 ⁄”

(117mm

20 ⁄”

(524mm

22 ⁄”

(565mm

⁄”

(19 mm

ICE MAKER

AND BIN

18 ⁄”

(460mm

8”

(203mm

8 ⁄”

(219mm

USER GUIDE

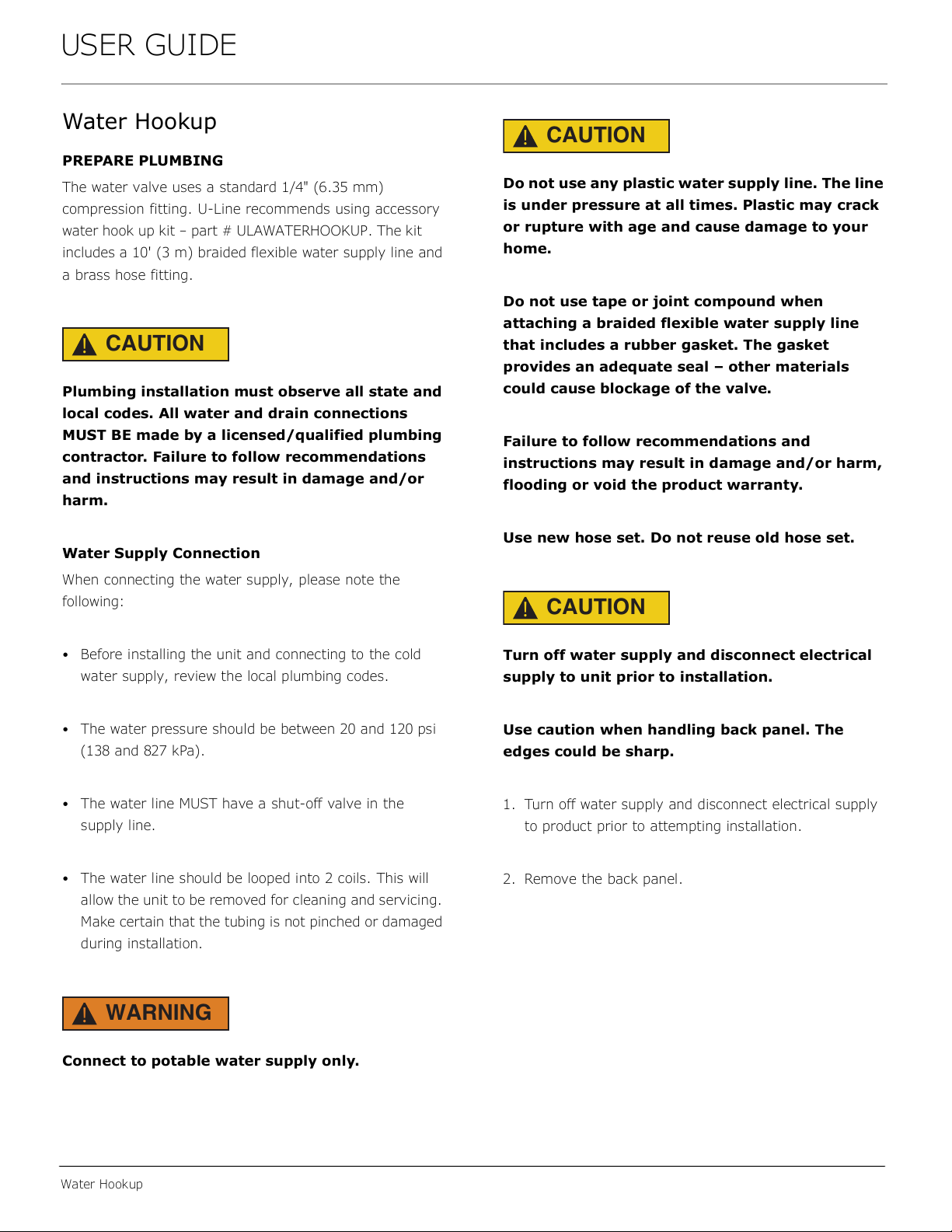

Water Hookup

PREPARE PLUMBING

The water valve uses a standard 1/4" (6.35 mm)

compression fitting. U-Line recommends using accessory

water hook up kit – part # ULAWATERHOOKUP. The kit

includes a 10' (3 m) braided flexible water supply line and

a brass hose fitting.

CAUTION

Plumbing installation must observe all state and

local codes. All water and drain connections

MUST BE made by a licensed/qualified plumbing

contractor. Failure to follow recommendations

and instructions may result in damage and/or

harm.

Water Supply Connection

When connecting the water supply, please note the

following:

• Before installing the unit and connecting to the cold

water supply, review the local plumbing codes.

• The water pressure should be between 20 and 120 psi

(138 and 827 kPa).

• The water line MUST have a shut-off valve in the

supply line.

• The water line should be looped into 2 coils. This will

allow the unit to be removed for cleaning and servicing.

Make certain that the tubing is not pinched or damaged

during installation.

WARNING

Connect to potable water supply only.

CAUTION

Do not use any plastic water supply line. The line

is under pressure at all times. Plastic may crack

or rupture with age and cause damage to your

home.

Do not use tape or joint compound when

attaching a braided flexible water supply line

that includes a rubber gasket. The gasket

provides an adequate seal – other materials

could cause blockage of the valve.

Failure to follow recommendations and

instructions may result in damage and/or harm,

flooding or void the product warranty.

Use new hose set. Do not reuse old hose set.

CAUTION

Turn off water supply and disconnect electrical

supply to unit prior to installation.

Use caution when handling back panel. The

edges could be sharp.

1. Turn off water supply and disconnect electrical supply

to product prior to attempting installation.

2. Remove the back panel.

Andere Handbücher für UMRI121-WS02A

Inhaltsverzeichnis

Andere U-Line Kühlschrank Handbücher

U-Line

U-Line 1115R Bedienungsanleitung

U-Line

U-Line U-1215RSOD-00B Installationshandbuch

U-Line

U-Line ADA24RG Bedienungsanleitung

U-Line

U-Line UCBR552-SG01A Installationshandbuch

U-Line

U-Line UHRE124BS01A Installationshandbuch

U-Line

U-Line Echelon 2175RS Bedienungsanleitung

U-Line

U-Line U-2224RGLINT-00A Installationshandbuch

U-Line

U-Line ADA SERIES Bedienungsanleitung

U-Line

U-Line U-1215RINT-00B Installationshandbuch

U-Line

U-Line U-3018RINT-00A Installationshandbuch

U-Line

U-Line 29 Series Konfigurationshandbuch

U-Line

U-Line WINE CAPTAIN 2115R Bedienungsanleitung

U-Line

U-Line U-2218WCS-01A Bedienungsanleitung

U-Line

U-Line Echelon Combo C2275DWR Konfigurationshandbuch

U-Line

U-Line 2000 SERIES Bedienungsanleitung

U-Line

U-Line Combo CO2175DWR Bedienungsanleitung

U-Line

U-Line SP 18 Bedienungsanleitung

U-Line

U-Line U-ADA24RINT-00A Installationshandbuch

U-Line

U-Line 1224R Bedienungsanleitung

U-Line

U-Line ICE-MAKER/REFRIGERATOR Bedienungsanleitung

U-Line

U-Line U-1224FZRINT-00A Installationshandbuch

U-Line

U-Line 2224R Bedienungsanleitung

U-Line

U-Line CLRCO2175 Bedienungsanleitung

U-Line

U-Line UHRE524-SG81A Installationshandbuch

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
