Ubiquiti AirMax Sector Bedienungsanleitung

3 GHz 2x2 MIMO

BaseStation

Sector Antenna

Model: AM-3G18-120

Introduction

Thank you for purchasing the Ubiquiti Networks™airMAX™

3GHz 2x2 MIMO BaseStation Sector Antenna. This Quick

Start Guide is designed to guide you through the installation

of the antenna. This Quick Start Guide also includes the

warranty terms and is for use with the airMAX Sector Antenna,

modelAM-3G18-120.

Package Contents

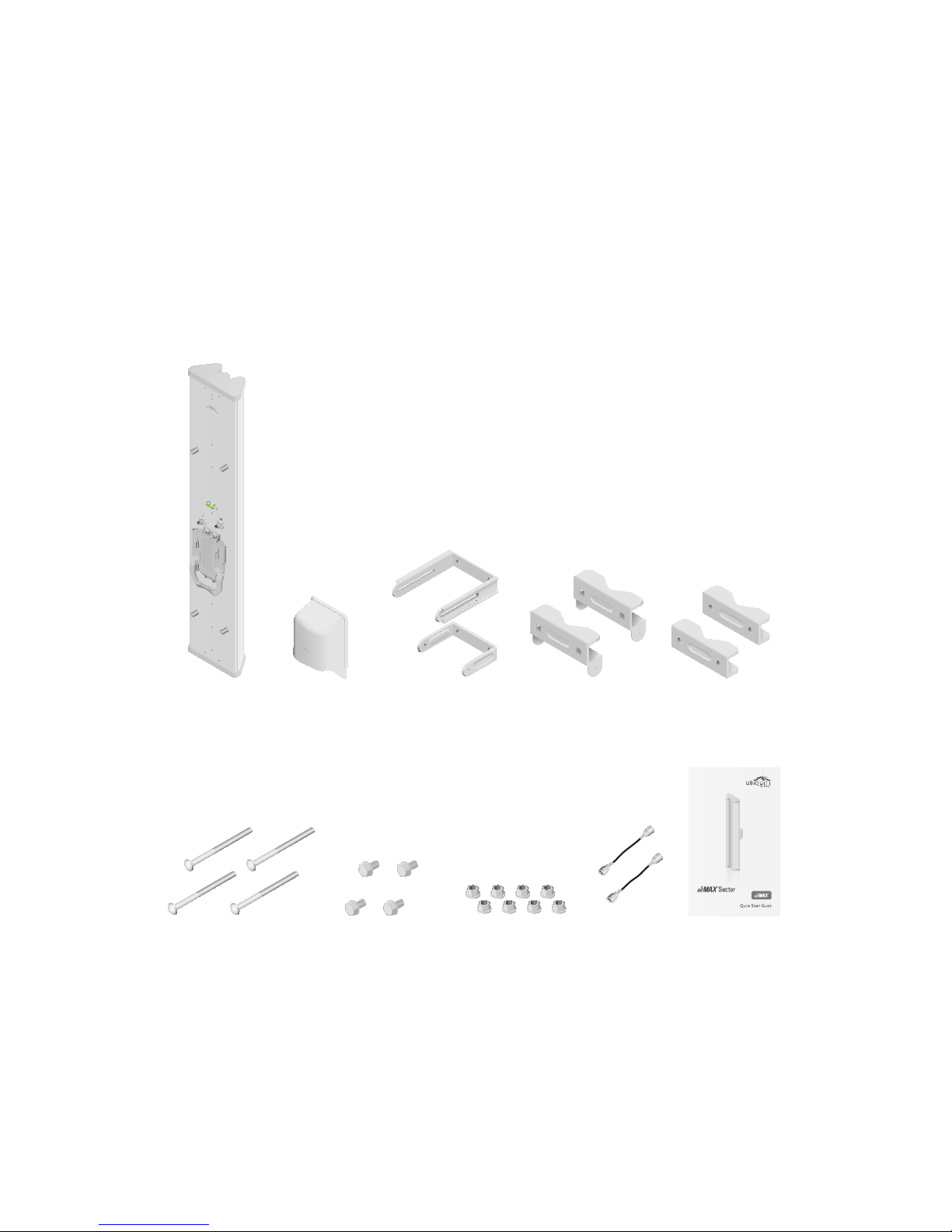

Antenna Protective

Shroud

U-Brackets

(Qty. 2)

Pole Brackets

(Qty. 2)

Pole Clamps

(Qty. 2)

3 GHz 2x2 MIMO

BaseStation

Sector Antenna

Model: AM-3G18-120

Carriage Bolts

(M8x135, Qty. 4)

Serrated

Flange Bolts

(M8x20, Qty. 4)

Serrated

Flange Nuts

(M8, Qty. 8)

RF Cables

(Qty. 2)

Quick Start

Guide

Products may be different from pictures and are subject to change without notice.

cable and earth grounding must be used as conditions of product warranty. TOUGHCable is

designed for outdoor installations. It is the customer’s responsibility to follow local country

regulations, including operation within legal frequency channels, output power, and Dynamic

Frequency Selection (DFS) requirements.

Installation Requirements

• Rocket™M3/M3 GPS or RocketM365/M365 GPS

(soldseparately)

• 12 mm and 13 mm wrenches

• Shielded Category 5 (or above) cabling should be used for

all wired Ethernet connections and should be grounded

through the AC ground of the PoE.

We recommend that you protect your networks from the

most brutal environments and devastating ESD attacks

with industrial-grade shielded Ethernet cable from Ubiquiti

Networks. For more details, visit www.ubnt.com/toughcable

Hardware Overview

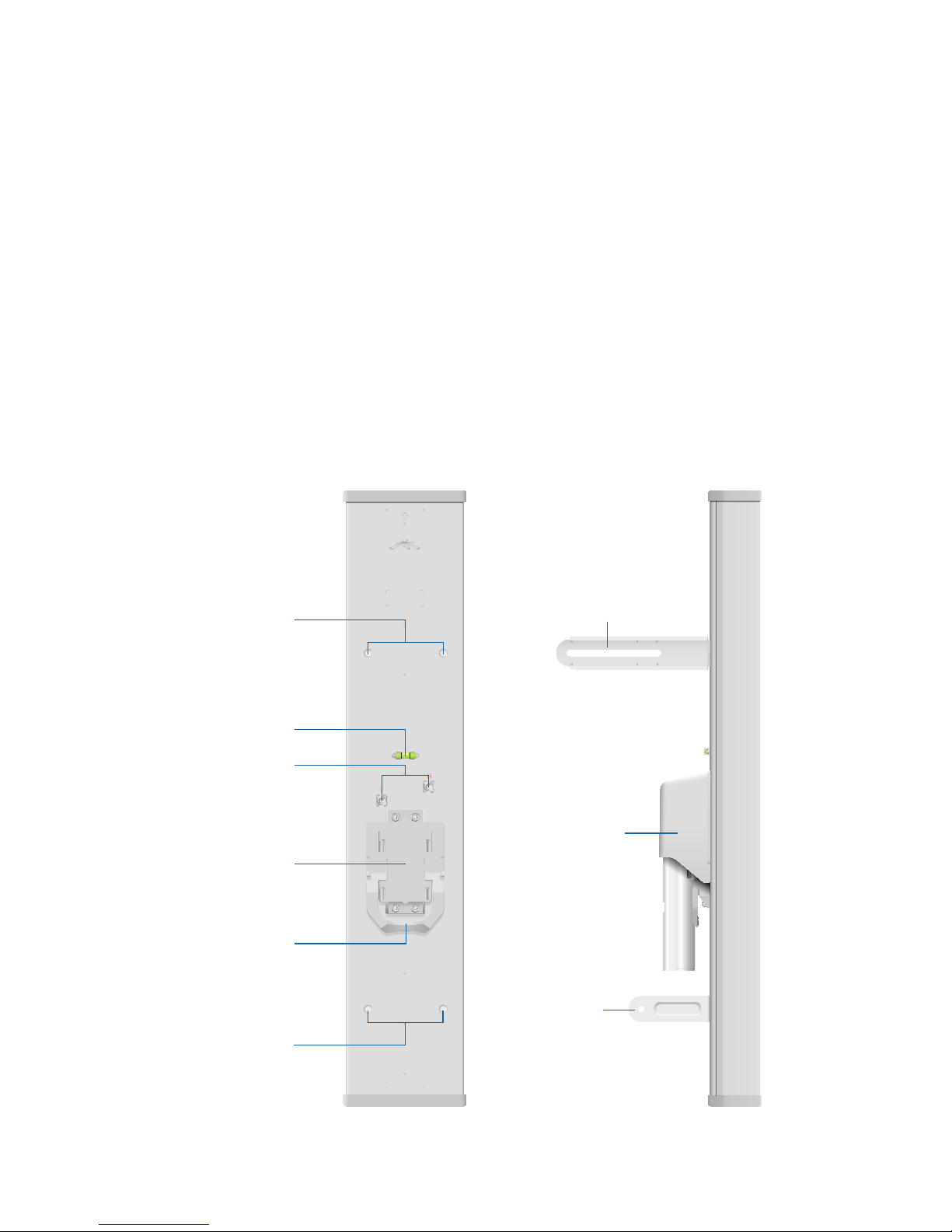

Bubble Level

RF Connectors

Rocket Mount

Bracket

Rocket/Shroud

Lock Release

Lever

Protective

Shroud

Mounting

Lugs

Mounting

Lugs

Assembled Side View Before

Pole-Mounting

Back View

U-Bracket

Slotted

U-Bracket

Hardware Installation

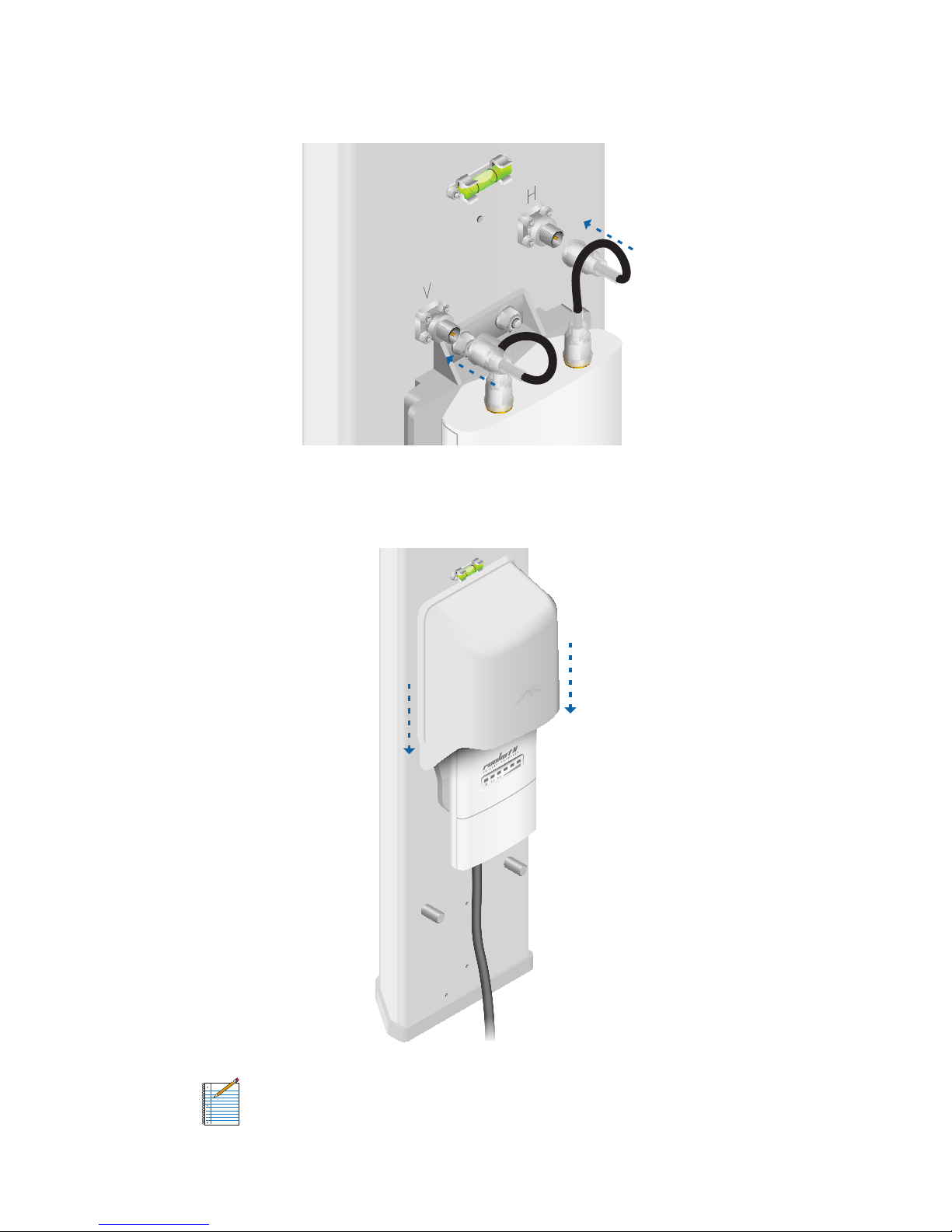

1. Attach the RF Cables to the connectors labeled Chain 0 and

Chain 1 on the RocketM.

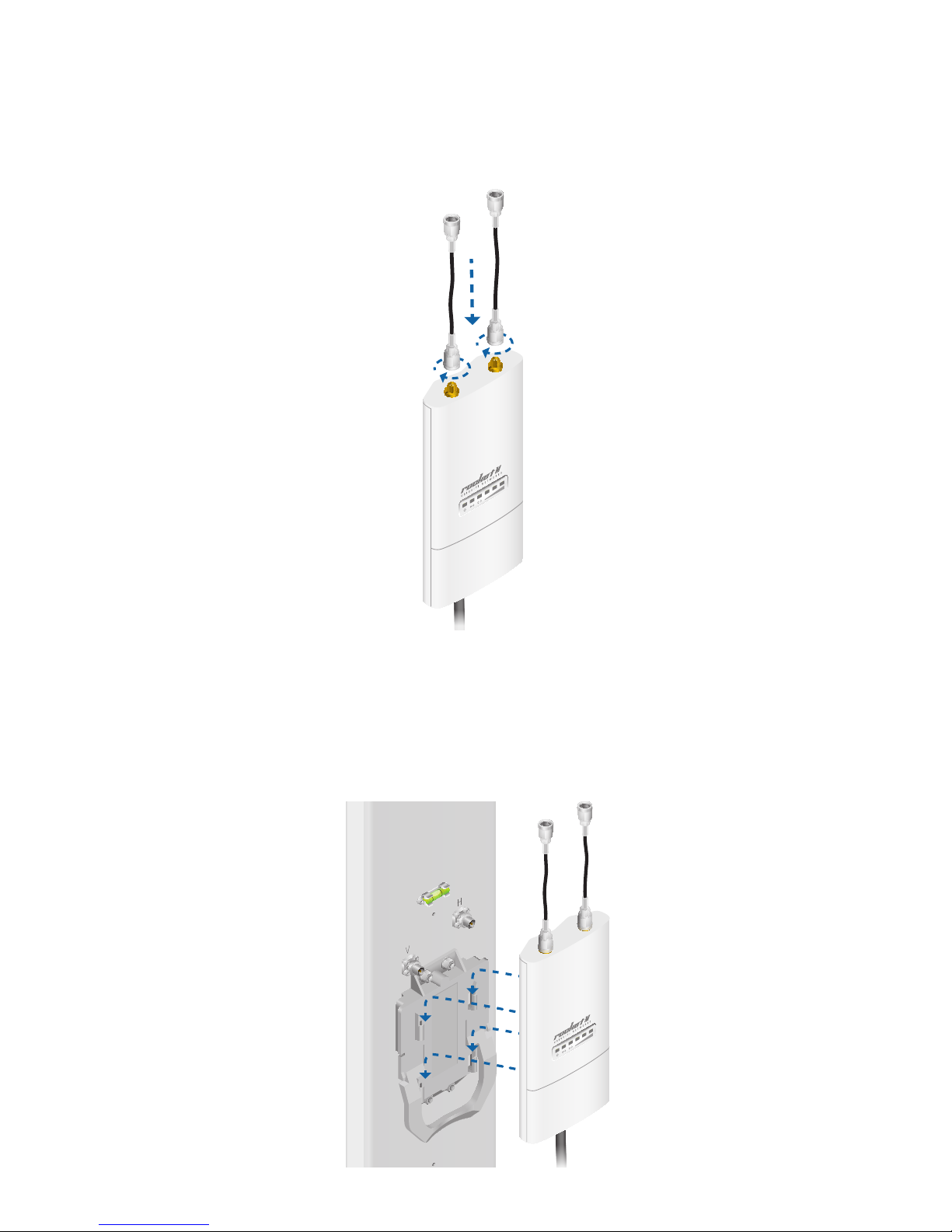

2. Attach the RocketM to the Rocket Mount Bracket.

a. Align the mounting tabs on the back of the RocketM

with the four mounting slots on the bracket.

b. Slide the RocketM down until it locks into place.

3. Connect the other ends of the RF Cables to the RF

Connectors on the antenna.

4. Slide the Protective Shroud down over the RocketM until it

locks onto the Rocket Mount Bracket.

Note: If you have trouble locking the shroud into

place, try adjusting the placement of the RF Cables.

5. Attach the U-Brackets to the antenna:

a. Secure the Slotted U-Bracket to the upper Mounting Lugs

of the antenna using two Serrated Flange Nuts.

b. Secure the other U-Bracket to the lower Mounting Lugs

of the antenna using two Serrated Flange Nuts.

Note: Orient both U-Brackets as shown below.

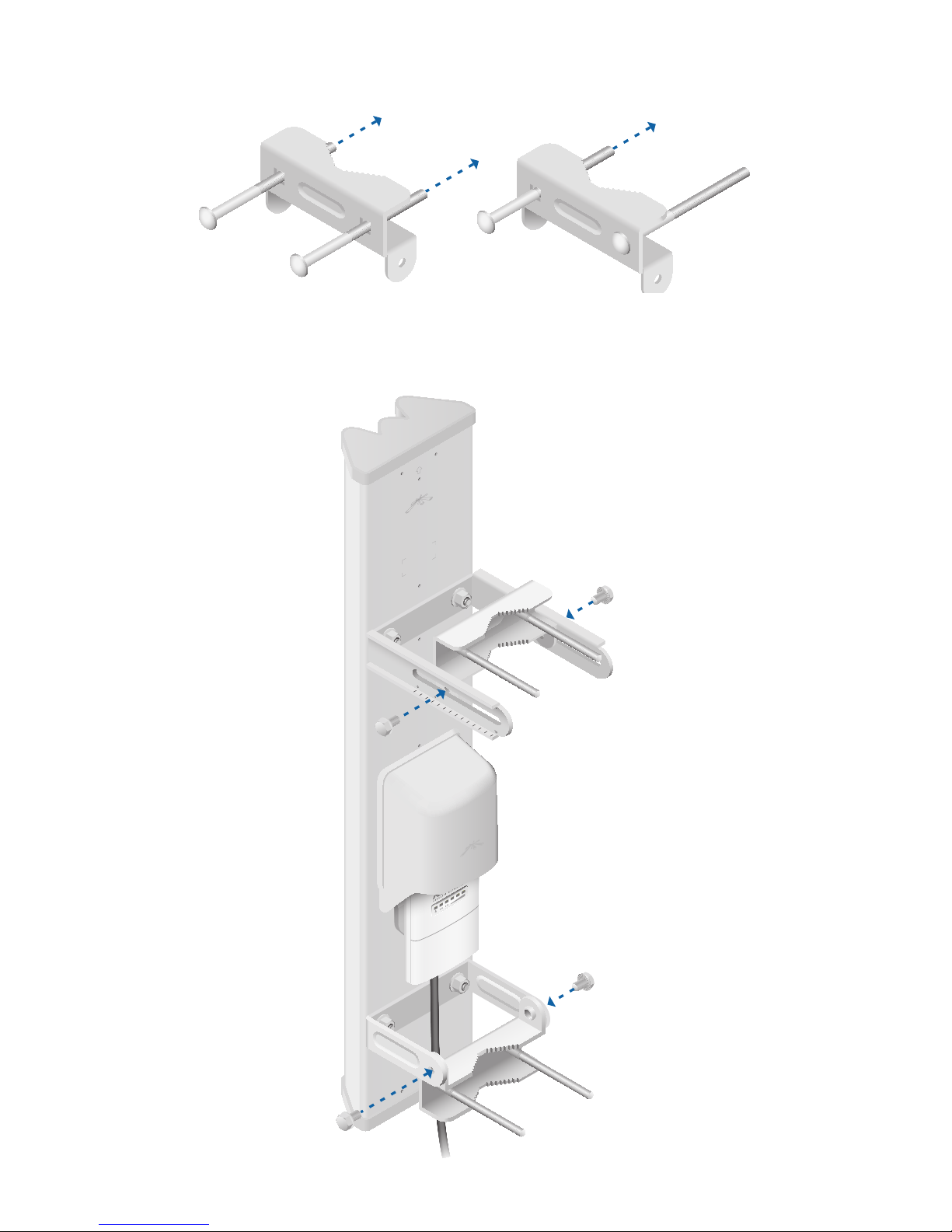

6. Insert two Carriage Bolts into each Pole Bracket.

7. Attach each Pole Bracket to each U-Bracket using two

Serrated Flange Bolts. Hand-tighten only.

8. To mount the antenna to the pole, slide a Pole Clamp over

each pair of Carriage Bolts. Secure each Pole Clamp with

two Serrated FlangeNuts.

Note: The mounting assembly can accommodate a

Ø 1.5" - 3.0" pole.

9. The antenna has an electrical downtilt of 3°. To further

adjust the elevation angle:

a. Loosen the four Serrated Flange Bolts on the U-Brackets

and the two Serrated Flange Nuts on the upper

PoleClamp.

b. Slide the antenna to the desired tilt. (The brackets may

slide along the pole, depending on the angle of the

elevation tilt.)

c. Tighten all bolts and nuts to approximately

25N-m(18lb-ft) or less to avoid deforming thepole.

Serrated Flange Bolt

Serrated Flange Nut

Serrated Flange Bolt

Specifications

AM-3G18-120

Dimensions 735 x 144 x 78 mm

Weight 5.9 kg (Mount Included)

Frequency 3.3 - 3.8 GHz

Gain 17.3 - 18.2 dBi

HPOL Beamwidth 118° (6 dB)

VPOL Beamwidth 121° (6 dB)

Elevation Beamwidth 6°

Electrical Downtilt 3°

Max. VSWR 1.5:1

Wind Survivability 125 mph

Wind Loading 33 lbf @ 125 mph

Polarization Dual Linear

Cross-Pol Isolation 28 dB Min.

ETSI Specication EN 302 326 DN2

Mounting Universal Pole Mount, RocketM Bracket,

and Weatherproof RF Jumpers Included
