UCEC USB 2.0 Video Capture Bedienungsanleitung

USB Video Capture User Manual

Thanks for your support, UCEC USB2.0 UVC Video Capture product. The following steps will

guides you how to set it up. Hope this device will bring you nice digital experience.

The USB Video Capture, it can capture High-quality video and audio file directly by USB 2.0

interface without sound card. And edit them, burn DVD disc, convert them, and send them to

your iPod, PSP, or Mobile Phone. And upload the video to YouTube too.

The USB Video Capture, it can capture High-quality audio file directly by USB 2.0 interface alone.

And edit them, burn Audio CD, or MP3 CD.

The USB Video Capture includes a professional video editing and converting software –

“ArcSoft ShowBiz 3.5”.

It can provide best editing and converting function for you. ShowBiz 3.5 is a video-editing and

converting software that makes editing your videos as fun as shooting them. ShowBiz 3.5 helps

novice users finish stylish movies in only few steps. Share finished projects on DVD, tape, the

Web, and mobile devices.

The converting function, it help you to convert the vedio file you recorded as MPEG4, AVI, and

other file format, then you can send converted videos to your iPod, PSP, Mobile Phone, or other

vedio device.

Specification

Item Name: USB 2.0 Video Capture

Interface: USB 2.0 standard

TV System: PAL, NTSC

Recording Format: MPEG2 for Video

Converting Format Video: Apple TV, iPhone, iPod classic, iPod nano, iPod touch, WMA. ASF,

MPEG1, MPEG2, WMV

Input Composite: Video(RCA), S-Video(miniDIN 4pin), Audio L/R(RCA)

Resolution: NTSC 160×120 ～720×480, PAL 160×120 ～720×576

Rate : NTSC 30fps, PAL 25fps

Power Supply: USB Bus

Consumed Power ≤1.5W

Editing Software Video: ArcSoft ShowBiz 3.5

Dimension / Weight: 90(L)×44(W)×28(H)mm / 72g

Cable Length: 80cm(USB), 7cm(Video/Audio)

System Requirements

1. One available USB 2.0 port

2. Pentium4 CPU or above

3. 512MB RAM or above

4. Graphics card supports DirectX 9.0C

5. 1GB free HDD space

6. CD-ROM for installation

7. DVD-R/RW for burning DVD

8. Windows XP, Vista,Windows7/8/10

9. Video Capture device, Software CD(includes driver, application and manual)

Notices:

1. We provide Two kinds of video capture software for you. The ShowBiz 3.5

software and OBS Studio Software.

2. You can directly use these editing software to capture video. You don’t need

to install any drivers.

Warming Tips:

UCEC provides 24-hour technical email support. Please feel free to contact us

if you have any questions. If you are not satisfied with our products, we can

provide you with a refund.

Notice:

1. You maybe have to buy Video and Audio cable, and S-Video cable to connect the

USB Video Capture with your analog video device. You need to buy the Scart

Video/Audio adapter if the output of your video source device is Scart type.

The following devices can be used as analog video sources: Video recorder, DVD

player, Video camera, Set-top box, Game player and any device that provides an

analog video signal

Hardware Installation：

First, you need to plug the USB Video Capture into USB 2.0 port.

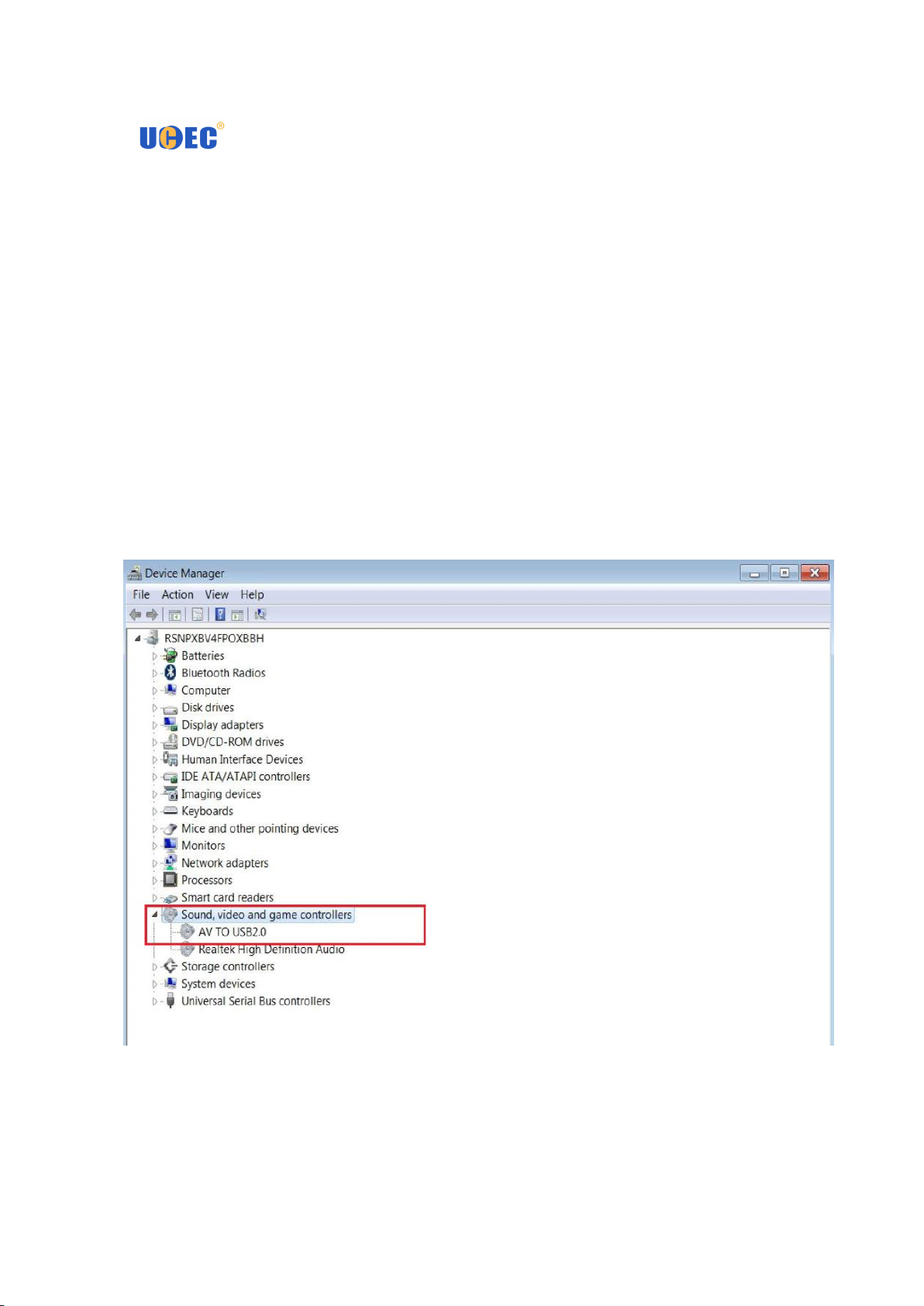

Then, click the Device Manager. In the Device Manager, click on the “Sound, video

and game controllers”. You should see the “AV TO USB2.0”.

You don't need to install any drivers. Driver installation completed.

How to install ShowBiz 3.5

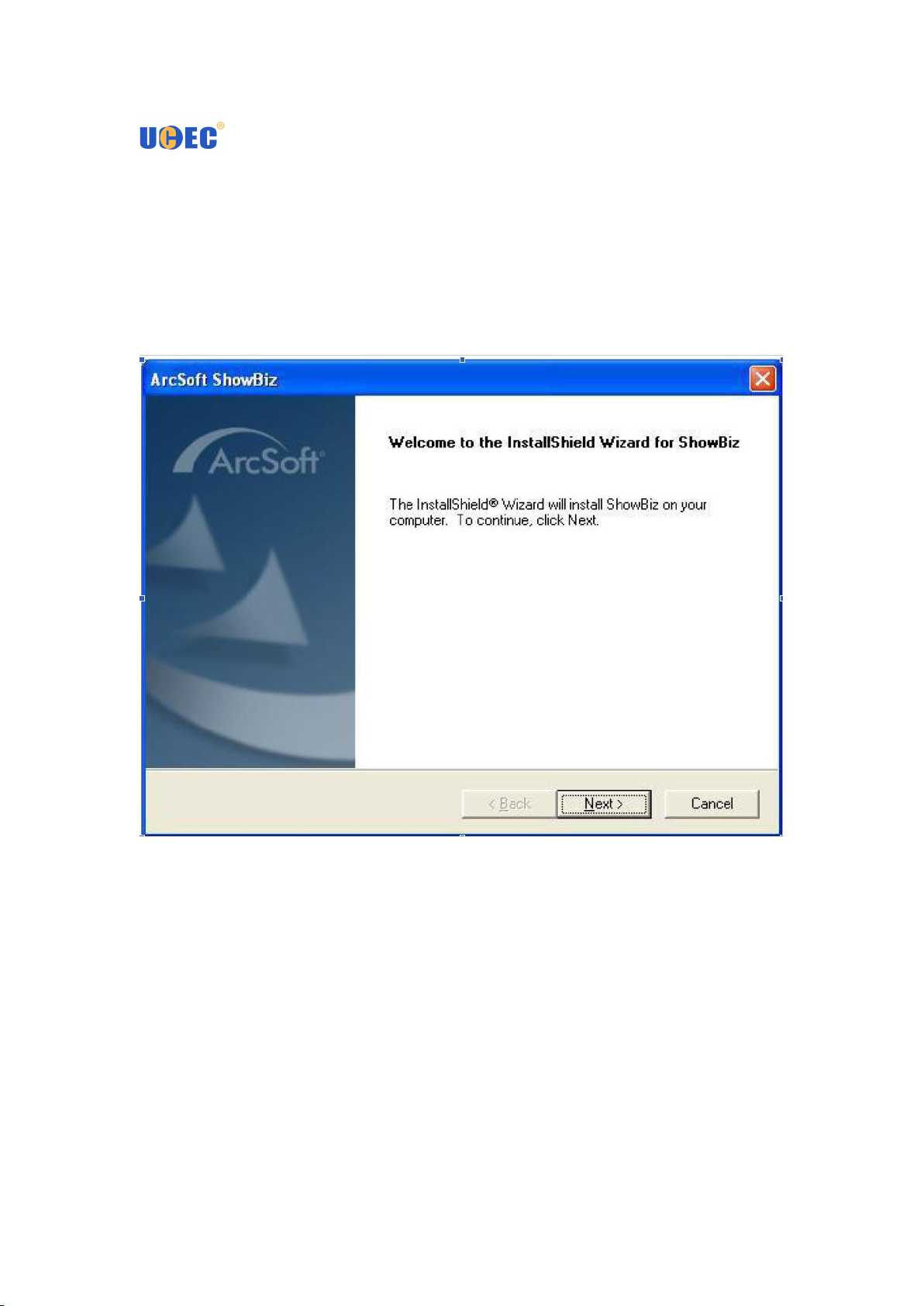

1. Note: If you have any antivirus software enabled, please disable it during the

installation of the software. Before you first connect the USB Video Capture to your

computer, please insert the “CD-ROM” into your CD drive. Then you should find a

picture of software running. Option “Install ShowBiz 3.5” and select your language

for the installation. And click “Next” or/and “Install”.

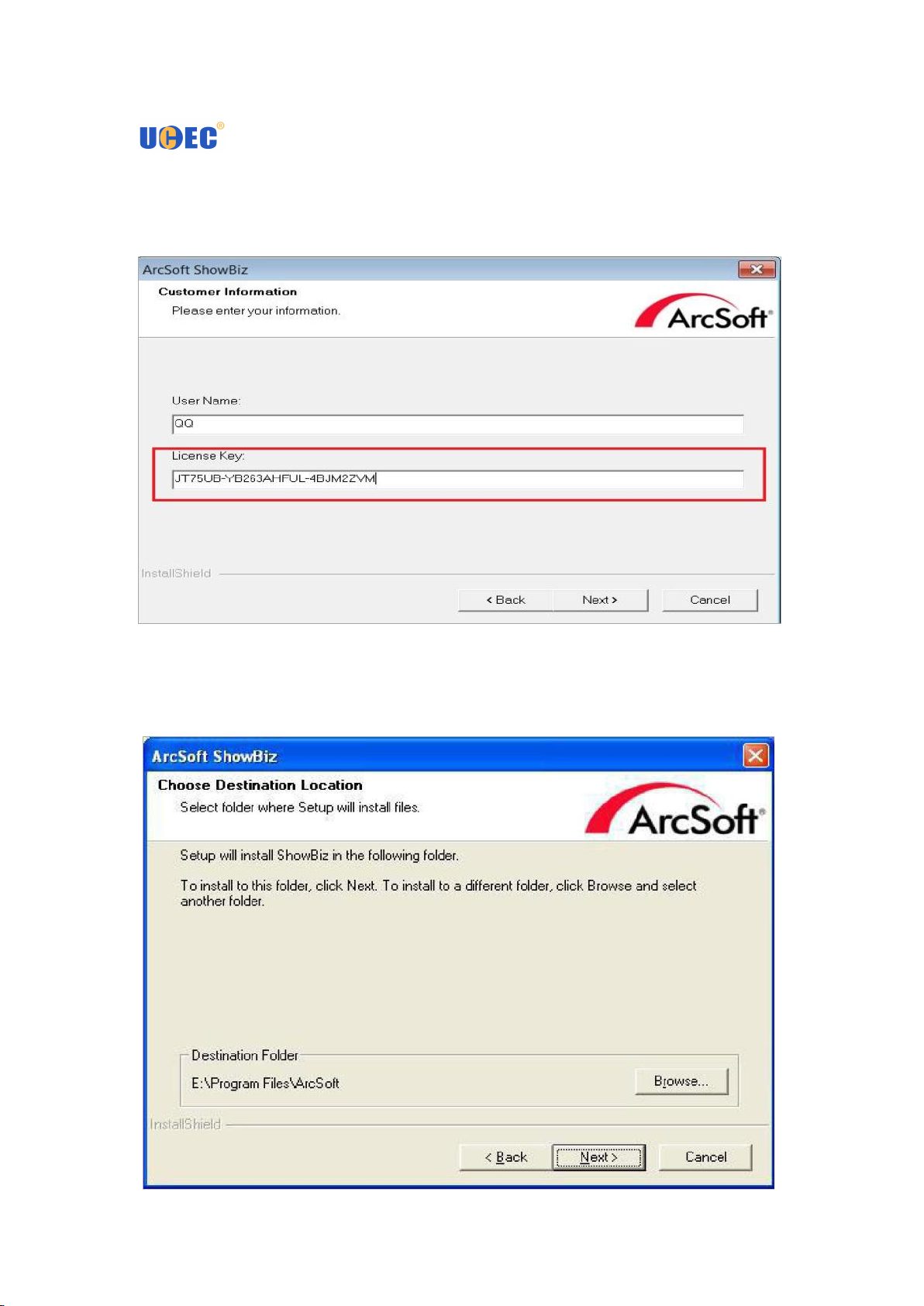

2. You need enter user name and serial number (you can find out the serial number

on CD-ROM bag).

3. System will install the software, and you can choose destination location and

folder. Then click “Next” to continue installation.

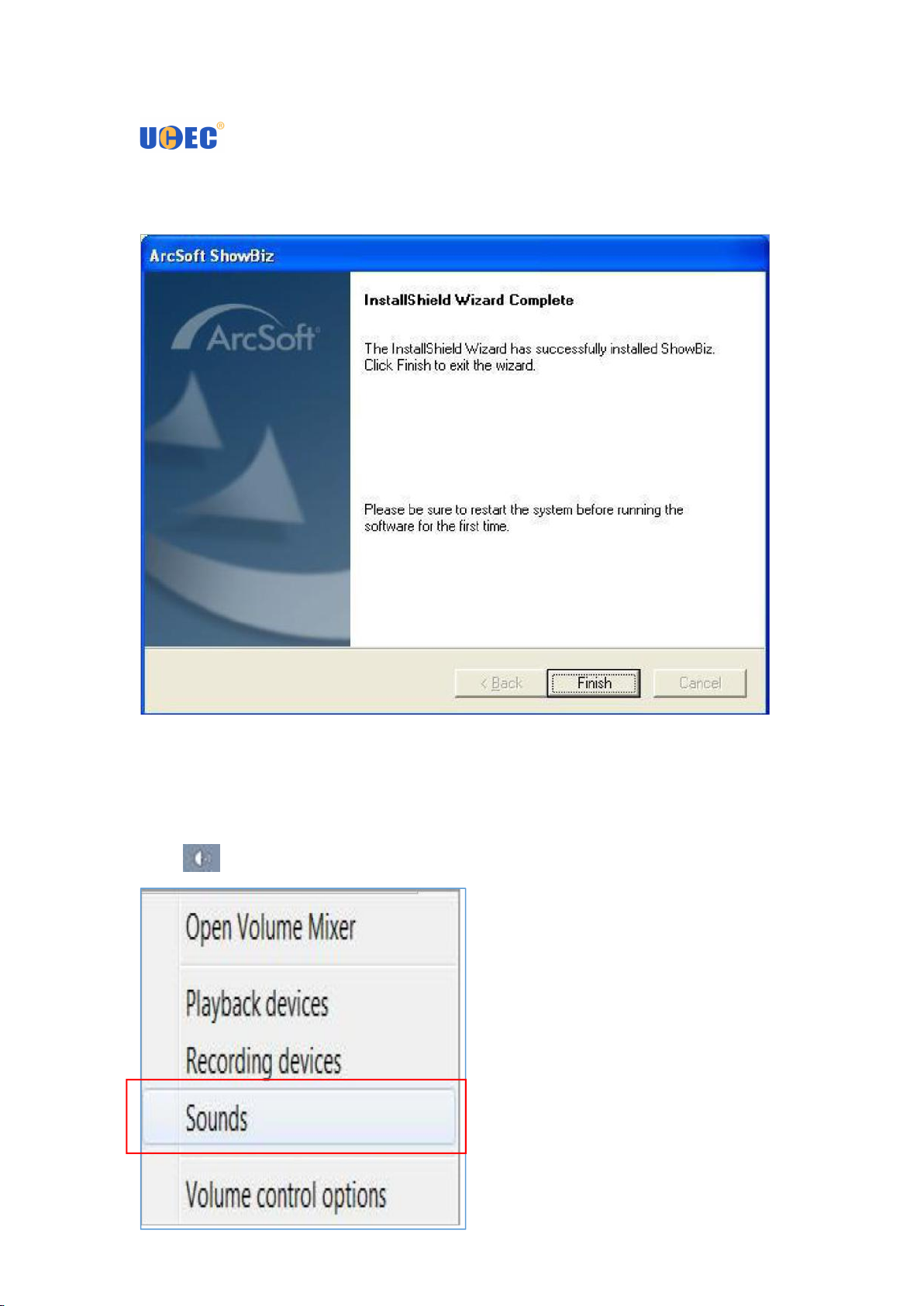

4. Click “finish” to complete setup, restart your computer if needed.

Sounds setup：

Finally, you need to set the Sounds on your computer.

Click right mouse button on the taskbar, Click “Sounds”.

Click “Recording”.

Click “2-AV TO USB2.0”. Click “Listen” Click“Apply”, Sound

setup complete.

How to use the ShowBiz 3.5

1. Now, you need to set software for capturing and editing video and audio.

2. Double click “ShowBiz 3.5” icon on your desktop, and click Capture button to

enter into the capture panel.

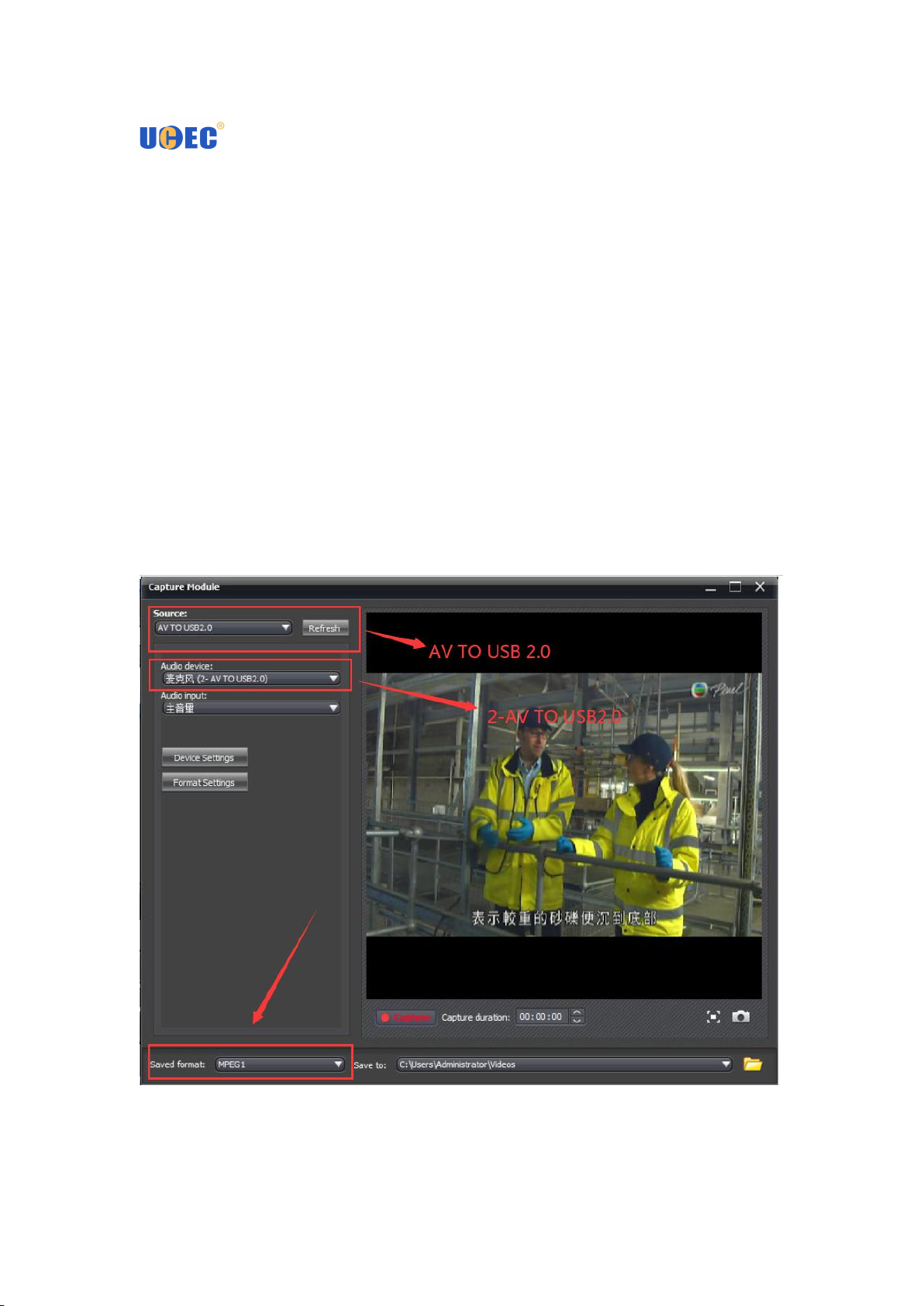

3. On the capture panel, please set “Source” to be “ AV TO USB2.0”, and you must

click “Audio Device” to select “2-AV TO USB2.0” option.

4. Please set “Video input” to be “Composite” or “S-Video” according to the

connection of the device.

Record video

On the capture panel, please click “Record” button to record your video. When you

want to stop the recording, please click “Record’ button again.

You can save your video files with MPEG2 format, and you can change the saved

folder for your recorded videos

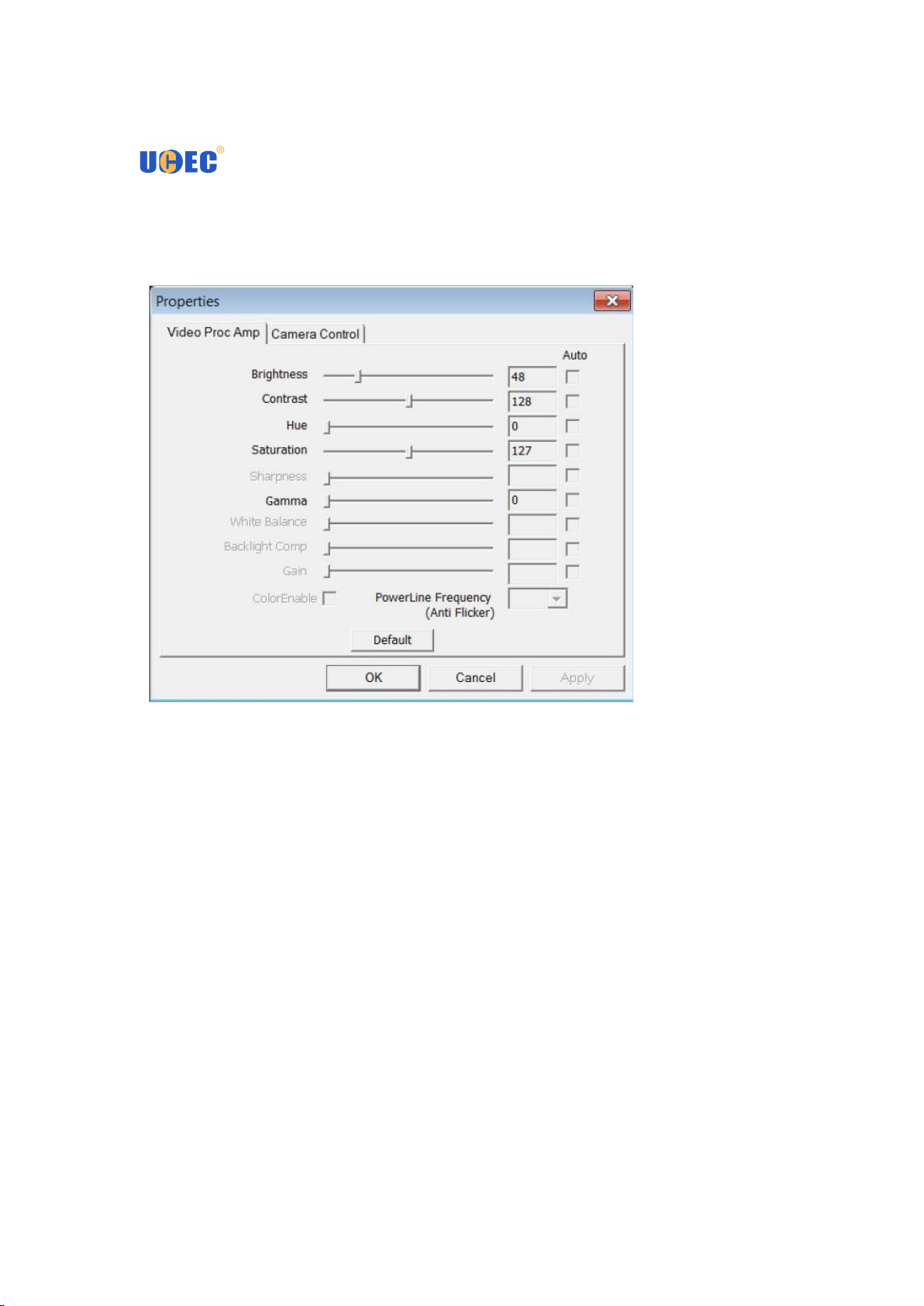

Click “Device Setting” to adjust Brightness, Contrast, Hue and Saturation

Control for a good picture quality.

After all that, you can browse the video on the window of the player software.

Edit video

Please click “Edit” key or close the player window to edit your video files. The first,

plesae select the video file you want to edit, then you can choose the various effects

to edit them according to your needs.

Also you can edit your pictures or audio files with ShowBiz 3.5, the first ,select

Picture or Audio option, then click ”Open” to choose the file and edit them.(Next

page)

Edit video

Save, convert or upload videos

You can click “Produce”button to enter into the fowlling panel, then you can select

function to handle your recorded video , audio file, or pictures according to your

needs. As creating video file:

The first, please select the file you want to create, and click “Create File”button to

enter into the Create File panel.

On the panel, if you set Type to be PMP, you can create file with Apple TV, iPhone,

iPod classic, iPod nano, or iPod touch format.(Next Page)

If you set Type to be Disc, you can create file with DVD, SVCD, or VCD format.(Next

Page)

If you set Type to be File, you can create file with WMA, ASF, MPEG1, MPEG2, or

WMV format.(Next Page)
